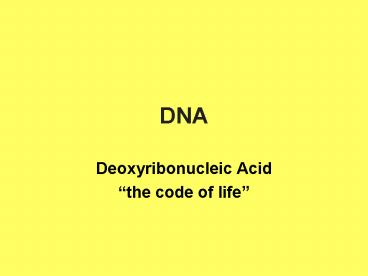

DNA

1
DNA

• Deoxyribonucleic Acid
• the code of life

2
Topics of Study

• DNA
• STRUCTURE
• REPLICATION
• TRANSCRIPTION
• TRANSLATION

3
DNA

• Chemical basis of heredity
• In nucleus of eukaryotic cells
• In nucleoid region of prokaryotic cells
• Is a nucleic acid molecule

4
(No Transcript)
5
DNA

• Large 2 stranded molecule
• Double helix shape
• NUCLEOTIDE building blocks
• 5-Carbon sugar molecule - deoxyribose
• Phosphate group
• Nitrogenous Base - 4 different types
• Tetranucleotide Theory
• Two halves joined with weak hydrogen bonds -
  double or triple

6
(No Transcript)
7
DNA Double helix molecule
Nitrogenous Bases Cytosine always bonds to
Guanine Adenine always bonds to
Thymine Chargoffs Complementary Base Pairing
Rule A and G are purines T and C are pyrimidines
8
DNA Constancy vs Diversity

• Constancy pairing of A-T and C-G is same for
  all species
• Diversity sequencing of A-T and C-G is
  different for each individual organism

9
(No Transcript)
10
(No Transcript)
11
DNA Molecule of heredity

• Stores the necessary information to build and
  operate a cell
• Heredity information is coded in the sequence of
  nitrogenous bases in the molecule
• Sequence of nitrogenous bases forms a gene
• Gene has instructions for the synthesis of
  proteins (enzymes) in the cell
• Proteins (enzymes) produce the heritable
  characteristics of organism
• Genetic differences protein differences

12
FORMS OF DNA

• Chromatin - DNA fragments
• Usual form of DNA in cell
• Chromosome - DNA strand
• Organized for cell division purposes
• Chromosomes composed of 1/2 DNA and
• 1/2 protein DNA wrapped around histone
• protein

13
(No Transcript)
14
(No Transcript)
15
(No Transcript)
16
DNA Strands

• Have direction 5-------------------gt 3
• Double helix strands are anti-parallel
• 5-----------------
  --gt 3
• 3lt------------------- 5
• Strands are complementary to one another

17
DNA History

• Meischer, 1869 - isolated white powder he called
  nuclein from nucleus of cells
• Levine, 1920s - chemical components of
• of sugar, phosphate, nitrogenous bases
• Hershey and Chase - DNA is genetic material in
  some viruses
• Chargoff, 1940s - complementary base pairing rule

18
DNA History

• Mirsky - somatic cells have X amount of DNA
  gametes contain 1/2 X amount
• Pauling - suggested double helix shape
• Franklin and Wilkins - x-ray diffraction study of
  shape and size patterns with respect to location
  of components
• Watson and Crick, 1950s - first DNA model

19
DNA Replication

• Process by which DNA makes a replica (copy) of
  itself

20
PROCESSES INVOLVING DNA

• DNA can automatically self-copy its molecules in
  a process called REPLICATION
• REMEMBER C to G and A to T
• Replication must always preceed cell division so
  daughter cells will receive exact amount of DNA
• Replication occurs during S-stage of interphase

21
DNA Replication

• DNA double helix unwinds and unzips (helicase)
• Nitrogenous bases separate at Hydrogen bonds
• Each half of DNA molecule serves as the pattern
  or template for the placement of nucleotides
  (DNA polymerase)
• Newly placed nucleotides form complementary side
  of new DNA
• Both DNA molecules the same

22
DNA Replication

• Semiconservative Method of Replication
• Each double helix is half old / half new
• Proven by radioactive nitrogen
• Insures accuracy of base pairing - actually
  proofread by enzymes with less than 1 mistake
  in 1 billion nucleotides

23
A SHORT STRING OF DNA to replicate
24
DNA separates at Hydrogen Bonds
25
Each half serves as template
Nucleotides made in the cell DNA building blocks
26
Each half serves as template complementary
pairing matches building blocks to existing DNA
strand
Nucleotides made in the cell DNA building blocks
27
Each half serves as template complementary
pairing matches building blocks to existing DNA
strand
2 Identical DNA Molecules exactly like the
original
28
DNA Replication

• Produces 2 identical DNA molecules
• Each molecule has 1/2 of the original DNA
• the other 1/2 is newly synthesized
• SEMI-CONSERVATIVE REPLICATION
• Requires enzymes and ATP
• Rate 50 nucleotides per second in human cells

29
(No Transcript)
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
Protein Synthesis

• Using the DNA genetic code to direct the
  synthesis of proteins
• Remember DNA expresses itself as protein
  differences

34
Code of Genetic Information

• GENE is the code in DNA for a specific sequence
  of amino acids A PROTEIN
• Many genes found in DNA molecule
• Gene identified by
• INITIATOR (start) CODE (TAC)
• TERMINATOR CODE (ATT, ATC, ACT)
• DNA serves as template for the formation of a
  work horse molecule
• RNA (can move out of nucleus with copy of
  genetic code)

35
RNA Molecule

• Single stranded molecule
• Ribose sugar
• Phosphate
• Uracil instead of Thymine, Uracil complementary
  to Adenine
• A - U and C - G

36
3 Functional Kinds of RNA

• mRNA (encodes genetic message from DNA for
  protein)
• rRNA (forms 2/3 of ribosome along with 1/3
  protein)
• tRNA (transports amino acids to ribosomes for
  protein synthesis have anticodons)

37
(No Transcript)
38
Genetic Code

• CODE DNA nucleotide triplet sequence
• Triplet CODON transcribed in mRNA (each triplet
  codes for an amino acid)
• ANTICODON triplet on tRNA complementary to mRNA
  (ensures correct placement of amino acid)

39
Process of Interpreting the Genetic Code to
Protein

• TRANSCRIPTION occurs in nucleus
• mRNA synthesized using the DNA pattern
• TRANSLATION occurs at ribosomes
• mRNA directs the synthesis of protein
• Requires
• Ribosomes
• tRNA
• amino acids
• ATP

40
TRANSCRIPTION

• Only 1 side of DNA used (sense strand)
• RNA polymerase only recognizes one of the
  directional DNA strands
• DNA serves as template for RNA nucleotide
  placement and formation
• Eukaryotes transcribe one gene at a time
• Eukaryotic genes have nonsense segments INTRONS
  that have to be removed from mRNA before use

41
(No Transcript)
42
(No Transcript)
43
Use of transcribed mRNATRANSLATION (makes
protein)

• mRNA leaves nucleus thru nuclear pore
• 1st 2 mRNA triplets attach to ribosome
• tRNA transport amino acids to ribosomes
• tRNA with complementary bases (ANTICODONS) attach
  to mRNA
• Amino acids on other end of tRNA are bonded
  together by peptide bonds to make PROTEIN

44
RNA Translation - 3 stages

• Initiation - mRNA binds to ribosome and initiator
  codon(AUG) begins process
• Chain Elongation - tRNAs transport and position
  amino acid in a protein chain according to mRNA
  triplet codons
• Termination - mRNA terminator codes stop
  translation

45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
48
(No Transcript)
49
(No Transcript)
50
Summary Process of Interpreting the Genetic
Code

• Genetic Code is TRANSCRIBED into mRNA molecule
• TRANSLATION of Genetic Code
• mRNA molecule attaches to RIBOSOME
• 2 codons at a time fit in ribosome
• tRNA transports amino acids
• (tRNA binds to mRNA in ribosome by complementary
  base pairing)
• Positions amino acids in correct sequence to make
  protein

51
Mutations to Genetic Code

• Inheritable changes to DNAs code
• Caused by DNA mistakes or by a mutagen
• Rare event and usually harmful
• Helpful only if mutation increases an organisms
  ability to survive

52
Mutations to Genetic Code

• Point Mutation - substitution in DNA nucleotides
  affects only 1 amino acid in a protein sequence
• Frame Shift Mutation - addition to or deletion
  from DNA nucleotides changes the entire sequence
  of amino acids beyond the mutated area
