Hierarchical Penumbra Casting

1

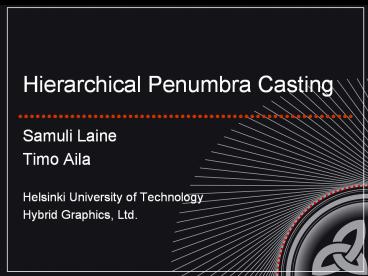

Hierarchical Penumbra Casting

• Samuli Laine
• Timo Aila
• Helsinki University of Technology
• Hybrid Graphics, Ltd.

2
Introduction

• Rendering soft shadows
• As usual, area light sources are sampled with a
  number of light samples
• Multiple receiver points to be shaded
• The main problem is solving the visibility
• which light samples are visible to which receiver
  points

3
Whats Happening?
Light source
Shadow caster
Visible surface
4
On the Scale of the Problem

• With R receiver points and L light samples there
  are RL visibility relations to solve
• For example, 1024768 resolution and 256 light
  samples gives over 200 million relations
• Ray casting is the usual solution for solving the
  visibility relations
• With T triangles, the cost of casting one shadow
  ray is O(log T)
• Total cost becomes O(RL log T)

5
About Ray Casting

• The standard ray casting approach considers only
  one ray at a time
• This inevitably leads to linear performance with
  respect to RL
• However, this is highly flexible
• We need to generate only one ray at a time
• Sub-linear complexity with respect to T is
  achieved by placing the triangles into an
  acceleration hierarchy

6
Transposing the Algorithm

• Goal sub-linear complexity w.r.t. RL
• Requires rearranging the rendering loop

Ray Tracingfor each receiver point r for
each light sample l find triangle that
blocks ray l ? r
linear to R linear to L sub-linear to T
Our Approachfor each triangle T find all l ?
r rays blocked by T
linear to T sub-linear to RL
7
About Our Algorithm

• Sub-linear complexity with respect to RL is
  achieved by placing the receiver points and light
  samples into acceleration hierarchies
• Therefore, all receiver points must be gathered
  before computing the shadows
• We process one triangle at a time
• Good no need for triangle BSP
• Bad linear complexity with respect to T

8
About Our Algorithm, part 2

• The full rendering process goes as follows
• 1. Ray-trace or rasterize the image without
  shadows to get the receiver points
• 2. Build the acceleration structures for receiver
  points and light samples
• 3. Process all triangles to solve the visibility
  relations between light samples and receiver
  points
• 4. Perform shading

9
The Acceleration Structures

• Fixed three-level bounding volume hierarchy is
  used for the light samples
• Assuming a polygonal light source, bounding
  volumes are actually bounding polygons
• Standard bounding volume hierarchy is used for
  the receiver points
• Axis-aligned boxes as bounding volumes

10
Light Sample Hierarchy

• Three levels
• All nodes have a bounding volume

Root node
Middle nodes
Leaf nodes
Entire light source
Light sample groups
Light samples
11
Storing the visibility information

• A bit mask with L bits is assigned for every
  receiver point
• bit 0 light sample is visible
• bit 1 light sample is occluded
• Initially, all bits are zero
• When a triangle is found to occlude a light
  sample from a receiver point, the corresponding
  bit is set to one

12
Penumbra Volumes

• All points where a triangle may block a ray from
  a bounding volume are inside the corresponding
  penumbra volume

Triangle
Penumbra volume
Bounding volume in light hierarchy
13
Processing a Triangle

• First build penumbra volumes for all nodes in the
  light sample hierarchy
• For individual light samples (leaf nodes) these
  become hard shadow volumes

14
Processing a Triangle

• Traverse down the receiver point hierarchy
• Step 1 Test intersection between main penumbra
  volume and bounding volume of receiver node

Triangle
Main penumbra volume
Bounding volume of entire light source
Receiver node
15
Processing a Triangle

• Step 2 Update the list of active light sample
  groups
• At beginning of traversal, all groups are active

Triangle
Bounding volumes of light sample groups
Receiver node
16
Processing a Triangle

• Step 3 Recurse into child nodes in receiver
  hierarchy
• With pruned list of active light sample groups

Triangle
Main penumbra volume
Bounding volume of entire light source
Child nodes
17
Processing a Triangle

• Step 4 In leaf node, test receiver points vs.
  hard shadow volumes of light samples
• Update the visibility relation bits

Triangle
Light samples in active groups
Receiver points
18
Summary of Recursion

• Traverse down the receiver point hierarchy
• Maintain list of active light sample groups
• Initially all groups are active
• First ensure that receiver node intersects the
  main penumbra volume, terminate otherwise
• Then prune the active light sample group list by
  intersecting receiver node vs. penumbra volumes
  of active light sample groups
• In leaf node, test receiver points against hard
  shadow volumes of remaining light samples

19
Optimizations

• Umbra bits for early traversal termination
• With receiver hierarchy rebuilding to ensure
  balance
• Active plane sets
• Lazy penumbra volume and hard shadow volume
  construction
• On-demand bit mask allocation
• Coarse blocker sorting

20
Extensions

• Multiple light sample sets
• To remove banding artifacts
• Alpha matte textures
• Often used in e.g. vegetation textures
• Adaptive antialiasing
• Volumetric light sources

21
Results

• Compared against Mental Ray 3.2
• Benchmarked only the solving of the visibility
  relations
• For Mental Ray, computed both with and without
  shadows and took the difference
• More detailed results in the paper

22
Grids
32K triangles256 light samples
Resolution Peak mem usage Speedup factor
12809600 058M 13.5
25601920 228M 16.7
23
Flowers
903K triangles256 light samples
Resolution Peak mem usage Speedup factor
12809600 039M 3.5
25601920 154M 7.8
24
Sponza
1.27M triangles256 light samples
Resolution Peak mem usage Speedup factor
12809600 062M 8.2
25601920 244M 11.4
25
Results Analysis

• Sub-linearity with respect to R
• Increasing output resolution gives better
  relative performance
• Due to hierarchical processing of receiver points
• Sub-linearity with respect to L
• Using more light samples gives better relative
  performance (results in the paper)
• Due to using analytic penumbra volumes that
  represent many light samples at once

26
Results More Analysis

• Somewhat high memory usage
• Depends on the output resolution
• Depends on the complexity of the shadows
• Does not depend on the number of triangles in the
  scene
• New problem dependence on the spatial size of
  light source
• Penumbra volumes become larger
• Leads to lower performance

27
Conclusions

• Nice properties
• Exactly the same result as with ray casting
• No need to store all triangles at any point
• Sub-linear dependence on output resolution and
  number of light samples
• Not so nice properties
• Linear dependence on triangle count
• Memory usage can be high
• Dependence on the spatial size of light source

28
Future Work

• Process multiple triangles at a time?
• Could experiment with full light sample
  hierarchy, which should (in theory) have better
  performance

29
Thank You

• Questions

Funding National Technology Agency of Finland,
Bitboys, Hybrid Graphics, Remedy Entertainment,
Nokia, ATI
