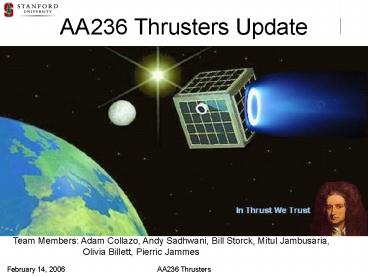

AA236 Thrusters Update

1
AA236 Thrusters Update
Team Members Adam Collazo, Andy Sadhwani, Bill
Storck, Mitul Jambusaria, Olivia
Billett, Pierric Jammes
2
Presentation Outline

• Team Mission Statement
• Address Concerns
• Thruster Technologies
• Torquer Coil Study
• Torquer Coil Dynamics
• Power System
• Next Steps

3
Mission Statement

• We will develop and demonstrate 3-axis attitude
  control for CubeSats

• Purpose Statement
• Attitude Determination Control
• 3 Axis Control
• Reliability
• Proof of Concept
• Test Maneuvers
• Orbit Changes and De-Orbit Capability

• Main Requirements
• Low Power
• Minimum Rotation Rate
• Minimum and Maximum Thruster Requirements
• Integration with KatySat
• Power System
• Control Systems
• Thruster Operating Temperature Ranges

4
Schedule
5
Momentum Wheels

• Issues
• Physical size and mass
• Power Requirements
• Case Study
• Aalborg University (Denmark)
• Structures issues
• Weight issues

6
Surrey Water Micro-Resistojet

• Flown on UK-DMC in 2004
• Initial system developed in less than 8 months
• mNs of thrust
• Green propellant
• Low power
• High propellant mass
• Low Isp
• Failure during test

7
Alameda MVAT

• Local NorCal company
• High Isp 2000
• mNs of thrust
• Previous flight experience
• No limit on propellant
• 1 kg total mass
• High power

Photo courtesy of Alameda Applied Sciences
8
Vacco MiPS

• Low mass, very small!
• Designed for CubeSat
• 35 mNs of thrust
• Extendable tank
• Low power average
• Needs work student?
• High peak power
• 2 axis control?

Photo courtesy of Vacco Systems
9
Cold Gas Thruster
(Marrotta)
Model SV14 Operating Gas N2, Xe Size
1.6x1.6x5cm Input lt3.5W Mass lt75g Thrust
10mN Cycles 2,000,000
Model CGMT-000-9 Operating Gas N2, He Size
1.6x1.6x6.6cm Input lt1 W Mass lt70g Thrust
10mN Cycles 6,000
10
Pulsed Plasma Thruster
(John Elliss Model)
Components DC2DC Converter, 0.1uF Capacitor,
Coax Teflon Barrel Input 6 Volts at 30
milli-Amps (average) Output 1400 Volts at 200
Amps for 10 nanoseconds Pulse Rate 6
pulses/second Thrust 6 micro-Newtons Lifetime ?
11
Torquer Coils How They Work
The Earth is a Dipole
Parameters Number of Turns Cross Sectional
Area Direction of Current Magnitude of Current
12
Why? Why Not?
The Wheel, its been done
Three Axis Control!!!!
EMI/Magnetometer
KISS
Computational Power and Control Logic
Reliability
Precession
13
Torquer Coil Requirements
Compiled from research of seven universities
14
And I care because

• ADCS
• Magnetometer and EMI
• International Geomagnetic Reference Field Model
  (UToronto-CanX)
• -operation time 2/3 of total attitude code
  execution
• -directional information for torquers

• Power
• Low power requirements
• We may have our own power source

• Spacecraft Bus
• EMI
• Coil Placement
• Mass

15
Torquer coils
Bearth

• T M x Bearth
• with M nt.I.S

90 in 120 seconds T 3 uN.m M 0.1
A.m2 gt 300 turns 0.1 A or 100 turns 0.3 A
M
Torque
16
Torquer coils
Bearth

• T M x Bearth
• with M nt.I.S

90 in 120 seconds T 3 uN.m M 0.1
A.m2 gt 300 turns 0.1 A or 100 turns 0.3 A
M
Torque
17
Possible Layouts
18
Possible Layouts
19
Possible Layouts
20
Possible Layouts
21
Thruster Module Interface
Telemetry
Sensors
KatySat CPU
Thruster 1
High level commands (modes, maneuvers)
Thruster 1
Thruster 1
Firing command
Control Logic CPU
Thruster 1
Thruster 1
Firing Module/ Actuator
Thruster 1
Thruster 1
Thruster 8
Batteries
?
KatySat Power System
Tq. Coil 1
Tq. Coil 1
Tq. Coil 3
Thruster Module Solar Cells
22
Winter Quarter Schedule
23
Next Steps
Finalize Thruster Selection (2wks)
Lab Work PPT and Torquer Coil Development
Determine Power Source
Control Logic Development Integration With KatySat
24
Got Thrusters?
25
Sources Cited

• Data from Micropropulsion Options for the
  TechSat21 Space-Based Radar Flight, J.H.
  Schilling et al, Air Force Research Laboratory.
  Published in Micropropulsion for Small
  Spacecraft, eds. Micci Ketsdever
• Pictures from
• http//www.scs.carleton.ca/barbeau/Picosat/CanX_P
  aper.pdf
• http//www.utias-sfl.net/nanosatellites/CanX1/CanX
  1System.html
• http//www.ndt-ed.org/EducationResources/Community
  College/MagParticle/Physics/CoilField.htm
• http//courses.ece.uiuc.edu/cubesat/Files/ACS_Brya
  n_Gregory_Thesis.pdf
• http//www.ncube.no/project_documents/masterthesis
  /svartveit03.pdf
• http//cubesat.calpoly.edu/_new/workshop/CalPoly20
  04/second/kansas.ppt585,15,Pathfinder Overview
• http//www.conformity.com/0205iz.pdf
• http//news.thomasnet.com/fullstory/9727/3284
