Titel corps 28 News Gothic

1

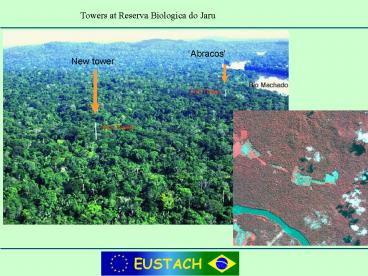

Towers at Reserva Biologica do Jaru
Abracos
New tower
2
Seasonal and interannual variation in C flux,
annual net uptake
3
Jaru uptake 5-6 T ha-1 y-1 (1999-2000), . but
recent years seem to show lower uptake (3.4), and
reanalysis using other averaging technique shows
only 1.4 (?) ---gt calculation techniques are
(still) also important issue, especially where
landscape is non-ideal and towers tall. - no
biometry data, no leakage data - no indication
of CO2 losses during calm nights, but confusion
with temperature? (low T correlated with high
windspeeds)
4
The effecct of Friagem on CO2 fluxes in Jaru
(P.J. Oliveira)
Are friagem effects caused by low temperature or
are they simply more windy days?
5
Maybe we should realise that Eddy
correlation DOES NOT measure ecosystem physiology
directly we should fit both physiology and
MICROMETEOROLOGY to the data!
6
Consider the area beneath the sensor a leaky,
sloshing vessel
Fcf(C,u,lm,R,Ps)
U lm
Cf(sum(Fc),Adv)
Advf(C)
Adv
R, Psalpha.PAR
Solve differential equation, fit against data .
7
(No Transcript)
8
Carbon dioxide fluxes across the Amazon basin
overview of 1999 and 2000 results for EU-
LBA-flux tower sites
Kabat, P.1), Nobre, A D2), Grace, J3) , Manzi,
A4) ,Kruijt, B1), Von Randow, C 4), Elbers, J
E1), Malhi, Y 3), Carswell, F 3), Da Costa, L.5),
Culf, A6), Nobre, C 4), Da Rocha, H 7),
Waterloo, M1), De Araujo, A C2), De Oliveira, P
J4)9), Stefani, P8), Freitas, H7) 1) Alterra,
NL, 2) INPA, Brazil, 3) Edinburgh University, UK,
4) CPTEC/INPE, Brazil, 5) UFPA,MPEG, EMBRAPA,
Brazil, 6) CEH, UK, 7)USP, Brazil, 8) Universita
della Tuscia, Italy, 9) ULBRA, UNIR, Brazil
9
EUSTACH Sites
Manaus K34 and Manaus C14
Caxiuana
Rebio Jaru Fazenda Nossa Senhora
10
Methods
Eddy correlation Systems based on Edisol
(Moncrieff et al, 1996) and Euroflux (Aubinet
et al, 1999) closed-path principle. Gill-Solent
3-D sonic anemometer Li-Cor 6262 Gas
analyser SHORT tube, high pumping
rate Calculation delay removal, 3 rotations,
800s recursive detrend, correction for detrend
loss of low frequencies (Except at
Caxiuana) Storage fluxes (in-canopy profiles of
CO2 and H2O (CIRAS SC analyser) ) (Not always
present) Meteorological data Automatic weather
station, shortlong wave radiation, etcetera.
11
Measured CO2 eddy fluxes over 3 years in the
Central, E. and SW Amazon
12
Night-time NEE (Storage corrected) fluxes plotted
against u
Do we have a problem?
? Uncertainty about 7 t ha-1 y-1 ?
?
There is no problem here
13
Similarity relations - representativity for
surface
For all sites the basic s(w)/u relations are
good on average
14
Energy balance closure at Reserva Jaru and
Fazenda Nossa Senhora
15
Seasonal and interannual variation in C flux
16
(No Transcript)
17
Mean Diurnal trend of CO2 fluxes at four sites

• Dry seasons
• Forest peak uptake similar, nights different.
• Pasture lower uptake!

Dry
Wet

• Wet seasons
• Forests and pasture very similar.

18
South African savanna - Hanan et al - AGU talk
19
Night time fluxes (respiration?)
20
Where is seasonality in Jaru?
Mean Diurnal
Cumulative mean diurnal
21
Where is seasonality in Manaus K34?
Mean Diurnal
Cumulative mean diurnal
22
Cumulative flux over the day afternoon
slow-down.
23
Mean hourly canopy light response curves for four
sites
24
Hysteresis in light response seasonally driven?
25
(hysteresis in) surface conductance?
26
Tentative conclusion Seasonality results from
vriation light regime and (soil) respiration
