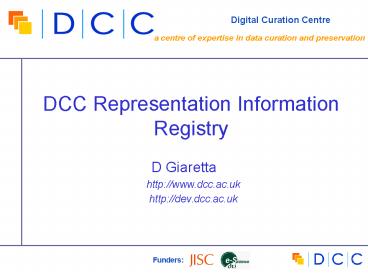

DCC Representation Information Registry

1
DCC Representation Information Registry
Digital Curation Centre
a centre of expertise in data curation and
preservation

• D Giaretta
• http//www.dcc.ac.uk
• http//dev.dcc.ac.uk

Funders
2
Outline

• OAIS key points
• Representation Information
• Registry
• Conclusions

3
Fundamentals

• OAIS Reference Model is a key (the only?)
  standard for the long-term preservation of
  information
• Digital Preservation/Curation covers many issues
  including financial, scientific, technical, legal
  and sociological ones.
• OAIS does not cover all these issues and so
  addresses only part of the solution but a vital
  part

4
OAIS Reminder

• OAIS is a standard about the long-term
  preservation of information
• Information
• not just bits
• Must be usable at least by the Designated
  Community
• How can this be done in a manageable way?

5
OAIS Responsibilities

• The OAIS must
• Negotiate for and accept appropriate information
  from information Producers.
• Obtain sufficient control of the information
  provided to the level needed to ensure Long-Term
  Preservation.
• Determine, either by itself or in conjunction
  with other parties, which communities should
  become the Designated Community and, therefore,
  should be able to understand the information
  provided.
• Ensure that the information to be preserved is
  Independently Understandable to the Designated
  Community. In other words, the community should
  be able to understand the information without
  needing the assistance of the experts who
  produced the information. ?
• Follow documented policies and procedures which
  ensure that the information is preserved against
  all reasonable contingencies, and which enable
  the information to be disseminated as
  authenticated copies of the original, or as
  traceable to the original.
• Make the preserved information available to the
  Designated Community.

6
OAIS Reference Model Functional Model
7
OAIS Information Definition

• Information is always expressed (i.e.
  represented) by some type of data
• Data interpreted using its Representation
  Information yields Information
• Information Object preservation requires clear
  identification and understanding of the Data
  Object and its associated Representation
  Information

Interpreted Using its
Yields
Data Object
Representation Information
Information Object
8
Information Objects
9
Representation Information

• The Data Object is interpreted using the
  Representation Information (RepInfo)
• The Reference Model is designed to ensure that an
  OAIS is not set the impossible task of having to
  provide all possible RepInfo immediately
• Hence
• Take account of the Designated Community and its
  associated Knowledge Base
• Note that RepInfo may itself need further RepInfo

10
Designated Community

• general English reading public educated to High
  School and above, with access to a Web Browser
  (HTML 4.0 capable)
• GIS data GIS researchers - undergraduates and
  above, having an understanding of the concepts of
  Geographic data having access to current (2005,
  USA) GIS tools/computer software e.g. ArcInfo
  (2005)
• Astronomer (undergraduate and above) with access
  to FITS software such as FITSIO, familiar with
  astronomical spectrographic instruments
• Student of Middle English with an understanding
  of TEI encoding and access to an XML rendering
  environment.
• Variant 1 Cannot understand TEI
• Variant 2 Cannot understand TEI and no access to
  XML rendering environment
• Variant 3 No understanding of Middle English but
  does understand TEI and XML

11
Representation Information

• The information that maps a Data Object into more
  meaningful concepts. An example is the ASCII
  definition that describes how a sequence of bits
  (i.e., a Data Object) is mapped into a symbol.

12
Representation Information

• The Representation Information accompanying a
  physical object, like a moon rock, may give
  additional meaning
• It typically is a result of some analysis of the
  physically observable attributes of the rock
• The Representation Information accompanying a
  digital object, or sequence of bits, is used to
  provide additional meaning.
• It typically maps the bits into commonly
  recognized data types such as character, integer,
  and real and into groups of these data types.
• It associates these with higher level meanings
  which can have complex inter-relationships that
  are also described

13
RepInfo Classification
14
Structure including Formats

• Distinguish
• formats which are used mainly for rendering to
  be followed by human inspection, and
• formats used for automated processing
  particularly important for science data
• Distinguish
• Things with unknown structure needs software
• proprietary software e.g. MS Word
• Open Source software e.g. CDF
• Things with known/well described structure
• ASCII file, FITS file, telemetry etc
• Document the format
• Use description language if possible e.g. EAST,
  DFDL,
• The EAST tools are themselves Representation
  Information which in due course will have to be
  fully defined the closure of their
  Representation Nets will be the EAST standard
• Higher level definitions should include useful
  scientific objects and humanities objects

15
Layered Model from OAIS
16
Semantics

• Meaning/ Relationships
• Data Dictionaries
• Thesauri
• Ontologies
• Semantic interoperability

17
Time Dependent Information

• Many, perhaps most, datasets change over time and
  the state at each particular moment in time may
  be important. It may be useful to break the issue
  into separate parts.
• at each moment in time we could, in principle,
  take a snapshot and store it. That snapshot has
  its associated Representation Net.
• efficient storage of a series of snapshots may
  lead one to store differences or include time
  tags in the data
• Additional Representation Information would be
  needed which describes how to get to a particular
  time's snapshot from the efficiently encoded
  version.
• Also applies to ANNOTATION who said what about
  which and when did they say it

18
Actions and Processes (Behaviour)

• Some information has, as an integral part of its
  content, an implicit or explicit process
  associated with it
• An examples of this is a database or other time
  dependent or reactive system such as a Neural
  Net.
• Emulations
• Limited but may be adequate for rendered
  document-type data

19
Is saying its XML enough?

• lt?xml version'1.0'?gt
• ltVOTABLE version"1.1"
• xmlnsxsi"http//www.w3.org/2001/XMLSchema-insta
  nce"
• xsischemaLocation"http//www.ivoa.net/xml/VOTab
  le/v1.1 http//www.ivoa.net/xml/VOTable/v1.1"
• xmlns"http//www.ivoa.net/xml/VOTable/v1.1"gt
• lt!--
• ! VOTable written by uk.ac.starlink.votable.VOTa
  bleWriter
• !--gt
• ltRESOURCEgt
• ltTABLE name"6dfgs_E7_subset" nrows"875"gt
• ltPARAM arraysize"" datatype"char"
  name"Original Source" value"http//www-wfau.roe.
  ac.uk/6dFGS/6dfgs_E7.fld.gz"gt
• ltDESCRIPTIONgtURL of data file used to create this
  table.lt/DESCRIPTIONgt
• lt/PARAMgt
• ltPARAM arraysize"" datatype"char"
  name"Credits" value"Column explanations
  provided by Mike Read (ROE) from 6dfGS
  project."/gt
• ltPARAM arraysize"" datatype"char"
  name"Conversion" value"Converted from
  6dfgs_E7.fld.gz by Mark Taylor (Starlink) using
  STIL."/gt
• ltPARAM arraysize"" datatype"char"
  name"Comment" value"Cut down 6dfGS dataset for
  TOPCAT demo usage."/gt
• ltFIELD arraysize"15" datatype"char"
  name"TARGET"gt
• ltDESCRIPTIONgtTarget namelt/DESCRIPTIONgt

Or here
NO!
20
Preservation Issues

• Given a file or a stream of bits how does one
  know what Representation Information is needed
  (this question applies to Representation
  Information itself as well as to the digital
  objects we are primarily interested in preserving
  and using) how does one know, for example, if
  this thing is in FITS format?
• Someone may simply know what it is and how to
  deal with it i.e. the bits are within the
  Knowledge Base
• One may be able to recognise the format by
  looking for various types of patterns.
• One may feed the bits into all available
  interpreters to see which accept the data as
  valid
• Other means.
• The only safe way have an associated label which
  points to the appropriate Representation
  Information
• Note this does not exclude the other methods e.g.
  for data rescue

21
Registry for Representation Info
The Digital Object could have RepInfo packed with
it
Support automated access processing
Example of use of Representation Information
Labelling
22
CPID
Registry
External
23
Preservation Perspectives

• Migration
• Refresh
• Replicate
• Repackage
• Transform
• Access Service
• Dissemination API
• Data Virtualisation
• Source code
• Emulation
• Archive Interoperability
• Federated
• Resource sharing

24
Types of Information Used in OAIS
25
Preservation Description Info
Issues of Trust
26
Archival Information Package
27
Preservation Description Information

• Provenance Information
• Describes the source of Content Information, who
  has had custody of it, what is its history
• Context Information
• Describes how the Content Information relates to
  other information outside the Information Package
• Reference Information
• Provides one or more identifiers, or systems of
  identifiers, by which the Content Information may
  be uniquely identified
• Fixity Information
• Protects the Content Information from
  undocumented alteration

28
Conclusions

• OAIS provides the framework for information
  preservation
• Representation Information is key
• Representation Information is more than just
  format
• Desirable to share the effort
• Also need PDI, Packaging, etc
