Title: CS 164: Slide Set 3: Chapter 2


1

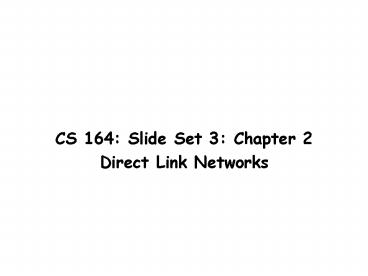

  • CS 164 Slide Set 3 Chapter 2
  • Direct Link Networks

2
What are we looking at ?
  • Networks in which there is no routing involved.
  • We will look at the physical layer
  • signal representation, error correction.
  • We will look at the link layer
  • Point to Point links
  • Multiple-access
  • Ethernet, Token Ring

3
Network Adaptor and Device Driver
  • Network adaptor sits on the Systems I/O and
    delivers data from the workstations memory to
    the network link.
  • Device driver is the software module that manages
    this adaptor.
  • Issues commands such as from what memory
    location should outgoing data be transmitted,
    where should the incoming data be stored etc.

4
Example architecture
5
Links
  • We have already seen --
  • Twisted pair -- phone
  • Coaxial cable -- Cable TV
  • Optical Fiber
  • Free space -- IR etc.

6
Leased Lines
  • Telephone lines -- long distance
  • DS1 or T1 line -- 1.544 Mbps
  • DS3 or T3 line --- 44.736 Mbps -- 30 T1 lines.
  • T1 lines originally conceived for 24 digital
    voice circuits -- each of 64 Kbps.
  • Leased line does not have to be a single unbroken
    piece of fiber -- logical connection.

7
Synchronous Transport Signal (STS)
  • Optical signals -- also called OC for optical
    carrier.
  • We have STS-1 (or OC-1), STS-3, STS-12, STS-24
    and STS-48.
  • STS-1 --gt 840 Mbps.

8
Last Mile Links
  • We talked about this -- ADSL, POTS --(Plain old
    telephone service) etc.

9
Signals
  • Electromagnetic waves -- travel at speed of light
  • Frequency -- rate at which wave oscillates
    (Measured in Hertz).
  • Wavelength speed of light/ frequency --
    distance between maxima and minima of a wave.

10
The spectrum
11
Modulation
  • Data is in bits -- we need to somehow translate
    this to signal variations.
  • This process is modulation.
  • Vary either the amplitude, frequency or phase of
    the signal --- dictated by the bit stream.

12
Encoding
  • Represent binary data as signals.
  • Let us ignore modulation for the moment.
  • We have two signals -- high and low for
    representing 0s and 1s.
  • signals represent voltages.
  • 1 is high voltage, 0 is low voltage
  • As an example 5 V and -5 V.

13
The NRZ scheme.
14
Problem with NRZ
  • Receiver keeps an average of the signal received
    so far.
  • Compares incoming signal to this average -- if
    significantly higher -- high, if significantly
    lower, then low.
  • If too many zeroes or ones, difficult to track
    this average -- the average wanders -- called the
    baseline wander.
  • If there are clock drifts between the sender and
    receiver, this cannot be detected -- how many
    bits were transmitted ?

15
Other encoding schemes
  • NRZI Transition from current signal to encode
    a 1. Stay at the same signal if it is a 0.
  • Solves problem with consecutive 1s but not
    zeroes.

16
Manchester Encoding
  • X-OR the NRZ with a clock
  • 0 --gt represented as a low to high transition.
  • 1 -- gt represented as a high to low transition.

17
Problem with Manchester Encoding
  • Doubles the rate of transitions.
  • Half the time for the receiver to detect each
    pulse
  • Increase in complexity
  • Bit rate 1/2 Baud rate for Manchester encoding.
  • Note -- baud rate represents signal rate and in
    some cases, bit rate could be higher than baud
    rate -- multiple bits mapped onto a signal.

18
4B/5B encoding
  • Insert extra bits into bit stream to break long
    sequences of 0s and 1s.
  • Specifically every four bits of data encoded into
    a five bit code.
  • Codes such that no more than 2 trailing zeroes
    and no more than 1 leading zero. (When codes are
    transmitted back to back no more than 3
    consecutive zeroes.
  • Resulting codes transmitted using NRZI.
  • Specific codes -- 11111 -- Line idle
  • 00000 -- Line dead
  • 00100 -- Halt

19
Framing
  • Blocks of data (each consisting of bits)
    exchanged between nodes that form a link-- these
    blocks are called frames.
  • Network adaptor allows exchange of frames.

20
Point to Point Links
  • Link Layer protocols are used.
  • Popular Link layer protocols are BISYNC, PPP and
    DDCMP.
  • The protocols deal with the transfer of frames
    across point-to-point links.

21
BISYNC
  • Binary Synchronous Communication (IBM).
  • STX and ETX denote start of text and end of
    text.
  • If ETX appears in body of message, precede with
    DLE (Data Link Escape).
  • If DLE appears precede with another DLE.
  • Called Character Stuffing

22
DDMCP
  • Digital Data Communication Message Protocol
  • Instead of indicating end of text, frame length
    specified by a count.
  • The danger is that count could get corrupted.
  • Similar ETX in BISYNC could get corrupted.
  • Framing errors could result -- error correction/
    retransmissions

23
PPP
  • Point to Point protocol -- most popular
  • Commonly run over dial up modem links.
  • Can be used over Ethernet too --gt Look for RFC.

24
PPP Frame
Usually contain default values
Used for demultiplexing
  • The protocol field identifies the higher layer
    protocol -- typically IP.
  • Payload default is 1500 bytes but negotiable.

25
LCP -- Link Control Protocol
  • Initial PPP set up.
  • Can be used to negotiate payload size.
  • LCP messages encapsulated into PPP frames.
  • Protocol field set to LCP

26
LCP Operations
  • Send Link
  • Configuration Options
  • Set Protocol LCP
  • Configure req/ack
  • exchange

carrier detection or indication that PHY layer is
present by system admin.
Dead
Link Establishment
Authenticate
Terminating
Open
Network Layer Conf
Configure Network Layer Exchange IP addr.
27
Bit Oriented Protocols
  • Previous protocols were byte oriented.
  • Bit oriented protocols not concerned with byte
    boundaries.
  • HDLC is an example.

28
HDLC
  • High level data link control
  • Both beginning and ending by a distinguished
    bit sequence.
  • If sequence appears in text use character
    stuffing
  • Analog of DLE -- bit stuffing -- upon 5
    consecutive 1s, inserts a zero.

29
SONET
  • Synchronous Optical Network Standard developed
    for transmission over fiber.
  • SONET frame has special information that tells
    receiver where frame starts and ends -- no bit
    stuffing.

30
SONET or STS-1 Frames
  • First three bytes overhead
  • Total 810 bytes.
  • 2 byte pattern at beginning -- receiver has to
    see this every 810 bytes -- if it does it
    concludes that it is in sync.

31
Multiplexing with SONET
  • Time is the same but now, a different amount of
    data is transmitted.
  • In each STS-3 frame we have 3x810 2430 bytes.
  • Interleave bytes --1st byte of first STS-1, 1st
    byte of 2nd STS-1 and so on.
  • Ensures that bytes from each STS-1 are evenly
    paced and arrive at a smooth 51 Mbps rate at
    receiver.
  • Bottomline STS-3 channel could contain multiple
    low-data rate STS-1 channel.

32
STS-Nc frames.
  • Payloads linked together instead of interleaving.
  • Concatenation instead of multiplexing.
  • Cannot be multiplexed from different streams.
  • Called STS-Nc (As an example STS-3c).
  • One of the fields in header used to denote
    concatenation.
  • Read rest of stuff on SONET from book.

33
Error Detection
  • How does one deal with bit errors ?
  • Simplest thing to do -- send two copies of each
    bit.
  • If copies match, then data ok, else in error.
  • Too much redundancy --in most cases errors not
    that frequent (especially on fiber and coax).
  • However, some redundancy will be needed.

34
Adding parity bits
  • We can add parity bits.
  • One dimensional parity -- One extra parity bit
    added to a 7 bit code to balance the number of
    1s.
  • If number of 1s is odd, parity bit is odd.
  • Else it is even.
  • If one of the bits gets corrupted, then it can be
    detected.
  • Multiple errors cannot be (.

35
Two Dimensional Parity
  • Do a similar thing across frames in addition to
    along bytes!
  • Catches 1 bit, 2 bit, 3 bit errors and most 4 bit
    errors.
  • How? -- both row and column parities are affected
    by a bit error.

36
Internet Checksum
  • Simple algorithm to compute a checksum.
  • Take all words -- add up and transmit result of
    the sum using 1s complement arithmetic.
  • Smaller number of error protection bits but less
    protection.

37
Summary
  • We have so far seen
  • What is modulation ?
  • Encoding schemes.
  • Link layer protocols --BISYNC, PPP, DDMCP, SONET,
    HDLC.
  • Error detection using parity
  • Internet Checksum.
  • Sections 2.1 to 2.4.2

38
Next
  • CRC --cyclic redundancy check.
  • Retransmissions for reliable transmission.
  • Multiple access channels.

39
