Title: Perfactory

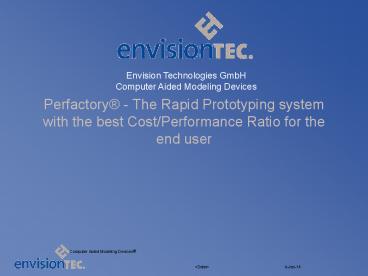

1
Perfactory - The Rapid Prototyping system with
the best Cost/Performance Ratio for the end user
Envision Technologies GmbH Computer Aided
Modeling Devices
2
Envision Technologies GmbH business areas
DEVELOPMENT
SALES/MARKETING
PRODUCTION
Tissue Engineering / Drug Delivery
Rapid Prototyping (RP)/ Concept Modeling
3D-Bioplotter
Products
Perfactory
A patented desktop system forming 3D-scaffolds
out of biomaterials, based on aNC 3D-dispenser
An end-user-friendly and cost effective RP system
for the work place,based on photopolymerization
Computer Aided Modeling Devices for Creatives,
Industry, Mikrosystem- , Medical- and
Bio-Technology
3
Perfactory The idea
... It could be the solution !
... a cost effective, end-user friendly RP
System, Made in Germany for versatile use at
the end users work place In industry, creative
branches and medical technology
4
Perfactory - Your PERsonal FACTORY
3D-Model-Data
Material Process
Perfactory
Design and Fabrication of 3D-models for the end
user
5
Perfactory - could be the solution for ...
the end user, ...
  • working with 3D-CAD SW or SW generating 3D
    data ? single user / small work groups
  • primarily working with small objects
    (?200x150x230 mm)
  • working with filigree structured designs
  • who needs more than visual models ? for
    functional tests
  • ? secondary processes (investment casting)
  • who wants a non expert RP-system
  • who wants his personal RP-system

6
Perfactory - Target market
RP-System price
7
The Perfactory - Prozess
Perfactory - Process
8
Realization of the Perfactory
Photosolidification layer by layer through mask
projection
Z-Positioning unit
Model at holding plate
Polymerisation-basement with Photopolymer
Transparent contact window
DLP-Projection system
9
Mask projection No hatching but texturing
Photopolymerisation through a contact window
  •  Glas plate as polymerisation and reference
    surface
  • no material leveling necessary and no coater /
    doctor blade required
  • unsensitive against quakes/vibrations
  • no oxygen inhibition in the polymerisation layer
  • Short building times through mask projection of
    a sequence ofcomplete layers
  • Exposure control at overhangs

10
(No Transcript)
11
Technical data Perfactory
  • Resolution of Digital Mirror Device (DMD) XGA
    (1024 x 768 Pixel)
  • Building Speed ca. 36mm/h at 100µm layer
    thickness
  • Standard Zoom
  • XYZ 200 x 150 x 230 mm 111 x 83 x 230
    mmPixel 0,2 x 0,2 mm 0,11 x 0,11 mmLayer 50
    150 µm 50 150 µm
  • Mini Zoom
  • XYZ 92 x 69 x 230 mm 51 x 38 x 230 mmPixel
    0,09 x 0,09 mm 0,05 x 0,05 mmLayer 25 100
    µm 25 100 µm
  • Material Acrylate

12
Perfactory applicationsDESIGN
13
Perfactory applicationsAUTOMOTIVE
14
Perfactory applicationsDENTAL
  • Occlusion Splints
  • Splints against bruxism
  • Orthodontic works
  • Surgical guides

15
Perfactory applicationsJEWELERY
Models for Design verification and
post processing like investment casting
16
Perfactory applicationsMEDICAL
17
Requirements for the personal factory
Ethernet- interface
Material- cartridge
Work place PC(or network)
  • Software
  • (3D-CAD Software)
  • Perfactory SW-Suite
  • Perfactory Desktop
  • Perfactory RP
  • Perfactory Convert
  • Perfactory Direct
  • Perfactory Job Creator
  • other RP-SW
  • Additional equipment
  • Cleaning equipment
  • Tools for postprocessing
  • Enviroment
  • Office / laboratory / workshop

18
Perfactory Software Suite
The Perfactory Software Suite contains five
modules
  • Perfactory Desktop ? Navigation Window for
    easy access to
  • Perfactory RP ? STL and CLI Handling
  • Perfactory Direct ? Machine Communication
  • Perfactory Convert ? CLI-Repair, Mask
    Conversion
  • Perfactory Job Creator ? Machine File Creation

19
Perfactory RP STL and CLI Handling
  • Import / Export(STL and CLI Files)
  • Automatic Orientation (STL Files)
  • Automatic Placement (STL and CLI Files)
  • Slicing (STL Files)
  • Automatic Repair (CLI Files)
  • Mask Generation
  • Job File Generation

20
Perfactory Direct Machine Communication
  • Add / Remove Job Files
  • Cancel / Interrupt current Building Process
  • Display of Machine and Process Informations
  • with access restriction to owner

21
Perfactory Convert CLI-Repair, Mask Conversion
  • Import of CLI Files
  • Automatic Repair of
  • Overlaps
  • Open Contours
  • Useless Contours
  • Wrong ClassifiedContours
  • Model Duplication
  • Mask Generation

22
Perfactory Job Creator Machine File Creation
  • Generates new Job Files from User specified
  • Mask Data and
  • Machine Parameter

23
Perfactory - (unique) selling points
  • Professional RP-System in the lower price segment
  • Low operating expenses ? 1500 Euro/year
    (economical material use, few wear parts, no
    expensive Laser)
  • Mobile Stand alone System with embedded PC
    andEthernet interface (TCPIP)
  • Office, laboratory or workshop environment (lt
    1m²)
  • Fast building speed approx. 36 mm/h
  • Smaller parts ?higher resolution
  • Especially suitable for filigree structures
  • Design and functional models
  • Models for post processes like (precision)
    investment casting

24
Status and outlook
  • Status
  • Perfactory prototype at the Hannover Ind. Fair,
    April 2001
  • First material red, opaque acrylat
  • Perfactory pre series samples at the Euromold,
    Nov. 2001
  • Perfactory series samples at the Euromold,Dec.
    2002
  • Outlook
  • Sales start in Europe 2nd Q. 2003
  • Materials with different properties 2nd Q. 2003

www.envisiontec.de
