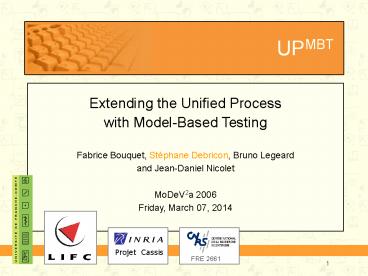

UPMBT

1
UPMBT
Extending the Unified Process with Model-Based
Testing Fabrice Bouquet, Stéphane Debricon,
Bruno Legeard and Jean-Daniel Nicolet MoDeV2a
2006 Friday, March 07, 2014
2
gt Outline

• 1. Unified Process (UP)
• 1.1 Overview
• 1.2 Structure
• 2. Model-Based Testing (MBT)
• 3. Extending the Unified Process with Model-Based
  Testing (UPMBT)
• 3.1 Process
• 3.2 Workflows
• 3.3 Phases
• 4. RTAXPM case study
• 5. Conclusion and Future work

UPMBT
3
gt Introduction

• Process
• The UP a software engineering process (SEP).
• MBT a process conducting the generation and
  execution of tests.
• UP MBT UPMBT methodological framework for
  MBT.
• Modeling

UPMBT
4
gt Outline

• 1. Unified Process (UP)
• 1.1 Overview
• 1.2 Structure
• 2. Model-Based Testing (MBT)
• 3. Extending the Unified Process with Model-Based
  Testing (UPMBT)
• 3.1 Process
• 3.2 Workflows
• 3.3 Phases
• 4. RTaxPM case study
• 5. Conclusion and Future work

UPMBT
5
gt UP gt Overview (1)

• The UP, a SEP
• Requirements Software.
• A template of process to be customized.
• The UP is
• Iterative short time-boxed iterations made of
  workflows.
• Incremental each iteration generates a
  partially complete version of the final system.

UPMBT
6
gt UP gt Overview (2)

• Architecture-centric
• Develop and evolve a robust system architecture.
• Focus of early iterations.
• Risk driven
• Develop high-risk elements in early iterations.
• Requirements driven through use case
• To help plan iteration.

UPMBT
7
gt UP gt Structure

• A SEP (here the UP) defines
• WHO participate?
• WHAT is there to do?
• HOW to develop it?
• WHEN to deliver a version?
• A 2 axes structure
• Workflows
• Phases

UPMBT
8
gt Outline

• 1. Unified Process (UP)
• 1.1 Overview
• 1.2 Structure
• 2. Model-Based Testing (MBT)
• 3. Extending the Unified Process with Model-Based
  Testing (UPMBT)
• 3.1 Process
• 3.2 Workflows
• 3.3 Phases
• 4. RTAXPM case study
• 5. Conclusion and Future work

UPMBT
9
gt MBT gt Overview

• Goals
• Identify failures in software.
• Functional validation of a system using a model.
• Key practices
• Use of a model, abstract enough, that capture the
  expected behavior of a system.
• Test cases generation from selection criteria.
• Execution on the System Under Test.

UPMBT
10
gt MBT gt Processes
UPMBT
11
gt Outline

• 1. Unified Process (UP)
• 1.1 Overview
• 1.2 Structure
• 2. Model-Based Testing (MBT)
• 3. Extending the Unified Process with Model-Based
  Testing (UPMBT)
• 3.1 Process
• 3.2 Workflows
• 3.3 Phases
• 4. RTAXPM case study
• 5. Conclusion and Future work

UPMBT
12
gt UPMBT gt Process
13
gt UPMBT gt Workflows

• Design workflow
• Production of the test model,
• Design and Test models are
• Produced in parallel,
• Independent to ensure the quality of the
  generated tests.
• Test target and selection criteria definition
• Test Cases

UPMBT
14
gt UPMBT gt Workflows

• Implementation workflow
• Production of an implementation for the design
  model,
• Production of the adapter and the adaptation
  layer,
• Generation of test scripts from the adapter and
  the test cases.
• Test workflow
• Execution of tests scripts on the system.

UPMBT
15
gt UPMBT gt Phases

• Inception
• Not impacted by the approach.
• Elaboration
• Production of the test model, the adapter and the
  adaptation layer.
• The adaptation layer architecture should be
  defined.

UPMBT
16
gt UPMBT gt Phases

• Construction
• Evolution of points of control and observation to
  keep coherence with design.
• Transition
• Manually produced tests scripts and generated
  tests scripts are executed on the SUT.

UPMBT
17
gt UPMBT gt Benefits
Feedback
Questions

• Corrections produced earlier in the process.
• Quality improvement and better coverage of
  produced tests.
• Increased productivity
• Automatic tests generation.
• Functional evolutions are easy to introduce in
  test campaign.
• From an incremental point of view.

UPMBT
18
gt Outline

• 1. Unified Process (UP)
• 1.1 Overview
• 1.2 Structure
• 2. Model-Based Testing (MBT)
• 3. Extending the Unified Process with Model-Based
  Testing (UPMBT)
• 3.1 Process
• 3.2 Workflows
• 3.3 Phases
• 4. RTAXPM case study
• 5. Conclusion and Future work

UPMBT
19
gt RTaxPM gt Context

• Project with the Canton of Geneva Information and
  Technology Center (CTI), Switzerland.
• Good practices exist, but they are not applied
  systematically in every project
• A reference UML model used to capture many
  project aspects, like business modeling, use
  cases, analysis, design...
• Most projects perform some testing, but neither
  in asystematic nor uniform way.

UPMBT
20
gt RTaxPM gt Overview

• The Cantonal Fiscal Administration (AFC) started,
  a few years ago, the rebuilding of all taxing
  applications.
• An important sub-project is the taxation of legal
  entities named RTaxPM (Refonte Taxation Personnes
  Morales).
• Once a taxation file has been completed, several
  different taxes are calculated (federal, cantonal
  and commune-bound).
• These taxes must then be distributed among the
  various communes of the canton.

UPMBT
21
gt RTaxPM gt Overview

• The tax computation itself involves complex
  business rules (several taxes, percentage lookup
  tables, threshold effects, )
• Besides unit testing, a functional testing
  framework has been developed previously
• Specific cases have been manually devised with
  the help of a complex Excel spreadsheet
• It relies on a database updated with production
  data (percentages) on a regular basis
• A need for testing of both the computation and
  the life cycle exists

UPMBT
22
gt RTaxPM gt Taxation Lifecycle

• Embedded states
• Computing-bound conditions
• Back loops
• Complex business rules
• Security issues (stamping requires special
  privileges)

Stamp
23
gt RTaxPM gt Lifecycle for MBT
24
gt RTaxPM gt Generated Test cases

• Function Taxation computation
• 250 generated test cases and expected results
• Combinatory on tax reduction and tax scale
• Function Taxation life cycle
• 50 generated test cases
• all transitions
• all-one-loop paths on the life cycle
• Test combinatory as round trips within the UML
  state machine

UPMBT
25
gt RTaxPM gt Tests execution

• Use a XML framework with JUnit to execute
  generated test cases

26
gt Outline

• 1. Unified Process (UP)
• 1.1 Overview
• 1.2 Structure
• 2. Model-Based Testing (MBT)
• 3. Extending the Unified Process with Model-Based
  Testing (UPMBT)
• 3.1 Process
• 3.2 Workflows
• 3.3 Phases
• 4. RTAXPM case study
• 5. Conclusion and Future work

UPMBT
27
gt Conclusion

• This first experimentation is a success for the
  CTI and UPMBT
• Integration of MBT into a SEP
• Can accelerate its adoption.
• Reduce the risk of incoherence between design and
  test model.
• Give permanent feedback from the test model to
  the analysis model.
• Dont start from scratch but use the analysis
  model to derive the test model.
• UPMBT can be used with any tools supporting UP

UPMBT
28
gt Future work

• Experimenting
• With other case study
• the parallel development of the design and test
  model.
• Defining
• Guidelines to model for test.
• A subset of UML.
• An action language to be used for MBT.
