Office Ergonomic Evaluations

1

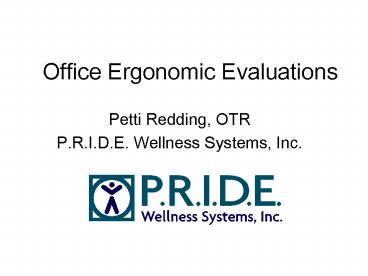

Office Ergonomic Evaluations

• Petti Redding, OTR
• P.R.I.D.E. Wellness Systems, Inc.

2
The DisconnectEngineering VS. Medicine

• Primary goal
• to keep individuals from experiencing pain
• All bodies are NOT created equally
• So how can we exclude functional human anatomy
  from any discussion about ergonomics?

3
Job Demands Physical Capacity If they dont
equal, you get PAIN!
Physical Capacity
Job Demands
Increase this
Decrease this
4
Job Demands

• 24/7/365 days a year as we only have 1 body to
  do our at work, on the weekend, in the evening,
  on vacation, etctasks.
• So the state of our bodies relates to how we feel
  not only at work, but all other times as well.

5
Physical Capacity

• Core strength of the spine
• Muscular endurance
• Joint range of motion
• Postural balance

6
Structural Integrity of the Human Body Key
Components

• Bony Alignment is dictated by health and balance
  of the core muscles
• The body adapts to the positions it is put in
  over extended periods of time

7
(No Transcript)
8
(No Transcript)
9
I was born like that

• Slow regression of postural balance over time
• Sitting is a major factor
• Constant postural fight against gravity
• Inactivity is a large factor
• But the primary culprit is
• MUSCLES

10
Muscle anatomy and function
11
A different view of a sarcomere
12
At the cellular levelthe sliding mechanism
theory
13
Muscle sarcomere in action
14
Dysfunctional musclesthe trigger point

• Muscles contracting in over-stretched,
  over-shortened or over-worked positions
• Muscles holding a static, isometric contraction
  for extended periods of time
• lead to a in blood flow and
  resulting energy crisis

15
Trigger Point Formation

• 1st Actin and myosin proteins fail to disconnect
  in multiple sarcomeres
• 2nd Leading to increased tension throughout the
  entire muscle

16
(No Transcript)
17
Sample trigger point and referred pain area
(Scalenes)
18
The bowling ball principle
Balanced ball on platform and rigid structure
Unbalanced ball falling off Platform and rigid
structure
19
The body adapts to the position we put it in
20
Neutral alignment of the headThe case for the
double wedgie

• The head should be aligned with the hip and the
  shoulder.
• Whats holding up the head here?
• (hint those neck and shoulder muscles)

21
Chairsbut it says its ergonomic

• Chairs must have these adjustments
• seat height
• armrest height
• Chairs should have these adjustments
• upper back angle
• lumbar height and amount
• seat depth

22
But what if it doesnt?The Double Wedgie(no,
not that wedgie)
23
Why use Wedgies?

• Inadequate lumbar support (the most crucial
  component to keep head aligned)
• Back leans too far back
• Back curves around shoulders (pushes shoulders
  forward and rounds back)

24
What chairs need them?

• In our experience, majority of chairs need them.
  ( Actually, the EMPLOYEE sitting in the chair
  needs them)
• Chair brands that we use them in
• Steelcase
• Herman Miller
• Humantech
• And about 90 of other chair companies

25
What pad to use for the wedgie

• Multiple foam layers to customize fit
• Made by Master Manufacturing
• Model 92011 Black or 92041 Gray
• Available in just about every Office Supply
  catalog out there

26
How to apply

• Lumbar 1st
• Position at belt level or a little below
• Remove 1 or 2 layers of foam if employee voices
  initial discomfort with pad

27
How to apply

• Upper wedgie next
• Apply like an
• inverted T
• Remove 1 or 2 layers if employee voices initial
  discomfort

28
Wedgie tricks

• Explain why
• Place in chair then continue with eval
• Remove pad afterward just to see what feels
  better
• Remind employee to tweak pads if they feel
  discomfort later. ( you must ease them into
  change slowly)

29
Other issues

• Seat depth 2-4 fingers width from seat edge to
  behind knee
• Armrest height no higher than shoulders relaxed
  and elbows bent with hands lower than elbows
• Seat height no higher than top of legs level
  with floor. ( Use footrest if you have to)

30
Keyboard Placementthe secret trick

• Relax your shoulders, hands in your lap
• Keep elbows at your side (no reaching)
• Raise your hands to just above your lap, lower
  than your elbows
• What do you feel in your shoulders?

31
What we DONT want
32
Wrist rests are not for the wrists!

• Placement at the heel of the hand (remember the
  mountains and the valley)
• Problems dont come from the wrist, they come
  from the neck, anyway.
• The more tense the shoulders are, the more tissue
  damage and chance of nerve compression at the
  neck and shoulders.
• (unless the floating technique is working for
  them)

33
How to fix keyboard position

• Adjustable keyboard tray or shelf
• Adjustable table or desk
• If cant lower desk, then raise chair, and then
  raise floor (footrest)
• Add GEL wrist rest (think Pillsbury doughboy)

34
Ulnar deviation
35
Wrist extension

• Back of hand should be bunny slope, not black
  diamond
• Test for employees to feel static contraction
• Hold muscle, bend wrist back and forth
• Now hold wrist up, then type
• While typing flatten wrist
• Feel the difference

36
Negative Tilt of the keyboard

• Go through wrist extension demo
• Set tilt slightly, then explain slow progression
  to more
• Let them try it

37
Where does the mouse go?

• Mouse adjacent to keyboard at same level
• Adjust mouse speed and snap to default
• Control panel or settings
• Select mouse, then pointer options
• Increase mouse pointer speed to max
• Select snap mouse to default

38
Alternative Keyboards

• Split keyboards such as Microsoft and many knock
  offs.
• Forearm neutral keyboards such as Goldtouch

39
Alternative Mouse/trackballs

• Make a change only to make hand position MORE
  neutral
• Consider what employee does w/ mouse
• IF employee complains of wrist pain, problem is
  probably from shoulder reaching

40
Monitor position

• Key is where the head is, not where the monitor
  is
• Conflicting theories height and distance
• Focus on neutral positions
• Watch the employees head as you do your
  evaluation
• Always ask about glasses and/or bifocals

41
Monitor height trick (works every time)

• Get employee positioned in chair correctly
• Turn off monitor
• Ask employee to close eyes and roll head around
  to loosen muscles
• Keep eyes closed, and put your head in the most
  comfortable, balanced position you can find
• Open eyes and look straight ahead- what was the
  very 1st spot you saw?
• If no glasses or bifocals, eyes should focus 2-3
  inches below top of monitor.

42
Bifocals

• Do the head roll technique to find neutral
  position of the head
• Have employee raise and lower chin to see which
  is better to see monitor
• Raise or lower monitor accordingly (You will
  probably LOWER it)
• Focus on the head, not the monitor.

43
What if they still hurt?Tools to have

• Trigger Point Therapy Workbook
• Noodles
• Racketballs
• Backnobbers
• Golf balls
• Exercise balls
• Pilates on the Ball

44
What if they still hurt?Primary areas

• Hands, wrists, elbows and shoulders
• Upper back and top of shoulders
• Low back and hip

45
Remember Structural Integrity

• Focus on total body alignment, not just a single
  muscle or joint
• Pain is probably coming from a referred area, not
  the area of the painthe trigger point
• Focus on correcting behaviors that lead to
  postures that create imbalances

46
Additional Techniques

• For best results, use when employee 1st voices
  discomfort
• Equipment fixes only generally dont take care of
  the problems
• Employee should assume responsibility for
  behavior changes and other techniques

47
Step 1 Trigger Point Deactivation

• Use of self help manual Trigger Point Therapy
  Workbook
• Provide employee use of backnobber, racketball,
  golf ball, etc.

48
Noodle StretchUse for all upper extremity
problems

• Booty to back of head on noodle.
• Elbows in the dont shoot me position, just
  touching ground
• Allow hands to slowly fall toward the floor,
  keeping 90 degree
• angle at elbow
• 4. Hold for 10 minutes, 2 times a day

49
Hamstrings up WallUse for low back pain

• Place small rolled towel in small of back
• Position booty close to wall, with legs up wall
• There should be just a SLIGHT stretch in the leg
  and hip
• Hold for 10 minutes

50
SupermanUse for everyone

• Start prone, keeping chin tucked in, body aligned
• Raise up upper body, and squeeze shoulders
  together
• 3x5 sets, build to 10x10 sets

51
Structural Integrity

• The body is more than the sum of the parts
• Preventive maintenance is the key
• Solutions generally arent found in new stuff
• ADDRESS PROBLEMS WHILE THEY ARE SMALL, TO PREVENT
  REAL INJURIES

52
Questions?

• Thank you
• Petti Redding, OTR
