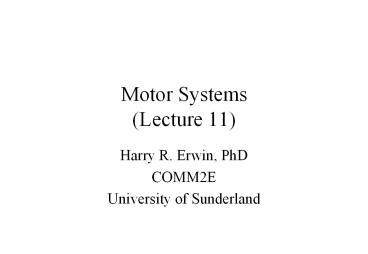

Motor Systems (Lecture 11)

1
Motor Systems(Lecture 11)

• Harry R. Erwin, PhD
• COMM2E
• University of Sunderland

2
Resources

• Nicholls et al. (well-referenced, possibly the
  best for neuroscientists)
• Kandel et al. (medical school textbook)
• Shepherd (general textbook)
• Johnston and Wu (emphasizes neurophysiology, I
  dont have)
• Avis Cohen (UMd Bio 708C course notes)
• Bower and Beeman, The Book of Genesis, ch 8.

3
Outline

• Motor System Architecture
• The Muscle
• Central Pattern Generators
• Motor Systems in the CNS
• Biologically-Inspired Motor System Models
• Book of Genesis, Chapter 8

4
Motor System Architecture

• Hierarchical
• Cortex
• Cerebellum
• Brainstem
• Spinal cord
• Motoneurons
• Muscles

5
Muscles

• Muscles are springs and correct for errors. As
  for any spring, oscillation can be an issue, but
  the muscle controls it. The muscle thinks!
• A muscle is made up of multiple muscle
  fibersmultinucleate cells in mammals that
  contain myosin and actin (elastic). These are
  excitable cells like neurons.
• In higher vertebrates, each fiber is innervated
  by a single motoneuron, but a single motoneuron
  can innervate many fibers of a single type. Fine
  motor skills can involve one fiber/one neuron,
  though more usually about 20. (That makes it
  interesting that H. erectus had a significantly
  smaller spinal cord diameter than H. sapiens.)

6
Muscle Fibers

• Several types of muscle fibers (the first three
  listed are important)
• SS use oxidative metabolism, are weak, do not
  appear to fatigue, have a role in maintaining
  posture.
• FR are fatigue-resistant, use both oxidative and
  non-oxidative enzymes, are stronger, and their
  motoneurons have intermediate input resistance
  and rheobase (current threshold for initiating a
  spike).
• FF fatigue rapidly, are non-oxidative
  (glycolysis), are strongest with low input
  resistance and high rheobase.
• SS are recruited first, followed by FR, and
  finally FF.
• S are slow and have a slow relaxation time.

7
Muscle Contraction Mechanisms

• Individual fibers twitch. Muscle contraction
  uses multiple muscle fibers twitching in a
  pattern. This is non-stochastic action
  potentials always work.
• Myosin and actin are connected by protein
  bridges. The angles of these bridges define the
  force that can be exerted, depending on the type
  of myosin.
• Muscles maximize force when stretched. Going
  beyond that maximum length (pulled), they have
  no force.
• Muscle fibers respond to action potentials (ACh)
  allowing entry of Ca. Cramps reflect a calcium
  deficit.

8
Muscle Efferents

• Axon terminals synapse on the fiber. The AP must
  invade entire fiber.
• ACh is the neurotransmitter. Vesicle release
  leads to diffusion across the junction, where it
  binds to receptors and is hydrolyzed by AChE.
  Binding opens cationic (non-specific) channels
  and the membrane potential collapses.

9
Spindle Systems

• Some muscle fibers are stretch receptors, rather
  than force producers.
• Lack contractile elements.
• Types include primary and secondary muscle
  spindles.
• Primary spindles report that the fiber theyre
  monitoring is carrying force. Measure rate of
  change, allowing you to control velocity.
• Secondary spindles measure tension directly.
• Not servo control!the muscle turns on first,
  control is later.

10
The Spinal Cord

• Organized functionally
• Characterized by fully coordinated rhythmic
  movements.
• Consists of fused dorsal and ventral roots
  surrounding a central canal
• Dorsal roots are sensory (stretch receptors,
  pain, touch, joint position)
• Ventral roots contain motoneurons
• Organized locally into central pattern generators
  (CPGs)
• Ends at the level of the kidneys.

11
Rhythmic Movements

• Questions for research
• How do they happen?
• What do they mean?
• Where do they come from?
• Reflex chain?
• Sequential pattern of activation?
• Reverberatory circuits?
• Cutting the spinal cord removes the inhibition of
  flexion/extension movements (Brown, 1914).
• These issues are also present in the CNS, but the
  two communities do not interact much.

12
Central Pattern Generators (CPGs)

• A Central Pattern Generator is a system of
  neurons that can generate a stereotyped rhythmic
  movement without sensory afference or somatic
  feedback.
• It can be activated/sustained by a triggering
  stimulus (either tonic or phasic), but requires
  no modulation of the input to generate the basic
  pattern.
• Lundberg and Grillner had a nasty argument on
  whether CPGs are present in the motor system.
  This is Avis Cohens specialty.

13
Research into CPGs

• To demonstrate the existence of a CPG
• The stereotyped movement must not be extinguished
  by the removal of varying sensory afference.
• The movement must not be extinguished by the
  removal of somatic feedback.
• Experiments beginning in 1960s produced evidence
  for CPGs. Russian studies of decorticated cats
  showed they could maintain walking motion without
  a cortex.
• Hence the cortex turns walking on.
• Strength of stimulation controls power, not
  frequency.
• Gait changes are automatic.
• Limbs controlled as a whole.
• Primitive mammal-like reptiles give insight here.
  (discuss)

14
CPGs and the Spine

• CPG models have been effective in describing how
  coordinated rhythmic movements might be generated
  in the spinal column.
• Involves interneurons (Renshaw cells) in the
  spinal cord. However, these can be turned off and
  the animal still walks.
• Most motor actions are indirectly managed using
  opposing pairs of muscles controlled by a CPG.
  Motor cortex neurons synapse on the spinal
  interneurons (and directly on the motoneurons
  used in delicate finger movements).
• The Renshaw cells are driven hard.

15
CPGs in Context

• CPGs seem to generate body shape, not force
  commands.
• An acute spinalized curarized deafferented cat
  still walks.
• CPG does not require sensory feedback
• CPG does not require descending control
• Reflex loops do not operate during locomotion.
  The spinal cord decides whether you step on
  something sharp. Corrections and adjustments to
  ground features are all handled by the CPG.

16
Motor Systems in the CNS

• Motor cortex (and related cortices)
• Basal ganglia
• Cerebellum
• Brain-stem nuclei

17
Issues

• How are CPGs controlled by the CNS?
• Do as I do?
• Do as I say?
• Do as I suggest?
• Is the response
• An act? (time-dependent)
• A place? (autonomous)
• A combination?

18
Hypothesis

• Motor commands are suspected of specifying an
  image of attainment.
• Passiveposture
• Activean action

19
Mechanisms of Coordination

• Preservation of phase relationships
• Non-linear
• Developmentally tuned
• Phase differences are fixed
• CNS provides drive
• Spine returns periodic signal to the CNS
• Mutual entrainment of spine and CNS

20
Motor Cortex

• Probably uses dense (vector) rather than sparse
  coding.
• Specifies terminal position of movement in
  world-centered coordinates.
• The spinal cord seems to work in body-centered
  coordinates. Giszter et al. claim that there are
  only four degrees of freedom in the spinal cord
  of frog.
• Cerebellum may be responsible for the change of
  coordinates.

21
Cerebellum

• Seems to be a sensory system (Bower)
• Receives motoneuron and sensory copies, via
  separate pathways.
• Outputs a periodic inhibitory signal to the
  spinal cord
• Very fast response
• Extremely large primary (Purkinje) cells.
• Need to be modeled below the ion channel level.
  5000 compartments are typical.

22
Basal Ganglia

• Play a role in willed (rather than
  stimulus-triggered) acts.
• No convergence in the striatum. Multiple parallel
  modules.
• Convergence at the Globus pallidus (GP).
• Feedback loop
• Cortices (PM, SuppM, M, SS)
• Putamen (part of the striatum, hard to excite,
  hence sensitive to synchronization, input from
  Substantia nigraParkinsons)
• GPext (feedback relationship with the SubThalNuc,
  inhibited by Putamen)
• GPinf and SNreticulata (excited by GPext and
  inhibited by Putamen)
• Thalamus (inhibited by GPinf and SNR, excites the
  prefrontal and premotor cortex).

23
Biologically-Inspired Motor System Models

• Two-way street all the way down. The cortex
  should command a CPG, which then drives the
  cortex in return, signals the motoneurons, and
  interacts with sensory afferents.
• This is a universal picture, using comparisons at
  all levels. See Rodney Brooks robot models.
• Note that if feedback is specific,
  cell-to-cell-back-to-original cell (as in the
  inferior colliculus), this supports a
  back-propagation model for training (not just
  reinforcement learning!).

24
Back to Central Pattern Generators

• The neuronal circuits that support rhythmic
  muscle contractions are referred to as central
  pattern generators (CPGs)
• These circuits can generate this activity in
  isolation.
• The ability to switch between CPGs relies on
  feedback from proprioceptors and higher CNS
  control.

25
Two-Neuron Oscillators
26
The Math of the System

• d?i(t) ?i (in modular terms)
• ?i(t) (?i ?i(0) ) (mod 2?)
• When coupled, we get
• d?1(t) ?1 h12(?1, ?2)
• d?2(t) ?2 h21(?2, ?1)
• ?(t) ?1(t) - ?2(t)
• This describes the phase lag of oscillator 2
  relative to oscillator 1.

27
Calculating

• d?(t)/dt d?1(t)/dt - d?2(t)/dt
• (?1- ?2)(h12(?1, ?2) - h21(?2, ?1))
• Now assume hij is a function of ?1-?2, and is
  zero at zero. This is called diffusive coupling.
• For the phase lag to remain constant,
• d?(t)/dt 0.
• If hij is proportional to the sin of the
  difference, we get different solutions depending
  on the constant of proportionality, depending on
  the ratio of ?1 - ?2 to the sum of the constants
  of proportionality.

28
Why is this interesting?

• It suggests that the typical behaviour of CPGs
  should move from phase drift to phase-locking and
  potentially oscillator death for large networks.

29
Four Neuron Oscillators

• Show similar but more complex behaviour.
• Representative to fish swimming (and by
  implication of tetrapod walking)
• Gives some insight into how gaits might be
  modelled.
• Gives us confidence that our models allow us to
  understand more complex CPGs.
