Introduction to cloud computing

1

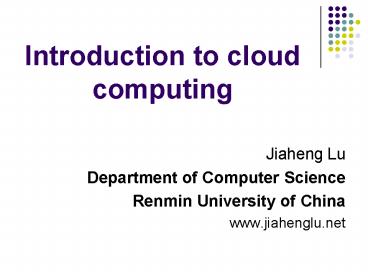

Introduction to cloud computing

• Jiaheng Lu
• Department of Computer Science
• Renmin University of China
• www.jiahenglu.net

2
Cloud computing

3
(No Transcript)
4
Google Cloud computing techniques

5
The Google File System
6
The Google File System (GFS)

• A scalable distributed file system for large
  distributed data intensive applications
• Multiple GFS clusters are currently deployed.
• The largest ones have
• 1000 storage nodes
• 300 TeraBytes of disk storage
• heavily accessed by hundreds of clients on
  distinct machines

7
Introduction

• Shares many same goals as previous distributed
  file systems
• performance, scalability, reliability, etc
• GFS design has been driven by four key
  observation of Google application workloads and
  technological environment

8
Intro Observations 1

• 1. Component failures are the norm
• constant monitoring, error detection, fault
  tolerance and automatic recovery are integral to
  the system
• 2. Huge files (by traditional standards)
• Multi GB files are common
• I/O operations and blocks sizes must be revisited

9
Intro Observations 2

• 3. Most files are mutated by appending new data
• This is the focus of performance optimization and
  atomicity guarantees
• 4. Co-designing the applications and APIs
  benefits overall system by increasing flexibility

10
The Design

• Cluster consists of a single master and multiple
  chunkservers and is accessed by multiple clients

11
The Master

• Maintains all file system metadata.
• names space, access control info, file to chunk
  mappings, chunk (including replicas) location,
  etc.
• Periodically communicates with chunkservers in
  HeartBeat messages to give instructions and check
  state

12
The Master

• Helps make sophisticated chunk placement and
  replication decision, using global knowledge
• For reading and writing, client contacts Master
  to get chunk locations, then deals directly with
  chunkservers
• Master is not a bottleneck for reads/writes

13
Chunkservers

• Files are broken into chunks. Each chunk has a
  immutable globally unique 64-bit chunk-handle.
• handle is assigned by the master at chunk
  creation
• Chunk size is 64 MB
• Each chunk is replicated on 3 (default) servers

14
Clients

• Linked to apps using the file system API.
• Communicates with master and chunkservers for
  reading and writing
• Master interactions only for metadata
• Chunkserver interactions for data
• Only caches metadata information
• Data is too large to cache.

15
Chunk Locations

• Master does not keep a persistent record of
  locations of chunks and replicas.
• Polls chunkservers at startup, and when new
  chunkservers join/leave for this.
• Stays up to date by controlling placement of new
  chunks and through HeartBeat messages (when
  monitoring chunkservers)

16
Operation Log

• Record of all critical metadata changes
• Stored on Master and replicated on other machines
• Defines order of concurrent operations
• Changes not visible to clients until they
  propigate to all chunk replicas
• Also used to recover the file system state

17
System Interactions Leases and Mutation Order

• Leases maintain a mutation order across all chunk
  replicas
• Master grants a lease to a replica, called the
  primary
• The primary choses the serial mutation order, and
  all replicas follow this order
• Minimizes management overhead for the Master

18
System Interactions Leases and Mutation Order
19
Atomic Record Append

• Client specifies the data to write GFS chooses
  and returns the offset it writes to and appends
  the data to each replica at least once
• Heavily used by Googles Distributed
  applications.
• No need for a distributed lock manager
• GFS choses the offset, not the client

20
Atomic Record Append How?

• Follows similar control flow as mutations
• Primary tells secondary replicas to append at the
  same offset as the primary
• If a replica append fails at any replica, it is
  retried by the client.
• So replicas of the same chunk may contain
  different data, including duplicates, whole or in
  part, of the same record

21
Atomic Record Append How?

• GFS does not guarantee that all replicas are
  bitwise identical.
• Only guarantees that data is written at least
  once in an atomic unit.
• Data must be written at the same offset for all
  chunk replicas for success to be reported.

22
Replica Placement

• Placement policy maximizes data reliability and
  network bandwidth
• Spread replicas not only across machines, but
  also across racks
• Guards against machine failures, and racks
  getting damaged or going offline
• Reads for a chunk exploit aggregate bandwidth of
  multiple racks
• Writes have to flow through multiple racks
• tradeoff made willingly

23
Chunk creation

• created and placed by master.
• placed on chunkservers with below average disk
  utilization
• limit number of recent creations on a
  chunkserver
• with creations comes lots of writes

24
Detecting Stale Replicas

• Master has a chunk version number to distinguish
  up to date and stale replicas
• Increase version when granting a lease
• If a replica is not available, its version is not
  increased
• master detects stale replicas when a chunkservers
  report chunks and versions
• Remove stale replicas during garbage collection

25
Garbage collection

• When a client deletes a file, master logs it like
  other changes and changes filename to a hidden
  file.
• Master removes files hidden for longer than 3
  days when scanning file system name space
• metadata is also erased
• During HeartBeat messages, the chunkservers send
  the master a subset of its chunks, and the
  master tells it which files have no metadata.
• Chunkserver removes these files on its own

26
Fault ToleranceHigh Availability

• Fast recovery
• Master and chunkservers can restart in seconds
• Chunk Replication
• Master Replication
• shadow masters provide read-only access when
  primary master is down
• mutations not done until recorded on all master
  replicas

27
Fault ToleranceData Integrity

• Chunkservers use checksums to detect corrupt data
• Since replicas are not bitwise identical,
  chunkservers maintain their own checksums
• For reads, chunkserver verifies checksum before
  sending chunk
• Update checksums during writes

28
Introduction to MapReduce
29
MapReduce Insight

• Consider the problem of counting the number of
  occurrences of each word in a large collection of
  documents
• How would you do it in parallel ?

30
MapReduce Programming Model

• Inspired from map and reduce operations commonly
  used in functional programming languages like
  Lisp.
• Users implement interface of two primary methods
• 1. Map (key1, val1) ? (key2, val2)
• 2. Reduce (key2, val2) ? val3

31
Map operation

• Map, a pure function, written by the user, takes
  an input key/value pair and produces a set of
  intermediate key/value pairs.
• e.g. (docid, doc-content)
• Draw an analogy to SQL, map can be visualized as
  group-by clause of an aggregate query.

32
Reduce operation

• On completion of map phase, all the intermediate
  values for a given output key are combined
  together into a list and given to a reducer.
• Can be visualized as aggregate function (e.g.,
  average) that is computed over all the rows with
  the same group-by attribute.

33
Pseudo-code

• map(String input_key, String input_value)
• // input_key document name
• // input_value document contents
• for each word w in input_value
• EmitIntermediate(w, "1")
• reduce(String output_key, Iterator
  intermediate_values)
• // output_key a word
• // output_values a list of counts
• int result 0
• for each v in intermediate_values
• result ParseInt(v)
• Emit(AsString(result))

34
MapReduce Execution overview

35
MapReduce Example

36
MapReduce in Parallel Example

37
MapReduce Fault Tolerance

• Handled via re-execution of tasks.
• Task completion committed through master
• What happens if Mapper fails ?
• Re-execute completed in-progress map tasks
• What happens if Reducer fails ?
• Re-execute in progress reduce tasks
• What happens if Master fails ?
• Potential trouble !!

38
MapReduce

• Walk through of One more Application

39
(No Transcript)
40
MapReduce PageRank

• PageRank models the behavior of a random
  surfer.
• C(t) is the out-degree of t, and (1-d) is a
  damping factor (random jump)
• The random surfer keeps clicking on successive
  links at random not taking content into
  consideration.
• Distributes its pages rank equally among all
  pages it links to.
• The dampening factor takes the surfer getting
  bored and typing arbitrary URL.

41
PageRank Key Insights

• Effects at each iteration is local. i1th
  iteration depends only on ith iteration
• At iteration i, PageRank for individual nodes can
  be computed independently

42
PageRank using MapReduce

• Use Sparse matrix representation (M)
• Map each row of M to a list of PageRank credit
  to assign to out link neighbours.
• These prestige scores are reduced to a single
  PageRank value for a page by aggregating over
  them.

43
PageRank using MapReduce
Source of Image Lin 2008
44
Phase 1 Process HTML

• Map task takes (URL, page-content) pairs and maps
  them to (URL, (PRinit, list-of-urls))
• PRinit is the seed PageRank for URL
• list-of-urls contains all pages pointed to by URL
• Reduce task is just the identity function

45
Phase 2 PageRank Distribution

• Reduce task gets (URL, url_list) and many (URL,
  val) values
• Sum vals and fix up with d to get new PR
• Emit (URL, (new_rank, url_list))
• Check for convergence using non parallel
  component

46
MapReduce Some More Apps

• Distributed Grep.
• Count of URL Access Frequency.
• Clustering (K-means)
• Graph Algorithms.
• Indexing Systems

MapReduce Programs In Google Source Tree
47
MapReduce Extensions and similar apps

• PIG (Yahoo)
• Hadoop (Apache)
• DryadLinq (Microsoft)

48
Large Scale Systems Architecture using MapReduce
49
BigTable A Distributed Storage System for
Structured Data
50
Introduction

• BigTable is a distributed storage system for
  managing structured data.
• Designed to scale to a very large size
• Petabytes of data across thousands of servers
• Used for many Google projects
• Web indexing, Personalized Search, Google Earth,
  Google Analytics, Google Finance,
• Flexible, high-performance solution for all of
  Googles products

51
Motivation

• Lots of (semi-)structured data at Google
• URLs
• Contents, crawl metadata, links, anchors,
  pagerank,
• Per-user data
• User preference settings, recent queries/search
  results,
• Geographic locations
• Physical entities (shops, restaurants, etc.),
  roads, satellite image data, user annotations,
• Scale is large
• Billions of URLs, many versions/page
  (20K/version)
• Hundreds of millions of users, thousands or q/sec
• 100TB of satellite image data

52
Why not just use commercial DB?

• Scale is too large for most commercial databases
• Even if it werent, cost would be very high
• Building internally means system can be applied
  across many projects for low incremental cost
• Low-level storage optimizations help performance
  significantly
• Much harder to do when running on top of a
  database layer

53
Goals

• Want asynchronous processes to be continuously
  updating different pieces of data
• Want access to most current data at any time
• Need to support
• Very high read/write rates (millions of ops per
  second)
• Efficient scans over all or interesting subsets
  of data
• Efficient joins of large one-to-one and
  one-to-many datasets
• Often want to examine data changes over time
• E.g. Contents of a web page over multiple crawls

54
BigTable

• Distributed multi-level map
• Fault-tolerant, persistent
• Scalable
• Thousands of servers
• Terabytes of in-memory data
• Petabyte of disk-based data
• Millions of reads/writes per second, efficient
  scans
• Self-managing
• Servers can be added/removed dynamically
• Servers adjust to load imbalance

55
Building Blocks

• Building blocks
• Google File System (GFS) Raw storage
• Scheduler schedules jobs onto machines
• Lock service distributed lock manager
• MapReduce simplified large-scale data processing
• BigTable uses of building blocks
• GFS stores persistent data (SSTable file format
  for storage of data)
• Scheduler schedules jobs involved in BigTable
  serving
• Lock service master election, location
  bootstrapping
• Map Reduce often used to read/write BigTable data

56
Basic Data Model

• A BigTable is a sparse, distributed persistent
  multi-dimensional sorted map
• (row, column, timestamp) -gt cell contents
• Good match for most Google applications

57
WebTable Example

• Want to keep copy of a large collection of web
  pages and related information
• Use URLs as row keys
• Various aspects of web page as column names
• Store contents of web pages in the contents
  column under the timestamps when they were
  fetched.

58
Rows

• Name is an arbitrary string
• Access to data in a row is atomic
• Row creation is implicit upon storing data
• Rows ordered lexicographically
• Rows close together lexicographically usually on
  one or a small number of machines

59
Rows (cont.)

• Reads of short row ranges are efficient and
  typically require communication with a small
  number of machines.
• Can exploit this property by selecting row keys
  so they get good locality for data access.
• Example
• math.gatech.edu, math.uga.edu, phys.gatech.edu,
  phys.uga.edu
• VS
• edu.gatech.math, edu.gatech.phys, edu.uga.math,
  edu.uga.phys

60
Columns

• Columns have two-level name structure
• familyoptional_qualifier
• Column family
• Unit of access control
• Has associated type information
• Qualifier gives unbounded columns
• Additional levels of indexing, if desired

61
Timestamps

• Used to store different versions of data in a
  cell
• New writes default to current time, but
  timestamps for writes can also be set explicitly
  by clients
• Lookup options
• Return most recent K values
• Return all values in timestamp range (or all
  values)
• Column families can be marked w/ attributes
• Only retain most recent K values in a cell
• Keep values until they are older than K seconds

62
Implementation Three Major Components

• Library linked into every client
• One master server
• Responsible for
• Assigning tablets to tablet servers
• Detecting addition and expiration of tablet
  servers
• Balancing tablet-server load
• Garbage collection
• Many tablet servers
• Tablet servers handle read and write requests to
  its table
• Splits tablets that have grown too large

63
Implementation (cont.)

• Client data doesnt move through master server.
  Clients communicate directly with tablet servers
  for reads and writes.
• Most clients never communicate with the master
  server, leaving it lightly loaded in practice.

64
Tablets

• Large tables broken into tablets at row
  boundaries
• Tablet holds contiguous range of rows
• Clients can often choose row keys to achieve
  locality
• Aim for 100MB to 200MB of data per tablet
• Serving machine responsible for 100 tablets
• Fast recovery
• 100 machines each pick up 1 tablet for failed
  machine
• Fine-grained load balancing
• Migrate tablets away from overloaded machine
• Master makes load-balancing decisions

65
Tablet Location

• Since tablets move around from server to server,
  given a row, how do clients find the right
  machine?
• Need to find tablet whose row range covers the
  target row

66
Tablet Assignment

• Each tablet is assigned to one tablet server at a
  time.
• Master server keeps track of the set of live
  tablet servers and current assignments of tablets
  to servers. Also keeps track of unassigned
  tablets.
• When a tablet is unassigned, master assigns the
  tablet to an tablet server with sufficient room.

67
API

• Metadata operations
• Create/delete tables, column families, change
  metadata
• Writes (atomic)
• Set() write cells in a row
• DeleteCells() delete cells in a row
• DeleteRow() delete all cells in a row
• Reads
• Scanner read arbitrary cells in a bigtable
• Each row read is atomic
• Can restrict returned rows to a particular range
• Can ask for just data from 1 row, all rows, etc.
• Can ask for all columns, just certain column
  families, or specific columns

68
Refinements Locality Groups

• Can group multiple column families into a
  locality group
• Separate SSTable is created for each locality
  group in each tablet.
• Segregating columns families that are not
  typically accessed together enables more
  efficient reads.
• In WebTable, page metadata can be in one group
  and contents of the page in another group.

69
Refinements Compression

• Many opportunities for compression
• Similar values in the same row/column at
  different timestamps
• Similar values in different columns
• Similar values across adjacent rows
• Two-pass custom compressions scheme
• First pass compress long common strings across a
  large window
• Second pass look for repetitions in small window
• Speed emphasized, but good space reduction
  (10-to-1)

70
Refinements Bloom Filters

• Read operation has to read from disk when desired
  SSTable isnt in memory
• Reduce number of accesses by specifying a Bloom
  filter.
• Allows us ask if an SSTable might contain data
  for a specified row/column pair.
• Small amount of memory for Bloom filters
  drastically reduces the number of disk seeks for
  read operations
• Use implies that most lookups for non-existent
  rows or columns do not need to touch disk

71
BigTable A Distributed Storage System for
Structured Data
72
Introduction

• BigTable is a distributed storage system for
  managing structured data.
• Designed to scale to a very large size
• Petabytes of data across thousands of servers
• Used for many Google projects
• Web indexing, Personalized Search, Google Earth,
  Google Analytics, Google Finance,
• Flexible, high-performance solution for all of
  Googles products

73
Motivation

• Lots of (semi-)structured data at Google
• URLs
• Contents, crawl metadata, links, anchors,
  pagerank,
• Per-user data
• User preference settings, recent queries/search
  results,
• Geographic locations
• Physical entities (shops, restaurants, etc.),
  roads, satellite image data, user annotations,
• Scale is large
• Billions of URLs, many versions/page
  (20K/version)
• Hundreds of millions of users, thousands or q/sec
• 100TB of satellite image data

74
Why not just use commercial DB?

• Scale is too large for most commercial databases
• Even if it werent, cost would be very high
• Building internally means system can be applied
  across many projects for low incremental cost
• Low-level storage optimizations help performance
  significantly
• Much harder to do when running on top of a
  database layer

75
Goals

• Want asynchronous processes to be continuously
  updating different pieces of data
• Want access to most current data at any time
• Need to support
• Very high read/write rates (millions of ops per
  second)
• Efficient scans over all or interesting subsets
  of data
• Efficient joins of large one-to-one and
  one-to-many datasets
• Often want to examine data changes over time
• E.g. Contents of a web page over multiple crawls

76
BigTable

• Distributed multi-level map
• Fault-tolerant, persistent
• Scalable
• Thousands of servers
• Terabytes of in-memory data
• Petabyte of disk-based data
• Millions of reads/writes per second, efficient
  scans
• Self-managing
• Servers can be added/removed dynamically
• Servers adjust to load imbalance

77
Building Blocks

• Building blocks
• Google File System (GFS) Raw storage
• Scheduler schedules jobs onto machines
• Lock service distributed lock manager
• MapReduce simplified large-scale data processing
• BigTable uses of building blocks
• GFS stores persistent data (SSTable file format
  for storage of data)
• Scheduler schedules jobs involved in BigTable
  serving
• Lock service master election, location
  bootstrapping
• Map Reduce often used to read/write BigTable data

78
Basic Data Model

• A BigTable is a sparse, distributed persistent
  multi-dimensional sorted map
• (row, column, timestamp) -gt cell contents
• Good match for most Google applications

79
WebTable Example

• Want to keep copy of a large collection of web
  pages and related information
• Use URLs as row keys
• Various aspects of web page as column names
• Store contents of web pages in the contents
  column under the timestamps when they were
  fetched.

80
Rows

• Name is an arbitrary string
• Access to data in a row is atomic
• Row creation is implicit upon storing data
• Rows ordered lexicographically
• Rows close together lexicographically usually on
  one or a small number of machines

81
Rows (cont.)

• Reads of short row ranges are efficient and
  typically require communication with a small
  number of machines.
• Can exploit this property by selecting row keys
  so they get good locality for data access.
• Example
• math.gatech.edu, math.uga.edu, phys.gatech.edu,
  phys.uga.edu
• VS
• edu.gatech.math, edu.gatech.phys, edu.uga.math,
  edu.uga.phys

82
Columns

• Columns have two-level name structure
• familyoptional_qualifier
• Column family
• Unit of access control
• Has associated type information
• Qualifier gives unbounded columns
• Additional levels of indexing, if desired

83
Timestamps

• Used to store different versions of data in a
  cell
• New writes default to current time, but
  timestamps for writes can also be set explicitly
  by clients
• Lookup options
• Return most recent K values
• Return all values in timestamp range (or all
  values)
• Column families can be marked w/ attributes
• Only retain most recent K values in a cell
• Keep values until they are older than K seconds

84
Implementation Three Major Components

• Library linked into every client
• One master server
• Responsible for
• Assigning tablets to tablet servers
• Detecting addition and expiration of tablet
  servers
• Balancing tablet-server load
• Garbage collection
• Many tablet servers
• Tablet servers handle read and write requests to
  its table
• Splits tablets that have grown too large

85
Implementation (cont.)

• Client data doesnt move through master server.
  Clients communicate directly with tablet servers
  for reads and writes.
• Most clients never communicate with the master
  server, leaving it lightly loaded in practice.

86
Tablets

• Large tables broken into tablets at row
  boundaries
• Tablet holds contiguous range of rows
• Clients can often choose row keys to achieve
  locality
• Aim for 100MB to 200MB of data per tablet
• Serving machine responsible for 100 tablets
• Fast recovery
• 100 machines each pick up 1 tablet for failed
  machine
• Fine-grained load balancing
• Migrate tablets away from overloaded machine
• Master makes load-balancing decisions

87
Tablet Location

• Since tablets move around from server to server,
  given a row, how do clients find the right
  machine?
• Need to find tablet whose row range covers the
  target row

88
Tablet Assignment

• Each tablet is assigned to one tablet server at a
  time.
• Master server keeps track of the set of live
  tablet servers and current assignments of tablets
  to servers. Also keeps track of unassigned
  tablets.
• When a tablet is unassigned, master assigns the
  tablet to an tablet server with sufficient room.

89
API

• Metadata operations
• Create/delete tables, column families, change
  metadata
• Writes (atomic)
• Set() write cells in a row
• DeleteCells() delete cells in a row
• DeleteRow() delete all cells in a row
• Reads
• Scanner read arbitrary cells in a bigtable
• Each row read is atomic
• Can restrict returned rows to a particular range
• Can ask for just data from 1 row, all rows, etc.
• Can ask for all columns, just certain column
  families, or specific columns

90
Refinements Locality Groups

• Can group multiple column families into a
  locality group
• Separate SSTable is created for each locality
  group in each tablet.
• Segregating columns families that are not
  typically accessed together enables more
  efficient reads.
• In WebTable, page metadata can be in one group
  and contents of the page in another group.

91
Refinements Compression

• Many opportunities for compression
• Similar values in the same row/column at
  different timestamps
• Similar values in different columns
• Similar values across adjacent rows
• Two-pass custom compressions scheme
• First pass compress long common strings across a
  large window
• Second pass look for repetitions in small window
• Speed emphasized, but good space reduction
  (10-to-1)

92
Refinements Bloom Filters

• Read operation has to read from disk when desired
  SSTable isnt in memory
• Reduce number of accesses by specifying a Bloom
  filter.
• Allows us ask if an SSTable might contain data
  for a specified row/column pair.
• Small amount of memory for Bloom filters
  drastically reduces the number of disk seeks for
  read operations
• Use implies that most lookups for non-existent
  rows or columns do not need to touch disk
