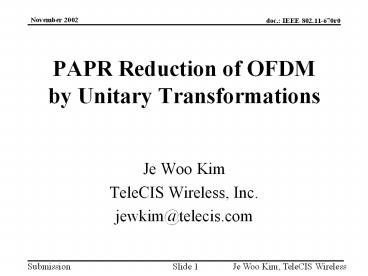

PAPR Reduction of OFDM by Unitary Transformations

1
PAPR Reduction of OFDM by Unitary
Transformations

• Je Woo Kim
• TeleCIS Wireless, Inc.
• jewkim_at_telecis.com

2
Contents

• Background for PAPR Reduction in OFDM
• Delta Frequency Autocorrelation OFDM (DFA-OFDM)
  by Unitary Transformation
• Simulation
• Conclusion
• References

3
Background for PAPR Reduction in OFDM

• PAPR is one of the major issues for OFDM systems
• Most of PAPR reduction schemes require side
  information or suffer from performance
  degradation e.g., PTS, SLM, Clipping, etc.
• PAPR in OFDM can be better than or equal to that
  of Single-Carrier Modulation without BER
  performance loss ?

4
DFA-OFDM by Unitary Transformation

• PAPR Reduction
• Minimize the power variation of unfiltered time
  domain signals
• Minimize the PAPR after LPF
• Minimum power variation in time domain signals
• Constant power in time domain this means delta
  autocorrelation in frequency domain (DFA) by
  Wiener-Khinchine Theorem
• Minimum PAPR after LPF
• Avoid zero crossing as possible with
  constellation rotation
• Results in better than or at least equal to
  Single-carrier in PAPR

5
DFA-OFDM by Unitary Transformation

• System Block Diagram

Figure 1. DFA OFDM block diagram
6
DFA-OFDM by Unitary Transformation

• Assumptions
• M-point IFFT/FFT
• TX signal d(j) (j0,1,2,)
• input vector
• Unitary matrix U
• Transformed output b is given by

7
DFA-OFDM by Unitary Transformation

• permutation matrix
• i times permutation of U
• Transformed signal with U(i)

8
DFA-OFDM by Unitary Transformation

• The autocorrelation of b is given as

• If there is a U that results in the delta
  autocorrelation of b
• (i.e., ), the
  time domain signal can be made constant in power
  This U is a DFA transformation
• For BPSK/QPSK modulation (where is one of
  the ), the sufficient condition
  for is
• and
• For QAM, it is difficult to have DFA transforms,
  but similar concept can be applied

9
DFA-OFDM by Unitary Transformation

• Typical U matrix for DFA transform
• Similar Vandermonde matrix is used in 7 using
  carrier interferometry with

10
DFA-OFDM by Unitary Transformation

• Further PAPR Reduction by Constellation Rotation
• With the U matrix (DFA-OFDM), we can make the
  time domain power constant before LPF, but it may
  still have high PAPR after LPF.
• Find the U(i,j) matrix by constellation rotation
  that results in minimum PAPR after LPF
• This U(i,j) matrix can be found by row and/or
  column permutation of the given U matrix

11
Simulation Environment

• Initial U matrix 7 and P(i) matrix

• U(i,j)P(i)UP(j) DFA Transformation with
  Constellation Rotation

12
Simulation Environment Results

• M64
• BPSK/QPSK/16QAM/64QAM
• 2,000 OFDM symbols for each modulation
• 39 tap FIR filter
• Time domain waveforms
• PAPR
• BER performance at multi-path fading channel (RMS
  delay spread 50ns, 802.11g model)

13
Simulation results
(a) OFDM waveforms
(b) DFA-OFDM(ij0) waveforms
Figure 2. Time domain waveforms (QPSK)
14
Simulation results
(a) PAPR of QPSK DFA-OFDM (i0,j0)
(b) PAPR of 16QAM DFA-OFDM (i0,j0)
Figure 3. PAPR changes before/after LPF
15
Simulation results
(a) BPSK modulation
(c) QPSK modulation
Figure 4. PAPR properties
16
Simulation results
(c) 16-QAM modulation
(d) 64-QAM modulation
Figure 4. PAPR properties (contd)
17
Simulation results
Figure 5. BER characteristics (multi-path
channel rms delay spread 50 ns)
18
Conclusions

• DFA transformation -gt constant time domain power
  for BPSK/QPSK modulations
• Constellation Rotation -gt Further reduce the PAPR
  after LPF
• This concept can be extended to QAM modulation
• PAPR in OFDM can be better than that of
  Single-Carrier Modulation without BER performance
  loss
• 3dB better at BPSK
• 0.5dB better at QPSK, 16QAM and 64QAM

19
References

1. A. D. S. Jayalah, C. Tellambura and H. Wu,
   Reduced complexity PTS and new phase sequences
   for SLM to reduce PAP of an OFDM signal, VTC
   2000
2. H. Ochiai and H. Imai, Performance analysis of
   deliberately clipped OFDM signals, IEEE Trans.
   Comm. Vol. 50, No. 1, Jan. 2002
3. S.G. Kang, J.G. Kim and E.K. Joo, A novel
   subblock partition scheme for partial transmit
   sequence OFDM, IEEE Trans. Broadcasting, Vol.
   45, No. 3, September 1999.
4. L.J. Cimini,, Jr. and N.R. Sollenberger,
   Peak-to-average power ratio reduction of an OFDM
   signal using partial transmit sequences, IEEE
   Comm. Letter, Vol. 4, No. 3, March 2000.
5. G.R. Hill, M. Faulkner and J. Singh, Reducing
   the peak-to-average power ratio in OFDM by
   cyclically shifting partial transmit sequences,
   Electronics Letter, Vol 36, No. 6, March 2000.
6. V. Tarokh and H. Jafarkhani, On the computation
   and reduction of the peak-to-average power ratio
   in multicarrier communications, IEEE Trans.
   Comm., Vol.48, No. 1, pp. 37-44, Jan. 2000.
7. D. A. Wiegandt, C. A. Nassar and Z. Wu,
   Overcoming peak-to-average power ratio issues in
   OFDM via carrier-interferometry codes, IEEE
   Proc. 2001
8. B. T. Shim, H. J. Lee, J. H. Park, J. W. Kim and
   K. O. Kim, "On the implementation of spread
   spectrum MODEM for wireless LAN," Journal of
   Korean Institute of Communication Sciences
   (KICS), Jan. 1995.
9. J. H. Woo, J. W. Kim et al., A Study on the PAR
   Reduction for CDMA Reverse Link, KICS, May 1999.
