Merial interim template

1

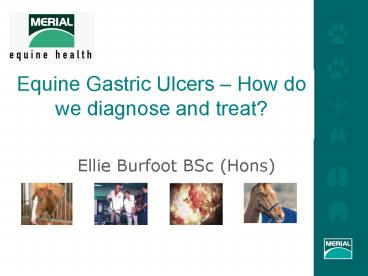

Equine Gastric Ulcers How do we diagnose and
treat?
Ellie Burfoot BSc (Hons)
2
Agenda

• Introduction
• Prevalence How common is this disease?
• Anatomy/physiology
• Risk Factors
• Treatment
• Prevention

3
Introduction

• Damage to the equine stomach lining due to
  excessive stomach acid or problems with the
  natural protection of the stomach lining
• Serious health problem in foals and horses
• Particularly prevalent in performance horses
• Many risk factors
• May or may not show clinical symptoms
• May result in foal mortality

4
Prevalence How common is this disease?

• 93 racehorses in training (Murray et. al 1996,
  1989)
• 60 other performance horses (McClure et al.
  1999, Mitchell 2001)
• More than 50 of foals have been shown to have
  EGUS (Murray 1997)
• 37 in leisure/pleasure horses
• Donkeys 50?

5
How did nature intend the horse to live?
6
Compartments of the Equine Stomach
Cardia
Squamous mucosa
Duodenum
Pylorus
Margo plicatus
Glandular mucosa
Pagan, World Equine Vet Rev, 1997.
7
Squamous Mucosa

• Non Glandular
• No sub mucosal glands.
• No secretary or absorptive function.
• No mucus and high susceptibility to peptic
  injury.
• Most common location for gastric ulcers

Squamous Mucosa
8
Glandular Mucosa

• 2/3 of equine stomach.
• Contains many secreting cell types
• Gastric G cells ? Gastrin.
• Mast cells and ? Histamine.
• Chief cells ? Pepsinogen ? Pepsin at pH lt3.0.
• Mucus neck cells ? Bicarbonate and hydrophobic
  mucus barrier.
• Parietal cells ? Hydrochloric acid

Glandular mucosa
9
Inhibit acid secretion
Stimulate acid secretion
H2
Acetylcholine
Gastrin
Prostaglandins
Parietal cell
Acid Pump
H
Bicarbonate barrier
H
H
Cl-
H
H
Cl-
HCl
Stomach lumen
10
Ulcer Grading

• Range in severity size and depth
• Scoring techniques assess severity and
  improvement through treatment
• Severity and clinical signs dont always
  correlate

11
Grade 0 Lesion

• Intact epithelium
• May have reddening

Freedom of Information (FOI) Summary for
GASTROGARD Oral Paste for Equine Ulcers. Photo
courtesy of MJ Murray.
12
Grade 1 Lesion

• Small single or multiple lesions

Freedom of Information (FOI) Summary for
GASTROGARD Oral Paste for Equine Ulcers. Photo
courtesy of MJ Murray.
13
Grade 2 Lesion

• Large single or multiple lesions

Freedom of Information (FOI) Summary for
GASTROGARD Oral Paste for Equine Ulcers. Photo
courtesy of MJ Murray.
14
Grade 3 Lesion

• Extensive, often coalescing, ulcers with areas of
  deep ulceration.

Freedom of Information (FOI) Summary for
GASTROGARD Oral Paste for Equine Ulcers. Photo
courtesy of MJ Murray.
15
Risk Factors

• Intermittent feeding
• Diet
• Intensive Exercise
• Physical Stress

16
Intermittent Feeding

• Acidity in the equine stomach is greatest in
  absence of food
• Feeding decreases acidity
• Acid secretion stimulated by food
• Food neutralises most of the acid
• Bicarbonate in saliva neutralises some acid
• If denied food ulcers can develop within 24hrs
• Horses continuously grazing therefore unlikely
  to develop ulcers

17
Physiology of the Equine StomachPatterns of
Acidity
Murray and Schusser, Equine Vet J, 1993.
18
Physiology of the Equine StomachPatterns of
Acidity
Murray and Schusser, Equine Vet J, 1993.
19
Exercise (walk)

• High speed treadmill exercise abdominal pressure
  increases (Lorenzo-Figueras and Merritt, AJVR
  2002)
• High speed treadmill exercise pH decreases
  (Lorenzo-Figueras and Merritt, AJVR 2002)
• Acidic contents forced into acid sensitive non
  glandular stomach region

20
Exercise and Gastric pH
Lorenzo-Figueras and Merritt, AJVR 2002
21
Physical Stress

• Stall Confinement
• Hospitalization,
• Transportation,
• Relocation

Murray, Vet Med, 1991.
22
Equine Gastric Ulcer Syndrome Stall confinement

• Day 7 in stall

• Horses on pasture normal mucosa
• 7 days stall confinement, free choice hay
  squamous lesions

Day 7 in stall
Day 0 in stall
Murray et al, Equine Vet J, 1996 Murray
(personal communication), 1999.
23
Clinical Signs in Adult Horses

• Poor appetite.
• Poor bodily condition.
• Attitude changes.
• Decrease in performance.
• Mild to moderate colic.

Murray, AAEP, 1997.
24
Clinical Signs in Foals

• Poor appetite or intermittent nursing.
• Colic.
• Poor body condition.
• Frequently lies on back.
• Bruxism (grinding of teeth).
• Ptyalism (excessive salivation).
• Diarrhea or history of diarrhea.

Murray, AAEP, 1997.
25
Diagnosis

• Ulcers difficult to diagnose due to subtle,
  non-specific clinical signs
• Endoscopy
• Only definitive method of diagnosis
• Can be difficult due to length of digestive
  tract
• Not all veterinary practices may have 3m
  endoscope required

26
Treatment of Gastric Ulcers

• Eliminate clinical signs
• Promote healing of ulcer
• Prevent recurrence
• Inhibit gastric acid secretion

27
Treatment of Gastric Ulcers

• Main traditional drug therapies
• Antacids
• Histamine H2 Receptor Antagonists
• Ulcer-coating agents (sucralfate)
• Not approved for use in horses
• No large-scale assessment of safety or
  effectiveness
• No recommended dose or administration schedule
• Variable results
• Horses removed from training

28
Omeprazole

• Proton pump inhibitor binds to HK - ATPase
  pump
• Blocking pump shuts down the acid secretion
  allowing ulcers to heal
• Only medication capable of blocking pump
• Identifying pump stimulator not necessary.
• First and only medication approved for use in and
  prevention of gastric ulcers in foals and horses
• Do not have to remove horse from training. Most
  widely prescribed anti-ulcer therapy in humans
  (Losec)
• Suppressor of gastric acid secretion
• GastroGard - Omeprazole paste - developed
  specifically for EGUS in horses

29
The Acid Pump
Stimulate acid secretion
H2 Receptor Antagonists
H2
Gastrin
Acetylcholine
Prostaglandins
Parietal cell
Acid Pump
Acid pump Inhibitor GASTROGARD
H
Bicarbonate barrier
H
H
Cl-
H
H
Cl-
Stomach lumen
HCl
Antacids
30
Ulceration does not just affect racehorses!
31
Case study 1

• 8 yo Welsh section C
• Jumping pony
• At pasture for 4 hrs per day (overweight), good
  eater
• No history of ulcers but really naughty in stable
  and under saddle
• Better jumper in summer
• Bad cribber wind sucks
• Recently lethargic, and had bout of colic
• Scoping revealed squamous ulceration grade 2/3
  localised to fundus, appearing to be along fold

32
Case Study 2

• 6 year old advanced eventer currently off work at
  pasture as season over 2 months previous I.e on
  holiday
• During season difficult to keep weight on and can
  be bucking bronco especially when show jumping
• Ulceration in squamous region grade ¾ in
  glandular grade 4

33
Case Study 3 - 9yo Warm blood Dressage

• Kept lying down, especially before a competition
  although never developed colic
• Became lethargic and thin, poor coat
• Grade 2 ulcers
• 4 weeks GastroGard at 4mg/kg.
• Clear after 4 weeks.
• In an effort to cut costs switched to ranitidine.
  Signs reappeared almost immediately
• Now on low dose GastroGard throughout the season
• Increased frequency of feeds from 2 to 4 times
  daily and always has a full hay net

34
Case Study 4 14yr old KWPN Paralympic Team
Dressage horse

• Team dressage horse always done well, recently
  seen inconsistent performances especially if
  travelled
• Pain on girthing up and bucking bronco for first
  few strides!
• Routine scoping of Team GB horses revealed grade
  3 squamous and glandular ulcers
• Successfully treated for 2 weeks, and performance
  is more consistent and no bucking!

35
Prevention of Gastric Ulcers

• ENVIRONMENTAL
• Turn the horse out to pasture as much as possible

36
Prevention of gastric Ulcers

• FEEDING PRACTICE
• Regular feeding - the less time a horse has an
  empty stomach the better
• Have hay available at all times while the horse
  is in the stall 2/3 hay nets?
• Alfalfa hay can help buffer stomach acid due to
  high calcium and protein content (Nadeau et al
  2000)
• Limit grain rations
• Scatter feeding and apple bobbing!

37
Prevention of Gastric Ulcers

• EXERCISE
• Dont train on an empty stomach
• Consider exercise regime increased risk of
  ulcer formation in horses under intense training
  schedules

38
The Take Home Message!

• Ulcers can affect any breed, age or discipline.
• As horse owners you can prevent ulcers through
  good management.
• Clinical signs are subtle and non specific.
• Ulcers can be successfully treated with no long
  term affects.

39
Gastroscopy Clinic at Priors Farm

• Wednesday 6th June
• 6-8 horses can be scoped.
• If you feel your horse is a suitable candidate
  please speak to one of the Vets tonight or phone
  the practice.
• Gastroscopy will be free on the day for those
  horses selected.

40

• Thank you!
