Normalization (Codd, 1972)

1

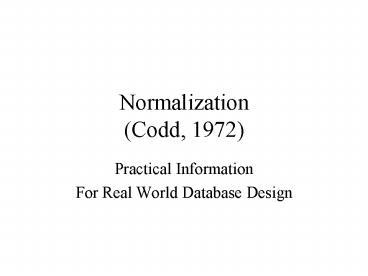

Normalization(Codd, 1972)

• Practical Information
• For Real World Database Design

2
Requirements for Relational DB

• Table format
• Supports Boolean Algebra
• Selects, joins, projects 5 other operations to
  define queries
• Supports mathematical, relational, and logical
  operators (And-Or-Not)
• Codds Twelve Rules (abstracted)
• Null values can be present except in primary key
• All data represented in tables
• Must be able to update views
• Access data with table name, field name, or value
• Data and programs should be independent
• Should enforce integrity and validity constraints

3
Normalization Defined

• Normalization
• Purpose is to avoid potential update problems
  called anomalies
• Assigned attributes to entities using 1NF, 2NF,
  3NF, 4NF, 5NF
• Denormalization
• Moving back a level to gain better performance in
  the real-world database in practice 3NF is most
  common, however, to gain efficiency and speed,
  minor changes may need to be made

4
Why Normalization Is Important

• If not done, updates are less efficient (larger
  tables, possibly more than one update per data
  item change)
• If not done, indexing is more cumbersome
  impractical to build large databases
• If not done, no simple strategies for creating
  views required by users

5
Design Rules

• Determine Business Rules
• A company manages many different projects
• Each project requires the services of many
  employees
• Employees may be assigned to work on more than
  one project
• Each employee has a job classification
• Many employees have the same job classification
• Translate business rules to validity constraints
  and relationships

6
Design Rules, Continued

• Analyze documents, interview key users, etc. to
  develop a field list
• Determine entities to be used (see next slide for
  definition)
• Determine relationships between entities
• Assign the attributes to the entities
• Identify primary and foreign keys
• Check for 1NF, 2NF, and 3 NF

7
Definitions

• Entity the subject to be modeled by the
  database file (table or relation)
• Primary Key the field value that uniquely
  identifies the entity entry (row, tuple, record)
  all other attributes are functionally dependent
  on it cant be null
• Foreign Key the field (attribute, column) that
  relates the table to a pre-existing table
• Functional Dependence - determines or depends
  on, e.g. advisor name depends on advisor ID

8
Definitions, Continued

• Views
• Selected group of records (select)
• Selected group of fields (project)
• Selected group of records and fields from two or
  more tables (join)
• A query
• A report
• A set of labels

9
Definitions, Continued

• Determinant
• Determines value of another attribute e.g.
  primary key
• Indexes
• Tables that contain record numbers only arranged
  in an order based on some field value
• Entity Integrity
• Every table must have a field to uniquely
  identity each record and there must be a field
  value for every record
• Referential Integrity
• If a record has a value in a foreign key field,
  it must match an exiting value in the original
  table to which it is linked

10
1 Normal Form

• Table does not contain repeating groups
• To put it another way, each record has at least
  one field that differentiates it from every other
  record in the file e.g. a unique primary key
• Examples
• Faculty ID is primary key and the same faculty
  id is associated with two or more courses
• Solve by creating a course file
• Faculty ID is primary key and the same faculty
  id is associated with two or more offices
• Solve by redesigning database to include
  offices as a separate table

11
2 Normal Form

• Table must be in 1 Normal Form
• No non-key attribute is dependent on only part of
  the concatenated key
• Concatenated key (two or more fields taken
  together represent primary key)
• In course table, concatenated key is faculty ID
  and Catalog No every field in table must be
  dependent on both faculty ID and catalog number

12
Anomalies Avoided By 2 NF

• Only have one data item to change when update is
  made
• Avoids loose data when deletes are made
• When a part number is deleted, could lose
  reference to invoice
• How do you add a new course when there is no
  associated faculty ID?
• A new office with no assigned faculty?
• Avoids inconsistent data

13
3 Normal Form

• The only determinants are candidate keys
• Candidate keys in student file are social
  security number and patron ID (both are unique)
• To put it another way, there are no transitive
  dependencies
• If student file contains Dept ID (foreign key)
  and department name, this is a transitive
  dependency

14
4 and 5 Normal Form

• 4 Normal Form
• There are no multivalued dependencies is like
  Boyce Codd
• 5 Normal Form
• Holds only theoretical interest
