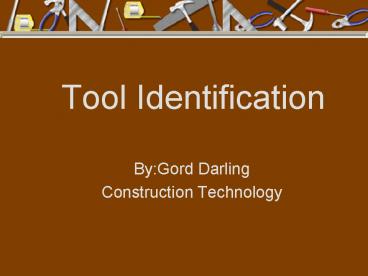

Tool Identification

1
Tool Identification

• ByGord Darling
• Construction Technology

2
Adjustable Wrench

• Turning various size nuts and bolts.

3
Allen Wrench

• Turning hex head socket screws.

4
Aviation Snips

• Cutting sheet metal.

5
Ball Pein Hammer

• Hammering metal.

6
Bar Clamp

• Clamping large sections of wood together.

7
Bent Nose Pliers

• Reaching obstructive or awkward places.

8
Bolt Cutters

• Cutting bolts steel rods.

9
Box End Wrench

• Turning hex head nuts and bolts.

10
C Clamp

• Clamping two or more pieces of metal together.

11
Chain Saw File

• Sharpening chain saw file.

12
Chalk Line Reel

• Making straight lines.

13
Circular Carbide Saw Blade

• Blade used on portable electric saw.

14
Cold Chisel

• Cutting metal.

15
Combination Oil Stone

• For sharpening and honing cutting tools.

16
Combination Square

• Determining 45o and 90o angles.

17
Combination Wrench

• Turning hex and square nuts and bolts.

18
Compass

• Drawing circles.

19
Compass Saw

• Cutting wood in close places.

20
Coping Saw

• Cutting curves and irregular cuts.

21
Cordless Drill

• Drilling holes with a tool that uses a battery
  pack.

22
Countersink

• Flaring top of hole for recessing head for
  flathead screw or bolt.

23
Diagonal Cutting Pliers

• Surface and diagonal wire cutting.

24
Drift Punch

• Aligning holes.

25
Drill Press Vise

• Holding stock while drilling.

26
Dust Mask

• Protects the respiratory system from airborne
  particles.

27
Emery Dresser

• Smoothing face of grinding wheel.

28
End Cutting Nippers

• Cutting ends of wire, nails and small bolts.

29
Finishing Nail

• Nailing boards where head will not be noticed.

30
Framing Square

• Squaring cut corners and laying out stairs and
  rafters.

31
Glass Cutter

• Cutting glass.

32
Groove Joint Pliers

• Gripping when greater pressure is needed.

33
Hack Saw

• Sawing metal.

34
Half Hatchet

• Cutting and fitting wood.

35
Half Round File

• Curve and flat filing.

36
Hammer Drill

• Power drilling in concrete, brick or block.

37
Hand Screw Clamp

• Clamping wood together.

38
Level

• Leveling and plumbing.

39
Line Level

• Leveling between long distance points.

40
Long Nose Pliers

• Reaching into recessed areas.

41
Machinists Vise

• Holding metal firm while working.

42
Masonry Bit

• Boring a hole in concrete, brick, or block.

43
Miter Box

• Cutting angles.

44
Nail Hammer

• Driving nails.

45
Nail Set

• Countersinking nail heads.

46
Nailing Gun

• Rapid nailing using air, gas, or electricity.

47
Open End Wrench

• Turning square head nuts and bolts.

48
Phillips Screwdriver

• Turning phillips heads screws.

49
Pin Punch

• Driving out metal pins.

50
Pipe Wrench

• Turning and holding metal pipe.

51
Plumb Bob

• Vertical plumbing to locate points.

52
Portable Circular Saw

• Sawing wood in construction projects.

53
Portable Electric Drill

• Drilling holes with an external source of power.

54
Portable Jig Saw

• Making irregular cuts.

55
Portable Electric Sander

• Power tool used for smoothing surface.

56
Putty Knife

• Applying and smoothing putty.

57
Roofing Nail

• Nailing tin, aluminum, fiberglass or asphalt
  roofing.

58
Router

• Making edges or designs in wooden surfaces.

59
Rubber Mallet

• Hammering to avoid marring surface.

60
Safety Glasses

• Protects eyes from the impact of foreign objects.

61
Safety Goggles

• Protects eyes from liquids and vapors.

62
Screwmate

• Drills and countersinks flat head wood screw
  holes.

63
Side Cutting Pliers

• Holding and/or cutting wire.

64
Sledge Hammer

• Heavy hammering.

65
Slip Joint Pliers

• Adjust for holding various size material.

66
Slotted Screwdriver

• Turning slotted screwdriver.

67
Speed Bore Bit

• Wood boring bit for electric drill.

68
Straight Shank Drill Bit

• Drilling metal.

69
Tape Rule

• Straight or curved measuring.

70
Torx Screwdriver

• Turning torx-head screws and bolts.

71
Try Square

• 90o squaring.

72
Vise Grip Pliers

• For extra firm gripping.

73
Wood Chisel

• Dressing and shaping wood.

74
Wood Mallet

• Driving non-metallic objects.

75
Wood Rasp

• Coarse filing of wood.

76
Wrecking Bar

• Ripping and prying.

77
Designed By

• Gord Darling,
• Sydenham High School
