Essential Question: Levers

1

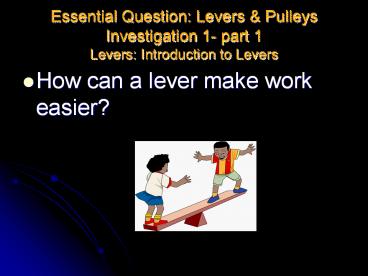

Essential Question Levers Pulleys
Investigation 1- part 1Levers Introduction to
Levers

• How can a lever make work easier?

2
ENGAGE

• How could you lift your teacher in the air?
• Could you do it with one hand?

3
EXPLORE

• Can you lift the load using only one finger?
• Does it always take the same amount of force to
  lift the load?
• Where should you press to lift the load with the
  least force?

4
(No Transcript)
5
Word Bank

• Lever
• Lever Arm
• Fulcrum
• Load
• Effort
• Newton

6
(No Transcript)
7
Content/Inquiry

• A lever can make a load easier to lift, it can
  move loads, and it reduces the effort.
• In a lever system the farther from the fulcrum
  the effort is applied, the greater the advantage
  to the lever user.
• Student questions?

8
Simple Machines

• Identify 5 or more simple machines that we use
  every day.
• For each simple machine listed above, tell why
  people use the tool?
• Archimedes, the Greek mathematician and
  scientists idea of moving the earth, is similar
  to how you could lift your teacher. Explain.

9
Essential Question Levers Pulleys
Investigation 1- part 2Levers Lever Experiment A

• What happens to the effort needed to lift a load
  as the position where the effort is applied
  changes?

10
Class Data

• Position of Effort (scale 0.5 N)
• Effort (cm)
• 2.5 cm 9.4 N 9.9 N
• 5.0 cm 4.5 N 5.0 N
• 10.0 cm
• 15.0 cm
• 20.0 cm
• 25.0 cm

11
Word Bank

• Two-coordinate graph
• Advantage

12
Content/Inquiry

• The farther the effort is from the fulcrum, the
  easier it is to lift the load.
• Student questions?

13
Class-1 Levers

• What is a mechanical advantage?
• What advantage rule can we state about a class-1
  lever?
• What is the cost of making the work easier?
• Get a tool from the teacher and draw a diagram of
  it. Identify and label on your drawing the
  location of the load, effort, and fulcrum.
  Notice the distance of the load to the fulcrum.

14
Essential Question Levers Pulleys
Investigation 1- part 3Levers Lever Experiment B

• What happens to the effort needed to lift a load
  as the position of the load changes?

15
Content/Inquiry

• The effort needed to lift the load decreases as
  the load gets closer to the fulcrum the effort
  increases as the load gets farther from the
  fulcrum.
• Student questions?

16
Essential Question Levers Pulleys
Investigation 2- part 1More Leverage Lever
Classes

• How many ways can you arrange the fulcrum, load,
  and effort in a lever system?

17
Word Bank

• Class-1 lever
• Class-2 lever
• Class-3 lever

18
Content/Inquiry

• Levers can be set up in three basic ways. They
  are called class 1, class 2, and class 3.
• Student questions?

19
The Wheel and Axle

• When you use a wrench to tighten a bolt, are you
  looking for a gain in effort or distance?
• When you use a windlass to raise a bucket from a
  well, what is the gain?
• How do you think the key to a music box works, in
  terms of a wheel and axle?
• How do you think the front wheel and the rear
  wheel of a bicycle are different? Which one is
  the wheel and axle? Explain how a bicycle works.

20
Essential Question Levers Pulleys
Investigation 2- part 2More Leverage Lever
Diagrams

• What conventions can be used so we can
  communicate in the same language and have an
  efficient way to record the lever systems we
  build?

21
Word Bank

• Diagram

22
Content/Inquiry

• A diagram uses a system of symbols and
  conventions to communicate information about
  lever designs.
• Student questions?

23
Class-2 Levers

• What is the mechanical advantage of the class-2
  lever?
• What advantage rule can we state about a class-2
  lever?
• What is the load in a bellows?
• How is the bellows like a nutcracker and garlic
  press?

24
Essential Question Levers Pulleys
Investigation 2- part 3More Leverage Real-World
Levers

• What classes of levers can we find in the real
  world?

25
Content/Inquiry

• Many common tools use levers scissors, pliers,
  bottle openers, hammers, wheelbarrows, and
  brooms, to name a few.
• Effort is reduced as the load moves closer to the
  fulcrum.
• Student questions?

26
Class-3 Levers

• What is the mechanical advantage of a class-3
  lever?
• What advantage rule can we state about a class-3
  lever?
• Explain why the catapult is a class-2 lever when
  it is being loaded and a class-3 lever when it is
  hurling a rock.

27
Essential Question Levers Pulleys
Investigation 2- part 4More Leverage Lever
Pictures

• What other levers do we find around us?

28
The Inclined Plane

• What is the advantage of an inclined plane?
• What is the disadvantage?
• What simple machine is used to make a wheelchair
  ramp?
• How can a plank be used as an inclined plane?
• Are there inclined planes in our school?
• Which trail would be the easiest to hike to get
  to the top of the hill?
• What is the disadvantage if you take the easiest
  route?

29
Essential Question Levers Pulleys
Investigation 3- part 1Pulleys 1-Pulley Systems

• How much effort is needed to lift a load in a
  one-pulley system?
• Is it always the same?

30
Word Bank

• Pulley
• Fixed pulley
• Movable pulley
• Mechanical advantage
• Directional advantage

31
Content/Inquiry

• A single pulley can be set up as a fixed pulley
  or a movable pulley to lift a load.
• Single fixed pulleys change the direction of
  effort. Single movable pulleys reduce the effort
  needed to lift the load.
• Student questions?

32
Pulleys

• What is a compound pulley?
• What is a block and tackle?

33
Essential Question Levers Pulleys
Investigation 3- part 2Pulleys 2-Pulley Systems

• How many ways can two pulleys be assembled?
• Can two pulleys give more advantage than one
  pulley?

34
Word Bank

• Simple machine

35
Content/Inquiry

• Two pulleys can provide greater mechanical
  advantage than one when lifting loads.
• Simple machines provide mechanical or other
  advantage.
• Student questions?

36
Dear Boss

• Does the poem explain how pulleys really work?
• What kind of pulley system did the bricklayer
  use?
• Relate to poem-do you know?
• What country? Bloody? Sod? Hod?
• Why is this poem humorous????

37
Essential Question Levers Pulleys
Investigation 3- part 3Pulleys Pulley Game

• How many pulley systems can you set up?

38
The Wedge

• How do they keep the airplane from moving?
• How is a wedge related to an inclined plane?
• What are some of the wedges you have seen in use?
• How does the slope of a wedges planes affect the
  sharpness of a blade?

39
Explain how these items use the wedge!

• Nail
• Pin
• Needle
• Chisel
• Ax blade
• Saw blade
• Knife blade
• Scissors blade
• Bow of a ship
• Nose of an airplane
• Woodpeckers bill

40
Essential Question Levers Pulleys
Investigation 4- part 1Pulleys at Works The
Effort in Pulley Systems

• How can we predict the effort needed to lift the
  load in a pulley system?

41
Content/Inquiry

• The greater the number of ropes supporting the
  load, the less the effort needed to lift the
  load.
• The effort needed to lift a load can be predicted
  from the weight of the load and the number of
  ropes supporting the load.
• Student questions?

42
The Work of Pulleys

• Where do you find pulleys in the real world?
• How does a chain hoist work?
• What modern-day machine has replaced pulleys?

43
Essential Question Levers Pulleys
Investigation 4- part 2Pulleys at Works
Measuring Distance

• What is the relationship between the mechanical
  advantage and the distance the load and the
  effort move in a pulley system?

44
Content/Inquiry

• The benefits gained by using simple machines are
  always balanced by cost. When the benefits
  outweigh the costs, the machine is a useful tool.
• In a lever system, a reduction in effort is
  balanced by the distance over which the effort
  must act.
• Student questions?

45
The Screw

• How is a screw a variation of an inclined plane?
• What tool is used to turn the screw into the
  wood?
• What kind of simple machine is the screwdriver?

46
Essential Question Levers Pulleys
Investigation 4- part 3Pulleys at Works
Choosing your own Investigation

• What other lever and pulley systems can you
  design?

47
Thank you, Mr. Clumpet

• Are there any levers? What types of levers are
  they?
• Are there any pulleys? What types of pulleys are
  they?
• Are there any wheel and axles?
• Are there any inclined planes? What types or
  variations of inclined planes are they?
