Basic Immunology

1

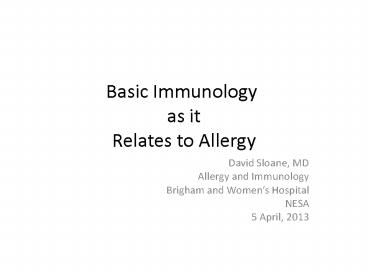

Basic Immunology as it Relates to Allergy

• David Sloane, MD
• Allergy and Immunology
• Brigham and Womens Hospital
• NESA
• 5 April, 2013

2
Disclosures

• (Genentech Novartis) Unbranded Educational
  Talks on Asthma
• Contributor to the Mathematics Consortium Working
  Group

3
Objectives

• 1) To review the biology of cells, antibodies,
  and mediator molecules in healthy immunity and
  dys-immunity germane to allergy.
• 2) To explore the rationale for therapeutic
  agents such as omalizumab in the treatment of
  allergic diseases
• 3) Participants will develop the skills needed to
  educate patients about those aspects of the
  immune system relevant to the patient's allergic
  or immunologic disease and its treatment

4
Teleology

• Two theories of the purpose of the immune system
• (1) Defense against microbes (Janeway)
• (2) Defense against danger (Matzinger)
• What do you think the difference is between these
  two theories?

5
Immune System as a Matter Processing Network
Inside Outside
Safe
Dangerous
6
Reality Check
7
The Whole Megilah Allergic Reaction System
Slide courtesy of Dr. Tse Wen Chang
8
Components of the System

• Cells
• Dendritic Cells and other professional APCs
• T cells
• B cells
• Mast cells (and Basophils?)
• Eosinophils
• Antibodies What are they? What are they good
  for?
• IgE
• IgG4
• Mediator Molecules What are they? What are they
  good for?
• Interleukin (IL)-4
• IL-13
• Thymic Stromal Lymphopoetin (TSLP)

9
Processing Stuff
Microbe
Antigen Presenting Cell (APC) DC
10
Processing Stuff
APC
T cell
11
The Whole Megilah A closer view
IL4, TSLP
12
Wait a Minute!

• Why is this happening?
• Do the two theories of the purpose of the immune
  system help you?
• What is the hygiene hypothesis?

13
Antibodies The Immune Systems Attacks Dogs
From Janeway et al. Immunobiology V. 2001.
14
Antibodies The Various Species or Isotypes
From Janeway et al. Immunobiology V. 2001.
15
The Role of IgE in Allergic Inflammation

• Necessary but not sufficient factor for
  antigenic stimulation of mast cells and
  basophils.
• Prausnitz (grass) and Küstner (fish) 1920s.
• Reagin identified as IgE in mid 1960s.

16
IgE Structure

• Molecular Weight 190,000 kD
• Monomeric, two identical heavy chains, two
  identical light chains (k or l)

17
IgE Synthesis

• B cells that undergo the isotype switch to Ce
  produce IgE
• Help from Th2 cells that express
• a) CD40L and
• b) IL-4, IL-13, TSLP

18
IgE Circulation

• IgE circulates in the blood with a t½ 2-4 days
  (serum!)
• Normal serum concentration 0-0.002mg/mL (the
  lowest of all five isotypes)
• x IU 2.4x ng/mL (E.g., 125 IU 300ng/mL)

19
IgE in Blood and Tissues

• In the blood, IgE binds to Basophils through the
  high affinity receptor for IgE, FceRI.
• IgE crosses from blood space into the
  extracellular space
• It binds to Mast Cells through FceRI
• FceRI is also expressed by monocytes,
  eosinophils, dendritic cells in peripheral blood,
  and Langerhans cells in skin.

20
FceRI and FceRII

• FceRI Structure
• One a chain that binds the Fc portion of IgE
• One b chain with ITAM
• Two g chains, each with ITAM
• FceRII
• CD23
• Expressed on mature B cells, activated T cells,
  macrophages, eosinophils, follicular dendritic
  cells, platelets
• C-type lectin
• Antigen capture leading to processing and
  presentation to enhance immune responses.

21
Mast Cells (and Basophils)
FceRI
IgE
22
Mast Cells

• Live in
• mucosal layers (gut, lung)
• submucosal layer
• dermis
• Mediators
• Preformed (histamine, tryptase)
• Rapidly synthesized (PGD2, LTC4)
• Not so rapidly synthesized (cytokines)

23
Measurement of Total Serum IgE Why bother?
Burrows B, Martinez FD, Halonen M, Barbee RA, and
Cline MG. Association of Asthma with Serum IgE
Levels and Skin-Test Reactivity to Allergens.
NEJM 1989320(5)271-277.
24
Mast Cells and IgE
IgE
FceRI
Allergen
Mediator Release
Mast cell granules
25
Wait a Minute!

• Where is IgE acting?
• Where do we measure IgE?

26
So What?
27
How do we treat Allergic Inflammation?

• Avoid the allergenic trigger (I cant eat that)
• Antagonize the mast cell mediators (Wheres my
  antihistamine?
• Throw a monkey wrench into the response system
  (The story of the yetzer harah)
• Try to teach the immune network not to attack
  (Stay.staaaaay. Good dog!)

28
The binding specificities of a therapeutic
anti-IgE
Slide courtesy of Dr. Tse Wen Chang
29
IgEanti-IgE complexes
3 IgE3 anti-IgE the largest Soluble and no
immune complex problems
T1/2 anti-IgE ca. 20 days, IgE 1-2 days,
IgEanti-IgE ca. 20 days Immune complexes
accumulate rapidly.
Could IgEanti-IgE complexes be beneficial? They
may serve as antigen sweepers, blocking antigens
to access receptors on inflammatory cells.
Slide courtesy of Dr. Tse Wen Chang
30
Down regulation of FceRI in patients

• FceRI density on basophils falls by 97 in 3
  months.
• FceRI on basophils decreases with a half life of
  about 3 days.
• FceRI on dendritic cells are decreased
  substantially in two weeks.

From MacGlashan DW et al., J. Immunol. 1581438
(1997)
Slide courtesy of Dr. Tse Wen Chang
31
Down regulation of FceRI in patients (cont.)
From MacGlashan DW et al., J. Immunol. 1581438
(1997)
32
Allergy Immunotherapyteaching an old dog a new
trick, or teaching it not to do an old trick

• Introduce allergen in a non-threatening manner
  and context
• Elicit an IL-10 response from Treg cells instead
  of an IL-4 and TSLP response from Th2 cells.
• Thus, lead B cells to make the isotype switch to
  IgG4.
• IgG4 binds to mast cell inhibitory receptors and
  blocks activation.

33
Mast Cells post Immunotherapy
IgE
FceRI
Allergen
IgG4
NO Mediator Release
FcgRIIb
Mast cell granules
34
Question 1

• Which of the following cells is thought to be the
  primary effector cell in anaphylaxis?
• A. Eosinophils
• B. Basophils
• C. CD8 T cells
• D. Mast cells
• E. Th17 cells

35
Question 1

• Which of the following cells is thought to be the
  primary effector cell in anaphylaxis?
• A. Eosinophils
• B. Basophils
• C. CD8 T cells
• D. Mast cells
• E. Th17 cells

36
Question 2

• Which of the following cells promotes B cells to
  undergo an isotype switch to make IgE?
• A. Th1 cells
• B. Th2 cells
• C. Th17 cells
• D. Treg cells
• E. NKT cells

37
Question 2

• Which of the following cells promotes B cells to
  undergo an isotype switch to make IgE?
• A. Th1 cells
• B. Th2 cells
• C. Th17 cells
• D. Treg cells
• E. NKT cells

38
Question 3

• Fill in the blanks to make this statement
  correct A major hypothesis on how allergy
  immunotherapy works is the belief that ____
  promotes B cells to make ____.
• A. IL-4.... IgE
• B. IL-13.... IgA
• C. IL-10.... IgG4
• D. IL-18.... IgD
• E. Fractalkine.... Thymic Stromal Lymphopoetin
  (TSLP)

39
Question 3

• Fill in the blanks to make this statement
  correct A major hypothesis on how allergy
  immunotherapy works is the belief that ____
  promotes B cells to make ____.
• A. IL-4.... IgE
• B. IL-13.... IgA
• C. IL-10.... IgG4
• D. IL-18.... IgD
• E. Fractalkine.... Thymic Stromal Lymphopoetin
  (TSLP)
