Title: Attachment Selection


1

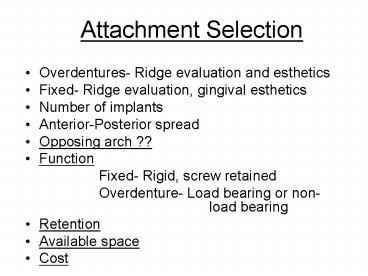

Attachment Selection
  • Overdentures- Ridge evaluation and esthetics
  • Fixed- Ridge evaluation, gingival esthetics
  • Number of implants
  • Anterior-Posterior spread
  • Opposing arch ??
  • Function
  • Fixed- Rigid, screw retained
  • Overdenture- Load bearing or non- load
    bearing
  • Retention
  • Available space
  • Cost

2
Patient Considerations
  • Parallel attachments for easier path of insertion
  • Less attachments better
  • Patient dexterity
  • Hygiene Stannous Fluoride rinses
  • 3 month recall

3
Anterior/Posterior Spread
  • A line from the center of the most anterior
    implant to a line joining the distal aspects of
    the two most distal implants
  • Indicates the amount of cantilever that can be
    reasonably placed
  • Usually, 2.5 times the A/P spread

4
A/P Spread
  • Actual Length of Cantilever Depends on
  • Stress factors
  • Parafunctional Habits
  • Crown heights
  • Implant width
  • Number of implants
  • Opposing teeth or denture

5
Controlling Stress
  • StressForce/Area

Force
Stress
Area
6
Torque
  • Force x Perpendicular distance from the line of
    force to the center of rotation

7
(No Transcript)
8
Cuspal Inclination
9
Cuspal Inclination
10
Treatment Plan Options
Fixed
Removable
Implant Supported
Soft Tissue Supported Implant Retained
11
Treatment Plan Option 1
Lower Edentulous Fixed 5-6 Implants
12
Prosthetic Options-Lower5-6 Implants
  • Hybrid Denture
  • Fixed Crown and Bridge
  • Cantilever 10-15mm

13
6 Implants-Fixed Implant Supported
24
25
23
26
27
22
X
X
X
X
14
5 Implants- Fixed Implant Supported
C
D
B
E
A
X
X
X
X
15
Treatment Plan Option 2
Lower Edentulous Removable 5 Implants
16
Prosthetic Options- RemovableOverdenture-Implant
Supported
  • Gold Bar w/ O Rings
  • Distalized O Rings
  • Cantilever 10-20mm
  • Gold Bar with Hader Clips
  • Distalized ERAS
  • Cantilever 10-20mm

C
C
B
D
D
B
A
E
E
A
17
Treatment Plan Option 3
Lower Edentulous Removable 4 Implants
18
Prosthetic Options- RemovableImplant and Tissue
Supported
  • Gold Bar with Hader Clips and ERAS
  • Cantilever 5-10mm
  • Gold Bar with O Rings
  • Cantilever 5-10mm

c
b
b
c
d
a
d
a
19
Treatment Plan Option 4
Lower Edentulous Removable 3 Implants
20
Prosthetic Options- Removable Overdenture-LowerIm
plant and Tissue Supported
  • Gold Bar w/ 2- O Rings-Overdenture
  • No Cantilevers

21
3 Implants- Removable Overdenture Implant and
Tissue Supported
C
D
B
22
Treatment Plan Option 5
Lower Edentulous Removable 2 Implants
23
Prosthetic Options Removable Overdenture-LowerTi
ssue Supported
  • Gold Bar w/ Hader Clip
  • O Ring on each implant
  • ERA attachment on each implant

24
2 Implants-Removable Tissue Supported
B
D
25
Treatment Plans Upper Edentulous Four Options
26
Treatment Plan Option 1
Upper Edentulous Fixed 8 Implants
27
Prosthetic Options Fixed- UpperImplant Supported
  • Fixed Crown and Bridge
  • Hybrid Denture
  • No Cantilevers Necessary

28
8 Implants- Fixed Implant Supported
X
X
10
7
6
11
X
X
4
13
3
14
29
Treatment Plan Option 2
Upper Edentulous Removable 8 Implants
30
Prosthetic Options- 8 Implants Removable-
UpperImplant Supported
  • Gold Bar w/ O Rings- Overdenture
  • Gold Bar w/ 3 Hader Clips Overdenture- No Palate
  • Cantilevers-Optional

31

8 Implants- Removable Implant Supported
  • Gold Bar Overdenture w/ O Rings
  • Gold Bar Overdenture w/ Hader Bar / Clips

7
7
10
10
11
6
6
11
13
4
4
13
3
3
14
14
Palate
No Palate
32
Treatment Plan Option 3
Upper Edentulous Removable 6 Implants
33
Prosthetic Options Removable- UpperImplant
Supported
  • Gold Bar w/ 4- O Rings and distal to s 4 and 13
  • Gold Bar w/ Hader Clip- ERAS distal on 4 and 13-
    Overdenture-No Palate
  • Cantilever 5-10mm

34
6 Implants- RemovableImplant Supported
  • Gold Bar w/ O Rings
  • 5-10mm Cantilever
  • Gold Bar w/ Hader clips and ERAs
  • 5-10mm Cantilever

10
7
10
7
5
12
5
12
4
13
4
13
35
Treatment Plan Option 4
Upper Edentulous Removable 4 Implants
36
Prosthetic Options Removable- UpperTissue
Supported
  • Gold Bar w/4 O Rings- Overdenture w/ No Palate
  • Gold Bar w/ Hader Clip and 2 distalized ERA
    attachments w/ Overdenture- No Palate
  • No Cantilever

37
Arch Form4 Implants-Tissue Supported
  • Square Arch
  • Tapered Arch

6
11
11
6
12
5
4
13
Maximum contact with tissue No contact with
Bar Attachments are for retention ONLY
38
Treatment Planning
  • Design sensibility and flexibility in the
    treatment plan
  • Design and implant concepts will vary
  • Plan ahead for success
  • Have a disaster plan
  • In most cases, less attachments are better
