Magento 2 Product Attachments

1

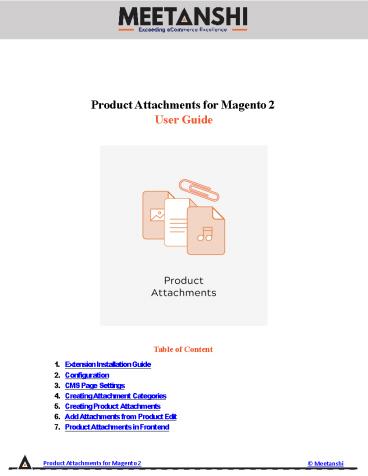

Product Attachments for Magento 2 User Guide

• Table of Content
• Extension Installation Guide
• Configuration
• CMS Page Settings
• Creating Attachment Categories
• Creating Product Attachments
• Add Attachments from Product Edit
• Product Attachments in Frontend

Product Attachments for Magento 2
Meetanshi
2

• Extension Installation
• Extract the zip folder and upload our extension
  to the root of your Magento 2 directory via FTP.
• Login to your SSH and run below commands step by
  step
• php bin/magento setupupgrade
• For Magento version 2.0.x to 2.1.x - php
  bin/magento setupstatic-contentdeploy
• For Magento version 2.2.x above - php
  bin/magento setupstatic-contentdeploy f
• php bin/magento cacheflush
• Thats it.
• Configuration
• For configuring the extension, login to Magento
  2, move to Stores ? Configuration ?? Product
  Attachments where you can find various settings
  to enable the extension.
• Product Attachments Enable Product Attachments
  extension
• Product Attachments Tab Title Enter title of the
  attachment tab in product page.
• Product Attachments Heading Add heading for the
  attachments.
• Display File Size Set YES to display file size
  in frontend.
• Display Count of Downloads Set YES to display
  the number of downloads in frontend.

Product Attachments for Magento 2
Meetanshi
3

• CMS Page Settings
• Settings to enable product attachments on CMS
  pages.
• Enable CMS Attachments Select YES to enable
  product attachments on CMS pages.
• CMS Page Attachments Heading Enter heading for
  product attachments to show on CMS pages.

• Creating Attachment Categories
• You can create attachment categories to properly
  manage similar attachments under a single
  category. Go to Catalog ? Product Attachments ?
  Manage Attachment Categories to create and
  manage product attachments.
• Name Enter name for the attachment category.
• Description Add description to show along with
  attachments
• Is Active Enable attachment category from here.

Product Attachments for Magento 2
Meetanshi
4

• Saved Attachment Categories
• All the created and saved attachment categories
  are enlisted here. To add a new attachment
• category, click on the Add New Category button.

Product Attachments for Magento 2
Meetanshi
5

• Creating Product Attachments
• Once you have created attachment categories, you
  can start adding product attachments. Go to
  Catalog ? Product Attachments ? Manage
  Attachments to create and manage product
  attachments.
• Category Select Attachment Category.
• Is Active Enable Attachment.
• Name Add Attachment name.
• Description Add description for the attachment.
• Limit number of downloads Enter numbers to limit
  downloads.

Product Attachments for Magento 2
Meetanshi
6

• File Upload for Attachment
• File/URL Switcher Select attachment type
• Files Browse attachment file
• File Name The uploaded file name and size will
  be displayed which can be removed also.
• Customer Groups Select customer groups to allow
  view and download attachment.
• Store View Select store views to enable
  attachment for.

Product Attachments for Magento 2
Meetanshi
7

• Assign Products to Attachment
• Select and assign products to attachment to show
  on product page in frontend from the
• Assign Products to Attachment tab in the
  Attachment Information menu.

• Assign CMS Pages
• In the Assign CMS Page tab from the Attachment
  Information menu, select and assign CMS
• pages to attachment to show on CMS pages on
  frontend.

Product Attachments for Magento 2
Meetanshi
8

• Saved Attachments
• You can manage and view the saved attachments as
  shown below. You may also add a new
• attachment by clicking on the Add New Attachment

6. Add Attachments from Product Edit Apart from
Manage Attachments section, you can also assign
new attachments to the products. Go to Catalog ?
Products ? Edit Product and click on the Add
Attachments button under Product Attachments tab
as shown below.
Product Attachments for Magento 2
Meetanshi
9

• Product Attachments in Frontend
• Product Attachments in frontend
• Once you configure the above settings, the
  product attachments will be enables in the
  frontend on product page as shown below.
  Moreover, the file type attachment is shown with
  size, download information and description.

?
Product Attachments for Magento 2
Meetanshi
10

• URL Attachments in frontend
• The URL type product attachment with link and
  description is displayed in the frontend as
  shown below.

?
Product Attachments for Magento 2
Meetanshi
11

• Attachment on CMS Page
• The screenshot shows the file attachment on CMS
  page.

Product Attachments for Magento 2
Meetanshi
