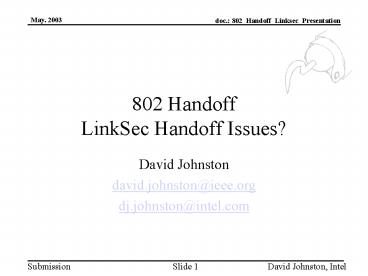

802 Handoff LinkSec Handoff Issues?

1
802 HandoffLinkSec Handoff Issues?

• David Johnston
• david.johnston_at_ieee.org
• dj.johnston_at_intel.com

2
First Session of 802 Handoff ECSG Launched, May
2003

• Attendance
• Monday 30
• Tuesday 19
• Thursday 22
• Total Attendance 45
• 29 Separate organizations represented

3
Officers

• Chair
• David Johnston, Intel
• Reluctant Recording Secretary
• Paul Lin, Intel
• Vice Chair
• None, volunteers welcome

4
Charter

• Consider the possibility of specifying a common
  handoff framework application to 802 standards,
  wired and wireless
• Consider placement of work (In a new working
  group or 802.1)
• Authorized to draft a PAR

5
Objectives

• Define scope and requirements
• May work with all MACs and PHYs
• Without unnecessary overhead
• 802.x ? 802.y (where x could equal y)
• 802.x ? non 802
• Consider how to address Authentication and
  Security
• Within the PAR? Coordinated with Link Security
  group
• Specify a framework that 802 MACs can adopt
• MAC SAP Messages
• MIB Entries
• Other?

6
What it is not

• It is not proposed to implement a protocol for
  handoff
• We are at the link layer. What are we handing
  off?
• Entire problem cannot be solved at layer 2
• So this is not a handoff standard!

7
Scenario

• Multi interfaced device
• Docked Laptop with 802.3, 802.11 and 802.16e
• Mobile IP session being used for VoIP and web
  traffic
• Laptop undocks
• Needs to make a timely decision to switch to
  802.11 and attach to a suitable AP.
• Existing traffic should suffer minimum
  interruption
• Laptop moves out of building
• Needs to make a timely decision to switch to
  802.16e and choice a suitable BS
• Existing traffic should suffer minimum
  interruption

8
What it is

• Focus is on
• Enabling good handoff decisions
• Handoff decision data with interface
• Signaling appropriately to L3 handoff capable
  entities
• L2 triggers
• Wired and Wireless
• 802.3 to 802.11/15/16 are important cases

9
(very) Simplified Anatomy of a Handoff

• Something somewhere up the stack agrees, in its
  own way to handoff from one place to another
• E.G. Mobile IP
• Consequently, down at the link layer, an
  attachment switches from one place to another
• Association-authentication-authorization in one
  of several possible orders and flavors
• Either by picking a new attachment point for an
  interface, or picking a new interface

10
The blocking behavior of 802.1x

• 802.1x allows access to the MAC
• Blocks access to all LSAPs above the LLC except
  for EAPoL until authentication has completed
• So only MAC signalling and EAP available prior to
  authentication
• This takes advantage of the common MSDU transport
  capability of different 802 networks.
• A mechanism applicable to diverse 802 network
  types could not be codified in existing MAC
  signaling or EAP
• So current 802 authentication practice impacts on
  the transfer of handoff related information prior
  to authentication

11
Pre auth Requirements

• Prior to attempting to authenticate, the mobile
  node may want to know whether it is worth the
  effort
• Does the AP support my L3 network needs?
• Do I have a payment method, auth protocol,
  subscription that will work on the candidate AP?
• Can my QoS needs be met?
• It would be nice for the conduit for this
  information
• To not be blocked prior to authentication
• To be applicable to diverse 802 network types

12
Extending the auth model be extended to support
Handoff

• Extend set of pre authentication unblocked things
  from
• MAC signalling
• EAPoL
• To
• MAC signalling
• EAPol
• Non sensitive handoff related data

13
For Example

• Extend the unblocked fork of 802.1x

EAPoL
Non Sensitive Handoff Information/ Protocol/negoti
ation
L3
L3
L3
L3
802.2
802.2
14
So One requirement

• Dont make it impossible for the definition of
  the distribution of media independent handoff
  decision data prior to authentication
• Allows mobile nodes to handoff based on good
  information
• Enables mobile nodes to choose who they should
  bother authenticating to.
