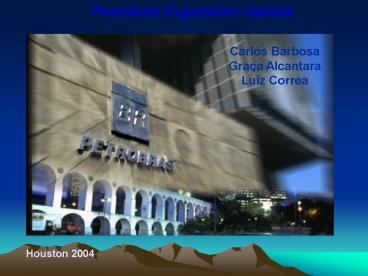

Petrobras Expansion Uptade

1
Petrobras Expansion Uptade
Carlos Barbosa Graça Alcantara Luiz Correa

Houston 2004
2
PETROBRAS IN NUMBERS - 2003

• Revenues US 31.91 billion
• Reserves 11.6 billion barrels of oil and gas
• Production Platforms 98 (68 fixed 30 floating)
• Production 1.701 million BPD of crude oil
  53 million cubic meters of
  natural gas
• Refineries 16 (11 in Brazil 2 in Bolivia 3 in
  Argentina)
• Refining Capacity 1,991 million BPD of crude oil

• Pipelines 27,120 km
• Tanker Fleet 97 vessels (54
  Petrobras-owned)
• Service Stations 5,074 in Brazil, 697 in
  Argentina and
• 85 in Bolivia

Houston 2004
3
CAMPOS BASIN
Houston 2004
4
PETROBRAS in the Petroleum Coke Business

• Industrial Sites
• Products
• Domestic Market
• Exports
• Future

Houston 2004
5
RPBC GREEN COKE QUALITY
CHARACTERISTICS SPECS METHOD
Moisture, wt, max. 13 Speedy
Volatile Matter, wt, max 11.5 Alcan 319/54
Ash, wt, max 0.30 Alcan 294/55
Sulphur, wt, max 1.0 Leco
Fixed Carbon, wt, min/max 88 90 ASTM D3172/93
HGI, min/max 70 90 ASTM D409-03a
Silicon , ppm, max 160 A.A. Alcan 125286
Iron , ppm, max 180 A.A. Alcan 125286
Vanadium , ppm, max 250 A.A. Alcan 125286
Sodium , ppm, max 100 A.A. Alcan 125286
Calcium , ppm, max 120 A.A. Alcan 125286
Nickel , ppm, max 250 A.A. Alcan 125286
6
REPLAN GREEN COKE QUALITY
CHARACTERISTICS SPECS METHOD
Moisture, wt, max. 13 Speedy
Volatile Matter, wt, max 13 Alcan 319/54
Ash, wt, max 0.30 Alcan 294/55
Sulphur, wt, max 1.0 Leco
Fixed Carbon, wt, min/max 88 90 ASTM D3172/93
HGI, min/max 70 90 ASTM D409-03a
Silicon , ppm, max 160 A.A. Alcan 125286
Iron , ppm, max 180 A.A. Alcan 125286
Vanadium , ppm, max 250 A.A. Alcan 125286
Sodium , ppm, max 100 A.A. Alcan 125286
Calcium , ppm, max 120 A.A. Alcan 125286
Nickel , ppm, max 250 A.A. Alcan 125286
7
INDUSTRIAL SITES
REGAP - Minas Gerais 360 MT/Y
REPLAN São Paulo 650 MT/Y
RPBC São Paulo 2 cokers 600 MT/Y

• 3 Refineries
• 4 Coker Units
• 1 Calciner Unit

• PETROCOQUE
• (35)

Houston 2004
8
BRAZILIAN MARKET
GREEN COKE BALANCE (MT)
Houston 2004
9
Petcoke exports by Petrobras anode grade and
calcined (MT)
Houston 2004
10
Houston 2004
11
Houston 2004
12
FUTURE COKE UNITS
RLAM Bahia 1 coker 2008 500,000 MT/Y
REPLAN São Paulo 1 coker 2004 600,000
MT/Y 1.200.000 MT/Y
REDUC, Rio de Janeiro 1 coker 2006 500,000 MT/Y
REPAR, Paraná 1 coker 2009 500,000 MT/Y
REVAP São Paulo 1 coker 2007 500,000 MT/Y
REFAP R G Sul 1 coker 2005 200,000 MT/Y
Houston 2004
13
FUTURE CAPACITY
Houston 2004
14
ANODE versus FUEL GRADE ?

• Still been evaluated
• Hardware for anode production
• Feedstock
• Severity
• Refinery Economics

Houston 2004
