Refraction

1

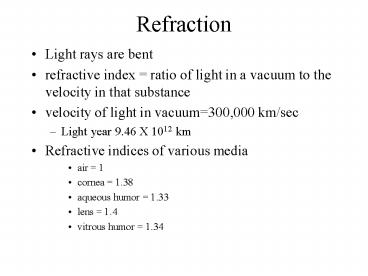

Refraction

• Light rays are bent
• refractive index ratio of light in a vacuum to
  the velocity in that substance
• velocity of light in vacuum300,000 km/sec
• Light year 9.46 X 1012 km
• Refractive indices of various media
• air 1
• cornea 1.38
• aqueous humor 1.33
• lens 1.4
• vitrous humor 1.34

2
Refraction of light by the eye

• Refractive power of 59 D (cornea lens)
• Diopter 1 meter/ focal length
• Convex lens expressed as diopters
• Concave lens expressed as - diopters
• central point 17 mm in front of retina
• inverted image- brain makes the flip
• lens strength can vary from 20- 34 D (? 14)
• Ability to increase refractive power ? with age
• 14 (age 10) 8 (age 30) 2 (age 50)
• Parasympathetic increases lens strength
• Greater refractive power needed to read text

3
Accomodation

• Increasing lens strength from 20 -34 D
• Parasympathetic causes contraction of ciliary
  muscle allowing relaxation of suspensory
  ligaments attached radially around lens, which
  becomes more convex, increasing refractive power
  (illustration)
• Associated with close vision (e.g. reading)
• In addition, eyes roll in and pupils constrict
• Presbyopia- loss of elasticity of lens w/ age
• decreases accommodation

4
Errors of Refraction

• Emmetropia- normal vision ciliary muscle relaxed
  in distant vision
• Hyperopia-farsighted- focal pt behind retina
• globe short or lens weak convex lens to correct
• Myopia- nearsighted- focal pt in front of
  retina
• globe long or lens strong concave lens to
  correct
• Astigmatism- irregularly shaped
• cornea (more common)
• lens (less common)

5
Visual Acuity

• Snellen eye chart
• ratio of what that person can see compared to a
  person with normal vision
• 20/20 is normal
• 20/40 less visual acuity
• What the subject sees at 20 feet, the normal
  person could see at 40 feet.
• 20/10 better than normal visual acuity
• What the subject sees at 20 feet, the normal
  person could see at 10 feet

6
Visual acuity

• The fovea centralis is the area of greatest
  visual acuity
• it is less than .5 mm in diameter (lt 2 deg of
  visual field)
• outside fovea visual acuity decreases to more
  than 10 fold near periphery
• acuity for point sources of light 25 sec of arc
  (angle of 25 seconds)
• point sources of light two ? apart on retina can
  be distinguished as two separate points

7
Fovea and acute visual acuity

• Central fovea-area of greatest acuity
• composed almost entirely of long slender cones
• aids in detection of detail
• blood vessels, ganglion cells, inner nuclear
  plexiform layers are displaced laterally
• allows light to pass relatively unimpeded to
  receptors

8
Depth Perception

• Relative size
• the closer the object, the larger it appears
• learned from previous experience
• Moving parallax
• As the head moves, objects closer move across the
  visual field at a greater rate
• Stereopsis- binocular vision
• eyes separated by 2 inches- slight difference in
  position of visual image on both retinas, closer
  objects are more laterally placed

9
Formation of Aqueous Humor

• Secreted by ciliary body (epithelium)
• 2-3 ul/min
• flows into anterior chamber and drained by Canal
  of Schlemm (vein)
• intraocular pressure- 12-20 mmHg.
• Glaucoma- increased intraocular P.
• compression of optic N.-can lead to blindness
• treatment drugs surgery

10
Retina

• Peripheral extension of the CNS
• Processing of visual signal
• Photoreceptors
• Rods Cones
• Other Cells
• bipolar, ganglion, horizontal, amacrine
• Only retinal cells that generate action
  potentials are the ganglion cells

11
Photoreceptors

• Rods Cones
• Light breaks down rhodopsin (rods) and cone
  pigments (cones)
• ? rhodopsin ? ? Na conductance
• photoreceptors hyperpolarize
• release less NT (glutamate) when stimulated by
  light

12
Retinal responses

• Dark
• ?
• Rod/Cone
• depolarize
• ?
• ? NT
• Hyperpol Depolarize
• ON BC OFF BC

• Light
• ?
• Rod/Cone
• hyperpolarize
• ?
• NT
• Depolarize Hyperpol
• ON BC OFF BC

13
Bipolar Cells

• Connect photoreceptors to either ganglion cells
  or amacrine cells
• passive spread of summated postsynaptic
  potentials (No AP)
• Two types
• ON- hyperpolarized by NT glutamate
• Invaginating bipolars
• OFF- depolarized by NT glutamate
• Flat bipolars

14
Ganglion Cells

• Can be of the ON or OFF variety
• ON bipolar ON ganglion
• OFF bipolar OFF ganglion
• Generate AP carried by optic nerve
• Three subtypes
• X (P) cells
• Y (M) cells
• W cells

15
Ganglion cells
16
P (X) Ganglion Cells

• Most numerous (55) G cells
• Receive input mostly from bipolar c.
• Slower conduction velocity (14 m/sec)
• Sustained response-slow adaptation
• Small receptive field
• signals represent discrete retinal location
• Respond differently to different ?
• Responsible for color vision
• Project to Parvocellular layer of lateral
  geniculate nucleus (thalamic relay)

17
M (Y) Ganglion Cells

• Receive input mostly from Amacrine
• Larger receptive field
• Transient-fast conduction velocity
• respond best to moving stimuli
• Not sensitive to different ?
• More sensitive to brightness
• Project to magnocellular LGN
• Black White images

18
W Ganglion Cells

• smallest, slowest CV (8 m/sec)
• 40 of all ganglion cells
• many lack center-surround antagonistic fields
• they act as light intensity detectors
• some respond to large field motion
• detect directional movement
• Broad receptive fields
• Receive most of their input from rods
• Important for crude vision in dim light

19
Horizontal Cells

• Non spiking inhibitory interneurons
• Make complex synaptic connections with
  photorecetors
• Hyperpolarized when light stimulates input
  photoreceptors (just like receptor)
• When they depolarize they inhibit photoreceptors
• Maybe responsible for center-surround antagonism

20
Amacrine Cells

• Receive input from bipolar cells
• Project to ganglion cells
• Several types releasing different NT
• GABA, dopamine
• Transform sustained ON or OFF to transient
  depolarization AP in ganglion cells

21
Center-Surround Fields

• Receptive fields of bipolar gang. C.
• two concentric regions
• Center field
• mediated by all photoreceptors synapsing directly
  onto the bipolar cell
• Surround field
• mediated by photoreceptors which gain indirect
  access to bipolar cells via horizontal cells

22
Center-Surround (cont)

• Photoreceptors contributing to center field of
  one bipolar cell contributes to surround field of
  other bipolar cells
• Because of center-surround antagonism, ganglion
  cells monitor differences in luminance between
  center surround fields

23
Center-surround (cont)

• If center field is on, surround is off
• If center field is off, surround is on
• Simultaneous stimulation of light of both fields
  gives no net response
• antagonistic excitatory inhibitory inputs
  neutralize each other
• When surround is illuminated, the horizontal
  cells depolarize the cones in the center
  (opposite effect of light)

24
Receptive field size

• In fovea- ratio can be as low as 1 cone to 1
  bipolar cell to 1 ganglion cell
• In peripheral retina- hundreds of rods can supply
  a single bipolar cell many bipolar cells
  connected to 1 ganglion cell

25
Dark Adaptation

• In sustained darkness reformation of light
  sensitive pigments (Rhodopsin Cone Pigments)
• ? of retinal sensitivity 10,000 fold
• cone adaptationlt100 fold (1st 10 min.)
• rod adaptationgt100 fold (50 min.)
• dilation of pupil
• neural adaptation

26
Cones

• 3 populations of cones with different
  pigments-each having a different peak absorption
  ?
• Blue sensitive (445 nm)
• Green sensitive (535 nm)
• Red sensitive (570 nm)

27
Color Blindness

• Sex-linked trait carried on X chromosome
• Occurs almost exclusively in males but
  transmitted by the female
• Most common is red-green color blindness
• missing either red or green cones

28
Loss of Cones

• Loss of Red Cones- Protanope
• decrease in overall visual spectrum
• Loss of Green Cones- Deuteranope
• normal overall visual spectrum
• problems distinguishing green, yellow, orange
  red (Ishihara Chart)
• Loss of Blue Cones- rare but may be
  under-represented Blue weakness

29
Visual Pathway

• Optic N to Optic Chiasm
• Optic Chiasm to Optic Tract
• Optic Tract to Lateral Geniculate
• Lateral Geniculate to 10 Visual Cortex
• geniculocalcarine radiation

30
(No Transcript)
31
Additional Visual Pathways

• From Optic Tracts to
• Suprachiasmatic Nucleus
• biologic clock function
• Pretectal Nuclei
• reflex movement of eyes-
• focus on objects of importance
• Superior Colliculus
• rapid directional movement of both eyes
• Orienting reactions

32
Cells in visual pathway
33
Primary Visual Cortex

• Brodman area 17 (V1)-2x neuronal density
• Simple Cells-responds to bar of light/dark
• above below layer IV
• Complex Cells-motion dependent but same
  orientation sensitivity as simple cells
• Color blobs-rich in cytochrome oxidase in center
  of each occular dominace band
• starting point of cortical color processing
• Vertical Columns-input into layer IV
• Hypercolumn-functional unit, block through all
  cortical layers about 1mm2

34
Visual Association Cortex

• Visual signal is broken down sent over parallel
  pathways
• Visual analysis proceeds along many paths in
  parallel- at least 30 cortical areas processing
  vision
• Parvo-interblob
• High resolution static form perception (B W)
• Blob
• Color (V4)
• Achromatopsia
• Magno
• Movement (MT) Stereoscopic Depth

35
Old vs. New visual system

• Old pathway projects to the superior colliculus
• Locating objects in visual field, so you can
  orient to it (rotate head eyes)
• Subconscious
• Blindsight
• New pathway projects to the cortex
• Consciously recognizing objects

36
Blindsight

• Some patients who are effectively blind because
  of brain damage can carry out tasks which appear
  to be impossible unless they can see the objects.
• For instance they can reach out and grasp an
  object, accurately describe whether a stick is
  vertical or horizontal, or post a letter through
  a narrow slot.
• The explanation appears to be that visual
  information travels along two pathways in the
  brain. If the cortical pathway is damaged, a
  patient may lose the ability to consciously see
  an object but still be aware of its location and
  orientation via projections to the superior
  colliculus at a subconscious level.
• How the brain learns to see video

37
Cortical fixation areas

• Voluntary fixation mechanism (anterior)
• Person moves eyes voluntarily to fix on an object
• Controlled by cortical field bilaterally in
  premotor cortex
• Involuntary fixation mechanism (posterior)
• Holds eyes firmly on object once it has be
  located
• Controlled by secondary visual areas in occipital
  cortex located just in front of primary visual
  cortex
• Works in conjunction with the superior colliculus
• Involuntary fixation is mostly lost when superior
  colliculus is destroyed.

38
Control of Pupillary Diameter

• Para causes ? size of pupil (miosis)
• Symp causes ? size of pupil (mydriasis)
• Pupillary light reflex
• optic nerve to pretectal nuclei to
  Edinger-Westphal to ciliary ganglion to pupillary
  sphincter to cause constriction (Para)

39
Horners Syndrome

• Interruption of SNS supply to an eye
• from cervical sympathetic chain
• constricted pupil compared to unaffected eye
• drooping of eyelid normally held open in part by
  SNS innervated smooth muscle
• dilated blood vessels
• lack of sweating on that side of face

40
Function of extraoccular muscles

• Medial rectus of one eye works with the lateral
  rectus of the other eye as a yoked pair to
  produce lateral eye movements
• The superior inferior recti muscles elevate
  depress the eye respectively and are most
  effective when the eye is abducted
• The superior oblique muscles lower the eye when
  it is adducted
• The inferior oblique muscle elevates the eye when
  it is adducted

41
Innervation of extraoccular muscles

• Extraoccular muscles controlled by CN III, IV,
  and VI
• CN VI controls the lateral rectus only
• CN IV controls the superior oblique only
• CN III controls the rest

42
Summary of extraoccular ms.
Elevate Depress Intorsion Extors.
Adduct. Eye Inferior oblique Superior oblique Superior rectus Inferior rectus
Abduct. Eye Superior rectus Inferior rectus Superior oblique Inferior oblique
43
Sound

• Units of Sound is the decibel (dB)
• I (measured sound)
• Decibel 1/10 log --------------------------

• I (standard
  sound)
• Reference Pressure for standard sound
• .02 X 10-2 dynes/cm2

44
Sound

• Energy is proportional to the square of pressure
• A 10 fold increase in sound energy 1 bel
• One dB represents an actual increase in sound E
  of about 1.26 X
• Ears can barely detect a change of 1 dB

45
Different Levels of Sound

• 20 dB- whisper
• 60 dB- normal conversation
• 100 dB- symphony
• 130 dB- threshold of discomfort
• 160 dB- threshold of pain

46
Frequencies of Audible Sound

• In a young adult
• 20-20,000 Hz (decreases with age)
• Greatest acuity
• 1000-4000 Hz

47
Tympanic Membrane Ossicles

• Impedance matching-between sound waves in air
  sound vibrations generated in the cochlear fluid
• 50-75 perfect for sound freq.300-3000 Hz
• Ossicular system
• reduces amplitude by 1/4
• increases pressure against oval window 22X
• increased force (1.3)
• decreased area from TM to oval window (17)

48
Ossicular system (cont.)

• Non functional ossicles or ossicles absent
• decrease in loudness about 15-20 dB
• medium voice now sounds like a whisper
• attenuation of sound by contraction of
• Stapedius muscle-pulls stapes outward
• Tensor tympani-pull malleous inward

49
Attenuation of sound

• CNS reflex causes contraction of stapedius and
  tensor tympani muscles
• activated by loud sound and also by speech
• latency of about 40-80 msec
• creation of rigid ossicular system which reduces
  ossicular conduction
• most effective at frequencies of lt 1000 Hz.
• Protects cochlea from very loud noises, masks low
  freq sounds in loud environment

50
Cochlea

• System of 3 coiled tubes
• Scala vestibuli
• Scala media
• Scala tympani

51
Scala Vestibuli

• Seperated from the scala media by Reissners
  membrane
• Associated with the oval window
• filled with perilymph (similar to CSF)

52
Scala Media

• Separated from scala tympani by basilar membrane
• Filled with endolymph secreted by stria
  vascularis which actively transports K
• Top of hair cells bathed by endolymph

53
Endocochlear potential

• Scala media filled with endolymph (K)
• baths the tops of hair cells
• Scala tympani filled with perilymph (CSF)
• baths the bottoms of hair cells
• electrical potential of 80 mv exists between
  endolymph and perilymph due to active transport
  of K into endolymph
• sensitizes hair cells
• inside of hair cells (-70 mv vs -150 mv)

54
Scala Tympani

• Associated with the round window
• Filled with perilymph
• baths lower bodies of hair cells

55
Function of Cochlea

• Change mechanical vibrations in fluid into action
  potentials in the VIII CN
• Sound vibrations created in the fluid cause
  movement of the basilar membrane
• Increased displacement
• increased neuronal firing resulting an increase
  in sound intensity
• some hair cells only activated at high intensity

56
Place Principle

• Different sound frequencies displace different
  areas of the basilar membrane
• natural resonant frequency
• hair cells near oval window (base)
• short and thick
• respond best to higher frequencies (gt4500Hz)
• hair cells near helicotrema (apex)
• long and slender
• respond best to lower frequencies (lt200 Hz)

57
Fourier analysis by the cochlea

• Any complex wave can be broken down into its
  component sine waves with differing phases,
  frequencies, amplitudes
• Fourier analysis
• Cochlea behaves like a Fourier analyser
• Acts a kind of auditory prism
• Sorting out vibrations of different frequencies
  into different positions along the membrane

58
Central Auditory Pathway

• Organ of Corti to ventral dorsal cochlear
  nuclei in upper medulla
• Cochlear N to superior olivary N (most fibers
  pass contralateral, some stay ipsilateral)
• Superior olivary N to N of lateral lemniscus to
  inferior colliculus via lateral lemniscus
• Inferior colliculus to medial geniculate N
• Medial geniculate to primary auditory cortex

59
Primary Auditory Cortex

• Located in superior gyrus of temporal lobe
• tonotopic organization
• high frequency sounds
• posterior
• low frequency sounds
• anterior
• S.Q.U.I.D
• changes in central sensitivities

60
Air vs. Bone conduction

• Air conduction pathway involves external ear
  canal, middle ear, and inner ear
• Bone conduction pathway involves direct
  stimulation of cochlea through the vibration of
  the skull as the cochlea is imbedded in the
  petrous portion of the temporal bone
• reduced hearing may involve
• ossicles (air conduction loss)
• cochlea or associated neural pathway (sensory
  neural loss)

61
Differentiating a hearing loss

• If there is a known bad ear
• Weber test (512 Hz) tunning fork placed on
  midline of the skull
• If sounds louder in bad ear- conduction loss in
  bad ear. (external canal or ossicles involved)
• If sounds louder in good ear- sensory neural loss
  in bad ear
• Rinne test- confirms results of Weber
• air conduction gt bone- sensory neural
• bone conduction gt air- air conduction loss

62
Sound Localization

• Horizontal direction from which sound originates
  from determined by two principal mechanisms
• Time lag between ears
• functions best at frequencies lt 3000 Hz.
• Involves medial superior olivary nucleus
• neurons that are time lag specific
• Difference in intensities of sounds in both ears
• involves lateral superior olivary nucleus

63
Exteroceptive chemosenses

• Taste
• Works together with smell
• Categories (Primary tastes)
• sweet
• salt
• sour
• bitter (lowest threshold-protective mechanism)
• Umami (savory/pungent)
• Olfaction (Smell)
• Primary odors (100-1000)

64
Taste receptors

• May have preference for stimuli
• influenced by past history
• recent past
• adaptation
• long standing
• memory
• conditioning-association

65
Primary sensations of taste

• Sour taste-
• caused by acids (hydrogen ion concentration)
• Salty taste-
• caused by ionized salts (primarily the Na)
• Sweet taste-
• most are organic chemicals (e.g. sugars, esters
  glycols, alcohols, aldehydes, ketones, amides,
  amino acids) inorganic salts of Pb Be

66
Primary sensations of taste

• Bitter- no one class of compounds but
• long chain organic compounds with N
• alkaloids (quinine, strychnine, caffeine,
  nicotine)
• Umami/Savory
• Flavor associated with MSG
• Receptor responds to amino acids

67
Taste

• Taste sensations are generated by
• complex transactions among chemical and receptors
  in taste buds
• subsequent activities occuring along the taste
  pathways
• There is much sensory processing, centrifugal
  control, convergence, global integration among
  related systems contributing to gustatory
  experiences

68
Taste Buds

• Taste neuroepithelium consists of taste buds
  distributed over tongue, pharynx, larynx.
• Aggregated in relation to 3 kinds of papillae
• fungiform-blunt pegs 1-5 buds /top
• foliate-submerged pegs in serous fluid with
  1000s of taste buds on side
• circumvallate-stout central stalks in serous
  filled moats with taste buds on sides in fluid
• 40-50 modified epithelial cells grouped in barrel
  shaped aggregate beneath a small pore which opens
  onto epithelial surface

69
Innervation of Taste Buds

• each taste nerve arborizes innervates several
  buds (convergence in 1st order)
• receptor cells activate nerve endings which
  synapse to base of receptor cell
• Individual cells in each bud differentiate,
  function degenerate on a weekly basis
• taste nerves
• continually remodel synapses on newly generated
  receptor cells
• provides trophic influences essential for
  regeneration of receptors buds

70
Adaptation of taste

• Rapid-within minutes
• taste buds account for about 1/2 of adaptation
• the rest of adaptation occurs higher in CNS

71
CNS pathway-taste

• Anterior 2/3 of tongue
• lingual N. to chorda tympani to facial (VII CN)
• Posterior 1/3 of tongue
• IX CN (Petrosal ganglion)
• base of tongue and palate
• X CN
• All of the above terminate in nucleus tractus
  solitarius (NTS)

72
CNS pathway (taste cont)

• From the NTS to VPM of thalamus via central
  tegmental tract (ipsilateral) which is just
  behind the medial lemniscus.
• From the thalmus to lower tip of the post-central
  gyrus in parietal cortex adajacent opercular
  insular area in sylvian fissure

73
Olfaction

• Least understood
• smell is subjective
• hard to study in animals
• rudimentary in humans
• Humans are microsmatic
• Poorly developed sense of smell

74
The Nose

• 3 conchae bilaterally
• Highly vascularized organs covered with erectile
  tissue
• Fxns to moisten and warm incoming air
• Limit loss of heat H2O in expired air
• Engorged with blood when you have a cold
• Block air from reaching olfactory receptors
• Partial loss of smell
• Olfactory cleft at the top
• Olfactory epithelium
• Associated with the olfactory receptors
• Normally only a small portion of air reaches here
• Sniffing ? the by creating turbulence around
  conchae

75
Vomeronasal organ

• Aka Jacobsons organ
• Located medially on septum in lower part of nasal
  cavity
• Appears to contribute to olfaction
• Probably more receptive than olfactory epithelium
  to phermones which have profound effects on
  behavior

76
Olfactory Membrane

• Superior part of nostril
• Olfactory cells
• bipolar nerve cells
• 100 million in olfactory epithelium
• 6-12 olfactory hairs/cell project in mucus
• react to odors and stimulate cells

77
Cells in Olfactory Membrane

• Olfactory cells-
• bipolar nerve cells which project hairs in mucus
  in nasal cavity
• stimulated by odorants
• connect to olfactory bulb via cribiform plate
• Cells which make up Bowmans glands
• secrete mucus
• Sustentacular cells
• supporting cells

78
Characteristics of Odorants

• Volatile
• slightly water soluble-
• for mucus
• slightly lipid soluble
• for membrane of cilia

79
Threshold for smell

• Very low
• methyl mercaptan
• 1/25 billion of mg/ml of air can be detected
• mixed with natural gas so gas leaks can be
  detected

80
Stimulation of Olfactory Cells

• Odorant binds to receptor protein
• Inside of protein is coupled to a G-protein
• 3 subunits
• G-protein activates adenyl cyclase
• Adenyl cyclase converts ATP ? cAMP
• cAMP causes protein gated Na channels to open
• Ca enters as well which opens choride channels
• High Cl- concentraction inside olfactory
  receptors (unusual)
• Efflux of Cl- prolongs depolarization
• At every step the effect is amplified

81
Primary sensations of smell

• Anywhere from 100 to 1000 based on different
  receptor proteins
• odor blindness has been described for at least 50
  different substances
• may involve lack of a specific receptor protein

82
Olfactory Receptor

• Resting membrane potential when not activated
  -55 mv
• 1 impulse/ 20 sec to 2-3 impulses/ sec
• When activated membrane pot. -30 mv
• 20 impulses/ sec
• Prolongation of response in response to
• Na and Ca influx during depolarization
• Ca influx binds to and opens Chloride channel
  protein
• High Chloride content intracellularly (atypical),
  therefore when stimulated, Cl- efflux will
  prolong depolarization

83
Glomerulus in Olfactory Bulb

• several thousand/bulb
• Connections between olfactory cells and cells of
  the olfactory tract
• receive axons from olfactory cells (25,000)
• receive dendrites from
• large mitral cells (25)
• smaller tufted cells (60)

84
Cells in Olfactory bulb

• Mitral Cells- (continually active)
• send axons into CNS via olfactory tract
• Tufted Cells- (continually active)
• send axons into CNS via olfactory tract
• Granule Cells
• inhibitory cell which can decrease neural traffic
  in olfactory tracts
• receive input from centrifugal nerve fibers
• Periglomerular Cells
• Inhibitory cells between glomerulus

85
CNS pathways

• Very old- medial olfactory area
• feeds into hypothalamus primitive areas of
  limbic system (from medial pathway)
• basic olfactory reflexes
• Less old- lateral olfactory area
• prepyriform pyriform cortex -only sensory
  pathway to cortex that doesnt relay via thalamus
  (from lateral pathway)
• learned control/adversion
• Newer- passes through the thalamus to
  orbitofrontal cortex (from lateral pathway)
• - conscious analysis of odor

86
Medial and Lateral pathways

• 2nd order neurons form the olfactory tract
  project to the following 1o olfactory
  paleocortical areas
• Anterior olfactory nucleus
• Modulates information processing in olfactory
  bulbs
• Amygdala and olfactory tubercle
• Important in emotional, endocrine, and visceral
  responses of odors
• Pyriform and periamygdaloid cortex
• Olfactory perception
• Rostral entorhinal cortex
• Olfactory memories
