Knowledge Discovery

1

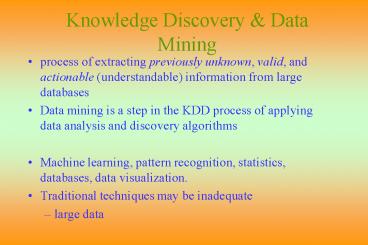

Knowledge Discovery Data Mining

• process of extracting previously unknown, valid,
  and actionable (understandable) information from
  large databases
• Data mining is a step in the KDD process of
  applying data analysis and discovery algorithms
• Machine learning, pattern recognition,
  statistics, databases, data visualization.
• Traditional techniques may be inadequate
• large data

2
Why Mine Data?

• Huge amounts of data being collected and
  warehoused
• Walmart records 20 millions transactions per day
• WebLogs Millions of hits per day on major sites
• health care transactions multi-gigabyte
  databases
• Mobil Oil geological data of over 100 terabytes
• Affordable computing
• Competitive pressure
• gain an edge by providing improved, customized
  services
• information as a product in its own right

3

• Knowledge discovery in databases (KDD) is the
  non-trivial process of identifying valid,
  potentially useful and ultimately understandable
  patterns in data

Data Mining
Clean, Collect, Summarize
Data Preparation
Training Data
Data Warehouse
Model Patterns
Verification, Evaluation
Operational Databases
4
Data mining

• Pattern
• 12121?
• 12 pattern is found often enough So, with some
  confidence we can say ? is 2
• If 1 then 2 follows
• Pattern ? Model
• Confidence
• 121212?
• 12121231212123121212?
• 121212? 3
• Models are created using historical data by
  detecting patterns. It is a calculated guess
  about likelihood of repetition of pattern.

5

• Note Models and patterns A pattern can be
  thought of as an instantiation of a model. Eg.
  f(x) 3 x2 x is a pattern whereas f(x) ax2
  bx is considered a model.
• Data mining involves fitting models to and
  determining patterns from observed data.

6
Data Mining

• Prediction Methods
• using some variables to predict unknown or future
  values of other variables
• It uses database fields (predictors) for
  prediction model, using the field values we can
  make predictions
• Descriptive Methods
• finding human-interpretable patterns describing
  the data

7
Data Mining Techniques

• Classification
• Clustering
• Association Rule Discovery
• Sequential Pattern Discovery
• Regression
• Deviation Detection

8
Classification

• Data defined in terms of attributes, one of which
  is the class
• Find a model for class attribute as a function of
  the values of other(predictor) attributes, such
  that previously unseen records can be assigned a
  class as accurately as possible.
• Training Data used to build the model
• Test data used to validate the model (determine
  accuracy of the model)
• Given data is usually divided into training and
  test sets.

9
Classification

• Given old data about customers and payments,
  predict new applicants loan eligibility.

Previous customers
Classifier
Decision rules
Age Salary Profession Location Customer type
Salary gt 5 L
Good/ bad
Prof. Exec
New applicants data
10
Classification methods

• Goal Predict class Ci f(x1, x2, .. Xn)
• Regression (linear or any other polynomial)
• Decision tree classifier divide decision space
  into piecewise constant regions.
• Neural networks partition by non-linear
  boundaries
• Probabilistic/generative models
• Lazy learning methods nearest neighbor

11
Decision trees

• Tree where internal nodes are simple decision
  rules on one or more attributes and leaf nodes
  are predicted class labels.

Salary lt 50 K
Prof teacher
Age lt 30
12
ClassificationExample
13
Decision Tree
Training Dataset
14
Output A Decision Tree for buys_computer
15
Algorithm for Decision Tree Induction

• Basic algorithm (a greedy algorithm)
• Tree is constructed in a top-down recursive
  divide-and-conquer manner
• At start, all the training examples are at the
  root
• Attributes are categorical (if continuous-valued,
  they are discretized in advance)
• Examples are partitioned recursively based on
  selected attributes
• Test attributes are selected on the basis of a
  heuristic or statistical measure (e.g.,
  information gain)
• Conditions for stopping partitioning
• All samples for a given node belong to the same
  class
• There are no remaining attributes for further
  partitioning majority voting is employed for
  classifying the leaf
• There are no samples left

16
Attribute Selection Measure Information Gain
(ID3/C4.5)

• Select the attribute with the highest information
  gain
• S contains si tuples of class Ci for i 1, ,
  m
• information measures info required to classify
  any arbitrary tuple
• entropy of attribute A with values a1,a2,,av
• information gained by branching on attribute A

17
Attribute Selection by Information Gain
Computation

• Class P buys_computer yes
• Class N buys_computer no
• I(p, n) I(9, 5) 0.940
• Compute the entropy for age

• means age lt30 has 5 out of 14
  samples, with 2 yeses and 3 nos. Hence
• Similarly,

18
Classification Direct Marketing

• Goal Reduce cost of soliciting (mailing) by
  targeting a set of consumers likely to buy a new
  product.
• Data
• for similar product introduced earlier
• we know which customers decided to buy and which
  did not buy, not buy class attribute
• collect various demographic, lifestyle, and
  company related information about all such
  customers - as possible predictor variables.
• Learn classifier model

19
Classification Fraud detection

• Goal Predict fraudulent cases in credit card
  transactions.
• Data
• Use credit card transactions and information on
  its account-holder as input variables
• label past transactions as fraud or fair.
• Learn a model for the class of transactions
• Use the model to detect fraud by observing credit
  card transactions on a given account.

20
Clustering

• Given a set of data points, each having a set of
  attributes, and a similarity measure among them,
  find clusters such that
• data points in one cluster are more similar to
  one another
• data points in separate clusters are less similar
  to one another.
• Similarity measures
• Euclidean distance, if attributes are continuous
• Problem specific measures

21
Clustering Market Segmentation

• Goal subdivide a market into distinct subsets of
  customers where any subset may conceivably be
  selected as a market target to be reached with a
  distinct marketing mix.
• Approach
• collect different attributes on customers based
  on geographical, and lifestyle related
  information
• identify clusters of similar customers
• measure the clustering quality by observing
  buying patterns of customers in same cluster vs.
  those from different clusters.

22
Association Rule Discovery

• Given a set of records, each of which contain
  some number of items from a given collection
• produce dependency rules which will predict
  occurrence of an item based on occurences of
  other items

23
Association Rule Basic Concepts

• Given (1) database of transactions, (2) each
  transaction is a list of items (purchased by a
  customer in a visit)
• Find all rules that correlate the presence of
  one set of items with that of another set of
  items
• E.g., 98 of people who purchase tires and auto
  accessories also get automotive services done
• Applications
• ? Maintenance Agreement (What the store
  should do to boost Maintenance Agreement sales)
• Home Electronics ? (What other products
  should the store stocks up?)
• Attached mailing in direct marketing

24
Association Rule Basic Concepts

• number of tuples containing both A and B
• Support (A? B) ---------------------------------
  --------------
• total number of tuples
• number of tuples containing both A and B
• Confidence (A? B) ------------------------------
  -----------
• total number of tuples containg A

25
Rule Measures Support and Confidence
Customer buys both

• Find all the rules X Y ? Z with minimum
  confidence and support
• support, s, probability that a transaction
  contains X , Y , Z
• confidence, c, conditional probability that a
  transaction having X , Y also contains Z

Customer buys d
Customer buys b

• Let minimum support 50, and minimum confidence
  50, we have
• A ? C (50, 66.6)
• C ? A (50, 100)

26
Mining Association RulesAn Example
Min. support 50 Min. confidence 50

• For rule A ? C
• support support(A , C) 50
• confidence support(A , C)/support(A) 66.6

27
Association RulesApplication

• Marketing and Sales Promotion
• Consider discovered rule
• Bagels, --gt Potato Chips
• Potato Chips as consequent can be used to
  determine what may be done to boost sales
• Bagels as an antecedent can be used to see which
  products may be affected if bagels are
  discontinued
• Can be used to see which products should be sold
  with Bagels to promote sale of Potato Chips

28
Association Rules Application

• Supermarket shelf management
• Goal to identify items which are bought together
  (by sufficiently many customers)
• Approach process point-of-sale data (collected
  with barcode scanners) to find dependencies among
  items.
• Example
• If a customer buys Diapers and Milk, then he is
  very likely to buy Beer
• so stack six-packs next to diapers?

29
Sequential Pattern Discovery

• Given set of objects, each associated with its
  own timeline of events, find rules that predict
  strong sequential dependencies among different
  events, of the form (A B) (C) (D E) --gt (F)

• xg max allowed time between consecutive
• event-sets
• ng min required time between consecutive
• event sets
• ws window-size, max time difference between
• earliest and latest events in an event-set
  (events
• within an event-set may occur in any order)
• ms max allowed time between earliest and
• latest events of the sequence.

30
Sequential Pattern Discovery Examples

• Sequences in which customers purchase
  goods/services
• Understanding long term customer behavior --
  timely promotions.
• In point-of--sale transaction sequences
• Computer bookstore
• (Intro to Visual C) (C Primer) --gt (Perl
  for Dummies, Tcl/Tk)
• Athletic Apparel Store
• (Shoes) (Racket, Racquetball) --gt (Sports
  Jacket)
