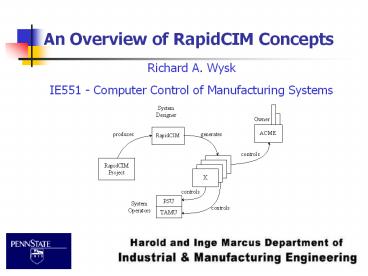

An Overview of RapidCIM Concepts

1
An Overview of RapidCIM Concepts

• Richard A. Wysk
• IE551 - Computer Control of Manufacturing Systems

2
Agenda

• Traditional Software Development
• Motivation for RapidCIM
• RapidCIM Concepts
• Equipment Level Models
• Message-based Part State Graphs
• Conclusions
• Resources

3
Introduction
Automated Flexible Manufacturing Cells/Shops
Hardware
System Control Software
Programming Tools Software
Tools to assist in development of System
Control Software
Input
Input ????
CAD Models etc.
NC Programming Offline Robot Programming etc.
????
4
Traditional Control Software Development

• In traditional PLC-type control, the control
  software is developed using the same planning,
  scheduling, and execution flow diagram.

5
Traditional Control Software Development

• Planning (determining part routes) and scheduling
  (sequencing tasks) are built into the control
  software - Similar to a PLC ladder diagram.
• Adding new parts or changing the scheduling rules
  require significant modifications to the control
  software
• These changes must be done by the FMS vendor
  instead of the system operators

6
Motivation For RapidCIM

• Most current FMS control implementations are
  customized
• Lack of generic tools
• Limitations in flexibility and reconfiguration
• High cost of reliable software development
• 2/3 rd of total expenditure is incurred during
  implementation phase, due to errors in software
  design
• approx. 64 of the errors are made at the
  concept stage and only 36 are programming errors
• On average, 50 or more of the software costs for
  flexible automation are related to control

7
Shop-floor control

• Lack of emphasis on software development
• Architectures do not provide sufficient detail
• Software requirements have not been
  systematically analyzed to separate generic
  requirements from implementation-specific
  requirements
• Functions performed are too tightly coupled
• Tools to aid in the manufacturing system software
  development do not exist

8
RapidCIM Project
9
Specific Tasks

• Understand the control elements of a FMS
• Develop theoretical foundations for FMS control,
  through use of formal models
• Create generic model of control independent of
  implementation specifics
• Automatic generation of control software for
  various controllers in the cell using the formal
  models
• Create a FMS control software development
  methodology which can be implemented as a set of
  domain specific CASE tools

10
Control Software

• Need Software
• That is generic and hence reuseable
• Easily customized per installation
• Modular modules being plug compatible

11
Hierarchical Architecture
12
Control Hierarchy

• EQUIPMENT
• Physical devices (NC machines, robots, AGV, ASRS,
  programmable fixtures, buffers, etc)
• WORKSTATION
• Integrated pieces of equipment
• Robot tending a single machining center, along
  with requisite fixtures, sensors, etc.
• Robot tending several machines
• SHOP
• Several integrated workstations, coupled by
  material transport workstations

13
Equipment Level

• Each controllable equipment is viewed as
  comprising
• Physical device controller (supplied with
  machine)
• Equipment controller (typically a PC)
• Generic Classes of Equipment
• MP - Material Processor (NC machine, CMM)
• MH - Material Handler (robot)
• MT - Material Transporter (AGV, conveyor)
• AS - Automated Storage Device

14
EQUIPMENT LEVEL (Cont)

• Non Controllable equipment
• BS - passive buffer storage devices
• PD - passive devices
• Ports (entry and exit of parts)
• PO - ports
• Equipment level controller
• incorporates a device driver, that implements the
  equipment level functions (cycle start, download,
  etc)
• This is the implementation specific portion

15
Workstation Level

• Workstation comprises
• equipment (MP, MH, PO, BS, MT ....)
• Types of Workstation
• Processing workstation
• Transport Workstation
• Storage Workstation

16
Planning, Scheduling, and Execution

• PlanningDetermining what tasks thesystem needs
  to perform
• SchedulingSequencing planned tasks
• ExecutionPerforming the scheduledtasks at the
  appropriatetime

17
Functional Architecture
18
Shop Floor Controller Structure
19
Part Flow Through the Shop
20
Material Processor System Model
Physical Configuration
Physical Model
21
Material Handler System Model
Physical Configuration
Physical Model
22
Typical Processing Workstation
23
Physical Model - Processing Workstation
24
Event Sequence
25
Equipment-level Device Interaction
26
Can this be implemented in a generic manner?

• Custom specifics
• Protocols
• Communications

27
Message-based Part State Graph (MPSG)

• An MPSG is a deterministic finite automaton
  representing the processing protocol for a part.
• An MPSG state provides information about the
  current processing state of the part that is
  needed to determine the behavior on subsequent
  events.
• State transitions are caused by receiving
  messages about the part and by performing
  functions specified by the scheduler.

28
Mealy Machine

• A Mealy machine is essentially a finite automaton
  with output. Formally, a Mealy machine M is
  defined as follows
• So, a Mealy machine is a finite state automaton
  in which an output (defined by ? and ?) is
  generated during state transitions.

29
MPSG Definition
30
MPSG for Generic MP Equipment
31
MPSG Characteristics

• Explicitly separate scheduling from execution.
• Extensible at multiple levels to facilitate
  software development
• Generic MPSG can be used unmodified.
• Extraneous transitions can be removed.
• Specified messages and tasks can be rearranged.
• New messages and tasks can be specified.
• Execution portion of the control software is
  automatically generated from the MPSG description.

32
Shop Floor Controller Class
33
Storage Class

• Provides basic database functions for the
  controller
• Parts are tracked based on their location in the
  shop, state, and the workstation and equipment
  level device to which they are assigned.
• Objects within the storage class
• Parts
• Slots - Corresponding to physical locations
• Entities - Lower level controllers in the control
  hierarchy

34
Controller Class

• Embellishes the storage class with the data
  structures necessary for control.

35
Equipment Class

• Specializes the controller class so that the
  instantiated objects interact directly with a
  piece of equipment
• Not Equipment Objects in the system. Rather
  the equipment class is further partitioned based
  on the behavior of the individual pieces of
  equipment.
• Material Processors (MP)
• Material Handlers (MH)
• Automated Storage Devices (AS)
• Material Transporters (MT)

36
Software Generation

• Generation software has been developed in C for
  use in DOS, OS/2, ULTRIX, AIX, UNIX and Windows
  operating system environments.
• Components of the generation system
• MPSG Builder
• Controller Class
• MPSG Class
• Communications Class (IOMUX for CIM lab
  implementation)
• Generic equipment descriptions and functions
• MPSG
• Scheduler
• Task action functions

37
Communication

• Controller to device
• Controller to controller
• Controller to database
• Controller to Messaging

38
Communications - continued

• IOMUX
• 1995 based system that connected all of the
  computers
• Router
• 1997 based system that uses a single device to
  route all messages

39
IOMUX (I/O Multiplier)

• Facilitates the interprocess transfer of data in
  a consistent manner independent of the
  hardware/operating systems of the components.
• System components can be reconfigured without
  recompilation by modifying an ASCII configuration
  file representing the route map (default.map).

40
Platform/domain

• Formerly implemented on the following platforms
• DOS
• RS-232 Serial
• TCP/IP using Watt TCP
• OS/2
• TCP/IP
• Shared queues (IPC)
• UNIX - TCP/IP
• DEC ULTRIX
• IBM AIX
• SGI

41
Current Implementation

• Windows NT/ Windows 2000 serves as the core for
  the system.
• Arena 3 or 4 is used as message generation for
  the Execution system
• Router communication
• Access - database

42
Shop Level Physical Model
43
Controller Tasks

• Physical Model actions/tasks become tasks issued
  by simulation
• Simulation - issues a pick through a message
  placed in the task initiation queue
• Big Executor
• explodes the pick task into various messages
  that are send to the individual controllers and
  co-ordinates their actions based on the responses
• returns a pick_done message to the simulation
  in the task completion queue

44
Conclusions

• Traditional Control Software generation issues
• Concept of RapidCIM
• Separation of Planning and Execution
• Physical models for equipment classes
• Workstation and shop level controllers

45
What Next?

• Manufacturing Architectures
• RapidCIM
• Simulation-based Control ? NEXT!
• Implementation Issues

46
Resources

• Joshi, S. B., Mettala, E. G., Smith J. S., and
  Wysk, R. A., Formal models for control of
  flexible manufacturing cells physical and system
  model, IEEE Transactions on Robotics and
  Automation, v11, n4, Aug, 1995 IEEE, Piscataway,
  NJ, USA, p 558-570.
•
• Joshi, S., J. Smith, R. Wysk, B. Peters, and C.
  Pegden, "Rapid-CIM An Approach to Rapid
  Development of Control Software for FMS Control",
  27th CIRP International Seminar on Manufacturing
  Systems, Ann Arbor, MI, May, 1995.
• Mettala, E. G., Automatic generation of control
  software in computer-integrated manufacturing,
  Ph.D. Dissertation, Department of Industrial and
  Manufacturing Engineering, Pennsylvania State
  University, University Park, PA 16802, 1989.

47
Resources

• Qui, R. B., Modeling and Control of a flexible
  manufacturing system using deterministic finite
  capacity automata, Ph.D. Dissertation,
  Department of Industrial and Manufacturing
  Engineering, Pennsylvania State University,
  University Park, PA 16802, 1996.
•
• Qui, R. B. and Joshi, S. B., Deterministic
  finite capacity automata a solution to reduce
  the complexity of modeling and control of
  automated manufacturing systems, Proceedings of
  the 1996 IEEE International Symposium on
  Computer-Aided Control System Design, Sep 15-18
  1996, Dearborn, MI, USA, p 218-223
• Qui, R. B. and Joshi, S. B., A Structured
  Adaptive Supervisory Control Methodology doe
  Modeling the Control of Discrete Event
  Manufacturing IEEE Transactions on Systems, Man,
  and Cybernetics, vol. 29, no. 6, 1999, pp. 573-586
