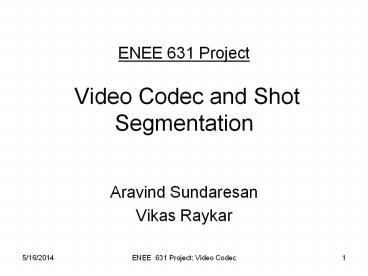

ENEE 631 Project Video Codec and Shot Segmentation

1
ENEE 631 Project Video Codec and Shot
Segmentation

• Aravind Sundaresan
• Vikas Raykar

2
Main features/ functionality

• Can encode monochrome video with frame dimensions
  (16M, 16N).
• Codes the sequence as a series of I/P frames. The
  I/P decision is made according to suitability of
  each method. (Example when a scene change is
  detected, the subsequent frame is coded INTRA).
• The frames are periodically coded as INTRA
  according to the INTRA refresh rate parameter.
• Temporal prediction is closed loop. Performs
  full-pel Motion Estimation in a window of of
  dimensions 48 x 48. Macroblocks within an I-frame
  are coded as INTRA/ INTER according to the
  compression achieved.
• Has a resynchronization marker at frame level.

3
Video Codec Structure

• The Video Codec is split into two programs
  Encoder and Decoder. Both of them have three
  layers.
• Top Layer Takes care of interface and I/O.
• Performs the necessary Initializations.
• Splits the input into frames and feeds them to
  the next layer sequentially.

4
Video Encoder - Block diagram
5
Video Codec Structure

• Intermediate Layer. This Layer performs the frame
  level manipulations and also takes care of the
  frame-level and macroblock-level decision making
  in the encoder.
• Performs Motion Estimation and Compensation or
  removes 128 from the frame to get Residue Frame.
• Feeds the residue frame to the frame encode
  layer.
• The reconstructed residue frame is used to
  reconstruct the current frame for future
  prediction.
• Bottom Layer This layer performs the actual
  coding.
• A hybrid coding technique, that employs both
  predictive coding to remove temporal redundancy
  and transform coding to remove spatial redundancy
  is used.
• The frame is split into macroblocks and each
  macroblock is coded separately. The bits
  generated are put in the bitstream.

6
Top Layer (Interface Layer)

• Performs the necessary initializations (such as
  Loading Huffman tables).
• Serves as interface between user and the actual
  encoder.
• Input sequence is read and passed as frames to
  the lower layer.
• Very first frame is forced to be INTRA.
  Subsequent frames are by default directed to be
  coded as INTER. The lower layer may dynamically
  decide to code such a frame AS INTRA according to
  various parameters (scene change / INTRA
  refresh).

7
Intermediate Layer (Control Layer)

• This is an important layer in that most of the
  decision making is performed here. These
  decisions are aimed at selecting the best coding
  technique according to the input frame. The
  decisions made and the functions performed are
  listed below.
• Intra / Inter Decision. The top layer has the
  ability to force the Intra Option. The
  Intermediate layer has the option to change the
  INTER option to INTRA. If the number of
  consecutive frames coded as P-frames equals a
  certain parameter (INTRA REFRESH RATE), the next
  frame is coded as an I-frame.

8
Intermediate Layer (Control Layer)

• Motion Estimation and Compensation. In case of
  Intra Macroblocks, 128 is subtracted from the
  Macroblock. Based on the output of the Motion
  Estimation a decision is made whether to code the
  frame as INTER.
• The frame to be coded is split into a MC frame
  and Residue frame (in case of INTRA frame, the MC
  frame comprises of pixels with value 128).
• The Residue frame is passed to the Encode frame
  layer. The layer returns the reconstructed
  residue frame which is added to the MC frame to
  be used for future prediction. (Closed Loop
  prediction to avoid error accumulation)

9
Bottom Layer (Encoder Layer)

• The frame is split into Macroblocks each of which
  comprises of 4 blocks. The macroblocks are read
  in raster scan order and coded sequentially and
  the blocks in the Macroblock are also similarly
  coded. Each macroblock consists of a header
  followed by the coefficient data. The header
  contains
• Coded Information (Coded/ Not coded, INTRA/
  INTER, etc)
• Motion Vector (for INTRA MBs)
• Coded Block Pattern
• Optionally include the Quantizer (or differential
  Quantizer).

10
Bottom Layer (Encoder Layer)

• The coding Procedure is described below.
• Each block is transform coded using the DCT. The
  DCT coefficients are quantized. The Quantization
  tables for INTRA and INTER blocks are different.
• Resulting matrix is split into DC and AC
  coefficients which are scanned in a zigzag manner
  and coded using fixed Huffman tables and
  run-length coding techniques.
• For run-length values not found in the table the
  run-length and level values are coded using an
  ESCAPE code and fixed length codes. If none of
  the blocks contain any coefficients, the MB is
  'not coded'.
• If only some of the blocks are coded, the
  corresponding bit is set in the CBP.

11
Video Decoder - Block diagram
12
Decoded Frames
13
Results

• 30 frames encoded
• Size of compressed stream 434096 bytes
• Size of 30 frames 30.240.352 2534400 bytes
• Compression 17
• Greater Compression can be achieved by
• Increasing quantizer step
• Increase ratio of P frames to I frames (current
  ratio 101)
