CHAPTER 4 CIRCULATION

1

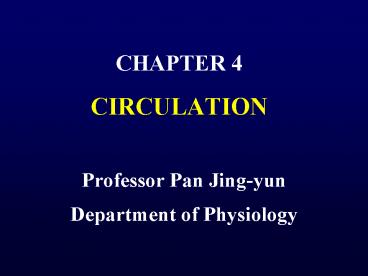

CHAPTER 4 CIRCULATION

• Professor Pan Jing-yun
• Department of Physiology

2
(No Transcript)
3
SECTION 1 ELECTRICAL ACTIVITY
OF HEART
4
I. BIOELECTRICAL PHENOMENA OF
MYOCARDIAL CELL
5
(No Transcript)
6
(No Transcript)
7

• Differences of AP configurations in different
  regions of the heart.
• Fast response potential
• Fast response cells atrium cell and ventricle
  cells working myocardium.
• Fast response automatic cells Purkinje fiber and
  bundle of His.
• Slow response potential
• Slow response cells SA node and AV node.

8
(No Transcript)
9

• Basic concepts
• Depolarization cations influx ---- Na,
• Ca inward current
• Repolarization cations efflux ---- K
• outward current
• Hyperpolarization Vm ? more negative
• than RMP
• Net current
• inward lt outward repolarization
• inward gt outward depolarization
• inward outward no change in Vm

10
TRANSMEMBRANE POTENTIAL OF MYOCARDIAL CELL AND
THEIR IONIC BASIS
11
? Typical features Resting membrane
potential (RMP) Action potential (AP)
Phase o (rapid depolarization) Phase
1(rapid initial repolarization) Phase 2
(plateau) Phase 3 (rapid late
repolarization) Phase 4 (resting membrane
potential)
12
(No Transcript)
13
? Ionic basis for RMP and AP of working
myocardium a. Ionic concentration differences
cross membrane b. Permeability to
ions (conductance)
14
? Ionic basis for RMP

• K permeability ?, Ki gt Ko
• RMP ? K equilibrium potential

15
? Ionic basis for AP Phase 0 (depolarization)
Stimulation ? partial depolarization ?
threshold potential (-70mV) ?Na Ch.
opening ?Na influx into cell down
electrochemical gradient ? Vm less
negative?0 mV ? 30 mV (overshoot)
16
Features of fast Na channel

• (1). Activated and inactivated very
• fast. Speed of depolarization 120-
• 200 V / s
• Fast response potential
• Fast response cell
• Fast channel

17

• Regenerative process
• depolarization caused by Na influx
• induces more Na Ch. to open and Na
• influx.
• At same time, Kconductance falls and
• keeps Vm at depolarization state.

18

• (2). Voltage dependent
• Activation -70mV
• Inactivation 30mV
• Recovery to reopen from -60mV
• (3). Blocked by TTX

19
Phase 1 (rapid repolarization)

• (1) Na Ch. is inactivated at 30mV
• (2) Transient outward current (Ito)
• Koutward current, blocked by
• tetraethylammonium(TEA) and
• 4-aminopyridin.

20

• Phase 2 (plateau)
• Ca2 Ch. activation at 40mV ? Ca 2 influx ?
  Ca2 inward current
• IK Ch. Is activated slowly at phase o
• K slowly efflux ? K outward current
• Inward Ca2 current outward K current at
  early stage of plateau
• Inward current lt outward K current at late
  plateau, Vm ? more negative ? repolarization

21

• Close of IK1 Ch. at phase o and plateau prevents
  membrane potential from rapid repolarization
• Phase 2 is the integration of inward
• Ca2current and outward Kcurrent.
• The features of Ca2 channel

22

• (1).Slow channel, slow inward current, slow
  activation and inactivation and reactivation
• (2).Voltage dependent
• Activated at 40mV, inactivated at 0mV
• (3).Blocked by Mn2 and verapamil
• (4).Low specialty permeability to Na also.

23

• Phase 3 (late repolarization)
• Ca2 channel is inactivated.
• ?K efflux via IK channel
• ?K efflux via IK1 channel ??outward
• K current ? Vm ? more and more
• negative ? RMP.

24
(No Transcript)
25
(No Transcript)
26

• Phase 4 (resting stage)
• During Phase 1-3, Na, Ca2 and K
• imbalance outside and inside cell.
• During Phase 4, Na, Ca2 efflux
• against concentration gradient
• K influx against concentration gradient .

27

• Na-K pump
• 3 Na out and 2 K in
• Na-Ca2 exchange antiport
• 1 Ca2 out and 3 Na in dependent of
• Na concentration difference inside and
• outside cell.
• Ca2 pump Ca2 out of cell.

28
II. Transmembrane potential of rhythmic
cell and their ionic basis

• Automatic fast response cell
• Purkinje cell.
• Automatic slow response cell in S-A
• node and A-V node

29
Spontaneous, phase 4 depolarization the
cause of automaticity pacemaker potential
? Maximal repolarization potential at
the end of phase 3. ? Phase 4 depolarizes
automatically and slowly.
30

• ? When depolarization reaches
• threshold level, excitation (AP)
• appears.
• .

31
(No Transcript)
32
1. Slow response cell -- P cell in S-A node
33
(1) Features of P cell in S-A node a. Slow
depolarization of phase 0, 7ms, 10V/s
,magnitude 70mV Due to Ca2 channel opening,
blocked by Verapamil or Mn2.b. No distinct
phase 1 and phase 2
34
c. Smaller overshoot (15mV)d. Maximum diastolic
potential 70mV, firing level 40mV.f.
Repolarization K outward current.g.
Faster spontaneous phase 4 depolarization.
35
(No Transcript)
36
(2) Ionic basis for spontaneous phase 4
depolarization in P cell
37
a. Inward current, if b. Inward Ca2
current, iCa c. Outward K current, iK
38
(No Transcript)
39
a. Inward current, if Features of if (a)
Carried by Na, blocked by Cs, but not
TTX (b) Activation at -60mV,full
activation at 100mV (c) Noradrenalin ? ?if
Acetylcholine ??if
40
b. Inward Ca2 current, iCa Activation
at -55mV Noradrenalin ? ?if
Acetylcholine ??if Blocked by Ca
ch.blockade
41
(No Transcript)
42
C. Gradually diminishing outward K
current, Ik
43

• With time the inward current (iCa,if )
• gt outward current(Ik), causing phase 4
• diastolic depolarization to reach firing
• level results in a new action potential.

44

• 2. Ionic basis of AP of rapid
• response automatic cells
• as the same as that of AP of
• working cells except phase 4.

45
Ionic basis of spontaneous phase 4 depolarization
in fast response cell-Purkinje cell
46
(1) Gradual increase in inward
current,if(2) Gradually diminishing outward
K current, iK If gt IK ,
depolarization ?threshold potential ? a
new AP
47
(No Transcript)
48
III. Electrophysiological properties of
cardiac muscle

• Excitability
• Automaticity (autorhythmicity)
• Conductivity.

49
?Excitability and its affecting factors

• (1).Excitability 1/threshold strength.
• Affecting factors
• a.Excitation is caused by depolarization
• reaching threshold level, so affecting
• factors are

50
1. Excitability and its affecting factors
1).Excitability index 1/threshold
strength.Affecting factors a. Excitation is
caused by depolarization reaching
threshold level, so affecting factors
are
51

• (a). RMP level the lower the RMP, the larger the
  distance from RMP to threshold potential, the
  larger the threshold strength needed to induce
  excitation ??excitability, Ko?

52

• (b) Threshold level
• Threshold level moves upward,
• the distance between it and RMP
• becomes larger, excitability
• decreases.

53

• (c). Behavior of Na channel
• Resting activation inactivation
• stage stage stage
• reactivation
• stage

54
Voltage-dependent Na Ch. Resting stage - 90
mV Activation stage - 70mV Inactvation
stage 30mV Reactivation stage -
60mVTime-dependent Na Ch.
55
B. Cyclic changes in excitability in a
cardiac cycle

• (a).Effective refractory period (ERP)
• 0 -60mV
• Absolute refractory period (ARP)
• 0 -55mV
• Local response (no AP) -55 -60 mV

56
(No Transcript)
57
(No Transcript)
58

• (b) Relative refractory period (RRP) -60
  -80mV
• Excitability lower than normal, Na channel is
  reactivation, but not fully reactivated.
• Stronger stimulation than normal
• induces a premature potential.

59

• (c) Supra-normal period (SNP) -80
• -90mV
• Excitability is higher than normal,
• Vm at this period is less negative than
• normal RMP, and its distance to
• threshold potential is shorter than
• normal. The new AP is still smaller
• than normal.

60

• Feature of premature potential
• A propagated AP, but smaller
• than normal AP
• Low speed of phase 0
• Low amplitude of phase 0
• Low conduction
• Shorter duration of AP.

61

• The speed and amplitude of depolarization are
  determined by RMP.
• The recovery of ability of Na Ch. to reopen
  depends on membrane potential (Vm).

62
Extrasystole and compensatory pause
63
? Automaticity (Autorhythmicity)

• ? Index of automaticity
• frequency of discharge of pacemaker cell in
  S-A node. 100/min dominant pacemaker
• A-V junction 50/min,
• Purkinje fiber 25/min
• latent or subordinary pacemaker

64
Atrioventricular delay permits optimal
ventricular fillingAtrioventricular(AV)
blockcomplete AV blockAV conduction is affected
by autonomic nerve system
65
(No Transcript)
66

• S-A node controls latent pacemaker
• due to
• a. S-A node drives latent pacemaker
• b. Overdrive suppression
• (a) The longer overdrive, the stronger
• suppression

67
(No Transcript)
68

• (b) The larger difference of excitation
• frequency between two pacemakers,
• the stronger suppression.
• Active Na pump 3 Na out, 2 K in ?
  hyperpolarization ? need more time to reach
  firing level.

69
(No Transcript)
70
? Factors determining automaticity

• Frequency of excitation of pacemaker cell
  determinates the time for maximum diastolic
  potential to reach threshold potential.

71
(No Transcript)
72

• a. Rate of spontaneous, phase 4
  depolarization.ßreceptor activation, If? HR?
• b. Maximum diastolic potential level , gK? HR?
• c. Threshold potential level

73
? Conductivity

• a. Index of conductivity speed of
• conduction of AP
• b. Factors determining conductivity
• of cardiac muscle

74

• a. Speed and amplitude of phase 0 depolarization
• (a) ? speed of phase 0 depolarization
• ? ?rate of generation of local
• current ??time for depolarization
• to reach threshold potential ?
• conductivity ?.

75

• (b)?amplitude of phase 0 depolarization
• ? ?amplitude of local current ?
• ?distance of depolarization of nearby
• membrane ? ?conductivity.
• (c) Speed and amplitude of phase 0
• depolarization is determined by Vm

76

• More negative RMP ? ?speed of Na channel
  opening ? ?speed of phase depolarization ? ?speed
  of local current stimulation to reach to
  threshold potential ? ?speed of conduction

77

• More negative RMP ? ?number of Na channel
  opening ? ?amplitude of phase 0 depolarization ?
  ? amplitude of local current ? speed of
  conduction?

78
(No Transcript)
79
(No Transcript)
80
b. ?excitability of nearby membrane area ?
?conductivity

• Local current stimulus conducts to area which is
  in effective refractory period of premature
  potential. The stimulus cant induce a new AP and
  conduction block occurs.

81
Local current stimulus conducts to area which is
more negative RMP,excitability decreases and
conductivity also decreases.
82
(No Transcript)
83
(No Transcript)
84
Section 2 Cardiac pump function

• Cardiac cycle
• ? Order of contraction and relaxation
• of atrium and ventricle
• ? Diastole gt systole
• ??HR ? ??diastole, ?systole
• ?HR ? ??diastole, ?systole

85
Contraction or relaxation of heart ? changes in
pressure ? opening or closing of valves ?
direction of blood flow
86
The opening or closing of valves is a passive
process resulting from pressure differences
across the valves
87
(No Transcript)
88
I. Mechanical events of the cardiac cycle

• A, Left ventricular ejection and filling
• 1. Atrial systole
• 2. Ventricular systole
• (1) Isovolumic contraction phase
• (2) Rapid ejection phase
• (3) Reduced ejection phase

89

• ? Ventricular diastole
• (1) Isovolumic relaxation phase
• (2) Rapid filling phase
• (3) Reduced filling phase

90
(No Transcript)
91
Importance of rapid ventricular filling.
Primary pump of atrium (a) increase in
ventricular filling (b) decrease in
atrial pressure
92
B. Atrial pressure changes of cardiac
cycle a wave, c wave, v wave

93
?. Evaluation of cardiac pump function

• Stroke volume EDV ESV, 70ml
• Cardiac output stroke volume heart
• rate 5L / min (4.5 - 6.0)
• Cardiac index cardiac output / area of
• body surface, 3.0 3.5 L / min / m2

94

• Ejection fraction (EF)
• SV EDV-ESV
• EF
• EDV EDV
• ESV residue blood volume

95
(No Transcript)
96
Cardiac work

• pressurevolume work kinetic energya. Stroke
  work
• pressurevolume work / beat Force
  Distance
• FD (PA) D P(AD)

• P?V

97
Stroke work(g-m) SV(cm3)(1/1000)(MAP
mean atrial P)(13.6g/cm3)Minute cardiac
work(Kg-m/min) SV(g-m)heart rate(1/1000)
b. Kinetic energy 1/2mV2 2-4 of
cardiac work
98
Pressure work consumes more oxygen than volume
work
99
? Control of cardiac output

• significance
• To meet the need of tissues under

• different conditions
• To keep cardiac output balance
• with cardiac filling
• To match the output of the right
• and left ventricle

100

• Cardiac output SV HR
• Determinants of stroke volume
• (1)initial length (pre-load)
• (2)contractility
• (3)after-load

101
Initial lengthVentricular function curve SV
increases as LVEDV increases at no changes in
other factors.Frank-Starling mechanism(1918)
102
(No Transcript)
103
EDV is at the left to optimal initial length, SV
increases as EDV increases. This feature means
that ventricle has larger initial length reserve.
104

• Sarcomere length 2.0-2.2?m is optimal initial
  length.
• Overlap between thick and thin filements in a
  sarcomere is very well
• Number of cross-bridge linkages is the biggest

105
(No Transcript)
106
Factors influencing EDV

• a. Venous return blood volume
• b. Duration of filling (diastole)

107
a. Venous return blood volume depends on velocity
of venous return, which is determined by
difference between peripheral venous pressure and
end-diastolic pressure.
108
b. Duration of filling (diastole) Increase
in HR results in short filling period,
distolic filling decreases, therefore, EDV
decreases.
109

• B. contractility1.Sympathetic nerve and
  catecholamine
• ??contractility
• ventricular function curve shifts to
• upward and the left

110
(No Transcript)
111
(No Transcript)
112
(No Transcript)
113
(No Transcript)
114
Contractility is depended by Number of
activated cross- bridge linkage /total
number of cross-bridge linkage
Intracellular free Ca2 Affinity of
troponin to Ca2
115

• Cardiac sympathetic nerve ending
• ? noradrenaline ? binds to ß-
• adrenergic receptor??permeability
• to Ca2 leads to

116

• ?Contractility due to ?Ca2i
• ?Ca2 influx ? calcium-induced
• release of calcium ??Release
• Ca2 from sarcoplasmic
• reticulum

117

• ?Speed of relaxation during diastole
• a.?Affinity of Ca2 to troponin
• ?dissociation Ca2 from troponin
• b.?Uptake Ca2 of sadrcoplasmic
• reticulum ? ?Ca2i
• c.?Na-Ca2 exchange ? ?Ca2i

118
The role of cAMP-dependent protein kinase
Increase in contractile force and speed of
contractionIncrease in the speed of relaxation
119
(No Transcript)
120

• ? Effect of after-load on cardiac output
• After-load aortic pressure
• ?Aortic pressure ??stroke volume ?
• blood accumulates in ventricle ??EDV?
• recovery of stroke volume by Frank-Starling

• mechanism
• recovery of EDV through ?contractility ?
• cardiac work?.

121
(No Transcript)
122
2. Effect of heart rate on cardiac output

• cardiac output HRSV
• ?HR, ?CO.
• HR gt 200bpm, CO?due to diastole too short, venous
  return too small.

123
Autonomic nervous system controls heart rate
Vagal tone Sympathetic tone
124
(1)Effect of cardiac vagal nerve?HR Vagal
nerve ending ? ACh binds to M cholinergic
receptor ? ?permeability to K results in
?automaticity of S-A node
125
(No Transcript)
126
a. More negative maximum diastolic
potential b. ?Speed of phase 4 depolarization
due to ?K efflux during phase 4,
i.e. decrease in diminishing K outward
current
127
(No Transcript)
128
?conductivity due to ACh ?? Ca2 influx
??amplitude of phase 0 depolarization ? ?
conductivity at A-V junction
129
(2) Effects of cardiac sympathetic n Cardiac
sympathetic ending ?NE binds to ßreceptor
??permeability to Ca2 leads to
130
?Automaticity ?If at phase 4 in automatic
cell.?Conductivity ?Ca2 influx at
phase 0 in A-V junction ? ?Speed and
amplitude of phase 0 depolarization ? ?
conductivity
131
(No Transcript)
132
Autonomic nervous system controls heart
rateVagal tone predominates in normal
personIntrinsic heart rate 100 beats/min
133
(No Transcript)
134
? Cardiac reserve Heart rate reserve
Stroke reserve Diastolic reserve
Systolic reserve
135
Measurement of myocardia contractility
136
(No Transcript)
137
(No Transcript)
138
(No Transcript)
139
(No Transcript)
