Emergency Communication

1

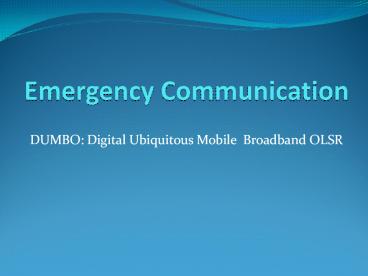

Emergency Communication

• DUMBO Digital Ubiquitous Mobile Broadband OLSR

2
Outline

• Disaster
• Emergency Network
• Vehicular Communication
• Available Technologies
• DUMBO
• DUMBO2

3
Disaster

• Natural
• Tsunami, Nargis,
• Manmade
• Terrorist attack, Fire

4
Disaster (cont)

• Consequences
• Huge death
• Huge wounded
• Destroy surrounding (roads, buildings)
• Traditional communication infrastructure becomes
  inoperable
• Requirements
• Rescue operation
• Co-ordination between the field worker and
  command center
• Emergency medical assistance

5
Emergency Network

• An emergency network
• Fast deployable
• Without relying on the fixed infrastructure
• Provide multimedia communication (voice, video,
  text)
• Wide network coverage
• Available network devices (home appliances)
• Real-time monitoring systems
• Capable to move the network nodes independently
  within the network coverage

6
Emergency Network (cont)

• Traditional Process Usually the rescue
  worker uses walkie talkie while in rescue
  operation. But it has many demerits
• Short range
• Collisions in communication (everybody uses the
  same channel)
• No video support
• No central monitoring systems to monitor the
  relative movement of the field worker

7
Vehicular Communication

• Vehicle to Vehicle Communication (V2V)
• Send and receive information between vehicles to
  vehicle
• Vehicle to Infrastructure Communication (V2I)
• Share information among the vehicles and the
  fixed infrastructure

8
Vehicular Communication (cont)
9
Available Technologies
Short Range Medium Range Long Range
Bluetooth 100 Meters (Class 1) 10 Meters (Class 2) 1 Meter (Class 3) 1 Mbps (v1) 3Mbps (v2.0) 2.4 GHz Zigbee 250 Kbps _at_ 2.4 GHz 40 Kbps _at_ 915 MHz 20 Kbps _at_ 868 MHz 10 100 Meters Low Data Rate Wifi 802.11 b/g/n 2.4 GHz 11 300 Mbps 30 200 Meters IEEE 802.11p C2C 5.9 GHz DSRC US Flavored a.k.a WAVE CALM WAVE Global 5 GHz GPRS/UMTS Conn EU Flavored EDGE 0.9 1.89 Mbps Licensed Frequency CDMA 2000 EV-DO Rev.0 153K 2Mbps Rev.A 1.8 3 Mbps Licensed Frequency WiMax 10 70 Mbps Licensed Frequency Expensive Infrastructure
10
Available Technologies (cont)

• TETRA Terrestrial Trunked Radio
• Special type of Mobile
• Walkie Talkie like service
• Low Throughput
• Fixed Infrastructure
• Expensive

11
DUMBO

• Use Mobile Ad Hoc Networks (MANET) in an
  environment where fixed network infrastructure is
  not available, such as in the case of natural
  disaster

12
DUMBO06
Simulated Disaster Area 2
13
DUMBO 2

• Interconnectivity between Mobile Ad-hoc Network
  and Fixed infrastructure
• Vehicle-to-Vehicle (V2V) communications with
  mixed vehicle types
• Vehicle-to-Infrastructure (V2I) Internet-like
  Gateway
• A newly revised Emergency Response Multimedia
  Communication Applications (P2P SIP)
• Real-time monitoring system for rescue workers
  movement.

14
DUMBO 2 (cont)
15
DUMBO network Topology and Application
16
Outline

• Mobile Ad Hoc Network (MANET)
• Optimized Link State Routing (OLSR)
• Easy Disaster Communication (EasyDC)

17
IEEE 802.11
Ad hoc network
Infrastructured network
A
B
C
18
Mobile Ad-Hoc Network (MANET)

• Fast deployable
• Self configuring
• No need for network infrastructure
• Moving nodes
• Multi-hop network

19
MANET example

• B and D as intermediate nodes forward a packet to
  E
• Multi-hop network

20
MANET applications

• Military operations
• Sensor networks
• Rescue operations
• University
• Conferences

21
MANET characteristics

• Dynamic topology
• Limited bandwidth
• Energy constrained operation
• Limited physical security

22
MANET routing protocol

• Reactive routing
• Finding routes when needed (on demand)
• Proactive routing
• Maintaining all routes to reachable destinations
  (table-driven routing)
• Using continues control messages to set up routes

• Reactive
• Low routing overhead
• High delay of setting up a connection

• Proactive
• High routing overhead
• Low delay of setting up a connection

23
Ad-hoc On-Demand Distance Vector (AODV), RFC 3561

• Finding routes when needed (on demand)
• Flooding a route request (RREQ)

24
Ad-hoc On-Demand Distance Vector (AODV), RFC 3561

• Finding routes when needed (on demand)
• A route reply is unicasted back

25
Optimized Link State Routing (OLSR), RFC 3626

• A table-driven routing protocol
• Using MultiPoint Relays (MPRs) to efficiently
  relay broadcast messages
• Three main modules
• Neighbor detection
• Topology discovery (via MPRs)
• Route calculation

26
OLSR packet format
27
1. Neighbor detection
HELLO
HELLO
HELLO
28
Neighbor sensing
HELLO
HELLO
Neighbor nodes of B A C D
HELLO
29
Multipoint relay

• Reducing the number of duplicate retransmissions
  while forwarding a broadcast packet
• Limit the set of MPRs retransmitting a packet
• The number of MPRs should be small

30
Multipoint relay selection

• Each node selects and maintains its own MPRs
• At A, For all two-hop neighbors n there must
  exist a MPR m so that n can be contacted via m

31
Multipoint relay selection

• Each node selects and maintains its own MPRs
• At A, For all two-hop neighbors n there must
  exist a MPR m so that n can be contacted via m

32
The number of retransmissions with/without MPRs
33
Please find MPRs (1)
34
Please find MPRs (2)
35
Please find MPRs (3)
36
2. Flooding topology information without MPRs
Neighbor nodes of B A C D
37
Flooding topology information with MPRs
Neighbor nodes of B A C D
38
Route calculation
Routing of E Dest. Next hop A D B D C C D D
B A, C, D
Routing of D Dest. Next hop A B B B C B E E
Routing of A Dest. Next hop B B C B D B E B
D B, E
39
OLSR implementation

• olsr.org
• An ad hoc wireless mesh routing daemon
• Many OS platforms are supported
• Nokia, iPhone, Mac OS, Linux, Wins

40
OLSR for windows
41
Configured olsrd parameters

• HELLO interval
• HELLO hold
• TC interval
• TC hold
• MID interval
• MID hold
• More details no olsrd parameters
• http//www.olsr.org/docs/olsrd.conf.5.html

42
HELLO interval and hold
43
Reasonable HELLO interval

• In RFC 3626
• HELLO interval 2s
• TC interval 5s
• The larger HELLO interval, the longer delay of
  neighbor detection
• OLSR on a vehicle
• HELLO interval should be small

44
Routes
45
Communication applications

• Existing communication applications, VoIP,
  require centralized servers
• The centralized architecture is not suitable for
  MANETs due to mobility

46
Using P2P on MANETs
Operated
Operated
47
Easy Disaster Communication (EasyDC)

• Providing multimedia communications for an
  emergency operation
• Peer-to-peer (P2P) application where no a
  centralized server is needed
• Running on OLSR protocol

48
EasyDC login
49
Main screen
50
Group List
51
Video and chat
52
Audio and chat
53
Group chat
54
Emergency button
55
EasyDC setup

• Software setup
• 1. Install jre 6u6
• 2. Check the jre by opening command prompt and
  typing java -version.
• Please make sure the version is shown correctly.
• 3. Install JMF
• After that, run JMF Registry and click "Detect
  Capture Devices"
• 4. Setup ad hoc mode on wireless interface. Make
  sure that you use a correct given IP address.
• -To run software
• Double click MainStartup.bat in EasyDC folder
• -To run HQ software CenterStartup.bat

56
GPS Location (GLoc) Service

• A GPS receiver is connected to each node through
  Bluetooth.
• It receives the GPS information i.e. latitude and
  longitude of the mobile node
• Sends it to the Map server using DUMBO network.
• Map the position of all nodes comprising the
  network and send for better co-ordination and
  administration.

57
GPS Location (GLoc) Service (Cont..)
58
GPS Location (GLoc) Service (Cont..)
59
OLSR Link Monitoring (OLMon) System

• Objectives
• Detects active links
• Monitors traffic flows through different links
• Provides metrics and statistics dynamically which
  demonstrates the link quality and system
  performance .

60
OLSR Link Monitoring (OLMon) System (Cont..)
61
OLSR Link Monitoring (OLMon) System (Cont..)

• Features
• Input parameters
• Output parameters
• Sniffer
• Graph Plot
• Analysis

62
OLSR Link Monitoring (OLMon) System (Cont..)

• Input parameters
• Shows the default OLSR parameters such as HELLO
  interval, TC interval, Hysteresis threshold
  limits etc. used for running the protocol.
• The parameter values can be changed.

63
OLSR Link Monitoring (OLMon) System (Cont..)
64
OLSR Link Monitoring (OLMon) System (Cont..)

• Output Parameters
• Run Time Packet Analysis Shows the list of
  neighbor nodes, Link failure, Packet loss ,
  Packet loss rate, Delay and Current Node status.
• Run Time Message Analysis It shows the list of
  nodes originating the OLSR message, Message loss,
  Message Loss rate, Hop Count and Control Overhead
  corresponding to each originator node.
• Run Time Average Figures The section averages
  the values among all the nodes and shows the
  final figures at the run time.

65
OLSR Link Monitoring (OLMon) System (Cont..)
66
OLSR Link Monitoring (OLMon) System (Cont..)

• Sniffer
• Captures the packets coming to the network
  interface.
• Shows the detail information of the packets
  captured and current performance status.
• The packet information consists of the time,
  source node generating packet, packet loss,
  packet loss rate, hop count, delay within the
  OLSR packet.
• Illustrates a broad picture of the packet
  information useful for user to observe the
  ongoing performance in detail.

67
OLSR Link Monitoring (OLMon) System (Cont..)
68
OLSR Link Monitoring (OLMon) System (Cont..)

• Graph
• This section visualizes the network performance
  graphically at run time.
• User can select type of plot interested along
  with the necessary scale and tick steps.
• The system can generate different graphs for
  different parameters like Average Link Failure,
  Average Packet Loss etc., with respect to time.

69
OLSR Link Monitoring (OLMon) System (Cont..)
70
OLSR Link Monitoring (OLMon) System (Cont..)

• Analysis
• Provides the user with the comparative analysis
  of the ongoing network performance.
• The criteria for the determination of the traffic
  level are
• High Above 75 of the highest Traffic Level
• Average Between 75 to above 45 of the highest
  Traffic Level
• Low Below or Equal to 45 of the highest Traffic

71
OLSR Link Monitoring (OLMon) System (Cont..)
72
OLSR Link Monitoring (OLMon) System (Cont..)

• Help
• This section provides user with the general
  instruction for operating the system.
• User can exit from the plug-in by selecting
  Exit in the File option in the menu-bar.
• Besides, About option gives the brief
  information about the plug-in development.
• On exiting from plug-in, all the related threads
  are closed and stop the application.

73
OLSR Link Monitoring (OLMon) System (Cont..)
74
MANET Configure
75
MANET Configure (cont)
76
MANET Configure (cont)
77
MANET Configure (cont)
78
GPS Receiver Connection
79
GPS Receiver Connection (cont )
80
GPS Receiver Connection (cont )
81
GPS Receiver Connection (cont )
82
GPS Receiver Connection (cont )
83
GPS Receiver Connection (cont )
84
DUMBO 2 Network Setup
85
DUMBO 2 Network Setup (cont)
86
DUMBO 2 Network Setup (cont)
87
OLSR Over Network (OON)

• Sometimes, MANETs are connected to the Internet
• We create an overlay network covering both MANETs
  and the Internet
• EasyDC can run on top on this overlay network
  without being modified

88
OLSR overlay network
89
OON configuration

• Only fixed IP nodes exchange OLSR messages

90
An example
