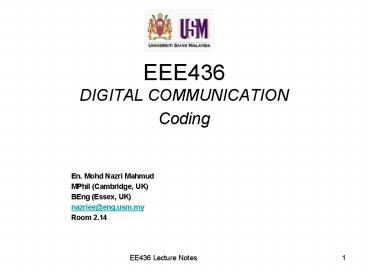

EEE436

1
EEE436

• DIGITAL COMMUNICATION
• Coding

En. Mohd Nazri Mahmud MPhil (Cambridge, UK) BEng (Essex, UK) nazriee_at_eng.usm.my Room 2.14
2
Turbo Codes A relatively new class of
convolutional codes first introduced in 1993 A
basic turbo encoder is a recursive systematic
encoder that employs two convolutional encoders
(recursive systematic convolutional or RSC in
parallel, where the second encoder is preceded by
a pseudorandom interleaver to permute the symbol
sequence Turbo code is also known as Parallel
Concatenated Codes (PCC)
Systematic bits, xk
Message bits
Parity bits, y1k
RSC encoder 1
Puncture MUX
Totransmitter
Interleaver
RSC encoder 2
Parity bits, y2k
3
Turbo Codes The input data stream is applied
directly to encoder 1 and the pseudorandomly
reordered version of the same data stream is
applied to encoder 2 Both encoders produce the
parity bits. The parity bits and the original bit
stream are multiplexed and then transmitted The
block size is determined by the size of the
interleaver for example 65, 536 is
common) Puncture is applied to remove some parity
bits to maintain the data rate. For example, by
eliminating odd parity bits from the first RSC
and the even parity bits from the second RSC
Systematic bits, xk
Message bits
Parity bits, y1k
RSC encoder 1
Puncture MUX
Totransmitter
Interleaver
RSC encoder 2
Parity bits, y2k
4
RSC encoder for Turbo encoding
5
RSC encoder for Turbo encoding
0011
0001
0001
0001
0001
1111
Recursive
Non-recursive
More 1s for recursive gives better error
performance
6
Turbo decoding

Turbo decoder consists of two maximum a posterior
(MAP) decoders and a feedback path Decoding
operates on the noisy version of the systematic
bits and the two sets of parity bits in two
decoding stages to produce estimate of the
original message bits The first decoder takes the
information from the received signal and
calculates the A posterior probability (APP)
value This value is then used as the a priori
probability value for the second decoder The
output is then fedback to the first decoder where
the process repeats in an iterative fashion with
each iteration producing more refined estimates.

7
Turbo decoding uses BCJR algorithm BCJR ( Bahl,
Cocke, Jelinek and Raviv, 1972) algorithm is a
maximum a posteriori probability (MAP) decoder
which minimizes the bit errors by estimating the
a posteriori probabilitities of the individual
bits in a code word. It takes into account the
recursive character of the RSC codes and computes
a log-likelihood ratio to estimate the APP for
each bit.
8

• Low Density Parity Check (LDPC) codes
• An LDPC code is specified in terms of its
  parity-check matrix, H that has the following
  structural properties
• Each row consists of ? 1s
• Each column consists of ? 1s
• The number of 1s in common between any two
  columns is no greater than 1 ie ? 0 or 1
• Both ? and ? are small compared with the length
  of the code
• LDPC codes are recognised in the form of (n, ?,
  ?)
• H is said to be a low density parity check matrix
• H has constant row and column weights (? and ? )
• Density of H total number of 1s divided by
  total number of entries in H

9
Low Density Parity Check (LDPC) codes Example
(15, 4, 4) LDPC code
Each row consists of ?4 1s Each column
consists of ?4 1s The number of 1s in common
between any two columns is no greater than 1 ie
? 0 or 1 Both ? and ? are small compared with
the length of the code Density 4/15 0.267


10
Low Density Parity Check (LDPC) codes
Constructing H For a given choice of ? and ?,
form a k? by k? matrix H (where k a positive
integer gt 1) that consists of ? k-by-k?
submatrix, H1, H2,.H? Each row of a submatrix
has ? 1s and each column of a submatrix contains
a single 1 Therefore each submatrix has a total
of k? 1s. Based on this, construct H1 by
appropriately placing the 1s. For
,the ith row of H1 contains all its ? 1s in
columns (i-1) ?1 to i? The other submatrices
are merely column permutations of H1
11
Low Density Parity Check (LDPC) codes Example
Constructing H Choice of ?4 and ?3 and
k5 Form a k? by k? (15-by-20) matrix H that
consists of ?3 k-by-k? (5-by-20) submatrix, H1,
H2,H?3 Each row of a submatix has ?4 1s and
each column of a submatrix contains a single
1 Therefore each submatrix has a total of k?20
1s. Based on this, construct H1 by
appropriately placing the 1s. For
,the ith row of H1 contains all its ?4 1s in
columns (i-1) ?1 to i? The other submatrices
are merely column permutations of H1
12
Low Density Parity Check (LDPC) codes Example
Constructing H for (20, 3, 4) LDPC code


13
Construction of Low Density Parity Check (LDPC)
codes There are many techniques of constructing
the LDPC codes Constructing LDPC codes with
shorter block is easier than the longer ones For
large block sizes, LDPC codes are commonly
constructed by first studying the behaviour of
decoders. Among the techniques are Pseudo-random
techniques, Combinatorial approaches and finite
geometry. These are beyond the scope of this
lecture. For this lecture, we see how short LDPC
codes are constructed from a given parity check
matrix. For example a (6,3) linear LDPC code
given by the following H
14
Construction of Low Density Parity Check (LDPC)
codes For example a (6,3) linear LDPC code given
by the following H The 8 codewords can be
obtained by putting the parity-check matrix H
into this form HPT I In-k where
Pcoefficient matrix and In-k identity
matrix The generator matrix is, G In-k I
P At the receiver, HPT I In-k is used to
check the error syndrome.
Exercise Generate the codeword for m001 and
show how the receiver performs the error checking
