Vehicular Network Applications

1

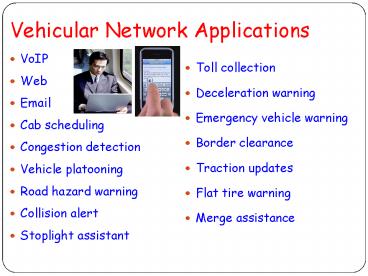

Vehicular Network Applications

• VoIP
• Web
• Email
• Cab scheduling
• Congestion detection
• Vehicle platooning
• Road hazard warning
• Collision alert
• Stoplight assistant

• Toll collection
• Deceleration warning
• Emergency vehicle warning
• Border clearance
• Traction updates
• Flat tire warning
• Merge assistance

2
Congestion Detection

• Vehicles detect congestion when
• Vehicles gt Threshold 1
• Speed lt Threshold 2
• Relay congestion information
• Hop-by-hop message forwarding
• Other vehicles can choose alternate routes

3
Deceleration Warning

• Prevent pile-ups when a vehicle decelerates
  rapidly

4
Wireless Technologies for Vehicular Networks

• Cellular networks
• High coverage, low bandwidth, expensive
• WiFi networks
• Moderate coverage, high bandwidth, free
• Combine all of them to achieve low cost, high
  bandwidth, and high coverage

5
Interactive WiFi Connectivity from Moving Vehicles
Aruna Balasubramanian, Ratul Mahajan Arun
Venkataramani, Brian N Levine, John Zahorjan
University of Massachusetts Amherst
Microsoft Research
University of Washington
6
Target Scenarios

• A car is within the range of multiple APs
• How common?
• Low data rate but low delay
• Alternatives?

7
Overview
Given enough coverage, can WiFi technology be
used to access mainstream applications from
vehicles?

• Existing work shows
• the feasibility of WiFi access at vehicular
  speeds
• focus on non-interactive applications. e.g.,
  road monitoring

Internet
8
Outline

• Can popular applications be supported using
  vehicular WiFi today?
• Performance is poor due to frequent disruptions
• How can we improve application performance?
• ViFi, a new handoff protocol that significantly
  reduces disruptions
• Does ViFi really improve application performance?
• VoIP, short TCP transfers

9
VanLAN Vehicular Testbed
Uses MS campus vans Base stations(BSes) are
deployed on roadside buildings Currently 2 vans,
11 BSes
10
Measurement study

• Study application performance in vehicular WiFi
  setting
• Focus on basic connectivity
• Study performance of different handoff policies
• Trace-driven analysis
• Nodes send periodic packets and log receptions

11
Handoff policies studied

• Practical hard handoff
• Associate with one BS
• Current 802.11
• Ideal hard handoff
• Use future knowledge
• Impractical

12
Handoff policies studied

• Practical hard handoff
• Associate with one BS
• Current 802.11
• Ideal hard handoff
• Use future knowledge
• Impractical
• Ideal soft handoff
• Use all BSes in range
• Performance upper bound

13
Comparison of handoff policies
Disruption

• Summary
• Performance of interactive applications poor when
  using existing handoff policies
• Soft handoff policy can decrease disruptions and
  improve performance of interactive applications

Practical hard handoff
Ideal hard handoff
Ideal soft handoff
14
Outline

• Can popular applications be accessed using
  vehicular WiFi?
• How can we improve application performance?
• ViFi, a practical diversity-based handoff
  protocol
• Does ViFi really improve application performance?
• VoIP, short TCP transfers

15
Design a practical soft handoff policy

• Goal Leverage multiple BSes in range
• How often do we have multiple BSes?
• Not straightforward

Constraints in Vehicular WiFi 1. Inter-BS
backplane often bandwidth-constrained 2.
Interactive applications require timely
delivery 3. Fine-grained scheduling of packets
difficult
Internet
16
Why are existing solutions inadequate?

• Opportunistic protocols for WiFi mesh (ExOR,
  MORE)
• Uses batching Not suitable for interactive
  applications
• Path diversity protocols for enterprise WLANs
  (Divert)
• Assumes BSes are connected through a high speed
  back plane
• Soft handoff protocols for cellular (CDMA-based)
• Packet scheduling at fine time scales
• Signals can be combined

17
ViFi protocol set up

• Vehicle chooses anchor BS
• Anchor responsible for vehicles packets
• Vehicle chooses a set of BSes in range to be
  auxiliaries
• e.g., B, C and D can be chosen as auxiliaries
• ViFi leverages packets overheard by the auxiliary

Internet
18
ViFi protocol

• Source transmits a packet
• If destination receives, it transmits an ack
• If auxiliary overhears packet but not ack, it
  probabilistically relays to destination
• If destination received relay, it transmits an
  ack
• If no ack within retransmission interval, source
  retransmits

Source
Dest
Downstream Anchor to vehicle
Dest
Source
Upstream Vehicle to anchor
19
Why relaying is effective?

20
Why relaying is effective?

• Losses are bursty
• Independence
• Losses from different senders independent
• Losses at different receivers independent

20
21
Guidelines for probability computation
1. Make a collective relaying decision and limit
the total number of relays 2. Give preference to
auxiliary with good connectivity with destination
How to make a collective decision without
per-packet coordination overhead?
22
Determine the relaying probability

• Goal Compute relaying probability RB of
  auxiliary B
• Step 1 The probability that auxiliary B is
  considering relaying
• CB P(B heard the packet) . P(B did not hear
  ack)
• Step 2 The expected number of relays by B is
• E(B) CB RB
• Step 3 Formulate ViFi probability equation, ?
  E(x) 1
• to solve uniquely, set RB proportional to
  P(destination hears B)
• Step 4 B estimates P(auxiliary considering
  relaying) and P(destination heard auxiliary)
  for each auxiliary

ViFi Practical soft handoff protocol uses
probabilistic relaying for coordination without
per-packet coordination cost
23
ViFi Implementation

• Implemented ViFi in windows operating system
• Use broadcast transmission at the MAC layer
• No rate adaptation
• Deployed ViFi on VanLAN BSes and vehicles

24
Outline

• Can popular applications be accessed using
  vehicular WiFi?
• Due to frequent disruptions, performance is poor
• How can we improve application performance?
• ViFi, a practical diversity-based soft handoff
  protocol
• Does ViFi really improve application performance?

25
Evaluation

• Evaluation based on VanLAN deployment
• ViFi reduces disruptions
• ViFi improves application performance
• ViFis probabilistic relaying is efficient
• Also in the paper Trace-driven evaluation on
  DieselNet testbed at UMass, Amherst
• Results qualitatively consistent

26
ViFi reduces disruptions in our deployment
ViFi
Practical hard handoff
27
ViFi improves VoIP performance

• Use G.729 codec

gt 100
ViFi
seconds
Practical hard handoff
Length of voice call before disruption
Disruption When mean opinion score (mos) is
lower than a threshold
28
ViFi improves performance of short TCP transfers

• Workload repeatedly download/upload 10KB files

gt 50
gt 100
ViFi
Practical hard handoff
Number of transfers before disruption
Median transfer time (sec)
Disruption lack of progress for 10 seconds
29
ViFi uses medium efficiently

• Efficiency
• Number of unique packets delivered/ Number of
  packets sent
• Its efficient for their testbed, but may not be
  the case in general. Why?

efficiency
ViFi
Practical hard handoff
30
Conclusions

• Improves performance of interactive applications
  for vehicular WiFi networks
• Interactive applications perform poorly in
  vehicular settings due to frequent disruptions
• ViFi, a diversity-based handoff protocol
  significantly reduces disruptions
• Experiments on VanLAN shows that ViFi
  significantly improves performance of VoIP and
  short TCP transfers

31
Comments

• Interesting problem domain
• Target low-bandwidth applications, for which
  cellular networks are sufficient
• Have multiple APs within range tuned into the
  same channel
• May not be common and lose spatial diversity
• Use the lowest data rate
• Common to have multiple or fewer than 1 relay(s)
  for each tx
• Relay is not compelling
• Uplink sufficient to relay data to one AP
• Downlink if best AP is selected, the need for
  relay is low
• If relay has to be used, MORE like opportunistic
  routing may be more efficient
• They dismissed opportunistic routing due to its
  potential large delay due to batch
• But their delay can be high since retx timeout is
  generally large in order to account for variable
  contention delay

32
(No Transcript)
33
Motivation

• People want to communicate while on the move
• Average one way commute (2005)
• US 24.3min, World 40min
• Passengers want to watch videos, listen to songs,
  etc.
• Why not just use cellular networks?
• Expensive 30-60/month
• 5GB/month -gt 2Kbps!
• 40 3G capable devices have no 3G plan
• iPod Touch sales iPhone sales
• Bandwidth and backhaul limitations
• Limited video quality (96-128kbps, lt 10min long)
• Carriers interested in WiFi offloading
• Arms race between
• Increase in cellular bandwidth
• Higher resolution screens and videos
• Goal Enable high bandwidth applications (e.g.,
  video) in vehicular networks via WiFi

34
Opportunistic WiFi connectivity
Gas stations and local shops deploy APs
Internet
Devices in vehicles contact roadside APs
Passengers watch videos, download files

• Compelling usage scenario
• Taxi companies provide value-added services to
  passengers
• Previous work low-bandwidth applications
• We focus on delivering high-bandwidth content
• e.g. video streaming

35
Synergy among connections
High b/w, short-lived
High b/w, low coverage
Wireless LAN
Mesh Network
VCD
High b/w, persistent
Internet Access
Vehicle Relay
Low b/w, persistent
High b/w, high delay
35
36
Contributions

• New techniques for replication optimization
• Goal Fully utilize wireless bandwidth during
  contact
• Optimized wireline replication to
  Internet-connected APs
• Replication using vehicular relays to unconnected
  APs
• Use mesh for replication and caching
• New algorithm for mobility prediction
• Predict set of APs that will be visited by
  vehicle
• Critical for success of replication techniques
• Algorithm voting among K nearest trajectories

37
Evaluation Methodology

• Trace-driven simulation and emulation
• San Francisco cabs, Seattle buses, Shanghai cabs
• Two testbeds on UT campus
• 802.11b 14 APs deployed inside 8 campus
  buildings, 20-60ft from the road
• 802.11n 4 APs outdoor, 1-5ft from the road
• Smartphone and laptop clients
• HP iPAQ and HTC Tilt
• Stream H.264 videos at 64Kbps

38
Summary Vehicular Content Distribution

• KNT A new mobility prediction algorithm
• Based on voting among K nearest trajectories
• 25-94 more accurate than 1st and 2nd order
  Markov models
• A series of novel replication schemes
• Optimized wireline replication and mesh
  replication
• Opportunistic vehicular relay based replication
• Extensive evaluation simulation testbed
  emulation
• Simulation using San Francisco taxi and Seattle
  bus traces
• 3-6x of no replication, 2-4x of wireline or
  vehicular alone
• Full-fledged prototype deployed on two real
  testbeds
• 14-node 802.11b testbed and 4-node 802.11n
  testbed
• 4.2-7.8x gain over no replication
• Emulab emulation with real AP/controller and
  emulated vehicles
• Show system works at scale and is efficient
• Validate our trace-driven simulator
