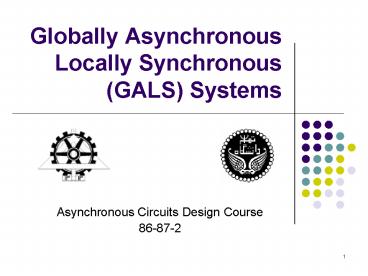

Globally Asynchronous Locally Synchronous (GALS) Systems

1
Globally Asynchronous Locally Synchronous (GALS)
Systems

• Asynchronous Circuits Design Course
• 86-87-2

2
Agenda

1. Motivation
2. Asynchronous Design
3. GALS Definition
4. GALS Advantages
5. GALS Problem
6. Coping With Metastability
7. SoC Communication Infrastructure Architectures
8. GALS Design Style Taxonomy
9. Pausible Clock GALS Design Style
10. Asynchronous Interface GALS Design Style
11. Loosely synchronous GALS design style
12. GALS SoC Communication Infrastructure
    Architectures
13. Designed and Fabricated GALS Systems and Chips

3
Motivation

• SoC design methodology
• Divide complex chips into several independent
  functional blocks
• And
• Conquer each of them using standard synchronous
  methodologies and existing CAD tools.
• An on-chip infrastructure connects them to form a
  functional system.

M. Amde et al., Asynchronous On-Chip Networks,
IEE 2005
4
Motivation (Contd)

• Dividing a chip into smaller blocks, Keeps
  technology scaling problems, such as clock skew,
  manageable.
• Only for individual blocks,
• Not for the interconnects.
• Connecting the elements by relatively long wires,
• Dont scaled well in deep sub micron technologies.

M. Amde et al., Asynchronous On-Chip Networks,
IEE 2005
5
Motivation (Contd)

• Major problems in having various synchronous
  on-chip communications
• Modularity and Design Reuse
• Electromagnetic Interference (EMI)
• Worst Case Performance
• Clock Power Consumption
• Clock Skew

M. Amde et al., Asynchronous On-Chip Networks,
IEE 2005
6
Asynchronous Design

• Smoother handling of both fabrication time and
  run-time variability
• Delay matching, completion detection
• Eliminating clock power consumption, clock skew,
  and EMI
• Modular design
• Timing assumptions are explicit in the
  handshaking protocols
• The circuit works faster
• Exploiting average case rather than worst case
  performance

M. Amde et al., Asynchronous On-Chip Networks,
IEE 2005
7
Asynchronous Design (Contd)

• Asynchronous design is a more difficult task
  compares to synchronous design
• Glitch-free circuits have to be generated.
• Absence of industrial tool support
• Lack of a mature tool flow.
• High overhead in terms of area, delay, and
  possibly even power consumption
• Dual rail data path, and collecting Ack signals
  from every gate output

M. Amde et al., Asynchronous On-Chip Networks,
IEE 2005
8
GALS Definition

• Globally Asynchronous Locally Synchronous system
  design
• Aims at filling the gap
• between the purely
• synchronous and
• asynchronous domains.

M. Amde et al., Asynchronous On-Chip Networks,
IEE 2005
9
GALS Definition (Contd)

• Consists of synchronous modules on a chip
  communication asynchronously.

M. Amde et al., Asynchronous On-Chip Networks,
IEE 2005
T. Meincke, et al., Evaluating benefits of
Globally Asynchronous Locally Synchronous VLSI
Architecture
10
GALS Definition (Contd)

• Although most digital circuits remain
  synchronous, many designs feature multiple clock
  domains, often running at different frequencies.
• Using an asynchronous interconnect decouples the
  timing issues for the separate blocks.
• Systems employing such schemes are called
  Globally Asynchronous, Locally Synchronous (GALS).

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles
11
GALS Definition (Contd)

• The first use of the term GALS
• was by Chapiro
• in his 1984 doctoral dissertation.

12
GALS Definition (Contd)

• Each Synchronous module
• SB (Synchronous Block)
• SI (Synchronous Island)
• IP Block (Intellectual Property Block)
• PU (Processing Unit)
• Functional Block (FB)

13
GALS Definition (Contd)

• GALS systems have diverse definitions, titles,
  and antitypes
• Multiple asynchronous clock domains
• Special data, control, and verification handling
• C. E. Cummings, Synthesis and Scripting
  Techniques for Designing Multi-Asynchronous Clock
  Designs, 2001
• Clock domain crossing issues
• CLOCK DOMAIN CROSSING, CLOSING THE LOOP ON
  CLOCK DOMAIN FUNCTIONAL IMPLEMENTATION PROBLEMS,
  TECHNICAL PAPER, Cadence
• Cross domain communication
• Paul Teehan, et al., A Survey and Taxonomy of
  GALS Design Styles, IEEE 2007
• System timing Issues
• Robert Mullins, http//www.cl.cam.ac.uk/users/rd
  m34
• Delay-insensitive communication
• Skew-insensitive communication

14
GALS Definition (Contd)

• The most rigorous definition
• Only the systems with blocks, clocked
  Independently from local clock generators,
  interconnected asynchronously.
• R. Mullins, and S. Moore, Demystifying
  Data-Driven and Pausible Clocking Schemes, 2007
• The most universal definition
• A system that its global clock network is
  removed!
• Not a single-clocked digital system!
• Paul Teehan, et al., A Survey and Taxonomy of
  GALS Design Styles, IEEE 2007
• Not a pure, one-clock synchronous system!
• C. E. Cummings, Synthesis and Scripting
  Techniques for Designing Multi-Asynchronous
  Clock Designs, 2001

15
GALS Definition (Contd)
Synchronous to Delay-Insensitive Approaches to
System Timing
Timing Assumptions
Isochronic Forks
Wire Delay
Local Relative
Sub-System
Local
Global
None
Synchronous
Delay Insensitive
Quasi-Delay Insensitive
Bundled Data
Pausible clocks and locally triggered clock pulses
Multiple clocks
Less Detection
Local Clocks/ Interaction with data (becoming
aperiodic)
Robert Mullins Presentation, Asynchronous vs.
Synchronous Design Techniques for NoCs, The
Status of the Network-on-Chip Revolution Design
Methods, Architectures and Silicon
Implementation, (Tutorial) International
Symposium on System-on-Chip, Tampere, Finland.
November 14th, 2005.
16
GALS Advantages

• Increased ease of functional-block reuse
• Can facilitate fast block reuse by providing
  wrapper circuits to handle interblock
  communication across clock domain boundaries.
• Simplified timing closure
• Power advantages due to heterogeneous clocking
• By clocking different blocks at their minimum
  speeds.
• By allowing fine tuning of the supply voltages
  and clock speeds for different functional blocks
• By dynamic voltage and frequency scaling
• By eliminating the need for a global, low-skew
  clock.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
17
GALS Advantages (Contd)

• Allow synchronous design of components at their
  own optimum clock frequency
• But facilitates asynchronous communication
  between modules
• Leads to design flow fairly similar to the
  synchronous flow
• But with a few additional components which enable
  asynchronous communication.

M. Amde et al., Asynchronous On-Chip Networks,
IEE 2005
18
GALS Advantages (Contd)

• Eliminates the global clock leading to huge
  reduction of power consumption and alleviating
  the clock skew problem.
• Facilities modular system design which is
  scalable.
• Because of close resemblance to synchronous
  design, can attract the attention of synchronous
  designers who are not willing to experiment with
  asynchronous design.

M. Amde et al., Asynchronous On-Chip Networks,
IEE 2005
19
GALS Problem

• GALS communication framework in which local
  clocks are either unsynchronized or paused
• There is a risk of metastability at the
  interfaces which is not present in traditional
  speed independent or delay insensitive
  asynchronous circuits.

Metastability in Data Synchronizing and
Communicating
M. Amde et al., Asynchronous On-Chip Networks,
IEE 2005
20
GALS Problem (Contd)

• Metastability
• is a condition where the voltage level of a
  signal is
• at an intermediate level neither 0 or 1
• and which may persist for an indeterminate amount
  of time.

M. Amde et al., Asynchronous On-Chip Networks,
IEE 2005
21
Coping With Metastability

• Timing-Safe Methods
• Allocate a fixed period of time for metastability
  to resolve, e.g. two flip-flop synchronizer
• Please refer to
• C. E. Cummings, Synthesis and Scripting
  Techniques for Designing Multi-Asynchronous Clock
  Designs, 2001
• CLOCK DOMAIN CROSSING, CLOSING THE LOOP ON
  CLOCK DOMAIN FUNCTIONAL IMPLEMENTATION
  PROBLEMS, TECHNICAL PAPER, Cadence
• Value-Safe Methods
• Wait for metastability to resolve, e.g. clock
  stretching or pausing techniques
• Clock is generated locally
• Value-safe ideas are less well understood,
  avoided by industry

Robert Mullins Presentation, Demystifying
Data-Driven and Pausible Clocking Schemes
22
Coping With Metastability (Contd)

• For the synchronous designer the problem is
  that metastability may persist beyond the time
  interval that has been allocated to recover from
  potential metastability. It is simply not
  possible to obtain a decision within a bounded
  length of time. The asynchronous designer, on the
  other hand, will eventually obtain a decision,
  but there is no upper limit on the time he will
  have to wait for the answer. In 22 the terms
  time safe and value safe are introduced to
  denote and classify these two situations.
• 22 D.M. Chapiro. Globally-Asynchronous
  Locally-Synchronous Systems. PhD thesis, Stanford
  University, October 1984.

J. SPARSØ, S. FURBER (Editors), PRINCIPLES OF
ASYNCHRONOUS CIRCUIT DESIGN A Systems
Perspective, pp. 78
23
Coping With Metastability (Contd)

• A traditional Timing-Safe method
• Using 2 flip-flop synchronizer
• MTBF

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
24
SoC Communication Infrastructure Architectures

• Point-to-Point,
• Bus, Ring, Crossbar, Network

T. Bjerregaard, S. Mahadevan, A Survey of
Research and Practices of Network-on-Chip, 2006
25
GALS Design Style Taxonomy
GALS in its universal definition
classifying GALS design styles according to the
methods they use to transfer data between timing
domains (Data Synchronizing and Communicating
Methods )
Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
26
GALS Design Style Taxonomy (Contd)

• The pausible-clock design style
• Relies on locally generated clocks
• That can be stretched or paused
• Either to prevent metastability
• Or to let a transmitter or receiver stall because
  of a full or empty channel.
• A ring oscillator typically generates the clocks.

• The Integrated Systems Laboratory at ETHZ (Swiss
  Federal Institute of Technology Zurich)
• Has implemented several chips featuring pausible
  clocks, including a cryptography chip.
• Special wrapper circuits interface between
  synchronous blocks, such that each wrapper
  includes a pausible-clock generator.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
27
GALS Design Style Taxonomy (Contd)

• The asynchronous design style
• Involves the general case in which no timing
  relationship between the synchronous clocks is
  assumed.
• Are maximally flexible with respect to timing.
• Fulcrum Microsystems Nexus architecture includes
  an asynchronous crossbar switch that handles
  communication between blocks operating at
  arbitrary clock frequencies.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
28
GALS Design Style Taxonomy (Contd)

• The loosely synchronous design style
• Is for cases in which there is a well-defined,
  dependable relationship between clocks.
• Its possible to
• Exploit the stability of these clocks to achieve
  high efficiency
• While simultaneously providing tolerance for the
  large amounts of skew inherent in global
  interconnects.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
29
GALS Design Style Taxonomy (Contd)

• The loosely synchronous design style
• Mesochronous
• The sender and receiver operate at exactly the
  same frequency with an unknown yet stable phase
  difference.
• Intels 80-core processor employs a mesochronous
  design. It uses synchronous tiles and a
  skew-tolerant networkon-chip (NoC) interconnect
  scheme driven by one stable global clock.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
30
GALS Design Style Taxonomy (Contd)

• The loosely synchronous design style
• Plesiochronous
• The sender and receiver operate at the same
  nominal frequency but may have a slight frequency
  mismatch, such as a few parts per million, which
  leads to drifting phase.
• Gigabit Ethernet is a common example.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
31
GALS Design Style Taxonomy (Contd)

• The loosely synchronous design style
• Heterochronous
• The sender and receiver operate at nominally
  different clock frequencies.
• Ratiochronous
• rationally related clock frequencies in which the
  receivers clock frequency is an exact rational
  multiple of the senders,
• and both are derived from the same source clock
• such that there is a predictable periodic phase
  relationship.
• Nonratiochronous

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
32
GALS Design Style Taxonomy (Contd)

• In the next slides,
• We describe a simplified example that provides
  one-way communication between transmitter and
  receiver blocks.
• The blocks
• operate synchronously using two different clocks
• and are connected together using a FIFO buffer
  that is robust and free of metastability.
• The FIFO buffer can have almost any capacity,
  including just one data item,
• but this may affect throughput.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
33
GALS Design Style Taxonomy (Contd)

• In the next slides,
• To send a data item,
• the transmitter asserts put and drives data_in.
• The FIFO buffer accepts the data on the rising
  edge of put and lowers ok_to_put.
• If this operation fills the FIFO buffer,
  ok_to_put remains low until some data is removed.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
34
GALS Design Style Taxonomy (Contd)

• In the next slides,
• On the receiver side,
• the FIFO buffer asserts ok_to_take when data is
  available.
• To remove a data item, the receiver latches
  data_out and asserts take.
• The FIFO buffer lowers ok_to_take until new data
  is available.
• If the FIFO buffer is empty, ok_to_take remains
  low until new data is inserted.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
35
Pausible Clock GALS Design Style

• The Chapiros GALS approach
• using pausible clocks to enable separate clock
  domains to communicate without metastability.
• each locally synchronous block generates its own
  clock with a ring oscillator.
• Each ring oscillators period is set according to
  the speed requirements of the block it drives.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
36
Pausible Clock GALS Design Style (Contd)

• Pausible or pausable
• Has various modified and customized versions
• Stoppable
• Stretchable
• Data-driven

37
Pausible Clock GALS Design Style (Contd)

• Two potential advantages of pausible clocking
• Robustness
• Pausing delays a clocks sampling edge until
  after the arrival of data from the other domains,
  thus avoiding metastability altogether.
• Power
• Pausing the clock of a block awaiting
  communication prevents that block from
  dissipating dynamic power.
• Presumably, VDD can be lowered during prolonged
  stalls to reduce static power as well.
• Hence, this style may be useful in power-critical
  designs.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
38
Pausible Clock GALS Design Style (Contd)

• From designers viewpoint
• Simplifying design reuse
• By encapsulating crucial timing constraints in
  the clock generator wrappers.
• By controlling the receivers clock, these
  interfaces ensure that data arriving at the
  receiver satisfies the receivers timing
  requirements, thus completely avoiding
  metastability.
• Once this interface wrapper IP has been
  verified, it can be reused for many different
  local blocks without the need for further timing
  analysis.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
39
Pausible Clock GALS Design Style (Contd)

• From designers viewpoint
• Clock tree latency
• Must be considered in GALS designs.
• If the latency to distribute a clock is larger
  than a single clock cycle, invalid operations may
  occur after the clock was supposed to have
  stopped.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
40
Pausible Clock GALS Design Style (Contd)

• From designers viewpoint
• Designing ring oscillators for robustness and
  good performance
• A major difficulty in some GALS research
• The clock period can have high jitter, varying
  significantly from cycle to cycle as it restarts
  from a pause.
• This jitter can be amplified by the clock
  distribution network, further cutting into the
  timing margin.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
41
Pausible Clock GALS Design Style (Contd)

• From designers viewpoint
• A potential advantage of ring oscillator clocks
  is
• That variations in the clock period should track
  variations in logic-gate delays across a range of
  operating conditions.
• Unfortunately, standard CAD tools do not account
  for this behavior during analysis, and they might
  force conservative, worst-case designs.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
42
Pausible Clock GALS Design Style (Contd)
Pausible-clock GALS design style circuit (a) and
timing diagram (b)
Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
43
Pausible Clock GALS Design Style (Contd)
Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
44
Pausible Clock GALS Design Style (Contd)
Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
45
Asynchronous Interface GALS Design Style

• Uses circuits known as synchronizers
• to transfer signals arriving from an outside
  timing domain to the local timing domain.
• Although simple asynchronous interfaces suffer
  from low throughput,
• This limitation can be overcome with careful
  designs.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
46
Asynchronous Interface GALS Design Style (Contd)
Asynchronous GALS design style employing
synchronizers circuit (a) and timing diagram (b)
Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
47
Asynchronous Interface GALS Design Style (Contd)
Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
48
Asynchronous Interface GALS Design Style (Contd)
Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
49
Asynchronous Interface GALS Design Style (Contd)

• This simplistic design can transfer at most
• One datum for every three cycles of transmitter
  clock fT or receiver clock fR
• whichever is slower

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
50
Asynchronous Interface GALS Design Style (Contd)

• From designers viewpoint
• Offering the most flexibility and probably the
  easiest integration into existing CAD flows

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
51
Asynchronous Interface GALS Design Style (Contd)

• From designers viewpoint
• The modeling and validation of the synchronizer
  circuits and the impact of their delay
• Real synchronizers have more complicated behavior
  than predicted by simple textbook models, and
  circuit simulators such as Spice do not have the
  numerical accuracy to verify acceptable
  reliabilities.
• Recently developed simulation methods address
  this problem.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
52
Asynchronous Interface GALS Design Style (Contd)

• From designers viewpoint
• A rule of thumb for synchronizer design is that
  at least 40 gate delays should be budgeted for
  metastability to resolve to a stable, logical
  value.
• For a 0.13-micron process with a 60 ps gate
  delay, synchronization adds about 2.5 ns of delay
  when crossing timing domains.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
53
Asynchronous Interface GALS Design Style (Contd)

• From designers viewpoint
• Thus, it is expected the asynchronous GALS style
  to find widespread use in SoC designs
• That can tolerate the extra latency of
  synchronization
• or that have low clock frequencies (that is, few
  cycles of synchronization latency).
• Higher-performance designs will require the
  loosely synchronous styles described next.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
54
Loosely synchronous Interface GALS design style

• Arises when some bounds on the frequencies of
  communicating blocks are known.
• In this style, the designer exploits these bounds
  to ensure that timing requirements are met.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
55
Loosely synchronous Interface GALS design style
(Contd)

• Requires timing analysis on the paths between the
  sender and receiver
• Is less amenable to dynamic changes in the clock
  frequency.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
56
Loosely synchronous Interface GALS design style
(Contd)

• The analysis makes handshaking unnecessary during
  data transfer.
• The resulting circuits rather than those of the
  other methods
• Can achieve higher performance
• Have more deterministic latencies

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
57
Loosely synchronous Interface GALS design style
(Contd)

• A loosely synchronous design exploits one of the
  known timing relationships described earlier.
• The simplest case is a mesochronous relationship,
  in which the frequencies are exactly matched and
  there is a stable but unknown phase difference.
• This commonly occurs when the clocks are derived
  from the same source but the latency of delivery
  to each block differs.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
58
Loosely synchronous Interface GALS design style
(Contd)

• The mesochronous example shown in the next slides

• is based on the Stari (Self-Timed At Receivers
  Input) scheme
• in which clocks fT and fR are derived from the
  same source.
• The receiver uses a self-timed FIFO buffer to
  compensate for the phase difference.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
59
Loosely synchronous Interface GALS design style
(Contd)

• The key to high-performance operation is to
  initialize the FIFO buffer to be half full.
• To get the FIFO buffer half full, special
  initialization is needed.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
60
Loosely synchronous Interface GALS design style
(Contd)

• During operation, the transmitter puts one datum
  into the FIFO buffer every cycle, and the
  receiver takes one datum.
• Neither needs to check the FIFO buffer status
  signals (the FIFO buffer is assumed to be fast
  enough).
• The FIFO buffer will remain within /-1 data item
  of half full because the frequencies are matched

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
61
Loosely synchronous Interface GALS design style
(Contd)
Loosely synchronous, (mesochronous) GALS design
style circuit (a) and timing diagram (b)
Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
62
Loosely synchronous Interface GALS design style
(Contd)
Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
63
Loosely synchronous Interface GALS design style
(Contd)
Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
64
Loosely synchronous Interface GALS design style
(Contd)

• From designers viewpoint
• The need for high clock frequencies and low
  latency in high-performance designs will make
  them candidates for loosely synchronous
  techniques.

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
65
Loosely synchronous Interface GALS design style
(Contd)

• From designers viewpoint
• To determine the optimal size of the FIFO
  buffers,
• Timing analysis is necessary to bound how far the
  relative phase difference between the sender and
  receiver may drift.
• This type of timing analysis is not yet common
  for on-chip timing,
• Although it is standard when using interchip,
  source-synchronous communication (for example,
  synchronous DRAMs).

Paul Teehan, et al., A Survey and Taxonomy of
GALS Design Styles, IEEE 2007
66
GALS SoC Communication Infrastructure
Architectures (Contd)
A locally synchronous block with its self-timed
wrapper (Pausible clocking scheme)
M. Amde et al., Asynchronous On-Chip Networks,
IEE 2005
67
GALS SoC Communication Infrastructure
Architectures (Contd)
Block diagram of an asynchronous
wrapper (Pausible clocking scheme)
X. Jia, and R. Vemuri, CAD Tools for a GALS FPGA
Architecture
68
GALS SoC Communication Infrastructure
Architectures (Contd)
Block diagram of two synchronous blocks
communication in a GALS system (Pausible
clocking scheme)
R. Dobkin, et al., High Rate Data
Synchronization in GALS SoCs, IEEE 2006
69
GALS SoC Communication Infrastructure
Architectures (Contd)
Two synchronous blocks channel communications
circuit in a GALS system (Pausible clocking
scheme)
Simon Moore, et al., Channel Communication
Between Independent Clock Domains
70
GALS SoC Communication Infrastructure
Architectures (Contd)
GALS bus architecture (Pausible clocking scheme)
M. Amde et al., Asynchronous On-Chip Networks,
IEE 2005
71
GALS SoC Communication Infrastructure
Architectures (Contd)
GALS Ring architecture (Pausible clocking scheme)
M. Amde et al., Asynchronous On-Chip Networks,
IEE 2005
72
Designed and Fabricated GALS Chips

• FPGA
• SoC
• Marble
• Nexus (Fulcrum)
• NoC
• Chain (CHip Area INterconnect)
• Faust (Flexible Architecture of Unified System
  for Telecom)
• Mango (Message-passing Asynchronous
  Network-on-chip providing Guaranteed services
  over Open core protocol (OCP) interfaces)

73
Designed and Fabricated GALS Chips (Contd)
T. S. T. Mak, et al., On-FPGA Communication An
Opportunity for GALS?, Proceedings of the
Eighteenth UK Asynchronous Forum, 2006
74
Designed and Fabricated GALS Chips (Contd)

• MARBLE
• As a step in developing such an interconnection
  standard an Amulet3i contains the first
  implementation of MARBLE 5, a 32-bit,
  multimaster, on-chip bus which communicates by
  using handshakes rather than a clock. Apart from
  this the signal definitions, with 32-bit address
  and data, look very similar to a conventional
  bus. MARBLE separates address and data
  communications, allowing pipelining and
  interleaving of operations in order to increase
  the available bandwidth when several devices
  require global access.
• MARBLE is supported by initiator and target
  interfaces which can be attached to any
  asynchronous component. These, their address, and
  the bus wiring provide all that is needed for
  communication between the various components. In
  Amulet3i there are four initiators and seven
  targets. For example the processors two local
  buses each terminate in a MARBLE initiator and
  the local data bus is also a MARBLE target which
  allows DMA and test data in and out of the RAM
  from other initiators.

J. SPARSØ, S. FURBER (Editors), PRINCIPLES OF
ASYNCHRONOUS CIRCUIT DESIGN A Systems
Perspective, pp. 311
75
Designed and Fabricated GALS Chips (Contd)
J. SPARSØ, S. FURBER (Editors), PRINCIPLES OF
ASYNCHRONOUS CIRCUIT DESIGN A Systems
Perspective, pp. 311
76
Designed and Fabricated GALS Chips (Contd)
S. Furber, Future Trends in SoC Interconnect
77
Designed and Fabricated GALS Chips (Contd)
J. SPARSØ, S. FURBER (Editors), PRINCIPLES OF
ASYNCHRONOUS CIRCUIT DESIGN A Systems
Perspective, pp. 311
78
Designed and Fabricated GALS Chips (Contd)
Nexus System-on-Chip Interconnect

• Non-blocking crossbar
• 16 full-duplex ports
• Flow control extends through the crossbar
• Full speed arbitration
• Arbitrary-length bursts
• Bridges clock domains
• Scales in bit width and ports
• Process portable

A. Lines, Nexus Asynchronous Interconnect For
Synchronous SoC Designs, Fulcrum microsystems
79
Designed and Fabricated GALS Chips (Contd)
A specific Nexus example Multiprocessor SoC
A. Lines, Nexus Asynchronous Interconnect For
Synchronous SoC Designs, Fulcrum microsystems
80
Designed and Fabricated GALS Chips (Contd)

• CHAIN (Chip area interconnect)
• is currently under development as a possible
  replacement for a conventional bus for on-chip
  communications.
• Chain is based around narrow, high-speed,
  point-to-point links forming a network rather
  than a bus. The idea is to exploit the potential
  for fast symbol transmission within an
  asynchronous system while reducing the number of
  long distance wires.
• By using a delay-insensitive coding scheme Chain
  relieves the chip designer of the need to ensure
  timing closure across the whole chip it also
  provides tolerance of potential problems such as
  induced crosstalk on the long interconnection
  wires. Again the user need only communicate with
  conventional parallel interfaces.

J. SPARSØ, S. FURBER (Editors), PRINCIPLES OF
ASYNCHRONOUS CIRCUIT DESIGN A Systems
Perspective, pp. 311
81
Designed and Fabricated GALS Chips (Contd)
Steve Furber, Future Trends in SoC Interconnect
82
Designed and Fabricated GALS Chips (Contd)

• FAUST (Flexible Architecture of Unified System
  for Telecom)
• A complete System-on-Chip (SoC) framework based
  on an asynchronous Network-on-Chip (NoC)
• Supports complex Multi-Carrier OFDM-based telecom
  applications.

D. Lattard, et al, A Telecom Baseband Circuit
based on an Asynchronous Network-on-Chip, ISSCC
2007
83
Designed and Fabricated GALS Chips (Contd)
Faust Block diagram
D. Lattard, et al, A Telecom Baseband Circuit
based on an Asynchronous Network-on-Chip, ISSCC
2007
84
Designed and Fabricated GALS Chips (Contd)
IP integrated in the NoC
D. Lattard, et al, A Telecom Baseband Circuit
based on an Asynchronous Network-on-Chip, ISSCC
2007
85
Designed and Fabricated GALS Chips (Contd)
Asynchronous implementation of the NoC
D. Lattard, et al, A Telecom Baseband Circuit
based on an Asynchronous Network-on-Chip, ISSCC
2007
86
Designed and Fabricated GALS Chips (Contd)
MANGO (Message-passing Asynchronous
Network-on-chip providing Guaranteed services
over Open core protocol (OCP) interfaces)
The network consists of NAs implementing the
network access points, routers, and pipelined
links.
MANGO-based SoC
T. Bjerregaard and J. Sparsø, Implementation of
guaranteed services in the MANGO clockless
network-on-chip, IEE 2006
