bgpmon real-time collection and distribution of BGP updates

1

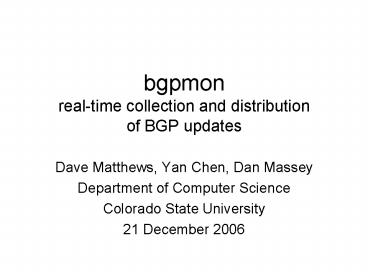

bgpmonreal-time collection and distribution of
BGP updates

• Dave Matthews, Yan Chen, Dan Massey
• Department of Computer Science
• Colorado State University
• 21 December 2006

2
Background

• Border Gateway Protocol (BGP) facilitates
  exchange of routing information on the Internet.
• Routers send peers BGP updates to the routes for
  destinations as they change.
• Analysis of BGP update and RIB information can
  help identify problems with the routing topology
  of the Internet.
• Routers maintain current state of routes to all
  internet addresses in a local table called the
  Routing Information Base (RIB)

3
Current Approach

• Collection and monitoring of BGP updates and RIB
  tables is file-based in MRT format.
• Tools collect information from variety of
  participating routers (RouteViews, RIPE).
• Applications obtain latest files and process them
  to recreate an initial state and update stream.
• Real-time monitoring is not possible with this
  approach.

4
PHASPrefix Hijack Alert System

• Prefix hijacks pose a serious threat to the
  Internet, preventing delivery of network traffic
  to the intended destination.
• PHAS is a web-based service that identifies
  possible prefix hijacks.
• Analyzes BGP updates and RIB tables available
  from RouteViews to alert prefix owners
• Currently incurs a 3 hour delay, a real-time feed
  of BGP updates and RIB tables is desired.

5
Goals

• Real-time feed of BGP updates and RIB tables
• Scalable to monitor hundreds of BGP peers
• Scalable to support many client applications
• Improve robustness and recovery of BGP peering
  sessions
• Include information to identify missing BGP
  updates
• and more....

6
bgpmon

• Provides real-time feeds of BGP updates and RIB
  tables via aTCP connection.
• Captures both in files for later use and
  compatibility with existing solutions.
• Attempts to address scale, robustness, and other
  issues present in existing implementations.
• Support for PHAS today.
• A first step in the creation of a new monitoring
  infrastructure for BGP (NetViews).

7
Scalability
8
Concurrency (Now)
9
Concurrency (Future)
10
Server

• Separate threads for major functions
• Main program / TCP server
• BGP peer monitor
• RIB table maintenance
• Update log
• Table dump log
• Clients
• Synchnronization on two shared resources
• RIB table uses read/write locking
• MRT queue uses mutex/condition locking

11
Client

• Sends a single request, receives a stream of MRTs
  containing desired information over a single TCP
  connection.
• A continuous BGP update stream for all peers.
• A continuous BGP update stream for a single peer.
• A list of BGP peers.
• A table dump for a single peer.
• Must process requests in real-time. Server may
  terminate clients that create a bottleneck.

12
Results

• Initial release delivered, deployment pending
  PHAS integration.
• Provides both real-time access and log files.
• Sample client output can be capture to a file for
  a remote logging capability.
• Data from both verified with bgpdump.
• Test configuration monitoring 7 routers with 20
  clients monitoring updates uses neglible system
  resources.

13
Future Work - near term

• Integrate with PHAS, share with NetViews team.
• Test with a wider variety of routers, routers
  with larger tables, remote monitoring.
• Test with large numbers of peer sessions, address
  handling of slow client threads.
• Characterize and tune configuration parameters
  and hash function.
• Convert log files to compressed format.
• Address handling of RIB table contents when peer
  session lost.

14
Future Work - long term

• Monitor MRT streams from bgpmon peers using
  client interface to support distribution of
  monitoring and scalability.
• XML client to simplify analysis in other
  languages and tools.
• Thread BGP peer monitor if necessary.
• Suggest new MRT format for table dump to reduce
  table dump size.

15
Where are we now?

• Release 1, 15 December 2006
• BGP peer monitor, RIB maintenance, update log
  file, rib log file, threaded MRT server
• Release 2, 21 December 2006
• sample MRT client
• Release 3, ?
• sample XML client, threaded MRT/XML server
• threaded BGP peer monitor
