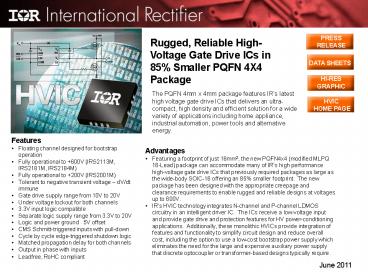

Rugged, Reliable High-Voltage Gate Drive ICs in
85 Smaller PQFN 4X4 Package
DATA SHEETS
HI-RES GRAPHIC
The PQFN 4mm x 4mm package features IRs latest
high voltage gate drive ICs that delivers an
ultra-compact, high density and efficient
solution for a wide variety of applications
including home appliance, industrial automation,
power tools and alternative energy.
HVIC HOME PAGE

• Features
• Floating channel designed for bootstrap operation
• Fully operational to 600V (IRS2113M, IRS2181M,
  IRS2184M)
• Fully operational to 200V (IRS2001M)
• Tolerant to negative transient voltage dV/dt
  immune
• Gate drive supply range from 10V to 20V
• Under voltage lockout for both channels
• 3.3V input logic compatible
• Separate logic supply range from 3.3V to 20V
• Logic and power ground 5V offset
• CMS Schmitt-triggered inputs with pull-down
• Cycle by cycle edge-triggered shutdown logic
• Matched propagation delay for both channels
• Output in phase with inputs
• Leadfree, RoHC compliant

• Advantages
• Featuring a footprint of just 16mm2, the new
  PQFN4x4 (modified MLPQ 16-Lead) package can
  accommodate many of IRs high performance
  high-voltage gate drive ICs that previously
  required packages as large as the wide-body
  SOIC-16 offering an 85 smaller footprint. The
  new package has been designed with the
  appropriate creepage and clearance requirements
  to enable rugged and reliable designs at voltages
  up to 600V.
• IRs HVIC technology integrates N-channel and
  P-channel LDMOS circuitry in an intelligent
  driver IC. The ICs receive a low-voltage input
  and provide gate drive and protection features
  for HV power-conditioning applications.
  Additionally, these monolithic HVICs provide
  integration of features and functionality to
  simplify circuit design and reduce overall cost,
  including the option to use a low-cost bootstrap
  power supply which eliminates the need for the
  large and expensive auxiliary power supply that
  discrete optocoupler or transformer-based designs
  typically require.

June 2011
