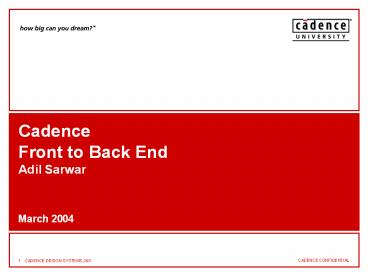

Cadence Front to Back EndAdil Sarwar

• March 2004

2
Presentation Overview

• Tool Setup
• Virtuoso Schematic Editor (Composer) for design
  entry
• Analog Design Environment (Analog Artist) for
  netlisting and simulation.
• Virtuoso LE for layout
• Diva for physical Verification
• Mixed-signal simulations / AMS Designer

3
Tool Setup

• Source new cshrc file , IC 5.0 installed
• Icfb W -gt to check the version of tool
• cds.lib -gt file in directory from where you want
  to run the tool
• .cdsinit and .env files for initialization and
  bindkeys
• icms , layoutPlus and icfb

4
Cadence Flow Diagram
Parasitic re-simulation
Affirma Spectre Analog Simulator
Virtuoso Schematic Editor
back annotation
Diva
schematics
Virtuoso Custom Router
Virtuoso XL
LPE
DRC
LVS
Virtuoso Layout Editor
Physical Design
Physical Verification
Stream
PCell Libraries and technology files
Rules files, technology files
GDSII
5
CIW Window
6
Library Manager
7
Creating Directories and cds.lib file
8
Creating Schematic Cell
9
Inverter Schematic
10
CDF Parameters
11
Adding Pins and Wire names
12
Virtuoso Cell Creation and LSW
13
Virtuoso layout
14
Inverter Layout
15
Giving Terminal Names
16
Diva DRC
17
DRC Results in CIW Window
18
LVS Setup
19
LVS Results

20
Model and Libraries

• Models from NCSU Kit or From Mosis site
• analogLib library was used for voltage sources
  and gnd
• basic library was used for pins
• dfII database and environment was used

21
Tutorials and Useful sites

• Tutorials available in Cadence Setup
• Go to install directory, the tutorials should be
  here
• ltinstall_dirgt/tools/dfII/samples/tutorials
• cp r cell_design /
• http//www.owlnet.rice.edu/elec522/w9/virtuoso_la
  yout/
• http//www.ee.princeton.edu/cadence/usr/
• NCSU site for tarred kit
