DeltaV Engineering Tutorial

1

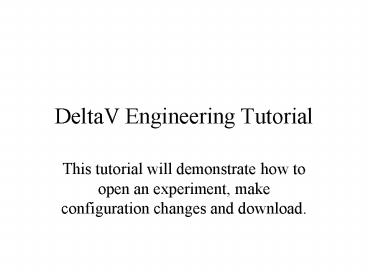

DeltaV Engineering Tutorial

• This tutorial will demonstrate how to open an
  experiment, make configuration changes and
  download.

2
DeltaV Engineering

• Open the DeltaV Explorer
• Go to the Start gt
• Engineering gt
• DeltaV Explorer gt

3
(No Transcript)
4
DeltaV Operation,Operate

• The DeltaV Explorer is the main utility used to
  initiate changes to the control algorithms and
  physical hardware.
• In our case we will be using the Explorer to open
  each experiment with the Control Studio. Our
  experiments are under AREA_A
• Example Open LAB1, Right click

5
(No Transcript)
6
(No Transcript)
7

• DeltaV configuration is Object Oriented,similar
  to Simulink.
• The toolbar on the left side is the pallet of
  control functions or objects
• Select the object of interest by left click
• The list in the lower right details all the
  parameters for each object.
• Example LI1-1 has a X_SCALE or field scale of 0
  to 20 inH2O (68 DegF)

8
(No Transcript)
9
If you want to know what the object is, right
click and select Whats this? You will the be
able to gain access to the Help Files.
10

• In this lab, we will be doing software wiring or
  connecting objects
• To wire, left click on the objects connection
  terminal and drag the wire to the other terminal

11
Wire Here
12

• Once the change is made, we need to Download,
  but save first then Download

13
Save then Download
14
Select Download Now
Next it will ask you if this is what you want to
do for sure, Keep on saying Yes
15
Dunkin is now doing his thing and we are
downloading, click OK here
16
Congratulations! You have finished Downloading!
17
Click here to display live data
