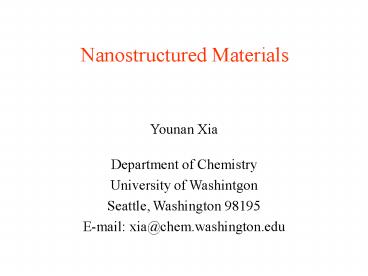

Younan Xia

1
Nanostructured Materials
Younan Xia Department of Chemistry University of
Washintgon Seattle, Washington 98195 E-mail
xia_at_chem.washington.edu
2
What Are Nanostructures?
These days, you cant swing a dead cat without
hitting something with the word nano on it.
CEN News, 2003, April 28, p. 27
Nano
Molecular
Meso
H-atom benzene buckyball
soap molecules micelles dendrimers Q-dots hemoglo
bin viruses carbon nanotubes gold nanoparticles
bacteria dusts blood cells hairs
colloidal particles
3
Make It Smaller!
First Planar IC
First Transistor
(1958, Fairchild)
(1947, Bell Lab)
180 nm
4
Moores Law Smaller Is Better!
Peercy, Nature 2000, 406, 1023
5
Types of Nanostructured Materials
(1D)
(2D)
(0D)
Joannopoulos et al., Photonic Crystals, 1995
6
Why Does Size Matter?
7
Dependence of Surface Area on Size
no change in volume
r
r
R
r
r
volume 4pR3/3 N 4pr3/3
N R3/r3
new surface/old surface N 4pr2/4pR2 R/r
when R1 mm and r10 nm, the ratio is 100
8
Pressure in A Droplet versus Size
Pout
Pin
Young-Laplace Eq.
r
DPPin - Pout 2g/r
for water, g7x10-2 N/m
when r1 mm, DP1.4x105 N/m2 or 1.4 atm
when r100 nm, DP1.4x106 N/m2 or 14 atm
when r10 nm, DP1.4x107 N/m2 or 140 atm
9
Quantum Confinement Particle in A Box
DE (n22 - n12)h2/8mL2
10
Q-Dots Tuning of Property by Size
Alivisatos, MRS Bulletin 1995, August, 23
11
Q-Dots Same Substance, Different Colors
Alivisatos (UC Berkeley), Bawendi (MIT), Brus
(Columbia)
12
Q-Dots Superior Fluorescent Markers
Superior Brightness Incredible Photostability Mult
i-Color Capability Single Excitation Source
http//www.qdots.com
13
Quantized Conductance of Electrons
metal
A
L
G
Ohms Law
2e2/h 1/13 kW
G I/v s (A/L)
A
van Houten et al., Physics Today 1996, July, 22
14
Metal-Insulator-Metal Junction
I
Al
Al
Al2O3
A
0
d
V
Q CV
C e0eA/d
8.85x10-12 Fm-1 8 (10x10 nm2/1 nm)
7.08x10-18 F
_at_100 mV, Q7.08x10-19 c, or 4 electrons
_at_25 mV, Q7.08x10-19 c, or 1 electron
_at_10 mV, Q7.08x10-19 c, or 0.4 electron
15
Coulomb Blockade and Staircase
I
-e/2C
0
V
e/2C
Barner Ruggerio, Phys. Rev. Lett. 1987, 59, 807
16
Different Approaches to Nanostructures
Top-Down
Bottom-Up
Ozin, Adv. Mater. 1992, 4, 612
17
Contact Mode Photolithography
photon
chrome
photoresist
quartz
substrate
substrate
18
Non-Contact Mode Projection
19
Resolving Power (d) of An Optical Lens
Limit placed by diffraction
d 0.61 l / NA
NA the numerical aperture of a lens, and NA n
sina n the refractive index of the medium
above the sample a the acceptance angle
lens
a
in air, n1, dmax 0.61 l for visible light,
300 nm
sample
when a45 degrees, d l
20
Electron-Beam Lithography
Resolution 1-3 nm
lh/(2meV)1/2
100 kV, l4 pm
FEI Siron XL 30 UW NanoTech Center
21
(No Transcript)
22
Soft Lithography An Alternative Strategy
Whitesides Love, Sci. Am. 2001, 285(3), 38 Xia
Whitesides, Angew. Chem. 1998, 37, 551
23
(No Transcript)
24
Bottom-Up Approach Chemical Synthesis
UW Bagley Hall, Room 16
25
Q-Dots Made by Arrested Precipitation
Whitesides Love, Sci. Am. 2001, 283(3),
38 Alivisatos, MRS Bulletin 1995, August,
23 Bawendi et al., J. Am. Chem. Soc. 1993, 115,
8706
26
Anisotropic Growth Induced by Structure

• Intrinsic Optical Chirality
• Highest Photoconductivity
• (s 8x104 S/cm for t-Se)
• Piezoelectric Nonlinear
• Optical (NLO) Properties
• Thermoelectric Properties
• Useful Catalytic Properties
• (Halogenation, Oxidation)
• Reactivities to Form Other
• Functional Materials such
• as CdSe, CuSe, and Ag2Se

Trigonal Selenium (t-Se)
Se Spiral Chain
27
Synthesis of Uniform Nanowires of t-Se
100 oC
100 oC
a-Se
R.T.
a-Se
DG
t-Se
(t-Se)
a-Se
t-Se
Gates, Yin Xia, J. Am. Chem. Soc. 2000, 122,
12582
28
Various Stages of Nanowire Growth
Gates, Mayers, Cattle Xia, Adv. Func. Mater.
2002, 12, 219
29
Formation of Uniform Silver Nanowires
AgNO3 HO(CH2)2OH
PtCl2
XRD
(PVP)
PVPAg11
160-180 oC
Sun, Gates, Mayers Xia, Nano Lett. 2002, 2, 165
30
One-Dimensional Photonic Crystals
Plane-Wave-Expansion-Method (PWEM)
31
Photonic Band Structures of 1-D Systems
Band Gap
w(c/e1/2)k
32
Opals and Self-Assembly of Colloids
Sanders, Nature 1964, 204, 1151
33
Crystallization of Spherical Colloids
Lu, Yin, Gates Xia, Langmuir 2001, 17, 6344
34
Photonic Band Structure and Spectra
Photonic Band Structure
Trans./Refl. Spectra
Xia, Gates Li, Adv. Mater. 2001, 13, 415
35
Inverse Opal and Photonic Properties
Remove Template
(n2/n1 3.0)
Xia, Gates, Yin Lu, Adv. Mater. 2000, 12, 693
36
Diffusion Coefficient (D) versus Size
Random-Walk Eq.
Stokes-Einstein Eq.
ltd2gt1/2 (2Dt)1/2
D kBT/6phr

• for cells, r is around 10 mm
• for bacteria, r is around 1 mm
• for viruses, r is around 10 nm (0.01 mm)
