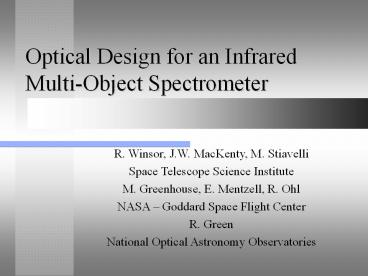

Optical Design for an Infrared Multi-Object Spectrometer

1
Optical Design for an Infrared Multi-Object
Spectrometer

• R. Winsor, J.W. MacKenty, M. Stiavelli
• Space Telescope Science Institute
• M. Greenhouse, E. Mentzell, R. Ohl
• NASA Goddard Space Flight Center
• R. Green
• National Optical Astronomy Observatories

2
Multi-Object Spectrometers

• Punch Plate
• Take image
• Make punch plate based on image
• Install punch plate
• Take observation data
• Does not work well for spacecraft
• Robotically positioned optical fibers
• Integral field

3
Multi-Object Spectrometers

• Punch Plate
• Robotically positioned optical fibers
• Mechanically complex and expensive
• Limits ability to get spectra on neighboring
  objects simultaneously
• Difficult to apply to an Infrared instrument
• Cryogenic vacuum environment
• Integral field

4
Multi-Object Spectrometers

• Punch Plate
• Robotically positioned optical fibers
• Integral field
• Small field of view
• Maps fiber bundle to a vertical arrangement for
  imaging

5
Micro-Mirror Array (MMA)
6
Micro-Mirror Array (MMA)

• Using a Texas Instruments
• Digital Micromirror Device (DMD) for IRMOS
• Mirrors are individually addressable into one of
  two tilt configurations (on or off)
• Slit lists can be generated and implemented
  quickly
• Flexibility in geometry of slit (good for
  galaxies)
• 16mm square mirrors, 17mm mirror spacing
• Allows for input focal ratios as fast as f/3.0
• 848 x 600 Mirror array

7
Micro-Mirror Array (MMA)

• Design Challenges
• Tilted Focal Plane
• Clocked at 45 degrees
• Discontinuous surface
• Interference effects?
• Wavefront error from spillover
• Requires a User-Defined Surface for modeling in
  optical design software

8
Optical Design Stage One

• Designed for the Kitt Peak Mayall Telescope
  (3.8m)
• Convert F/15 from telescope to f/4.6
• Plate scale 0.2 arcsec/pixel
• Seeing is typically 0.8, and can be as good as
  0.6
• Create tilted focal plane
• Angle of incidence 10 degrees at MMA
• Spot sizes FWHM better than 0.6
• Entirely Reflective

9
Merit Function

• Start with axial design
• Optimize for RMS spot radius
• Unfold by adding angle of incidence operands
• Require a minimum angle of incidence rather than
  an exact angle
• RAID is exact angle of incidence
• Use OPGT to set the minimum
• Allows configurations that might not be expected
  to work well

10
Optical Design - Spectrometer

• Resolutions (Dl/ l) of 300, 1000, and 3000 in the
  J (1.1mm), H (1.6mm) and K (2.2mm) bands
• Gratings have 50mm diameter active area
• Spot sizes better than 0.6 FWHM
• F/5.0 beam to detector
• Rockwell HAWAII-I detector, 18.5mm pixels
• Maintains 11 mapping from MMA to Detector
• Compact size
• Entirely Reflective

11
Merit Function

• Multiple Configuration
• 5 different grating groove densities were used
• 0, 36, 150, 333, 600
• Grating without grooves is a mirror for imaging
  purposes
• Coordinates of Optics downstream of the gratings
  had to be fixed
• Different gratings require different substrate
  tilts
• Zemax does not have built in solves for
  coordinate break tilts to deal with different
  grating configurations

12
Merit Function

• No operands were used to encourage a pupil or a
  collimated beam at the grating
• Multiple configurations were made to guarantee
  good performance across all grating
  configurations
• Especially important due to different grating
  tilts
• Not clear that use of such operands would be a
  better strategy
• Is time saved? Only if a merit function with
  fewer configurations can be developed.
• Will solution work after entering new grating
  information?

13
Merit Function

• Angle of incidence at detector was allowed to be
  variable, but not exceed 30 degrees
• RMS spot radius optimized

14
Implementing Merit Function

• Start with axial design
• Optimize for good spot sizes
• Modify Merit function to slowly Pull apart the
  design
• So that light paths are realistic
• Increase angles of incidence and re-optimize
• Repeat until a real solution is found

15
Add Folds

• Fold the design into a size that can be packaged
  into a compact dewar
• Performed after optimization of each stage
• More time consuming to optimize with the other
  optics
• Global coordinates must remain constant during
  multiple configurations

16
Correcting for Astigmatism

• Traditionally, Toroidal surfaces are used.
• Relatively easy to fabricate
• Different radii of curvature (different power) in
  the x and y directions
• Use conic values with toroidal shape to correct
  higher order wavefront error.
• In x or y direction, but not both
• Still straightforward to fabricate
• Biconic
• Different radii and conic values in both x and
  y directions

17
Biconic Mirror

• Allows compact design
• Difficult to Fabricate
• Only a handful of vendors are capable of making
  such a surface
• Requires a minimum of a 4-axis diamond machine
• Process referred to as Diamond Machining

18
Testing

• Profilometry
• Contact Method (discontinuous mapping)
• Several hundred contact points
• Relatively Low cost
• Adequate? Perhaps.
• Computer Generated Holograms (CGH)
• Interferometric continuous surface mapping
• Relatively high cost
• Complex setup
• How are the CGHs tested?
• More than adequate

19
Front End Optics Side View
20
Front End Optics Top View
21
Spectrometer Optics Side View
22
Spectrometer Optics Top View
23
IRMOS Optics Side View
24
IRMOS Optics Top View
25
(No Transcript)
26
Acknowledgements

• Moores Nanotechnology division
• Werner Preub, and the Labor Fur Mikrozerspanung
  (Institute for Micromachining), University of
  Bremen, Bremen, Germany
• Focus Software (Zemax-EE)
• Texas Instruments (DMD)
