CMSC 828G: Introduction to Statistical Relational Learning (SRL)

1

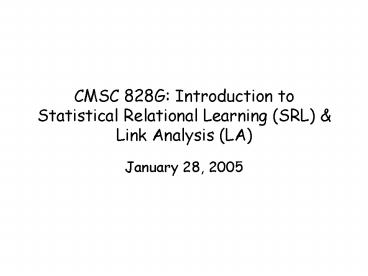

CMSC 828G Introduction to Statistical Relational
Learning (SRL) Link Analysis (LA)

• January 28, 2005

2
Todays Outline

• Brief Introduction to SRL
• Student Introductions
• Course Mechanics
• Slightly Longer Introduction to SRL
• SRL focus problem
• Exercise Create your own SRL focus problem
• Discussion of SRL focus problems
• Survey
• Resources

3
Statistical Relational Learning

• Traditional machine learning and data mining
  approaches assume
• A random sample of homogeneous objects from
  single relation
• Real world data sets
• Multi-relational, heterogeneous and
  semi-structured
• SRL
• newly emerging research area at the intersection
  of research in graphical models, social network
  and link analysis, hypertext and web mining,
  graph mining, relational learning and inductive
  logic programming

4
SRL Approaches

• Combine logical/combinatorial structures with
  statistical/probabilistic models
• Families of Approaches
• Entity-relation Models Graphical Models
  (BNs/Markov Models)
• First-Order Logic Graphical Models
• Functional Programming Stochastic Execution

5
Sample Domains

• web data (web)
• bibliographic data (cite)
• epidimiological data (epi)
• communication data (comm)
• customer networks (cust)
• collaborative filtering problems (cf)
• trust networks (trust)
• biological data (bio)

6
Recent SRL Activities

• Dagstuhl Workshop on Probabilistic, Logical and
  Relational Learning - Towards a Synthesis
  (1/30/05-2/04/05)http//www.dagstuhl.de/05051/
• ICML 2004 workshop on Statistical Relational
  Learning and its Connections to Other
  Fieldshttp//www.cs.umd.edu/projects/srl2004/
• IJCAI 2003 workshop on Statistical Relational
  Learninghttp//kdl.cs.umass.edu/srl2003/
• AAAI 2000 workshop on Statistical Relational
  Learninghttp//robotics.stanford.edu/srl
• Several related workshops
• KDD MRDM workshops
• http//www-ai.ijs.si/SasoDzeroski/MRDM2004/
• http//www-ai.ijs.si/SasoDzeroski/MRDM2003/
• http//www-ai.ijs.si/SasoDzeroski/MRDM2002/
• Benjamin Taskar and I are working on an edited
  SRL collection, and ideally we will have access
  to draft chapters from this collection.

7
Other SRL Related Courses

• Tom Dietterichs course at OSU http//web.engr.or
  egonstate.edu/tgd/classes/539/
• David Page, Mark Craven and Jude Shavlik at
  UWischttp//www.biostat.wisc.edu/page/838.html
• Pedro Domingos course at UWash
• Eric Mjolsness course at UCI on Probabilistic
  Knowledge Representationhttp//computableplant.ic
  s.uci.edu/emj/classes/280_04/Syllabus20ICS20280
  20v2.doc
• Stuart Russells course at Berkeley on Knowledge
  Representation and Reasoninghttp//www.cs.berkele
  y.edu/russell/classes/cs289/f04/
• Joydeep Ghosh course at UT Austin on Advanced
  Topics in Data Mininghttp//www.lans.ece.utexas.e
  du/course/382v/05sp/
• Michael Littman course at Rutgers on Learned
  Representations in AI,http//www.cs.rutgers.edu/
  mlittman/courses/lightai03/
• David Jensen and Andrew McCallums course at UMass
  on Computational Social Network
  Analysishttp//kdl.cs.umass.edu/courses/csna/

8
Goals of this Course

• NEW area
• Understand Foundations
• Tutorials on Graphical Models, Logic, ILP, etc.
• Understand existing work
• Wade through and make sense of Alphabet Soup of
  approaches (PRMs, BLPs, SLPs, MLPs, RMNs, LBNs,
  etc.)
• Understand interesting theoretical issues
• Collective classification, Open World
  assumptions, etc.
• Study interesting and practical applications of
  SRL
• Do a significant (publishable) project in this
  area.

9
Course Mechanics

• Course meets 1000-1245.
• We will have 15 minute break, typically
  1115-1130
• Class will consists of
• Tutorials
• Exercises
• Readings and Discussion
• Course URL
• http//www.cs.umd.edu/class/spring2005/cmsc828g/
• Course Wiki
• stay tuned.

10
Course Expectations

• SRL Focus problem (15)
• Each student will develop an SRL focus problem
  (10) due Feb. 11
• Describe a domain
• Describe useful inference and learning tasks
• (Ideally) Collect data
• Each student will solve SRL focus problem using
  at least two different SRL techniques (5)
• Lead at least one class discussion (5)
• Each student will sign up to lead the discussion
  of one (or more depending on class size) class
  discussion topic.
• Class Participation (15)
• Each week each student must turn in a short
  discussion of the readings by noon Thursday
  before class. The discussion leader should
  review the others responses, and use them to
  structure the class discussion.
• Class Project (50)
• Each student is expected to do a research project
  for the course.
• Feb. 18, Project Proposals Due
• Mar. 18, Project Progress Report 1 due
• Apr. 22, Project Progress Report 2 due
• May 6, Project Presentations
• May 12, Project Write-up Due
• Class Exercises (10)
• Throughout the course, there will be small class
  exercises

11
Introductions

• Name
• Where you are originally from
• Research Interest/Advisor if you have one

12
SRL Intro Part II

• An Example Probabilistic Relational Models

13
Bayesian Networks Problem

• Bayesian nets use propositional representation
• Real world has objects, related to each other

Intelligence
Difficulty
These instances are not independent
A
C
Grade
14
Probabilistic Relational Models

• Combine advantages of relational logic BNs
• Natural domain modeling objects, properties,
  relations
• Generalization over a variety of situations
• Compact, natural probability models
• Integrate uncertainty with relational model
• Properties of domain entities can depend on
  properties of related entities
• Uncertainty over relational structure of domain

15
St. Nordaf University
Prof. Smith
Prof. Jones
Teaches
Teaches
Grade
In-course
Registered
Satisfac
George
Grade
Registered
Satisfac
In-course
Grade
Registered
Jane
Satisfac
In-course
16
Relational Schema

• Specifies types of objects in domain, attributes
  of each type of object types of relations
  between objects

Classes
Student
Professor
Intelligence
Teaching-Ability
Teach
Take
Attributes
Relations
In
Course
Difficulty
17
Representing the Distribution

• Very large probability space for a given context
• All possible assignments of all attributes of all
  objects
• Infinitely many potential contexts
• Each associated with a very different set of
  worlds

Need to represent infinite set of complex
distributions
18
Probabilistic Relational Models

• Universals Probabilistic patterns hold for all
  objects in class
• Locality Represent direct probabilistic
  dependencies
• Links define potential interactions

Koller Pfeffer Poole Ngo Haddawy
19
PRM Semantics

• Instantiated PRM ?BN
• variables attributes of all objects
• dependencies determined by
• links PRM

Prof. Smith
Prof. Jones
George
Jane
20
The Web of Influence
easy / hard
low / high
21
Reasoning with a PRM

• Generic approach
• Instantiate PRM to produce ground BN
• Use standard BN inference
• In most cases, resulting BN is too densely
  connected to allow exact inference
• Use approximate inference belief propagation
• Improvement Use domain structure objects
  relations to guide computation
• Kikuchi approximation where clusters objects

22
Data ? Model ? Objects
Database
Learner
Probabilistic Model
Expert knowledge

• What are the objects in the new situation?
• How are they related to each other?

Prob. Inference
Data for New Situation
Friedman, Getoor, Koller Pfeffer
23
PRM Summary

• PRMs inherit key advantages of probabilistic
  graphical models
• Coherent probabilistic semantics
• Exploit structure of local interactions
• Relational models inherently more expressive
• Web of influence use multiple sources of
  information to reach conclusions
• Exploit both relational information and power of
  probabilistic reasoning

24
SRL Link Mining

• General Issues

25
Linked Data

• Heterogeneous, multi-relational data represented
  as a graph or network
• Nodes are objects
• May have different kinds of objects
• Objects have attributes
• Objects may have labels or classes
• Edges are links
• May have different kinds of links
• Links may have attributes
• Links may be directed, are not required to be
  binary

26
Link Mining Tasks

• Link-based Object Classification
• Object Type Prediction
• Link Type Prediction
• Predicting Link Existence
• Link Cardinality Estimation
• Object Consolidation
• Group Detection
• Subgraph Discovery
• Metadata Mining

27
Link-based Object Classification

• Predicting the category of an object based on its
  attributes and its links and attributes of linked
  objects
• web Predict the category of a web page, based on
  words that occur on the page, links between
  pages, anchor text, html tags, etc.
• cite Predict the topic of a paper, based on word
  occurrence, citations, co-citations
• epi Predict disease type based on
  characteristics of the patients infected by the
  disease

28
Object Class Prediction

• Predicting the type of an object based on its
  attributes and its links and attributes of linked
  objects
• comm Predict whether a communication contact is
  by email, phone call or mail.
• cite Predict the venue type of a publication
  (conference, journal, workshop)

29
Link Type Classification

• Predicting type or purpose of link based on
  properties of the participating objects
• web predict advertising link or navigational
  link predict an advisor-advisee relationship
• epi predicting whether contact is familial,
  co-worker or acquaintance

30
Predicting Link Existence

• Predicting whether a link exists between two
  objects
• web predict whether there will be a link between
  two pages
• cite predicting whether a paper will cite
  another paper
• epi predicting who a patients contacts are

31
Link Cardinality Estimation I

• Predicting the number of links to an object
• web predict the authoratativeness of a page
  based on the number of in-links identifying hubs
  based on the number of out-links
• cite predicting the impact of a paper based on
  the number of citations
• epi predicting the number of people that will be
  infected based on the infectiousness of a disease.

32
Link Cardinality Estimation II

• Predicting the number of objects reached along a
  path from an object
• Important for estimating the number of objects
  that will be returned by a query
• web predicting number of pages retrieved by
  crawling a site
• cite predicting the number of citations of a
  particular author in a specific journal

33
Entity Resolution

• Predicting when two objects are the same, based
  on their attributes and their links
• aka record linkage, duplicate elimination,
  identity uncertainty
• web predict when two sites are mirrors of each
  other.
• cite predicting when two citations are referring
  to the same paper.
• epi predicting when two disease strains are the
  same
• bio learning when two names refer to the same
  protein

34
Group Detection

• Predicting when a set of entities belong to the
  same group based on clustering both object
  attribute values and link structure
• web identifying communities
• cite identifying research communities

35
Subgraph Identification

• Find characteristic subgraphs
• Focus of graph-based data mining (Cook Holder,
  Inokuchi, Washio Motoda, Kuramochi Karypis,
  Yan Han)
• bio protein structure discovery
• comm legitimate vs. illegitimate groups
• chem chemical substructure discovery

36
Metadata Mining

• Schema mapping, schema discovery, schema
  reformulation
• cite matching between two bibliographic sources

• web - discovering schema from unstructured or
  semi-structured data
• bio mapping between two medical ontologies

37
Link Mining Tasks

• Link-based Object Classification
• Object Type Prediction
• Link Type Prediction
• Predicting Link Existence
• Link Cardinality Estimation
• Object Consolidation
• Group Detection
• Subgraph Discovery
• Metadata Mining

38
SRL General Issues Summary

• SRL Tasks
• Link-based Object Classification
• Object Type Prediction
• Link Type Prediction
• Predicting Link Existence
• SRL Challenges
• Logical vs. Statistical dependencies
• Feature construction
• Instances vs. Classes
• Collective Classification

• Link Cardinality Estimation
• Object Consolidation
• Group Detection
• Subgraph Discovery
• Metadata Mining
• Collective Consolidation
• Effective Use of Labeled Unlabeled Data
• Link Prediction
• Closed vs. Open World

39
SRL Focus Problem 1

• Citation Analysis

40
Domain

• The first focus problem domain is bibliographic
  citation analysis. A large number of SRL
  researchers have worked with this domain. Some
  advantages of this domain are
• the availability of data (thanks largely to
  Andrew McCallum, William Cohen, Steve Lawrence
  and others)
• the ease of understanding the domain and
• our obvious inherent interest in the domain as
  academics, ?.
• the potential high payoff, high visability of SRL
  apporaches if they can solve this problem.
• Within this domain, some of the objects are
• papers, authors, affiliations and venues and so
  on,
• Some of the links or relationships are
• citations, authorship and co-authorship and so
  on.
• An interesting aspect of the problem is that one
  must deal with indentity uncertainty objects can
  be referenced in many ways, and an important task
  is entity resolution figuring out the underlying
  object domains and mappings between references
  and objects.

41
SRL Tasks in FP 1

• topic prediction collective classification of
  the topics of papers
• author attribution predicting the author of a
  paper. An issue is whether we assume a closed or
  open world for the authors. Plagiarism detection.

• author-topic identification discovering the
  topic areas for authors. This can be used for
  example to assign reviewers for papers.
• entity resolution collective clustering of the
  reference to objects to determine the set of
  authors, papers and venues.
• topic evolution tracking change in topics over
  time.
• group detection finding collaboration networks.

• citation counting/ranking predicting number of
  citations or ranking based on predicted number of
  citations.
• hidden object invention Analogous to hidden
  variable introduction, the introduction of a
  hidden object, such as an advisor, that relates
  two author instances.
• predicate invention from co-author information,
  affiliation information and perhaps information
  such as position and room location, invent
  advisor predicate.

42
Data for FP 1

• Many people have constructed data sets by
  crawling bibliography servers such as CiteSeer,
  ACM, DBLP and, soon one would imagine,
  GoogleScholar.
• Steve Lawrence several years ago made available a
  large collection of the citeseer data, this is
  available by contacting him.
• Several versions of the Cora data set are
  available here http//www.cs.umass.edu/mccallum/
  code-data.html
• The recent 2003 KDD Cup challenge has data
  available from high energy physics,
  http//www.cs.cornell.edu/projects/kddcup/

43
Your Turn

• Come up with an SRL focus problem
• Define the schema, objects, links, etc.
• Describe some SRL tasks in this domain
• Think about where you could get the data

44
Survey
45
Next Time

• Graphical Models Review
• Led by Indrajit Bhattacharya
• Readings available for pickup and in library.
  (Due to draft nature, they are not available on
  the web)
