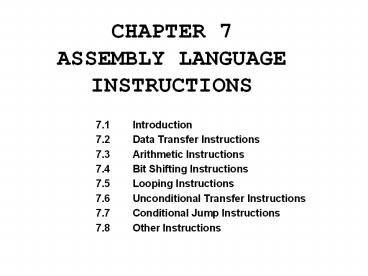

CHAPTER 7 ASSEMBLY LANGUAGE INSTRUCTIONS

1
CHAPTER 7 ASSEMBLY LANGUAGE INSTRUCTIONS

• 7.1 Introduction
• 7.2 Data Transfer Instructions
• 7.3 Arithmetic Instructions
• 7.4 Bit Shifting Instructions
• 7.5 Looping Instructions
• 7.6 Unconditional Transfer Instructions
• 7.7 Conditional Jump Instructions
• 7.8 Other Instructions

2
Introduction

• Intel processor using 8 addressing modes (refer
  to chapter 5.4)
• Immediate addressing
• - for instructions with two operands, the first
  operand may be a register or memory location, and
  the second operand may be an immediate constant.
  First operand defines the length of second
  operand. Examples
• BYTE_VAL DB 150 Define byte
• WORD_VAL DW 300 Define word
• SUB BYTE_VAL, 50 Immediate to memory (byte)
• MOV WORD_VAL, 40H Immediate to memory (word)
• MOV AX, 0245H Immediate to register (word)

1st operand -- memory or register
2nd operand immediate constant
3
Introduction

• Register addressing (register?register)
• - depending on the instruction, the register may
  appear in the first operand, the second operand
  or both. Examples
• MOV DX, WORD_VAL Register in the first
  operand
• MOV BYTE_VAL, AL Register in the second
  operand
• MOV DX, CX Registers in both operands
• Direct Memory addressing (register??memory)
• - in this mode, one of the operands references a
  memory location and the other operand references
  a register. Examples
• ADD BYTE_VAL, DL Add register to memory
  (byte)
• MOV BX, WORD_VAL Move memory to register
  (word)

4
Introduction

• Direct-offset addressing
• - a variation of direct memory mode, uses
  arithmetic operation to modify an address.
  Example
• BYTE_TBL DB 12, 14. 16, 18, 20, . Table of
  Byte
• MOV CL, BYTE_TBL2
• Or
• MOV CL, BYTE_TBL2
• the first MOV uses an arithmetic operator to
  access the third byte (value 16) whereas the
  second MOV uses a plus () operator for exactly
  the same effect.

5
Introduction

• Indirect memory addressing
• takes advantages of computers capability for
  segmentoffset addressing.
• the registers used for this purpose are
• ? base registers, BX and BP
• ? index registers, DI and SI
• these registers will be coded within square
  brackets that indicate a reference to memory.
• Examples
• ADD CL, BX 2nd operand DSBX
• ADD BP, CL 1st operand SSBP
• MOV CX, DS38B0H word in memory at offset
  38B0H

6
Introduction

• Base displacement addressing
• - In this mode, the content in the base
  registers (BX and BP) or the index registers (DI
  and SI) will be combined with the displacement
  (offset) value to form an effective address.
  Examples
• ADD CL, DI2 DI offset plus 12
• SUB DATA_TBLSI, 25 SI contains offset
• MOV DATA_TBLDI, DL DI contains offset

7
Introduction

• Base-index addressing
• - In this mode, the content in base registers
  (BX or BP) will be added with the content in the
  index registers (DI or SI) to obtain the real
  address of the data. For example, BXDI means
  the address BX plus the address in DI. Examples
• MOV AX, BXSI move word from memory
• ADD BXDI, CL Add byte to memory

8
Introduction

• Base-index with displacement addressing
• The content in base register will be added with
  the content in the index registers and also the
  displacement (offset) value to obtain the address
  of the data. Examples
• MOV AX, BXDI10
• MOV CL, DATA_TBLBXDI
• or BXDIDATA_TBL

9
Introduction

• Symbolic language for Intel processor family can
  be categorized into
• arithmetic
• ASCII-BCD conversion
• Bit shifting
• comparison
• data transfer
• flag operation
• input/output
• logic operation
• looping
• processor control
• stack operations
• string operations
• transfer (conditional and unconditional)
• type conversion
• Note To know the symbols for each instruction
  in detail, refer to Chapter 6 (IBM PC Assembly
  Language and Programming Peter Abel). This
  course will only explain a part of the above
  category.

10
Data Transfer Instructions

• There are a couple of instructions categorized
  as data transfer instructions, such as LOAD,
  MOVE, EXCHANGE and TRANSLATE. Below are a few
  examples of these instructions.
• MOV Instruction
• MOV is a 2-address instruction (refer to chapter
  5). This instruction will transfer data from
  second address field into the first address
  field. The content in second address field will
  remain unchanged. Both fields must be of same
  size (whether both are byte, word or double
  word). The Format for MOV

Label MOV register/memory , register/memory/immediate
move
11
Data Transfer Instructions

• Some examples on MOV
• BYTEFLD DB ? define byte
• WORDFLD DW ? define word
• MOV EDX , ECX register to register
• MOV BYTEFLD , DH register to memory
• MOV WORDFLD , 1234 immediate to memory
• MOV CH , BYTEFLD memory to register
• MOV CX , 40H immediate to register
• MOV AX , DS segment register to register

12
Data Transfer Instructions

• Move-and-Fill Instructions MOVSX and MOVZX
• For the MOV instruction, size of source and
  destination must be same (eg, byte-to-byte,
  word-to-word). For MOVSX and MOVZX instructions
  facilitate transferring data from a byte or word
  source to a word or doubleword destination.
  Format for MOVSX and MOVZX instructions

Label MOVSX/MOVZX register/memory,register/memory/immediate
13
Data Transfer Instructions

• MOVSX
• used with signed arithmetic value.
• moves a byte or word to destination with size of
  word or
• double word and all the leftmost bits of
  destination will be
• filled with the sign bit.
• MOVSX CX, 10110000B CX 11111111 10110000
• MOVZX
• used with unsigned arithmetic value
• moves a byte or word to destination with size of
  word or
• double word and the leftmost bit of destination
  will be filled
• with the value 0.
• MOVZX CX, 10110000B CX 00000000 10110000

14
Data Transfer Instructions

• Examples
• MOVSX AX, 00001010B AX 00000000 00001010
• MOVZX AX, 00001010B AX 00000000 00001010

15
Data Transfer Instructions

• XCHG Instruction
• This instruction is used to change the value of
  source into that of the destination and vice
  versa. The format for this instruction
• Example
• WORDQ DW ? Word data item
• . . .
• XCHG CL , BH exchange the content of the
  2 registers
• XCHG CX, WORDQ exchange the content
  between register
• and memory

Label XCHG register/memory, register/memory
16
Data Transfer Instructions

• LEA Instruction
• This instruction is useful for initializing a
  register with an
• offset address. Its format is
• Usually, LEA is used to initialize an offset in
  BX, DI or SI registers as
• index address in memory.
• DATATBL DB 25 DUP (?) Table for 25 bytes
• BYTEFLD DB ? one byte
• . . .
• LEA BX, DATATBL Enter the offset address
• MOV BYTEFLD, BX Transfer the first byte for
• DATATBL

Label LEA register, memory
17
Arithmetic Instructions Processing Binary Data

• IBM PC has 2 sets of arithmetic instructions,
  for binary data and for data in ASCII or BCD
  data. This chapter will only discuss the
  arithmetic instructions for binary data.
  Instructions that involve in arithmetic
  operations for binary data are shown in Table
  7.1. This chapter will only cover a part of these
  instructions.

18
Arithmetic Instructions Processing Binary Data
Instruction Description Instruction Description
ADC Add with carry IDIV Divide signed
ADD Add IMUL Multiply signed
CBW Convert byte to word MUL Multiply unsigned
CDQ Convert doubleword to quadword NEG Negate
CWD Convert word to doubleword SBB Subtract with borrow
CWDE Convert word to extended doubleword SUB Subtract
DIV Divide unsigned
Table 7.1
19
Arithmetic Instructions Processing Binary Data
There are two types of binary data, signed and
unsigned. For unsigned data, all bits are
intended to be data bits. For signed data, the
leftmost bit is a sign bit.
Table 7.2 gives the maximum values for unsigned
and signed data according to register width.
20
7.3.1 Addition and Subtraction Of Binary Data
Format for ADD and SUB instructions (note there
are no direct memory-to-memory operations)
21
7.3.1 Addition and Subtraction Of Binary Data
Example of the ADD and SUB instructions BYTE1 D
B 24H Data elements WORD1 DW 4000H . .
. MOV CL , BYTE1 byte processing MOV DL ,
40H ADD CL , DL register to register SUB CL
, 20H Immediate from register ADD BYTE1 ,
BL register to memory MOV CX , WORD1 word
processing MOV DX , 2000H SUB CX , DX
register from register SUB CX , 124H Immediate
from memory ADD WORD1 , DX register to memory
22
Exercise
Assume that BYTE1 is defined as DB 05, show the
result for the following instructions

• Instruction Before After
• MOV CX, 25H CX 0000H CX0025
• MOV CL, 0 CX FFFFH CXFF00
• MOV AX, BYTE1 AX1234H AXinvalid size
• ADD DL, BYTE1 DX0120H DX0125
• XCHG AH,AL AX1234H AX3412
• SUB CX,CX CX1234H CX0000
• XCHG CX,CX CX1234H CX1234

23
7.3.2 Multiplying Binary Data

• For multiplication process,
• MUL instruction is used for unsigned data
• IMUL is used for signed data.
• Both of these instructions affect the Carry and
  Overflow flag. The format for MUL and IMUL
  instructions
• Observe that MUL/IMUL is a one address
  instruction, hence it requires an the accumulator
  register to hold operand1 and result (refer
  Chapter 5.3 - Instruction format) In IBM PC, the
  AX register (AL/AH/EAX) acts as accumulator.
• The multiplication operations are byte times
  byte, word times word and doubleword times
  doubleword.

24
Byte Times Byte
For multiplying two one-byte values, the
multiplicand (first operand) is in AL register,
and the multiplier (second operand) is a byte
data in memory or another register that
determined by the address field in the MUL/IMUL
instruction. Example MUL DL the operation
multiplies the content of AL by the contents of
DL. The generated product is in AX. The operation
ignores and erases any data that may already be
in AH.
25
Doubleword Times Doubleword
In this multiplication, the multiplicand is in
EAX and the multiplier is a doubleword in the
memory or register (according to the addressing
more used in the MUL/IMUL instruction). The
result will be kept in a pair of EDXEAX
registers
26
Field Size
Address field in the MUL/IMUL instruction refers
only to the multiplier that will determine the
field sizes (whether byte, word, or doubleword).
The instruction will use the size of the address
field (multiplier) to determine the position of
the multiplicand whether it is in AL, AX or EAX
A few examples on the MUL instruction together
with the multiplier size, multiplicand position
and product
27
Field Size
28
MUL ?is used for unsigned data Examples on the
usage of the MUL instructions using the data as
defined below BYTE1 DB 80H BYTE2 DB 40H
WORD1 DW 8000H WORD2 DW 2000H DWORD1 DD 0001
8402H DWORD2 DD 00012501H (a) MOV AL, BYTE1
AL (multiplicand)80H MUL BYTE2 byte x byte,
product in AX 80H x 40H, AX
2000H (b) MOV AX, WORD1 AX (multiplicand)8000H
MUL WORD2 word x word, product in
DXAX 80000H x 2000H, DXAX 1000
0000H
29
Example 1 (MUL Instruction) MOV AL,
BYTE1 MUL BYTE2 byte x byte, product in
AX in the above example, 80H (128) is multiplied
with 40H (64) and the result is 2000H (8,192)
kept in AX register. MOV AX,
WORD1 MUL WORD2 word x word, product in
DXAX in the above example, 8000H is multiplied
with 2000H and the result, 1000 0000H is kept in
a pair of registers, DXAX.
30
IMUL ?is used with signed data Examples on the
usage of the IMUL instructions using the data as
defined below BYTE1 DB 80H BYTE2 DB 40H
WORD1 DW 8000H WORD2 DW 2000H DWORD1 DD 00
018402H DWORD2 DD 00012501H (a) MOV AL,
BYTE1 AL (multiplicand)80H (-ve value)
IMUL BYTE2 byte x byte, product in AX 80H
(-ve) x 40H (ve), AX E000H (b) MOV AX,
WORD1 AX (multiplicand)8000H (-ve value)
IMUL WORD2 word x word, product in DXAX
80000H (-ve) x 2000H (ve), DXAX F000
0000H
31
Example 2 (Arahan IMUL) MOV AL,
BYTE1 IMUL BYTE2 byte x byte, product in
AX in the above example, BYTE1 and BYTE2 is
considered as signed data, that is 128 (80H) and
64 (40H) and the result 8192 (E000H) is stored
in the AX register MOV AX,
WORD1 IMUL WORD2 word x word, product in
DXAX in the above example, WORD1 and WORD2 is
considered as signed data, that is 8000H a is
ve value and 2000H is a ve value. The result,
F000 0000H is ave value and is kept in a pair of
registers, DXAX.
32
(No Transcript)
33
7.3.3 Dividing Binary Data
For division operation, the DIV instruction is
used for unsigned data whereas IDIV is used for
signed data. Its format The basic divide
operations are byte into word, word into
doubleword, and doubleword into quadword.
34
Byte into Word
In a division of byte into word, the dividend
(first operand) is in the AX register, whereas
the divisor (second operand) is a byte data in
memory or another register that is defined in the
DIV/IDIV instruction. The operation stores the
remainder in the AH register and the quotient in
the AL register.
35
Word into Doubleword
In this division, the dividend is in a pair of
registers, DXAX, whereas the divisor (operand 2)
is a word data in the memory or another register
as defined in the DIV/IDIV instruction. This
operation will keep the remainder in the DX
register and the quotient in the AX register.
36
Doubleword into Quadword
In this division, the dividend is in a pair of
registers, EDXEAX, whereas the divisor is a
doubleword data in the memory or another register
as defined in the DIV/IDIV instruction. This
operation stores the remainder in the EDX
register and the quotient in the EAX register.
37
Field Size
As in MUL/IMUL, address field in the DIV/IDIV
instruction refers to the divisor (second
operand) that determines the field sizes. The
following example shows the divisor is in the
register (example 1) and memory (example2) with a
certain size. Example1 using register
addressing mode Example 2 using direct
addressing mode - divisor is predefined in the
memory
38
The following are a few examples of the DIV
instruction using the data definition
below BYTE1 DB 80H Byte value BYTE2 DB 16H
WORD1 DW 2000H Word value WORD2 DW 0010H
WORD3 DW 1000H (a) MOV AX, WORD1 AX2000H
DIV BYTE1 2000H/80H, quotient40H,
remainder00H AL40H, AH00H (b) MOV DX,
WORD2 DX0010H MOV AX, WORD3 AX1000H,dividen
d in DXAX (WORD2WORD3) DXAX 0010 1000H
DIV WORD1 00101000H/2000H remainderquotient
in DXAX 1000H0080H
39
DIV Instruction

• MOV AX, WORD1
• DIV BYTE1
• In the above example, the value 2000H (8092) will
  be divided with 80H (128), the quotient, 40H (64)
  will be kept in the AL register while its
  remainder, 00H will be kept in the AH register.
• MOV DX, WORD2
• MOV AX, WORD3 dividend in DXAX
  (WORD2WORD3)
• DIV WORD1 remainderquotient in DXAX
• in the above example, the value 00101000H will
  be divided with 2000H. The remainder, 1000H will
  be kept in the DX register, whereas its result,
  0080H will be kept in the AX register.

40
The following are a few examples of the IDIV
instruction using the data definition
below BYTE1 DB 80H Byte value BYTE2 DB 16H
WORD1 DW 2000H Word value WORD2 DW 0010H
WORD3 DW 1000H (a) MOV AX, WORD1 AX2000H
IDIV BYTE1 2000H(ve)/80H (-ve),
quotientC0H (-ve), remainder00H ALC0H,
AH00H (b) MOV DX, WORD2 DX0010H MOV AX,
WORD3 AX1000H,dividend in DXAX
(WORD2WORD3) DXAX 0010 1000H (ve)
IDIV WORD1 00101000H (ve)/2000H
(ve) remainderquotient in
DXAX 1000H0080H
41
IDIV Instruction
(using the same data definition) MOV AX,
WORD1 IDIV BYTE1 in the above example, the
value WORD1 is a ve number whereas BYTE1 is a
ve number. If WORD1 is divided with BYTE1, its
result will be a ve number (64 or C0H) will be
kept in the AL register whereas its remainder
will be kept in the AH.register MOV DX,
WORD2 MOV AX, WORD3 dividend in DXAX
(WORD2WORD3) DIV WORD1 remainderquotient in
DXAX in the above example the value 00101000H
(ve) will be divided with 2000H (ve). Its
remainder, 1000H (ve) will be kept in the DX
register, whereas its result, 0080H (ve) will be
kept in the AX register.
42
DIV Examples
Divide 8003h by 100h, using 16-bit operands mov
dx,0 clear dividend mov ax,8003h
dividend mov cx,100h divisor div cx AX
0080h, DX 3 Same division, using 32-bit
operands mov edx,0 clear dividend mov
eax,8003h dividend mov ecx,100h
divisor div ecx EAX 00000080h, EDX 3
43
Exercise
(a) What will be the hexadecimal values of DX,
AX? mov ax,1234h mov bx,100h mul bx DX 0012h,
AX 3400h (b) What will be the hexadecimal
values of EDX, EAX? mov eax,00128765h mov
ecx,10000h mul ecx EDX 00000012h, EAX
87650000h (c) What will be the hexadecimal
values of DX and AX after the following
instructions execute? mov dx,0087h mov
ax,6000h mov bx,100h div bx DX 0000h, AX 8760h
44
7.4 Shifting Instruction
45
SHR/SAR/SHRD Shifting Bits Right
SHR shift logical right SAR shift arithmetic
right
46
Example of the SHR instruction
As in the example above, the SHR instruction will
enter the value 0 to the leftmost bit after the
shift. Carry flag will contain the last bit
shifted out after the shift
C
1 0 1 1 0 1 1 1
BH
SHR BH, 01
0 1 0 1 1 0 1 1 1
0
SHR BH, CL
0 0 0 1 0 1 1 0 1
00
SHR BH, 02
00
0 0 0 0 0 1 0 1 1
47
Example of the SAR instruction
The SAR instruction is used on signed number. SAR
will enter the sign bit (whether 0 (ve) or 1
(ve)) into the leftmost bit after every shift.
Examples of SAR instruction
1 0 1 1 0 1 1 1
BH
SAR BH, 01
1 1 0 1 1 0 1 1 1
1
SAR BH, CL
1 1 1 1 0 1 1 0 1
11
SAR BH, 02
11
1 1 1 1 1 1 0 1 1
48

• SHRD Instruction
• This instruction is only for 80386 and above
  processors. Its format is as below
• The first operand receives the bits that are
  shifted.
• The second operand is the same size and contains
  the bits to be shifted.
• The third operand (CL or immediate value)
  contains the shift count.
• Examples
• SHRD CX, DX, 4 Right shift 4 bits from DX
  into CX
• SHRD ECX, EBX, CL Right shift ? bits from EBX
  into ECX

1
2
3
49
SHL/SAL/SHLR Shifting Bits Left
50
BH
0 0 0 0 0 1 0 1
0
0 0 0 0 0 1 0 1 0
00
0 0 0 1 0 1 0 0 0
00
0 1 0 1 0 0 0 0 0
51
SHL/SAL/SHLR Shifting Bits Left
Shift left instructions (whether SHL or SAL) will
always enter the value of 0 into the rightmost
bit after every shift. Shift left instruction is
useful in a multiplier operation. Observe in the
example above, a 1-bit shift to the left is
equivalent to the multiplication of a value with
2, a 2-bit shift to the left is equivalent to the
multiplication of a value with 4, and so forth (3
left shifts is equivalent as multiplication with
8,) As in SHRD, SHLD is a shifting bit left
instruction that is introduced in the 80386 and
above processors. Its format
The first operand receives the bits that are
shifted. The second operand contains the data
that is to be shifted and the third operand ( CL
or immediate value) contains shift count.
Example SHLD BX, DX, 2 Left shift 2 bits
from DX into BX SHLD EAX, EDX, CL Left shift
? bits from EDX into EAX
52
3. ROR/RCR Rotating Bits Right
This instruction will rotate the bit to right.
Every bit rotated will enter the carry flag. ROR
is for unsigned data whereas RCR is for signed
data. Bit movement is as below
53
A few examples on ROR
1
2
3
The difference between ROR and RCR is only the
way of operation. In RCR, every bit that is
rotated will enter the carry flag before entering
the leftmost bit
1 0 1 1 0 1 1 1
BH
1
1
1 1 0 1 1 0 1 1 1
2
011
0 1 1 1 1 0 1 1 0
3
011
54
4. ROL/RCL Rotating Bits Left
ROL/RCL is an operation that will rotate the
leftmost bit to the rightmost. Every bit that is
rotated will enter the Carry Flag. ROL is for
unsigned data whereas RCL is for signed data. The
Data movement is depicted as below
55
Below are instances of the ROL instruction
1
2
3
BH
1 0 1 1 0 1 1 1
1
1
2
1 0 1 1 0 1 1 1 1
1
011
3
1 0 1 1 1 1 0 1 1
011
56
7.5 Looping Instructions (Conditional Transfer
Instructions)

• The assembler prepares 3 kinds of addressing that
  are
• distinguished by the distance from the current
  address
• Short address, distance limited to between 128
  (80H) to 127 (7FH) bait.
• Near address, distance limited to between 32,768
  (8000H) to 32,767 (7FFFH) bytes in the same
  segment
• Far address, its distance exceeds 32K byte
  whether in the same or different segment

57
Looping instructions
There are two types of looping instruction that
are LOOP and LOOPxx. Both of these instructions
require an initial value in CX. For each
iteration, LOOP automatically deducts 1 from CX.
Once CX reaches zero, control drops through to
the following instruction if CX is nonzero,
control jump to the operand address. LOOPE/LOOPZ
(Loop while equal/zero) will continue looping
while the CX register is 0 or 0 condition is set.
As for the LOOPNE/LOOPNZ (Loop while not
equal/zero) instructions, they will continue
looping while the value in the CX register is not
zero or the zero condition is not set.
58
(No Transcript)
59
LOOP Instruction example using DEBUG

• A 100
• 4A660100 MOV CX,5 LOOP COUNTER5
• 4A660103 MOV AX,0
• 4A660106 ADD AX,CX
• 4A660108 LOOP 106 LOOP TO LOCATION 0106

60
7.6 Unconditional Transfer Instructions
The following are unconditional transfer
instructions
61
1. CALL and RETn Instructions
CALL instruction is to shift control to the
procedure that is called. RETn instruction is
to return control to the procedure that made the
call. Usually the RETn instruction is the last
instruction to be executed in the called
procedure. Its format
62
(No Transcript)
63
2. JMP Instruction
The JMP instruction is unconditional. Control
will go to the given address in any condition.
The Format of the JMP instruction
Address for the jump instruction can be either
short, near or far. The jump instruction also can
be to the front or to the back, like the example
below
64
(No Transcript)
65
3. INT instruction

• enable program to interrupt its own processing
• INT exits normal processing and access the
  Interrupt Vector Table in low memory to determine
  the address of requested routine.
• The operation then transfer to BIOS or OS for
  specified action and returns to the program to
  resume processing.
• Refer to section 5.5.6 for examples of INT
  instructions.

66
7.7 Conditional JUMP Instructions
Format for conditional jump (Jnnn) is There
are varieties of conditional jump instructions
that transfer control depending on settings in
the flags register ZF, CF, OF, AF and SF. Table
7.7.1 below shows some example of conditional
jump that are used for unsigned
data. The LOOP A20 statement in Table
7.5.3, can be replaced by using the conditional
statement, JNZ A20 and DEC CX as in Table 7.7.2.
67
Table 7.7.2
68

• conditional jump instructions usually used with
  other instructions CMP, INC, DEC etc.
• the following are examples of conditional jump
  instruction

69
(No Transcript)
70
7.8 Other Instructions

• Only certain instructions are covered in this
  course (SAK 3207). Students are encouraged to try
  other instructions.
• Other instructions
• Instructions for processing string data such as,
  MOVS (move string), CMPS (compare string), LODS
  (load string) etc.
• Instructions for processing different data type,
  such as ASCII data and BCD data.
• Instruction to video and keyboard processing
• Etc
