Computer Vision

1

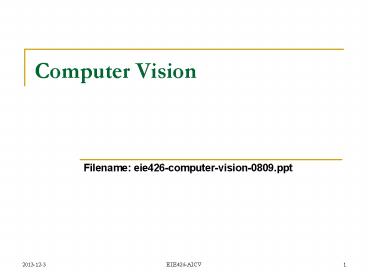

Computer Vision

• Filename eie426-computer-vision-0809.ppt

2
Contents

• Perception generally
• Image formation
• Color vision
• Edge detection
• Image segmentation
• Visual attention
• 2D ? 3D
• Object recognition

3
Perception generally

• Stimulus (percept) S, World W
• S g(W)
• E.g., g graphics."
• Can we do vision as inverse graphics?
• W g-1(S)
• Problem massive ambiguity!

Missing depth information!
4
Better approaches

• Bayesian inference of world configurations
• P(WS) P(SW) x P(W) / P(S) a x P(SW) x
  P(W)
• graphics prior
  knowledge
• Better still no need to recover exact scene!
• Just extract information needed for
• navigation
• manipulation
• recognition/identification

5
Vision subsystems
Vision requires combining multiple cues
6
Image formation

• P is a point in the scene, with coordinates (X
  Y Z)
• P is its image on the image plane, with
  coordinates (x y z)
• x -fX/Z y -fY/Z (by similar triangles)
• Scale/distance is indeterminate!

7
Len systems
f the focal length of the lens
8
Images
9
Images (cont.)

• I(x y t) is the intensity at (x y) at time t
• CCD camera 4,000,000 pixels human eyes
  240,000,000 pixels

10
Color vision

• Intensity varies with frequency ?
  infinite-dimensional signal
• Human eye has three types of color-sensitive
  cells each integrates the signal ? 3-element
  vector intensity

11
Color vision (cont.)
12
Edge detection

• Edges are straight lines or curves in the image
  plane across which there is significant changes
  in image brightness.
• The goal of edge detection is to abstract away
  from messy, multi-megabyte image and towards a
  more compact, abstract representation.

13
Edge detection (cont.)

• Edges in image ? discontinuities in scene
• 1) Depth discontinuities
• 2) surface orientation
• 3) reflectance (surface markings) discontinuities
• 4) illumination discontinuities (shadows, etc.)

14
Edge detection (cont.)
15
Edge detection (cont.)

• Sobel operator

the location of the origin (the image pixel to be
processed)
Other operators Roberts (2x2), Prewitt (3x3),
Isotropic (3x3)
16
Edge detection (cont.)
A color picture of a steam engine.
The Sobel operator applied to that image.
2013-12-3
16
EIE426-AICV
17
Edge detection application 1
An edge extraction based method to produce the
pen-and-ink like drawings from photos
2013-12-3
17
EIE426-AICV
18
Edge detection application 2


Leaf (vein pattern) characterization

19
Image segmentation

• In computer vision, segmentation refers to the
  process of partitioning a digital image into
  multiple segments (sets of pixels).
• The goal of segmentation is to simplify and/or
  change the representation of an image into
  something that is more meaningful and easier to
  analyze.
• Image segmentation is typically used to locate
  objects and boundaries (lines, curves, etc.) in
  images. More precisely, image segmentation is the
  process of assigning a label to every pixel in an
  image such that pixels with the same label share
  certain visual characteristics.

20
Image segmentation (cont.)
21
Image segmentation the quadtree partition based
split-and-merge algorithm

• Split into four disjoined quadrants any region Ri
  where P(Ri) FALSE.
• Merge any adjacent regions Ri and Rk for which
  P(Ri ? Rk ) TRUE and
• Stop when no further merging or splitting is
  possible.
• P(Ri) TRUE if all pixels in Ri have the same
  intensity or are uniform in some measure.

22
Image segmentation the quadtree partition based
split-and-merge algorithm (cont.)
23
Visual attention

• Attention is the cognitive process of selectively
  concentrating on one aspect of the environment
  while ignoring other things.
• Attention mechanism of human vision system has
  been applied to serve machine visual system for
  sampling data nonuniformly and utilizing its
  computational resources efficiently.

24
Visual attention (cont.)

• The visual attention mechanism may have at least
  the following basic components
• (1) the selection of a region of interest in the
  visual field (2) the selection of feature
  dimensions and values of interest (3) the
  control of information flow through the network
  of neurons that constitutes the visual system
  and (4) the shifting from one selected region to
  the next in time.

25
Attention-driven object extraction
The more attentive a object/region, the higher
priority it has
26
Attention-driven object extraction (cont.)
Objects 1, 2, ,background
27
Motion

• The rate of apparent motion can tell us something
  about distance. A nearer object has a larger
  motion.
• Object tracking

28
Motion Estimation
2013-12-3
28
EIE426-AICV
29
Stereo
The nearest point of the pyramid is shifted to
the left in the right image and to the right in
the left image. Disparity (x difference in two
images) ?? Depth
30
Disparity and depth
31
Disparity and depth (cont.)
Depth is inversely proportional to disparity.
32
Example Electronic eyes for the blind
33
Example Electronic eyes for the blind (cont.)
34
Example Electronic eyes for the blind (cont.)
Left x549 Right x476 ?73
Left x333 Right x273 ?60
35
Texture

• Texture a spatially repeating pattern on a
  surface that can be sensed visually.
• Examples the pattern windows on a building, the
  stitches on a sweater,
• The spots on a leopards skin, grass on a lawn,
  etc.

36
Edge and vertex types

• and - labels represent convex and concave
  edges, respectively. These are associated with
  surface normal discontinuities wherein both
  surfaces that meet along the edge are visible.
• A ? or a ? represents an occluding convex
  edge. As one moves in the direction of the arrow,
  the (visible) surfaces are to the right.
• A ?? or a ?? represents a limb. Here, the
  surface curves smoothly around to occlude itself.
  As one moves in the direction of the twin arrow,
  the (visible) surfaces lies to the right.

37
Object recognition

• Simple idea
• - extract 3-D shapes from image
• - match against shape library
• Problems
• - extracting curved surfaces from image
• - representing shape of extracted object
• - representing shape and variability of library
  object classes
• - improper segmentation, occlusion
• - unknown illumination, shadows, markings,
  noise, complexity, etc.
• Approaches
• - index into library by measuring invariant
  properties of objects
• - alignment of image feature with projected
  library object feature
• - match image against multiple stored views
  (aspects) of library object
• - machine learning methods based on image
  statistics

38
Biometric identification

• Criminal investigations and access control for
  restricted facilities require the ability to
  indentify unique individuals.

(the blueish area)
39
Content-based image retrieval

• The application of computer vision to the image
  retrieval problem, that is, the problem of
  searching for digital images in large databases.
• Content-based means that the search will
  analyze the actual contents of the image. The
  term content in this context might refer to
  colors, shapes, textures, or any other
  information that can be derived from the image
  itself. Without the ability to examine image
  content, searches must rely on metadata such as
  captions or keywords, which may be laborious or
  expensive to produce.

40
Content-based image retrieval (cont.)

• http//labs.systemone.at/retrievr/?sketchName2009
  -03-26-01-22-37-828150.3sketchName2009-03-26-01-
  23-35-358087.4

41
Handwritten digit recognition

• 3-nearest-neighbor 2.4 error
• 400-300-10 unit MLP (a neural network approach)
  1.6 error
• LeNet 768-192-30-10 unit MLP 0.9 error

42
Summary

• Vision is hard -- noise, ambiguity, complexity
• Prior knowledge is essential to constrain the
  problem
• Need to combine multiple cues motion, contour,
  shading, texture, stereo
• Library object representation shape vs.
  aspects
• Image/object matching features, lines, regions,
  etc.
