Title: The Strategy Design Pattern


1

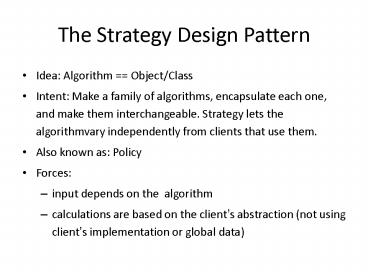

The Strategy Design Pattern
  • Idea Algorithm Object/Class
  • Intent Make a family of algorithms, encapsulate
    each one, and make them interchangeable. Strategy
    lets the algorithmvary independently from clients
    that use them.
  • Also known as Policy
  • Forces
  • input depends on the algorithm
  • calculations are based on the clients
    abstraction (not using clients implementation or
    global data)

2
Line Breaking Algorithm
  • Algorithms for breaking the stream of text into
    lines
  • Clients that need linebreaking get more complex
    if they include the linebreaking code
  • Different algorithms will be appropriate at
    different times
  • SimpleCompositor implements a simple strategy
    that determines linebreaks one at a time
  • TeXCompositor implements the TEX algorithm for
    finding linebreaks. This strategy tries to
    optimize linebreaks globally, that is, one
    paragraph at a time
  • ArrayCompositor implements the strategy that
    selects breaks, so that each row has a fixed
    number of items. Its useful for breaking a
    collection of icons into rows, for example

3
STRATEGY - Motivation
Composition
compositor
Compositor
Traverse()
Compose()
Repair()
SimpleCompositor
TextCompositor
ArrayCompositor
Compose()
Compose()
Compose()
compositor-gtCompose()
4
STRATEGY - Applicability
  • Use the Strategy pattern when
  • many related classes differ only in their
    behavior. Strategies provide a way to configure a
    class with one of many behaviors
  • you need different variants of algorithm
  • an algorithms uses data that client shouldnt
    know about
  • a class defines many behaviors, and these appear
    as multiple conditional statements in its
    operations

5
STRATEGY - Structure
strategy
Strategy
Context
ContextInterface()
AlgorithmInterface()
ConcreteStrategyA
ConcreteStrategyB
AlgorithmInterface()
AlgorithmInterface()
6
STRATEGY - Participants
  • Strategy (Compositor)
  • declares an interface common to all supported
    algorithms. Context uses this interface to call
    the algorithm defined by ConcreteStrategy
  • ConcreteStrategy (SimpleCompositor)
  • implements the algorithm using the Strategy
    interface
  • Context (Composition)
  • is configured with a ConcreteStrategy object
  • maintains a reference to a Strategy object
  • may define an interface that lets Strategy access
    its data

7
STRATEGY - Consequences
  • Families of related algorithms
  • An alternative to sub-classing
  • you can subclass Context class directly to give
    it different behaviors
  • this hard-wires the behavior into Context
  • Context becomes harder to understand, maintains,
    extend
  • algorithm cannot be switched dynamically
  • Strategies eliminate conditional statements
  • A choice of implementations
  • Clients must be aware of different Strategies
  • a client must understand how strategies differ
    before it can select the appropriate one

8
STRATEGY - Consequences
  • Communication overhead between Strategy and
    Context
  • the Strategy interface is shared by all
    ConcreteStrategy classes whether the algorithms
    they implement are trivial or complex
  • some ConcreteStrategies wont use all the
    information passed to them through this interface
  • solution tighter coupling between Context and
    Strategy
  • Increased number of objects

9
STRATEGY - Implementation
  • Defining the Strategy and Context interfaces
  • access to any data a Strategy needs from a
    Context and vice versa
  • pass data in parameters to the Strategy
    operations
  • pass the Context itself to the Strategy, and the
    Strategy will request data from the context
    explicitly
  • the Strategy can store a reference to the Context
  • Strategies as template parameters
  • template ltclass AStrategygt
  • class Context
  • void Operation() theStrategy.DoAlgorithm()
  • private
  • AStrategy theStrategy
  • ContextltMyStrategygt aContext

10
Line Breaking Algorithm
  • Line breaking a spectrum from simple to very
    elaborate algorithms.
  • Why not hard wire into client?
  • Simplify client code
  • Change algorithms as need arise at compile- or
    even run-time
  • Support future plugin of algorithms
  • General design

11
Applicability
  • Related classes different behaviour, but not
    different interface
  • Configure a class with behaviour
  • Algorithm variants different time space
    trade-offs.
  • Private data algorithm uses data that clients
    should not know about
  • A class with many different behaviours if you
    have too many ifs in your code

12
Strategy sample Intersection Traffic Lights
Control
The light- switching policy changes by the hour
13
The Behavior Varies
  • The dumb policy change the green route every 5
    seconds
  • Midnight policy change to green whenever a
    sensor detects a vehicle
  • Rush hour policy double the green time in the
    busy route

14
A Bad Solution
  • Use multiple conditional statement to set the
    behavior according to current policy

intersectionnext_green(the_green_route
r) switch (current_policy) case dumb
next_time time constant_time case
midnight if (not the_green_route.is_busy)
then case rush_hour
15
Traffic Lights Management
16
Strategy General Structure
Define a family of algorithms, encapsulate each
one, and make them interchangeable.
17
Strategy Solution (example)Object Diagram
current_policy rush_hour
theIntersection
1 compute_change_time()
2 const_time ( )
3 const_time_is (13)
4 change_time_is (2 13)
18
Strategy Consequences
  • Easy to add new strategy (or remove an existing
    one, etc.)
  • For instance From 8 a.m. to 10 a.m. there is no
    turn left from Balfour to Begin

19
Strategy Consequences II
  • Easy to factor out similar strategies (using
    inheritance)
