Title: IE 368: FACILITY DESIGN AND OPERATIONS MANAGEMENT


1

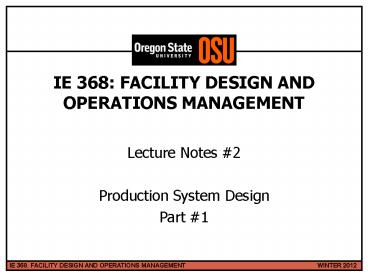

IE 368 FACILITY DESIGN AND OPERATIONS MANAGEMENT
  • Lecture Notes 2
  • Production System Design
  • Part 1

2
Production System Design
  • Abstraction of production systems for system
    design purposes
  • General concepts/definitions that may be used to
    represent many different systems
  • High level qualitative analysis for the selection
    of a general system flow concept

3
Production System Design (cont.)
  • Part 1
  • Calculations for estimating resource requirements
  • Equipment fraction calculations
  • Extensions
  • Machine assignment
  • Part 2
  • Calculations for evaluating system performance
  • Review of relevant probability/statistics
    concepts
  • Application of queuing models

4
Production System Design (cont.)
  • Part 3
  • Generalizations of queuing model
  • Generalizations of utilization formula
  • Multiple linked workstations
  • Automated systems
  • Batched arrivals and departures

5
Generalization/Abstraction of Production Systems
for IE Design/Analysis
  • Production system
  • A collection of workstations that perform
    operations such as manufacturing, assembly,
    inspection, finishing, testing, etc. to create
    products
  • Workstation
  • A collection of machines/operators that perform
    the same operation for the same set of products
  • A machine/operator may be
  • An automated machine
  • A machine operated by a human
  • A human operator performing a manual operation

Terminology in this area is not standardized
6
Generalization/Abstraction of Production Systems
for IE Design/Analysis (cont.)
  • The production systems to be addressed are
    discrete part production systems
  • Each part produced is a distinct entity
  • Vehicle, computer, hamburger, etc.
  • This is in contrast to continuous goods
    production such as fluids, powders, etc.
  • Often in the domain of chemical process engineers
  • Thus, the product being produced will be referred
    to generically as a part or job

7
Production System Design
  • Production system design
  • The general arrangement of workstations,
    dictating the pattern of flow of the products,
    and the resource requirements at each workstation

8
Production System Performance Characterization
  • At the level of abstraction presented, the
    performance of the production system is evaluated
    by determining the following
  • How fast
  • Throughput (e.g., jobs/hour, parts/minute)
  • How long
  • Time-In-System (TIS)
  • Flow Time
  • Cycle Time (we will not use this term)
  • How much
  • Work-In-Progress (WIP)

9
Examples of Production Systems
  • Simulation models
  • Truck assembly
  • FMS
  • Distribution center
  • Questions
  • What constitutes a job?
  • What are the workstations?
  • Why are jobs flowing as they are?

10
Production System Design Different Perspectives
  • Manufacturing engineer
  • Designs/selects the processes and operations
    required to produce the product
  • e.g., fixturing, tooling, feed rates, cutting
    speeds, etc.
  • Human factors engineer
  • Design of the individual human operated
    workstation
  • e.g., bench heights, lifting angles, placement of
    tools, presentation of visual information, etc.

11
Production System Design Different Perspectives
(cont.)
  • Higher level IE analysis/business operations
  • Supply chain design
  • The number, level, and location of suppliers
  • Delivery, ordering, inventory policies
  • The number of distributors and their locations

12
General Production System Flow
  • Examine product volume versus variety
  • Typically cannot have both

Automation Hard Systems Special Purpose Machines
Volume of Production
General Purpose Equipment
Flexible Systems
Skilled labor
Variety of Products or Parts
13
Basic Types of Production System Flow
System Example
Job Shop
Batch Processing
Production Line
Continuous Flow
14
Job Shop Characteristics
  • Many products low volume
  • General purpose machinery
  • Operators work at only one department and are
    highly skilled in that operation
  • Process Layout
  • Equipment of the same type is located in the same
    department
  • Unorganized material flow
  • High material handling
  • High cycle time
  • High flexibility

15
Job Shop Characteristics (cont.)
16
Production Line Characteristics
  • Few products high volume (mass production)
  • Highly standard parts
  • Somewhat similar to continuous production
  • Special purpose machinery
  • Low skill labor
  • Equipment is arranged into a line almost in the
    same order of required production operations
  • Low material handling
  • Short cycle time
  • Well organized material flow

17
Production Line Characteristics (cont.)
http//www.wk-industries.com/en/sandwich/dachundwa
nd.html
18
Group Technology/Batch Processing Characteristics
  • Fewer products than Job Shop higher production
    volume
  • Products are produced in batches satisfying a few
    days up to few months of demand
  • Less general purpose machinery than job shop
  • Process layout cellular layout machines to
    produce family of products are located in the
    same cell
  • Large batches have organized material flow
  • High to moderate material handling
  • Moderate cycle time
  • High flexibility

19
Group Technology/Batch Processing Characteristics
(cont.)
  • Group Technology Cell

20
Group Technology/Batch Processing Characteristics
(cont.)
  • Batch processing layout

21
Product Volume versus Variety
  • Product Volume versus Product Variety in
    Production System Design

Volume of Production
Variety of Products or Parts
22
Variety-Volume-Flexibility
Product Variety High Moderate Low Vey Low
Equipment Flexibility High Moderate Low Vey Low
Low Volume
Moderate Volume
High Volume
Very High Volume
23
Quiz
  • For the following situations, would you suggest a
    production line, job shop, or hybrid facility?
    Why?
  • The assembly of vehicle bodies for a popular
    sport utility vehicle
  • Fabrication and assembly of custom sheet metal
    parts
  • Fabrication of computer boxes for a line of
    desktop PCs plus custom sheet metal parts
  • Assembly of three distinct families of electronic
    card assemblies for high end printers
  • Production of high end office furniture

24
Determining Resource Requirements
  • Assume you are running a manufacturing facility.
    What information would you need to determine how
    many machines/people are required at each
    workstation?

Text reading Chapter 2 pp. 51-53, 56-63
25
Example 2.5
  • A machined part has a standard machining time of
    2.8 min per part on a milling machine
  • During an 8-hour shift, 200 units are to be
    produced
  • Of the 480 min available for production, the
    machine will be operational 80 of the time
  • During that time the machine is operational,
    parts are produced at a rate equal to 95 of the
    standard rate
  • How many milling machines are required?

26
Example 2.5 Common Sense Solution
27
Determining Resource Requirements
  • Equipment Fraction
  • Number of machines required at a workstation
  • Where
  • F Number of machines required per shift
  • S Standard time per job
  • Q of jobs to produce over a fixed time period
  • E Actual performance expressed as a percentage
    of standard time
  • H Amount of time available per machine
  • R Reliability of a machine, expressed as a
    percent of uptime

28
Determining Resource Requirements (cont.)
  • Other considerations
  • If shifts are used
  • In how many shifts a machine can be used
  • Setup times
  • Takes away available production time

29
Important Observations
  • The equipment fraction as presented is helpful
  • It is more important to understand the
    fundamentals behind the formula because, as is,
    it is not applicable in all situations
  • A specified quantity must be produced in some
    time period and each machine can produce a
    certain amount in that time period
  • Efficiency, availability and reliability can be
    expressed in different ways and all these factors
    affect machine capability
  • Units must be consistent

30
Incorporating the Production of Scrap in the
Equipment Fraction
  • Scrap
  • Material waste that is generated in the
    manufacturing process
  • Affects the number of times an operation must be
    performed to get a specific number of good jobs
  • Typically due to geometric or quality
    considerations

31
Incorporating the Production of Scrap in the
Equipment Fraction (cont.)
  • Nomenclature

32
Incorporating the Production of Scrap in the
Equipment Fraction (cont.)
WS1
WS2
WSn
.
33
Example 2.1
  • 97,000 good parts are required. Three operations
    are used to produce the part with scrap
    percentages of d10.04, d20.01, d30.03. What
    are the required inputs to each operation?

34
Incorporating the Production of Scrap in the
Equipment Fraction (cont.)
  • Calculations with rework

Rework station
35
In-Class Exercise
  • Part X requires machining on a milling machine
  • Operations A and B are required
  • Assume the company will be operating 5 days/week,
    18 hours/day
  • The following information is known
  • The milling machine requires 30 minutes for tool
    changes and preventive maintenance after every
    400 parts
  • Assume that operation A is first and that both
    operations A and B are completed before the next
    part is started
  • Find the number of machines required to produce
    2,500 parts per week

Operation Standard Time Efficiency Reliability Scrap
A 2 min 95 95 2
B 4 min 95 90 5
36
In-Class Exercise Solution
37
In-Class Exercise Solution
38
Modifications to the Equipment Fraction Equation
  • The equipment fraction equation is applicable to
    machines which can be human operators, a single
    operator running a single machine, and also
    automated machines
  • For automated machines, data is often not
    expressed as in the equipment fraction equation
  • In some cases a single operator runs gt1 machine
    in which case the machines are not producing at
    their maximum rates (the opposite can occur also)

39
Modification for Automated Machines
  • Automated Workstation
  • A workstation where the movement of jobs in and
    out of the workstation, and the processing of
    jobs is performed by machines
  • While the workstation is operating, the move
    times and processing times are predictable

40
Modification for Automated Machines (cont.)
  • Cycle time
  • Represented as C
  • Total time required to produce a single job on a
    workstation when it is operating
  • Normally C Process time Move time
  • Move time
  • The time to move a job into and/or out of the
    workstation
  • Does the movement of a job into a workstation
    occur at the same time as the movement of a job
    out of the workstation?

41
Modification for Automated Machines (cont.)
  • Mean (Operating) Time Between Failures (MTBF)
  • The average time between unplanned failures of
    the machine
  • Excludes scheduled down time or non-operating
    time
  • Mean Time To Repair (MTTR)
  • The average time to bring the machine back to
    operating status after a failure occurs

42
Modification for Automated Machines (cont.)
  • Equipment Fraction
  • S standard time per job
  • Q of jobs to produce over a fixed time period
  • E actual performance expressed as a percentage
    of standard time
  • H amount of time available per machine
  • R Reliability of a machine, expressed as a
    percent of uptime

43
Modification for Automated Machines (cont.)
Referred to as Stand Alone Availability
44
Modification for Automated Machines (cont.)
  • Example
  • An automated machine has a move time 10 sec/job
    and a processing time of 1 min/job. The machine
    will be used for a single 8 hr shift and has a
    MTBF 75 min and a MTTR 5 min. What is the
    number of machines required to produce 1,000 jobs
    per shift?

45
In-Class Exercise
  • Part X requires machining on a CNC milling
    machine
  • Operations A and B are required
  • Assume the machine will be operating 5 days/week,
    18 hours/day
  • The following information is known
  • The milling machine requires tool changes and
    preventive maintenance after every 400 parts.
    This takes 30 minutes.
  • Assume that operation A is first and that both
    operations A and B are completed before the next
    part is started
  • Move times in and out of the machine occur at the
    same time
  • Find the number of machines required to produce
    2,500 parts per week

Operation Process Time Move Time MTBF MTTR Scrap
A 5 min 0.5 min 500 min 20 min 2
B 7 min 0.5 min 700 min 30 min 5
46
In-Class Exercise Solution
47
Rates and Times in Calculations
  • No general rules
  • Assess the general quantity being calculated,
    then use common sense
  • Test calculations in extreme cases
  • Example 1 Calculate Average Speed of Vehicle

10 mph
40 mph
5 miles
5 miles
48
Rates and Times in Calculations (cont.)
  • Example 2 Calculate Average Job Interarrival
    Time
  • Example 3 Calculate Average Job Processing Rate
    of M1

10 min
M1
5 min
6 min
Time between job arrivals
Jobs CBACBA
M1
?
M1 processing rates A 20 JPH B 30 JPH C 60
JPH
49
Rates and Times in Calculations (cont.)
50
Machine Assignment
  • There are many cases where multiple machines are
    run by a single operator
  • The number of machines running may be limited by
    the number of operators or the number of machines
    may determine how busy the operator is

51
Model for the Number of Machines to Assign to an
Operator
  • Assumptions
  • All machines are identical and perform the same
    task
  • All times are known and constant
  • Use this model as a starting point or
    approximation

52
Model for the Number of Machines to Assign to an
Operator (cont.)
Figure 2.19 from Tompkins
53
Model for the Number of Machines to Assign to an
Operator (cont.)
  • Notation for machine assignment

54
Model for the Number of Machines to Assign to an
Operator (cont.)
L Load UL Unload T Transport IP
Inspect Pack
11
11
Figure 2.18 Multiple activity chart
55
Model for the Number of Machines to Assign to an
Operator (cont.)
  • A machine uses (a t) minutes (use min for
    clarity) per job
  • An operator devotes (a b) minutes to each
    machine per job

56
Model for the Number of Machines to Assign to an
Operator (cont.)
  • Since m must be an integer
  • See Figure 2.18 (slide 53)

57
Model for the Number of Machines to Assign to an
Operator (cont.)
  • See Figure 2.18
  • Idle time per machine in steady state 1 minute
  • Im m(ab) - (at) 3(21) (26) 1 minute

58
Model for the Number of Machines to Assign to an
Operator (cont.)
  • For the example in Figure 2.18
  • 3 parts are produced every 9 minutes ? 20
    jobs/hour
  • Not 22.5 jobs/hour with no idle time
  • Examine the operation of a single machine
  • For a single machine, 1 part is produced every
  • 6 minutes 1 minute 1 minute 1 minute 9
    minutes
  • (Machining load unload idle
    )

59
Machine Assignment Impact on Cost Per Job
  • Machine assignment decisions affect the cost per
    job produced

60
Machine Assignment Impact on Cost Per Job (cont.)
61
Machine Assignment Impact on Cost Per Job (cont.)
  • Let then either TC(n) or TC(n1)
    will minimize cost per job
  • It is straightforward to show that

62
Example
  • Problem 2.38
  • Suppose 5 identical machines are to be used to
    produce two different products
  • The operating parameters for the two products are
    as follows a1 2 min, a2 2.5 min, b1 1 min,
    b2 1.5 min, t1 6 min, and t2 8 min
  • The cost parameters are the same for each
    operator-machine combination Co 15/hr and Cm
    50/hr
  • Determine the method of assigning operators to
    machines that minimizes the cost per unit produced

63
Example
64
Example
65
In-Class Exercise
  • Semiautomatic mixers are used in a paint plant.
    It takes 6 min for an operator to load the
    appropriate pigments and paint base into a mixer.
    Mixers run automatically and then automatically
    dispense paint into 50-gallon drums. Mixing and
    unloading take 30 min. Mixers are cleaned
    automatically between batches it takes 4 min to
    clean a mixer. Between batches, an operator
    places empty drums in a magazine to position them
    for filling. It takes 6 min to load the drums
    into the magazine. Filled drums are transported
    automatically by conveyor to a test area before
    being stored. Mixers are located close enough for
    travel between mixers to be negligible.
  • What is the maximum number of mixers that can be
    assigned to an operator without mixer idle time?
  • If Co 12/hr and Cm25/hr, what assignment of
    mixers to operators will minimize cost per batch?

66
In-Class Exercise Solution
Write a Comment
User Comments (0)
About PowerShow.com
