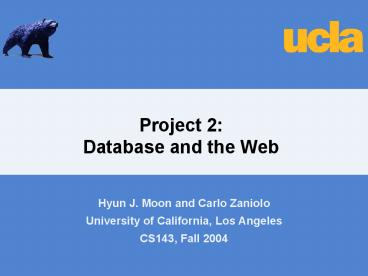

Project 2Database and the Web
  • Hyun J. Moon and Carlo Zaniolo
  • University of California, Los Angeles
  • CS143, Fall 2004

2
Project 2 Database and the Web
  • Learn how to design web pages that interact with
    a database
  • Due on Dec 7th (Tuesday)
  • Techniques
  • JDBC Java Database Connectivity API
  • SQL RDBMS query language
  • Servlet Java program running on a Web Server to
    generate dynamic content
  • HTML standard web language
  • XML eXtensible Markup Language the next
    generation web language

3
Project 2 Database and the Web (contd)
  • Servers
  • DB2 Database Server
  • Apache Tomcat Java Server (supports both Servlet
    and JSP)
  • Programming language
  • Java
  • Editor UNIX emacs/xemacs on SEASNET Windows
    JBuilder, JDeveloper, TextPad,
  • Compiler javac, java from SUN JDK

4
Project 2 Database and the Web (contd)
  • Main Pages and Web Flow online interaction with
    a music database
  • P1
  • P2
  • P3
  • P4
  • P5
  • All HTML pages dynamically generated from
    Servlets (except P1)

5
Java Servlet Request Processing
Client
http//landfair.seas.ucla.edu8080/Copycat.html
Browser
Tomcat App. Server
HTTP Server
HTML
Internet
JVM
servlet/Copycat
Copycat.class
http//landfair.seas.ucla.edu8080/servlet/Copycat
gt HOME/tomcat/webapps/ROOT/WEB-INF/classes/Co
pycat.class
6
Other Dynamic Web Environment
  • CGI Common Gate Interface, can be written in any
    language
  • ASP (active server pages) by Microsoft, use
    visual basic, hard to reuse
  • JSP (Java Server Pages) normally used as web
    interface programming with Java Servlet as
    backend
  • Coldfusion by Dreamweaver
  • php, python, etc.

7
CGIs vs Servlets
  • CGI programs
  • Separate process for each CGI program
  • Mod_perl and FastCGI improves performance of CGI
    but not to level of servlets
  • Have difficult time maintaining state across
    requests
  • Servlets
  • Run under single JVM (better performance)
  • Servlets loaded into memory with first call, and
    stay in memory
  • Have built-in state preservation methods
  • Java's inherent security
  • Proprietary source code can be retained by only
    giving up .class files to the server

8
Communicate with Java Servlet with FORMS
  • FORMS are defined in HTML pages as
  • ltform methodget actionservlet/Copycatgt
  • ltinput typetext name some_text size 40gt
  • ltinput typesubmit value"Submit"gt
  • lt/formgt
  • Actions send request to a HTTP server
  • Two common methods POST and GET

9
Forms Method GET and POST
  • GET Data is sent to the server appended to the
    URL
  • can only send a small amount of information
  • The exchanged data are displayed in the URL as
    well
  • http//landfair.seas.ucla.edu8080/servlet/Copyc
    at?some_texttest
  • The URL can be bookmarked
  • POST Data is sent to the server in a separate
    message
  • with unlimited length of data, and the exchange
    is invisible to the user
  • Secure (e.g., for credit card numbers)
  • Cant boomark

10
Forms INPUT
  • Input tags are used to place many form elements
  • Input tags have several types
  • textbox
  • textarea
  • checkbox
  • radio
  • dropdown
  • filebox
  • The name and value of of the input is like a pair
    of (parameter-name, parameter-value)
  • No end tag

11
Forms Buttons
  • Simple push-down controls
  • 3 flavors
  • ltinput typesubmitgt cause all form data to be
    sent to the server
  • ltinput typeresetgt cause the form data to be set
    to the default
  • ltinput typebuttongt used for JavaScript
  • Button images can also work as a submit button
  • ltinput typeimage srccoolbutton.gif
    namecoolbuttongt

12
Forms hidden
  • Send the information to the server and the user
    will not notice
  • Normally used to send control information to the
    server process
  • ltform actionservlet/showAlbumgt
  • ltinput typehidden namealbumname valuechokegt
  • ltinput typeresetgt ltinput typesubmitgt
  • lt/formgt

13
What a Servlet Does
  • Process requests from clients
  • doGet process get request
  • doPost process post request
  • Response to the clients
  • Return HTML contents to the client
  • Communicate through streams
  • Servlets normally retrieve most of their
    parameters through an input stream, and send
    their responses using an output stream
  • ServletInputStream in request.getInputStrea
    m ()
  • ServletOutputStream out response.getOutputSt
    ream ()

14
Structure of a ServletHelloWorld
  • import java.io.
  • import javax.servlet.
  • import javax.servlet.http.
  • public class HelloWorld extends HttpServlet
  • public void doGet(HttpServletRequest request,
    HttpServletResponse response)
  • throws IOException, ServletException
  • response.setContentType("text/html")
  • PrintWriter out response.getWriter()
  • out.println("lthtmlgt")
  • out.println("ltbodygt")
  • out.println("ltheadgt")
  • out.println("lttitlegtHello
    World!lt/titlegt")
  • out.println("lt/headgt")
  • out.println("ltbodygt")
  • out.println("lth1gtHello World!lt/h1gt")
  • out.println("lt/bodygt")
  • out.println("lt/htmlgt")

Client Side lthtmlgt ltbodygt ltheadgt lttitlegtHello
World!lt/titlegt lt/headgt ltbodygt lth1gtHello
World!lt/h1gt lt/bodygt lt/htmlgt
http//landfair.seas.ucla.edu8080/servlet/HelloWo
rld
15
Fundamental Parts of a Servlet
  • 1. import javax.servlet. and import
    javax.servlet.http.
  • - packages of servlet classes that implement
    the Java Servlet API
  • 2. public class HelloWorld extends HttpServlet
  • - extends the HTTPServlet class
  • 3. init()
  • -initializes servlet after loading into memory
  • - place to perform operations done only once at
    start-up
  • - reading a current properties
  • - clearing log files, notifying other services
    that the servlet is running
  • 4. service(), doGet(), doPost()
  • - this is where work is done
  • - each time the servlet is called a new thread
    of execution begins
  • - input is passed to the Java code via either
    HTTP GET or POST commands
  • 5. destroy()
  • - executed when server engine calls servlet to
    terminate
  • - used to flush I/O, disconnect from database

16
Get Parameters
  • Sample forms
  • ltform methodpost actionservlet/Copycatgt
  • ltinput typetext name some_text size 40gt
  • ltinput typehidden name songname
    valuenaturalgt
  • ltinput typesubmit value"Submit"gt
  • lt/formgt
  • Process it in a Servlet
  • String method request.getMethod () // e.g.
    post
  • String some_text request.getParameter
    (some_text")
  • String songname request.getParameter
    (songname")

17
Sample Parameter Handling
Copycat.html
From the web
public class Copycat extends HttpServlet
public void doGet(HttpServletRequest request,
HttpServletResponse response) throws
IOException, ServletException
response.setContentType("text/html")
PrintWriter out response.getWriter()
out.println("lthtmlgt") out.println("ltheadgt
") String title "Copycat Servlet"
out.println("lttitlegt" title "lt/titlegt")
out.println("lt/headgt")
out.println("ltbody bgcolorwhitegt")
out.println("lth1gt" title "lt/h1gt")
String studentSaid request.getParameter("some_te
xt") out.println("The student said "
studentSaid "ltbrgt") out.println("lt/body
gt") out.println("lt/htmlgt")
Modify and add your JDBC stuff!
18
JDBC Dynamic Queries
  • Prepared statement allows queries to be compiled
    and executed multiple times with different
    arguments
  • PreparedStatement pStmt conn.prepareStatemen
    t(
  • select albumname from album where year ?
    and musicianName ? )
  • pStmt.setInt(1, 1990)
  • pStmt.setString(2, BJork")
  • pStmt.executeQuery()

19
Java Servlet at SEAS
  • Port Assignment
  • Each student is assigned two ports for running
    Java Servlets on SEAS
  • Please make sure that you only use the ports
    assigned to you
  • Two ports
  • Connector Port internal communication
  • Server Port access from the web e.g. (replace
    8080 with your own server port)
  • HTML http//landfair.seas.ucla.edu8080/
  • Servlet http//landfair.seas.ucla.edu8080/servle
    t/

20
Tomcat
  • Tomcat is a free, open open-source implementation
    of Java Servlet and Java Server Pages
    technologies
  • Tomcat can be used as a small stand stand-alone
    server for testing servlets and JSP pages, or can
    be integrated into the Apache Web server
  • Tomcat is free! Download at http//jakarta.apach
    e.org
  • Besides Tomcat, there are other systems that
    support servlet
  • Allaire jrun, IBM Websphere, Bea WebLogic,
    Borland AppServer, Oracle App Server

21
Setup Tomcat on SEASNET
  • login to your seas project account
  • setup libraries and paths
  • source /u/cs/class/cs143v/cs143vta/bin/all.env
  • Put in your .cshrc file (or .login)
  • source /u/cs/class/cs143v/cs143vta/bin/all.env
  • Setup Tomcat directories
  • HOME/tomcat home directory of tomcat
  • HOME/logs directory stores the log files
    generated by the server
  • HOME/tomcat/webapps/ROOT your HTML file
  • HOME/tomcat/webapps/ROOT/WEB-INF/classes your
    Servlet classes
  • HOME/conf server.xml, tomcat-users.xml,
    web.xml, and jk2.properties

22
Configure Tomcat Ports
  • Modify HOME/tomcat/conf/server.xml file
  • Connector port
  • Server port"8005" shutdown"SHUTDOWN" debug"0"gt
    gt
  • Server port"11033" shutdown"SHUTDOWN"
    debug"0"gt
  • Server Port
  • ltConnector className"org.apache.coyote.tomcat4.Co
    yoteConnector" port"8080 gt
  • ltConnector className"org.apache.coyote.tomcat4.Co
    yoteConnector" port11034

23
Startup and Shutdown Tomcat
  • Startup tomcat
  • startup.sh ?
  • Stop tomcat
  • CtrC on your tomcat running screen
  • If you run tomcat on background, run
  • shutdown.sh ?
  • Open another window for your coding
  • Always shut down your tomcat before you log out

24
Test Servlet
  • After Tomcat is up, you can test Servlet
  • cp /w/class.01/cs/cs143v/cs143vta/project/Copycat.
    html to
  • HOME/tomcat/webapps/ROOT
  • HOME is your home directory (pwd after you
    first login)
  • cp /w/class.01/cs/cs143v/cs143vta/project/Copycat.
    java to
  • HOME/tomcat/webapps/ROOT/WEB-INF/classes/
  • Compile your Java file
  • javac Copycat.java
  • If httpServlet error happened, you must have not
    source all.env
  • Open your URL
  • http//ltmachinenamegtltportgt/ltfilenamegt.htmle.g.
    http//landfair.seas.ucla.edu11256/Copycat.html

25
Debug Your Code
  • Servlet not easy to debug!
  • Return status code
  • sendError method in class HttpResponse
  • Log errors written into servlet log file
  • public void servletContext.log(string msg)
  • public void servletContext.log(Exception e,
    String msg)

26
Debug Your Code Common Status Codes
  • Constant Code Meaning
  • SC_OK 200 client request successful
  • SC_NO_CONTENT203 the request succeed, but
    without new response to return
  • SC_NOT_UNAUTHORIZED401 unauthorized
  • SC_NOT_FOUND 404 not found on the server
  • SC_INTERNAL_SERVER_ERROR 500 the servlet is
    wrong

27
What to Submit
  • SQL Script file db.sql
  • SQL script updated from Project I to include
    additional tables if needed
  • Project pages P1-P5
  • Servlet generated HTML file p1html.html,
    p2html.html, etc.
  • Use View Source from your web browser to copy
    and paste the files
  • readme.txt file
  • Class Name CS143, LEC.1
  • Name(Last, First)
  • Student SID
  • Project login account
  • Database you use(STUDBL, STUDBW, or STUDBN)
  • Servlet PORT numbers Connector Port____ Server
    Port____

28
Extra Credit XML (10 percent)
  • For page P1, add a checkbox "Display as XML".
  • If that checkbox is checked, a page of XML
    document (instead of HTML) is displayed ( through
    IE only).
  • The document you generated must satisfy a DTD
    and will be validated using the following XML
    Validator. You can define your own DTD.
  • Sample XML document
  • ltalbumsgt
  • ltalbumgt
  • ltalbumnamegtChokelt/albumnamegt
  • ltmusiciannamegtlt/musiciannamegt
  • lt/albumgt
  • lt/albumsgt

29
Whats XML
  • XML EXtensible Markup Language
  • A W3C standard widely accepted

Similarity between HTML both are markup
languages
  • Difference from HTML
  • Its extensible a framework to define mark-up
    languages
  • Separate syntax from semantics.
  • XML XSLT HTML

30
A Sample XML Document
ltordersgt ltorder id"1" itemcount"3"gt
ltcustomer id"100"gt
ltlastnamegtSkonnardlt/lastnamegt
ltfirstnamegtAaronlt/firstname
ltphonegt(888)888-8888lt/phone lt/customergt
ltitem id"5000" type"software"gt
ltmanufgtMicrosoftlt/manufgt
ltpnamegtMicrosoft Money 99lt/pnamegt
ltpricegt39.99lt/pricegt ltquantgt1lt/quantgt
lttotalgt39.99lt/totalgt lt/itemgt
lt/ordergt lt/ordersgt
starting tag
ending tag
31
HTML Editors
  • Microsoft Frontpage/Word
  • Dont use it! Tons of extra tags make your
    servlet a nightmare!
  • Macromedia Homesite (I use this one)
  • free 30-day trial
  • Macromedia Dreamweaver
  • free 30-day trial
  • Altova XMLSpy (for both XML and HTML)
  • can be used for testing extra credit question
  • free 30-day trial
  • UNIX emacs/xemacs

32
Documentations
  • Java Servlet APIs
  • DB2 Documentation
  • SQL Reference
  • Java APIs
  • HTML Beginners Guide
  • Daves HTML Guide
  • HTML 4.0 Reference

33
Project SEASNET Account
  • 3 machines to login
  • landfair.seas.ucla.edu
  • lindbrook.seas.ucla.edu
  • westholme.seas.ucla.edu
  • To decide which machine you need to login
    LAST_2_DIGITS_OF_YOUR_STUDENT_ID mode 3

mod value Machine name Database name
0 Landfair studbl
1 lindbrook studbn
2 westholme studbw
34
Two Options for JDBC Driver
  • Option I. use .app. driver instead of .net.
    driver, e.g.
  • Class.forName("COM.ibm.db2.jdbc.app.DB2Driver")
    and in your JDBC URL, use
  • jdbcdb2studbw, (if you login to westholme), or
  • jdbcdb2studbn, (if you login to lindbrook), or
  • jdbcdb2studbl, (if you login to landfair).
  • i.e., the hostname is omitted.
  • Option II or use .net. driver
  • Class.forName("COM.ibm.db2.jdbc.net.DB2Driver")
  • but use the JDBC URL as
  • jdbcdb2//landfair.seas.ucla.edu/studbw, or
    jdbcdb2//landfair.seas.ucla.edu/studbn, or
    jdbcdb2//landfair.seas.ucla.edu/studbl.
  • i.e., the hostname is always landfair.seas.ucla.ed
    u no matter which machine you login. The database
    name still corresponds to the machine you login.

35
Project 2 3-Tier Architecture
Application/HTTP Server (Tomcat)
36
Project 1 2-Tier Architecture
JDBC
Network
37
Good Luck!
  • Start early!
  • Great experience for your career!
Write a Comment
User Comments (0)
About PowerShow.com
