IEC-61508 Implementing a Compliance Program

1

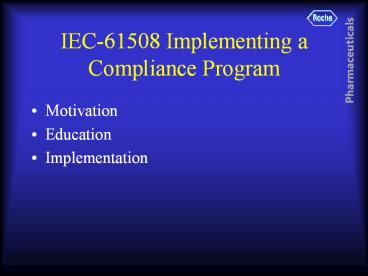

IEC-61508 Implementing a Compliance Program

• Motivation
• Education
• Implementation

2
Overview
3
Overview
4
Overview
5
Motivation

• Do you or your company believe in the
  infallibility of Engineered systems?

6
Motivation

• Roche Ireland does not have this delusion
• 25 years operational experience
• Including some close calls
• Reality has motivated out safety culture.

7
Education

• Much of the rest of this presentation has been
  generated from training presentations given in
  Roche Ireland to
• Management
• Process Engineering
• Instrument / Electrical Engineering

8
Education

• Need to educate yourself
• Guidelines for Safe Automation of Chemical
  Processes CCPS/AIChE
• ISA S84
• Functional Safety, Smith Simpson
• IBC conferences
• Various WWW resources (exida/ sis-tech etc)

9
IEC-61508, SOP 973

• Functional safety of electrical / electronic
  programmable electronic safety-related systems.
• Critical Protective equipment - Safety
  Instrumented Systems

10
IEC-61508, SOP 973

• Safety requires protection from hazards of
  different causes (movement, heat, radiation, el.
  shock, etc.)
• Functional Safety means protection from hazards
  due to incorrect functioning.

11
IEC-61508 Will Effect

• Process Engineers
• Instrument/Electrical Designers
• Mechanical Engineering
• Commissioning- Extra Effort
• Documentation - Extra Effort

12
IEC-61508 is legally vague

• Not legislation
• Meets Reasonably practicable duty
• Health, safety welfare at Work act, 1989
• Have to put in place a compliance program.

13
Risk (deaths/year)
Intolerable region
1 x 10-4
ALARP
1 x 10-6
Negligible risk
Figure 65-1
14
RISK Reduction - ALARP

• As low as reasonably practicable.
• IEC 61508 based on ALARP concept.
• ALARP concerns region of risk.
• Risk is an emotive and irrational thing.
• Commonly accepted values areupper limit 1 x
  10-4 deaths per yearlower limit 1 x 10-6 deaths
  per year

15
Safety life cycle - milestone approach

• ISA S84 life cycle depicted in Fig 65-3.
• ISA S84 focuses on Box 9 of IEC 61508.

16
Passive systems layer
Active systems layer
Fail-safe design
One way valves
Controlsystems layer
ESD
Duality
Alarm handling
Intrinsic safety
Back-up
FG
Diagnostics
Bursting discs
Alarms, trips interlocks
Pressure relief valves
Figure 64-1
17
Start
Figure 65-3
1 Conceptual process design
2 Perform process HAZAN risk assessment
3 Apply Category 0 protection systems to prevent
hazards reduce risk
No
4 Are any Category 1 protection systems required?
5 Define target safety integrity levels (SIL)
6 Develop safety requirements specification (SRS)
7 Conceptual design of active protection systems
verify against SRS
8 Detailed design of protection system
11 Establish operating
9 10 Installation, commissioning
maintenance procedures
and pre-start-up acceptance testing
12 Pre-start-up safety review
13 Protection system start-up, maintenance
periodic testing
yes
14 Modify protection system?
End
15 Decommission system
18
Process Engineering

• First Stage of realisation of high-integrity
  safety instrumented systems
• Modified PHA
• Feeds into SRS
• Based on good process data good process
  judgement.

19
Process Chemistry

• Carius Tube test for decomposition
• Pressure Dewar Calorimetry
• Understanding of Exotherms
• Knowledge of onset temperatures
• Chilworth

20
Process Engineering

• Good process judgement.
• Hazop
• Margins of safety

21
Hazard identification, Interlock Identification

• Reactant being transferred in from Reactor 1
  without agitation could accumulate react in a
  sudden, violent manner.
• Reactor 2 Inlet valve 205 should OPEN only if
  agitator ON

22
Hazard identification, Interlock Identification

• Simplified Technique.
• MIL Std 882

23
Consequences

• Consequence of this is overpressure, loss of
  batch, over-temperature, possible destruction of
  vessel.
• 1 week downtime to recover.
• Fatality or Serious injury unlikely.
• Critical
• (C2)

24
Occupancy factor

• Building is continually occupied
• (F2)

25
Manual Avoidance factor

• There is quite a good chance of an operator
  observing that something is going wrong
  intervening successfully.
• (P1)

26
Unmitigated demand rate.

• Likely to occur once every 5 years.
• Occasional
• The process is DCS automated.
• DCS is not a SIS no SIL rating.
• DCS control reduces frequency of Unmitigated
  Demand.
• (W2)

27
W3
W2
W1
Least risk
C1
x0?
P1
1
F1
x0?
P2
1
1
C2
x0?
P1
2
1
1
F2
P2
Start
2
3
1
F1
2
3
3
C3
F2
3
3
4
C4
4
3
x2?
Most risk
EN 954 Approach
28
(No Transcript)
29
Roche Consequences
30
Roche unmitigated demand rate.
31
Instrument / Electrical Design

• Second Stage of realisation of high-integrity
  safety instrumented systems
• Modified Instrument design
• Modified Instrument Commissioning
• Feeds into SRS

32
Hazardreductionfactor HRF
Safety integrity level SIL
Demand mode of operation
Continuous mode
PFD (fractional)
Availability A (fractional)
Failure rate ? (failures per hr)
1
10-1 to 10-2
0.9 to 0.99
10-5 to 10-6
gt101
2
gt102
10-2 to 10-3
0.99 to 0.999
10-6 to 10-7
3
gt103
10-3 to 10-4
10-7 to 10-8
0.999 to 0.9999
4
gt104
10-4 to 10-5
10-8 to 10-9
0.9999 to 0.99999
Table 65-1
33
Equipment implications

• SIL value is measure of quality of protection
  system, end to end.
• System has to be designed, specified, built and
  maintained to that standard.
• Proof testing at regular intervals
• Conformance assessment for safety systems

34
PFD Calculation

• Simplified Equation
• ISA-TR84.00.02-2002 Part 2
• Equation B.34 Rare event approximation
• Adequate for SIL 1 or 2, where the plant is
  well controlled, well maintained, understood
  process, conservative engineering with good
  mechanical integrity

35
PFD Calc. Motion Sensor

• MTBF Mean (Average) time between failures
• Information provided by vendor.
• MTBF 86 Years

36
PFD Calc. Motion Sensor

• Failures can be
• fail to danger (Falsely shows agitator moving)or
• fail to safe (Falsely shows agitator stopped)
• Aim of good design is to maximise fail to safe,
  minimise fail to danger. The failure mode split
  is the percentage in the fail to danger category.
• Failure mode split .1 (SA estimate)

37
PFD Calc. Motion Sensor

• Proof test interval 1 year (8760 hours)
• Time between re-tests of the interlock.
• Need to be genuine tests

38
PFD Calc. Motion Sensor

• 86 years 8760 hours/year 753,000 (MTBF in
  hours)
• ? 1/ MTBF 1.30 E-6 failures per hour
• FMS .1
• Proof test 1 year (8760 hours)
• PFD(SS) 1.30 E-6 .1 1 (8760/2)
• PFD(SS).0006

39
PFD Calc. Barrier 6

• MTBF 4 Years
• Failure mode split .4
• Proof test interval 1 year (8760 hours) ?
  1/ MTBF 2.87 E-5 failures per hourPFD(B6)
  2.87 E-5 .4 1 (8760/2)
• PFD(B6).0500

40
PFD Calc. Relay 5

• MTBF 100 Years
• Failure mode split .01
• Proof test interval 1 year (8760 hours) ?
  1/ MTBF 1.14 E-6 failures per hourPFD(R5)
  1.14 E-6 .01 1 (8760/2)
• PFD(R5).00005

41
PFD Calc. Main Barrier

• MTBF 10 Years
• Failure mode split .9
• Proof test interval 1 day (24 hours) ? 1/
  MTBF 1.14 E-5 failures per hourPFD(MB) 1.14
  E-5 .9 1 (24/2)
• PFD(MB).001242

42
PFD Calc. Solenoid

• MTBF 10 Years
• Failure mode split .4
• Proof test interval 1 day (24 hours) ? 1/
  MTBF 1.14 E-5 failures per hourPFD(SOL) 1.14
  E-5 .4 1 (24/2)
• PFD(SOL).00006

43
PFD Calc. Valve Actuator

• MTBF 10 Years
• Failure mode split .2
• Proof test interval 1 day (24 hours) ? 1/
  MTBF 1.14 E-5 failures per hourPFD(VA) 1.14
  E-5 .2 1 (24/2)
• PFD(VA).00003

44
PFD Calc. Overall

• PFD(VA).00003
• PFD(SOL).00006
• PFD(MB).00124
• PFD(R5).00005
• PFD(B6).0500
• PFD(SS).0006
• PFD .052 gt SIL 1

45
PFD Mapping
? PFD 10 SIL 1 Limit
Overall
Valve
Barrier
? PFD 1 SIL 2 Limit
Relay Logic
Barrier
Instrument
46
PFD Calc. Issues

• Elements in series USYS ??? Ui
  62-16Elements in parallel USYS ??? Ui
  -17
• Common cause failure ?SYS ?IND ?. ?MAX
  -18
• Voting systems UKOON ??n.Uk
  -19
• For more complex systems Fault Tree Analysis
  using ISA-TR84.00.02-2002 Part 3.
• Probabilistic Risk Assesment Henley, E J

47
Design issues

• Roche have decided that valve actuator may be
  shared for SIL 1 only.
• SIS BPCS share barrier, solenoid, actuator
  Valve. This is not recommended
• Solenoid has local SMO, which might be OK for
  normal operation, but not for SIS.

48
Design issues
49
Design issues

• - type barrier not recommended (TTL
  Logic switching independent energy source)
• No clear indication on loop sheet or in field of
  safety critical nature of instruments

50
Design issues

• Design of periodic re-test method is the
  instrument designers responsibility.
• This would help facilitate periodic testing
• Loop sheet to indicate safety critical nature of
  instruments

51
Improvement suggestions

• SIS to actuate solenoid in panel, which controls
  air supply to Shutoff Valve Control Valve
• High energy panel mount solenoid, not IS pilot
  operated solenoid gt more suitable for SIS
• Control Valve should have positioner suitable for
  SIS

52
Loop sheet modifications
53
Commissioning Aspects

• IQ / OQ Proof testing of the safety function
• Validation of the retest method
• Loop sheet to indicate safety critical nature of
  instruments
• Field marking

54
Machine / Package Design

• Supplier might have correctly designed safety
  Engineering.
• That does not mean it reaches standard.
• Modified Instrument/Electrical design
• Modified Instrument/Electrical Commissioning
• Feeds into SRS

55
Machine / Package Design

• E Ex d motor Surface temperature limits
• Variable Speed Drive.
• Never below 10 Hz
• Always with Thermistor Protection

56
Machine / Package Design
57
Machine / Package Design
Thermistor Relay
58
Maintenance

• Vital part of ensuring safety function remains
  intact.
• Will have to retest interlocks on a periodic
  basis.
• Will need to follow methods set out during
  Instrument/Electrical design stage.
• Care required in effecting changes to the loop
  when in use.

59
Safety Requirements Spec

• Document which brings together the design thread.
• Started by the Process Engineering group
• Continued by the Instrument / Electrical
  engineering group
• Reviewed by Safety Engineering group.
• Live document until pre-start safety review.

60
New skills

• Different way of thinking
• Defence in Depth
• Layers of Protection
• Risk Analysis
• Basic Statistics
• Fault Tree Analysis

61
6 June 1967
62
(No Transcript)
63
(No Transcript)
64
(No Transcript)
