FSM Design and Optimization

1

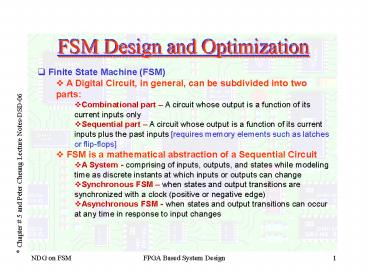

FSM Design and Optimization

• Finite State Machine (FSM)
• A Digital Circuit, in general, can be subdivided
  into two parts
• Combinational part A circuit whose output is a
  function of its current inputs only
• Sequential part A circuit whose output is a
  function of its current inputs plus the past
  inputs requires memory elements such as latches
  or flip-flops
• FSM is a mathematical abstraction of a
  Sequential Circuit
• A System - comprising of inputs, outputs, and
  states while modeling time as discrete instants
  at which inputs or outputs can change
• Synchronous FSM when states and output
  transitions are synchronized with a clock
  (positive or negative edge)
• Asynchronous FSM - when states and output
  transitions can occur at any time in response to
  input changes

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
2
FSM Design and Optimization

• FSM Models
• Mealy Model Contains three components
• State Memory to store the current state S(t)
• State Transition Function ? to determine the
  next state S(t1) depending upon the current
  state S(t) and the input X(t)
• Output Function ? which generates the output
  Y(t) as function of the current state S(t) and
  the input X(t)

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Fig-01 Mealy Model of FSM
3
FSM Design and Optimization

• FSM Models Contd
• Moore Model Similar to Mealy Model except that
  Output Function ? which generates the output Y(t)
  as function of the current state S(t) only.
• Both Mealy and Moore Models can be mapped into
  each other
• Mealy Machines usually have fewer state variables
  (memory elements)- Widely used in Engineering
  Applications
• Moore Machines are simpler to analyze
  mathematically

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Fig-02 Moore Model of FSM
4
FSM Design and Optimization

• FSM Models Contd
• A Problem with Mealy Machine (as shown in
  Fig-01) Output may have glitches. So, a
  slightly modified version of Mealy Machine is
  more commonly used.

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Fig-03 Mealy FSM with Registered Output

• All Digital Systems can be viewed as networks of
  FSMs ?

5
FSM Design and Optimization

• FSM Models Contd
• Autonomous FSM Special FSM having no inputs,
  e.g. LFSR
• Communicating FSMs Two or more FSMs interacting
  with each other

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Fig-04 Communicating FSMs
6
FSM Design and Optimization

• FSM Design Steps
• Understand the Specifications
• Problem Definition Using State Diagram and/or
  State Table
• State Minimization Removal of redundant
  internal states
• State Assignment Assigning binary codes to the
  states
• Determination of State Transition Function and
  Output Function Equations
• Logic Equation Minimization
• Design Mapping to a given Technology or Device
• Steps 3, 4 and 6 are Optimization Problems
  valuable but not necessary steps

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
7
FSM Design and Optimization

• FSM Design Steps Contd
• Step-1 Understanding the Specifications
• A Simple Vending Machine Design Example a
  Accepts 1 or 2 Rupees Coins b Delivers a
  Pak-Cola bottle of drink costing Rupees 3 c
  Provides change where applicable

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Fig-05 A Vending Machine Model
8
FSM Design and Optimization

• FSM Design Steps Contd
• Step-2 State Diagram Representation
• Each State is represented as a circle with output
  arrows
• Next to the arrow, input and outputs are given
• For Vending Machine, FSM remains in state S0
  until there is some coin, either of Rs. 1 or Rs.
  2 inserted.
• Upon such an event, depending upon the coin
  type, it switches to another state
• FSM should not activate the Vend / Change driver
  unless the credit equals or exceed the Rs. 3
• A state transition diagram can be drawn as shown
  in Fig-07(Next Slide)

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Fig-06 Notation used in State Diagram
Representation
9
FSM Design and Optimization

• FSM Design Steps Contd
• Step-2 State Diagram Representation Let us
  Complete it

Inputs/Outputs Rs.2Rs.1/VendChange
Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Fig-07 State Diagram Representation of Vending
Machine
10
FSM Design and Optimization

• FSM Design Steps Contd
• Step-3 State Minimization
• Equivalent States Two states are said to be
  equivalent if they have identical next states and
  outputs.

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Fig-08 State Minimization Step-03 a Cyclic
State Diagram of VM b Reduced FSM for VM
11
FSM Design and Optimization

• FSM Design Steps Contd
• Step-3 State Minimization Contd
• Addition of Invalid State(s) due to State
  Assignment (Binary Codes)

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Fig-09 Final Reduced FSM for VM
12
FSM Design and Optimization

• FSM Design Steps Contd
• Step-4 State Assignment and State Transition
  Table

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
13
FSM Design and Optimization

• FSM Design Steps Contd
• Step-4 State Assignment and State Transition
  Table
• Step-5 Determination of Logical Equations

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
?
14
FSM Design and Optimization

• FSM Design Steps Contd
• Step-6-7 Simplification of Logic Equations and
  Hardware Implementation
• Use of K Maps or Other Methods
• Implementation is Technology Dependent

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Fig-10 Implementation of VM FSM
15
FSM Design and Optimization

• FSM Design Example Huffman Codec
• Used for JPEG/MPEG Compression
• Relies on known probability of a set of fixed
  symbols

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Table-04 Symbols with Their Binary Code and
Frequency
Fig-11 Huffman Tree Developed based on Symbol
Frequency
16
FSM Design and Optimization

• FSM Design Example Huffman Codec Contd
• Huffman Decoder Circuit Implementation as FSM

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Fig-11 Huffman Decoder FSM State Diagram and
FSM Implementation
17
FSM Design and Optimization

• FSM Optimization
• Three Ways to Optimize the HW Complexity of FSM
• State Minimization
• State Assignment
• Logic Equation Minimization
• State Minimization Methods
• State Merging by Observation
• State Partitioning
• Application of Implication Tables
• State Merging by Observation
• Vending Machine Example
• Bit Sequence Detector

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
18
FSM Design and Optimization

• FSM Optimization Contd
• State Merging by Observation
• Bit Sequence Detector A Circuit that generates
  an output Z 1 when it detects a bit sequence
  from a serial data input D as 001, 010, 100, or
  111.
• S3 and S6 are Equivalent, and so are S4 and S5.
  Eliminate S5 and S6

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Fig-12 Bit Sequence Detector a State Diagram
b State Table
19
FSM Design and Optimization

• FSM Optimization Contd
• State Merging by Observation Contd
• Bit Sequence Detector after State Minimization

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Fig-13 Minimal State Bit Sequence Detector a
Stat Table b State Diagram

• State Partitioning

20
FSM Design and Optimization

• FSM Optimization Contd
• State Partitioning
• An FSM Example
• Best Solution for this FSM takes only 5 States ?

Fig- 14 State Table for FSM of State
Partitioning Example
Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
21
FSM Design and Optimization

• FSM Optimization Contd
• State Partitioning Contd
• An FSM Example
• Step-1 State Partitioning by Outputs Divide
  the states into sets with identical outputs
• Step-2 State Partitioning with Next States For
  states in each set, find their next states
  separately

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
22
FSM Design and Optimization

• FSM Optimization Contd
• State Partitioning Contd
• An FSM Example
• Step-3 Repartitioning based on Next States
  After Step-2, two things have happened next
  state group for C (input 0) now belongs to B2,
  however, next state group for A (input 1) now
  belongs to no single state group, so, A partition
  has become invalid

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
NOW all the next state groupings belong to some
single state partition/group. WHAT is Final
Partitioning ?
23
FSM Design and Optimization

• FSM Optimization Contd
• State Partitioning Contd
• An FSM Example
• Finally We got a State Partitioning Where
• Next outputs are the same for each state in the
  same state partition/group
• AND
• Next states are the same for each state in the
  same set/group

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Final Optimized FSM has got only Five
States.!
24
FSM Design and Optimization

• FSM Optimization Contd

Self-study Exercise Application of Implication
Table Easy to Computerize and Suitable for
Larger FSM Optimization
Chapter 5 and Peter Cheung Lecture
Notes-DSD-06

• State Assignment
• ASM Chart
• FSM Synthesis

• Next Week

25
FSM Design and Optimization

• FSM Optimization Contd
• State Assignment
• Assigning Unique Binary Codes to the States of a
  Minimized FSM
• State Minimization has a Unique
  Technology-Independent Solution, however, State
  Assignment Depends on
• Technology such as PLA, ROM, PAL, logic gates
• Type of storage circuit, D-latches or FF
• For a FSM of r Rows (States), with n-bit State
  Variables, All Possible Permutations are
• N 2n ! / (2n-r)!
• Many, among above Assignments, are just
  Rearrangements, according to McCluskey, Number of
  Distinct Assignments is Reduced to
• ND (2n -1)! / (2n-r)! n!

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
26
FSM Design and Optimization

• FSM Optimization Contd
• State Assignment Contd
• Even the number given by McCluskey is still very
  large
• Very Complex Problem, called Intractable or
  np-Complete. Such a problem usually have no
  optimal solution but some solution based on
  heuristics (thumb rules or simple rules)
• Aim here would be to have Rules that provide
  maximum number of 1s in adjacent cells of
  next-state truth table for better k-map reduction

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
27
FSM Design and Optimization

• FSM Optimization Contd
• State Assignment Contd
• Rule-1 States with the same next state for a
  given input condition should be assigned codes
  differing in one (binary) bit position only. For
  Example,
• Rule-2 Next States of a single state should be
  given logically adjacent state assignments. For
  Example,

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
28
FSM Design and Optimization

• FSM Optimization Contd
• State Assignment Contd
• Example-01 Consider the Bit Sequence Detector
  FSM
• Applying Rule 2, S1 and S2 should be assigned
  logically adjacent codes, so, let S1 100 and S2
  101
• Applying Rule 1, S3 and S4 both have the same
  next state with given input condition, so, S3 and
  S4 are assigned logically adjacent codes. S3
  110 and S4 111
• S0 can be assigned 000 (arbitrary), and
  unassigned states would be 010, 011, and 001

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Fig-15 Bit Sequence Detector FSM
29
FSM Design and Optimization

• FSM Optimization Contd
• State Assignment Contd
• One-Hot State Assignment
• Sometimes, instead of log2 r bi-stable latches,
  it is more efficient (and convenient as well ) to
  have r latches/flip-flops, i.e. one for each
  state. It is called One-Hot State Assignment.
• At any time, only one FF will be set (FF
  corresponding to the state where FSM lies at that
  instant)
• No State Assignment is required
• One-hot state assignment is particularly
  suitable for FPGA (LUT and MUX based
  Architecture) implementation of FSM
• Number of FF required is much higher than Min.
  Length State Encoding
• Slower in Operation as compared to other option.

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
30
FSM Design and Optimization

• FSM Implementation- HW Considerations
• Implementation Alternatives
• Standard ICs Suitable for Simple Designs
• PROM Suitable for many Outputs/States, No
  Logic Minimization needed, Exhaustive
  Implementation for all Possible Input
  Combinations, Size grows Exponentially
• CPLDs/FPGAs More Suitable for most of FSM
  Implementations

Fig-16 Generic Block Diagram of FSM
Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Fig-17 Implementation of FSM with PROM
31
FSM Design and Optimization

• FSM Implementation- HW Considerations Contd
• Asynchronous Inputs A Possible Source of Race
  Condition
• Asynchronous input A to FSM, while making
  transition from 0 to 1, as shown above may
  give rise to a wrong state transition
• SOLUTION Synchronize all the Asynchronous
  Inputs to FSM using a Latch clocked by the FSM
  clock

Fig-18 Asynchronous Inputs to FSM
Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Fig-19 Synchronizing Asynchronous Inputs
32
FSM Design and Optimization

• FSM Implementation- HW Considerations Contd
• Types of Flip-Flops at Output
• Outputs of Programmable Macro-Cells or LEs of
  CPLDs/FPGAs are Configurable
• Inverting/Non-Inverting
• Register or Combinational
• D Flip-Flop, S-R FF, J-K FF, or T-FF, any type
  is Possible
• T-FF or J-K FF can Produce more Efficient
  Implementation (fewer product terms in Boolean
  Equations)
• Better CAD tools make better choice automatically

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
33
FSM Design and Optimization

• Algorithmic State Machine (ASM) Chart
• An Alternative Method to Represent FSM based on
  Flow-Chart Notation Popularized by Christopher
  Clare Designing Logic Systems Using State
  Machines

• Key Features of ASM
• FSM is in one State Block per state time (Clock
  Cycle)
• Single Entry Point for each State Block
• For each combination of inputs, only one
  unambiguous exit path
• Outputs asserted high, low, high-impedance until
  the next clock cycle

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Fig-20 ASM Chart a ASM Elements b An ASM
Block
34
FSM Design and Optimization

• Algorithmic State Machine (ASM) Chart Contd
• ASM Construction Rules

• Must Follow these Rules
• Each State can have one and only one State Box
• Outputs depending on the Current State only
  (Moore Model) are represented by Square Box
• Outputs depending on the Inputs (and of course
  the Current State), as in Mealy Model, are
  represented by Rounded Box
• Decision Box contains the Conditions for the
  Input Variables

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Fig-21 ASM Multi-Way Decision Block
Simplification
35
FSM Design and Optimization

• Algorithmic State Machine (ASM) Chart Contd
• ASM Advantages over (Bubble) State Diagram

• ASM Chart reflects HW Algorithm better than
  (Bubble) State Diagram Representation of FSM
• Easier to Follow and Understand
• ASM Chart avoids Transition Conflicts that could
  Occur in State Diagram Representation of FSM
• EXAMPLE Inputs I3I2I1I0 1101, 1011, and 1111
  all will make both transitions to be True.

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Fig-22 Possible Conflicts in State Diagram
Representation of an FSM
36
FSM Design and Optimization

• Algorithmic State Machine (ASM) Chart Contd
• ASM Representation of Vending Machine

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
a
b
Fig-23 Mealy Model of Vending Machine a State
Diagram b ASM Chart
37
FSM Design and Optimization

• FSM Design Using Verilog HDL
• Mealy FSM and Its RTL Coding

Fig-24 Mealy FSM to be Coded in Verilog HDL
Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
38
FSM Design and Optimization

• FSM Design Using Verilog HDL Contd
• Mealy FSM and Its RTL Coding Contd

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Contd on Next Slide
39
FSM Design and Optimization

• FSM Design Using Verilog HDL Contd
• Mealy FSM and Its RTL Coding Contd

Contd from Prev. Slide
Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Contd on Next Slide
40
FSM Design and Optimization

• FSM Design Using Verilog HDL Contd
• Mealy FSM and Its RTL Coding Contd

Contd from Prev. Slide
Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Contd on Next Slide
41
FSM Design and Optimization

• FSM Design Using Verilog HDL Contd
• Mealy FSM and Its RTL Coding Contd

Contd from Prev. Slide
Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
42
FSM Design and Optimization

• FSM Design Using Verilog HDL Contd
• Moore FSM and Its RTL Coding

Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Contd on Next Slide
43
FSM Design and Optimization

• FSM Design Using Verilog HDL Contd
• Moore FSM and Its RTL Coding

Contd from Prev. Slide
Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Contd on Next Slide
44
FSM Design and Optimization

• FSM Design Using Verilog HDL Contd
• Moore FSM and Its RTL Coding

Contd from Prev. Slide
Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
Contd on Next Slide
45
FSM Design and Optimization

• FSM Design Using Verilog HDL Contd
• Moore FSM and Its RTL Coding

Contd from Prev. Slide
Chapter 5 and Peter Cheung Lecture
Notes-DSD-06
