Title: PARTIAL RECONFIGURATION DESIGN


1

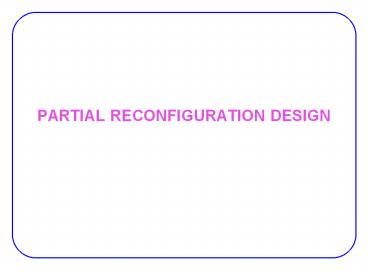

PARTIAL RECONFIGURATION DESIGN
2
Partial Reconfiguration
  • Partial Reconfiguration
  • Ability to reconfigure a portion of the FPGA
    while the remainder of the design is still
    operational
  • Application areas
  • In-the-field hardware upgrades and updates to
    remote sites
  • Runtime reconfiguration (RTR)
  • Swap in/out tasks
  • Adaptive hardware algorithms (EHW)
  • Benefits
  • Reduced device count
  • Reduced power consumption
  • More efficient use of available board space
  • Very few devices in the market
  • Xilinx 6200 obsolete
  • Xilinx Virtex

3
Partial Reconfiguration
  • Design Flows
  • JBits approach
  • For few old devices
  • Modular Design Flow
  • Difference-Based Approach

4
Partial Reconfiguration
  • Bitstream
  • Configuration data which can be downloaded into
    the device via the configuration port
  • Packet
  • Fragment of the complete bitstream sent to the
    device to reconfigure the needed part of the
    device
  • Configuration memory
  • Part of the processor memory dedicated for
    reconfiguration data
  • Dirty packets
  • Marked packets showing the changes made between
    the last configuration and the present one

5
Virtex Devices
  • Partial reconfiguration in Virtex
  • Frames
  • Smallest unit of reconfiguration.
  • Frames in Xilinx devices
  • Virtex, Virtex II, Virtex II-Pro
  • The whole column.
  • Virtex 4, Virtex 5
  • Only a complete tile.
  • Different in various devices

Logical shared memory
TASK 1
TASK 2
Height
Width
Banerjee07
6
JBits
7
Bitstream Manipulation with JBits
  • JBits
  • A tool to allow the end user to set the content
    of the LUT and make connections inside the FPGA
    directly
  • by changing reconfiguration data.
  • JBits API
  • A set of java classes, methods
  • to set the LUT-values
  • to define the interconnections
  • to read back the content of the FPGA currently in
    use.

8
JBits Methods
set(row, col, SliceNumber, Type, value)
  • Sets LUT of type F or G in slice 0 or 1 in CLB at
    (row, col) by array value
  • value 16 entries for 4LUT

connect(outpin, inpin)
  • Connects the pin outpin to the pin inpin anywhere
    inside the FPGA (terminals of CLB)

9
JBits Methods
  • JBits IP Cores
  • Hundreds of predefine cores
  • adders,
  • subtractors,
  • multipliers,
  • CORDIC Processor,
  • encoder and decoders,
  • network modules
  • Can directly be used in designs
  • Can also be combined to generate more complex
    cores.

10
JBits
  • Building components from scratch
  • Too difficult.
  • Bitstream subtraction is used instead
  • Implementing as many full bitstream (top-level)
    as required
  • Perform the subtraction among them
  • These are the parts that will be used to
    configure the device later.
  • Procedure
  • Two bitstreams are scanned and compared for each
    element.
  • Only the difference is copied in the resulting
    bitstream.

11
Approaches to PR
  • Partial Reconfiguration in Xilinx Devices
  • Module-based PR
  • Implement any single component separately.
  • Constrain components to be placed at a given
    location.
  • Complete bitstream is finally built as the sum of
    all partial bitstreams.
  • Difference-based PR
  • Implement the complete bitstreams separately.
  • Implement fix parts reconfigurable parts with
    components constrained at the same location in
    all the bitstreams.
  • Compute the difference of two bitstreams to
    obtain the partial bitstream needed to move from
    one configuration to the next one.

12
Modular Design Flow
13
Module-Based PR
  • Reconfigurable Module (RM)
  • Distinct portions of an FPGA design to be
    reconfigured while the rest of the device remains
    in active operation.
  • Properties of RMs
  • RMs height is the full height of the device.
  • or the height of a frame in Virtex 4, 5, 6
  • RMs width min 4 slices, max full-device
    width (in four-slice increments)
  • Horizontal placement must always be on a
    four-slice boundary the leftmost placement being
    x 0, 4, 8,
  • All logic resources encompassed by the width of
    the module are considered part of the RM's
    bitstream "frame
  • This includes slices, TBUFs, block RAMs,
    multipliers, IOBs, and most importantly, all
    routing resources.
  • Clocking logic (BUFGMUX, CLKIOBs) is always
    separate from the reconfigurable module.
  • Clocks have separate bitstream frames.

14
Module-Based PR
  • Properties of RMs
  • IOBs immediately above the top edge and below the
    bottom edge of an RM are part of the specific
    RMs resources.
  • If an RM occupies the leftmost/rightmost slice
    column, all IOBs on the specific edge are part of
    the specific RMs resources.
  • RMs communicate with other modules (both fixed
    and reconfigurable) by using a special bus macro.
  • The implementation must be designed so that the
    static portions of the design do not rely on the
    state of the module under reconfiguration while
    reconfiguration is taking place.
  • The implementation should ensure proper operation
    of the design during the reconfiguration process.
  • Explicit handshaking (module ready/not-ready)
    logic may be required.
  • The state of the storage elements inside the RM
    are preserved during and after the
    reconfiguration process.
  • Designs can take advantage of this fact to
    utilize "prior state" information after a new
    configuration is loaded.

15
Module-Based PR
  • Initially developed to allow several engineers to
    cooperatively work on the same project.
  • Procedure
  • Project leader
  • Identifies the components of the whole project,
  • Estimates the amount of resources consumed by
    each component,
  • Defines locations for the components on the
    device
  • Engineers
  • develop the single parts independently.

16
(No Transcript)
17
Modular Design Flow
  • Steps
  • Design entry and synthesis,
  • Initial budgeting,
  • Active implementation
  • Assembly

18
1. Design Entry and Synthesis
  • Engineers
  • Develop modules using an HDL.
  • Synthesize them.
  • Verify them.
  • Leader
  • Completes top-level design entry
  • Modules are black boxes with ports.
  • Defines top-level netlist.
  • Synthesizes it.
  • Verifies it.

19
2. Initial Budgeting
  • Leader assigns top-level constraints (in a
    constraint file)
  • Pin locations,
  • Area constraints for each modules
  • by hand or
  • by floorplanner,
  • Timing constraints,
  • Insertion of Bus macros
  • .

20
Bus Macros in Xilinx FPGAs
  • Problem in partial reconfiguration
  • The resulting application may not work if the
    signals connecting the fix and dynamic part are
    not using the same paths in the two
    configurations.
  • Solution
  • Bus macro provides fix communication channels,
    which can be used by reconfigurable module.
  • tri-state lines
  • not affected by the reconfiguration

21
Module-Based PR
22
Module-Based PR
  • Module-Based PR Flow
  • Bus Macros guarantee fixed communication channels
    among RMs and the fixed part.
  • One must ensure that signals will not be routed
    on the wrong paths after the reconfiguration.
  • Routing resources used for such inter-module
    signals must not change when a module is
    reconfigured.
  • By JBits, you must route manually again!

23
Bus Macro
  • Bus macro
  • The HDL code should ensure that any
    reconfigurable module signal that is used to
    communicate with another module does so only by
    first passing through a bus macro.
  • Each bus macro provides for 4-bits of
    inter-module communication.
  • if A communicates via 32 bits to B, then eight
    (32/4) bus macros will need to be instantiated.

24
Bus Macro
25
(No Transcript)
26
  • Automatic Bus Macro Placement for Partially
    Reconfigurable FPGA Designs, Jeffrey M. Carver,
    Richard N. Pittman, FPGA09

27
3. Implementing Active Modules
  • Team members implement their modules in parallel.
  • both fixed and partially reconfigurable.
  • synthesis, place, route.
  • but always in the context of the top-level logic
    and constraints.
  • If the area specified for the module cannot
    contain the physical logic for the module, then
    resizing must be done again in the constraint
    file generated during the initial budgeting.
  • Verification by timing analysis.
  • May need iteration of floorplanning.

28
4. Module Assembling
  • Team leader assembles the previously implemented
    modules into one top-level design.
  • More detals in Lim02

29
Difference-Based Approach
30
Difference-Based Partial Reconfiguration
  • Useful for making small on-the-fly changes to
    design parameters such as logic equations, .
  • Procedure
  • Designer makes small logic changes using
    FPGA_Editor
  • changing I/Os,
  • block RAM contents
  • LUT programming
  • muxs
  • flip-flop initialization and reset values
  • pull-ups or pull-downs on external pins
  • block RAM write modes
  • Changing any property or value that would impact
    routing is not recommended due to the risk of
    internal contention
  • Uses BitGen to generate a bitstream that programs
    only the difference between the two versions.
  • Very quick switching

31
Difference-Based Partial Reconfiguration
  • Viewing a block

32
Difference-Based Partial Reconfiguration
  • Change LUT equations

33
Difference-Based Partial Reconfiguration
  • Changing Block RAM Contents

34
Difference-Based Partial Reconfiguration
  • More details in Eto07

35
Early Access Design Flow
  • Differences
  • Types of bus macros
  • Synchronous and asynchronous
  • Wide- and narrow-type bus macros
  • Wide covers more CLBs

36
Early Access Design Flow
  • Early Access Design Flow
  • Xilinx enhanced modular design flow.
  • Differences
  • Support for partial reconfiguration of Virtex 4
    5.

37
Direct Bitstream Manipulation in Virtex
  • Upegui05

38
Direct Bitstream Manipulation in Virtex
  • Addressing LUT contents of a bitstream
  • For Virtex family, XAPP151 describes detailed
    bitstream.
  • Virtex-II upward has not been documented
  • But LUT contents can be localized in
    configuration bitstream.

39
CLBs
CLB 4 slices
13
03
02
12
01
11
00
10
20
30
40
Frame Description (XC2V40)
Unknown functionality
Unknown functionality
  • Details in Upegui05

41
LUT Contents
  • In Virtex family
  • LUT configurations are stored inverted
  • 4-input AND function, 0111 1111 1111 1111 (7F FF)
    instead of 1000 0000 0000 0000
  • Bit order is swapped in F-LUTs respective to
    G-LUTs
  • in G-LUT 7F FF
  • in F-LUT FF FE
  • Benefits of direct manipulation
  • E.g. evolving circuits in a very flexible way
  • Run-time reconfiguration

42
References
  • Bobda07 Christophe Bobda, Introduction to
    Reconfigurable Computing Architectures,
    Algorithms and Applications, Springer, 2007.
  • Virtex-4 Virtex-4 Configuration Guide,
    http//www.xilinx.com.
  • Lim02 Davin Lim and Mike Peattie, Two Flows
    for Partial Reconfiguration, XAPP290, v1,
    www.xilinx.com, 2002.
  • Module Based or Small Bit Manipulations
  • Eto07 Emi Eto, Difference-Based Partial
    Reconfiguration, XAPP290, v2, www.xilinx.com,
    2007.
  • Upegui05 A. Upegui and E. Sanchez Evolving
    hardware by dynamically reconfiguring Xilinx
    FPGAs, Evolvable Systems From Biology to
    Hardware, LNCS 3637, 2005.
Write a Comment
User Comments (0)
About PowerShow.com
