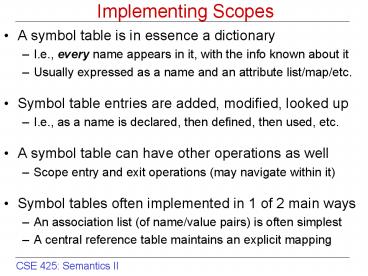

Implementing Scopes

1
Implementing Scopes

• A symbol table is in essence a dictionary
• I.e., every name appears in it, with the info
  known about it
• Usually expressed as a name and an attribute
  list/map/etc.
• Symbol table entries are added, modified, looked
  up
• I.e., as a name is declared, then defined, then
  used, etc.
• A symbol table can have other operations as well
• Scope entry and exit operations (may navigate
  within it)
• Symbol tables often implemented in 1 of 2 main
  ways
• An association list (of name/value pairs) is
  often simplest
• A central reference table maintains an explicit
  mapping

2
Symbol Tables for Nested Scopes

• Scope analysis allows declarations and bindings
  to be processed in a stack-like manner at
  run-time
• A symbol table is used to keep track of that
  information
• E.g., each identifier in a scope has a set of
  bindings
• Structure/management may range from a single
  static symbol table to a dynamic hierarchy of
  per-scope tables

pi
double
3.141
main
(int, char)
argc
int
2
argv
char

function scope
global scope
3
Names, Aliases, and Overloading

• Multiple names may refer to same object or
  variable
• E.g., pointers or references (and
  pass-by-reference) in C
• The ability to re-use a name is also commonplace
• E.g., using the operator for addition or string
  concatenation
• Since a symbol table usually stores parameter
  type attributes for a function identifier, can
  use to resolve
• I.e., look up the declaration/definition of a
  function or operator based on its parameter types
  as well as its name
• Many languages allow function name overloading
  and a smaller number of them allow operator
  overloading
• Syntactically introduced constraints such as
  precedence and associativity of operators must be
  respected (unless waived)
• Though with tweaks like C prefix operator call
  syntax

4
Coercion and Polymorphism

• Types often are allowed to be converted to other
  types
• E.g., while (ifs gtgt token) // ifstream to bool
• When the complier forces this to happen its
  coercion
• I.e., the type conversion happens implicitly
• Polymorphism lets multiple unconverted types be
  used
• Inheritance polymorphism (E.g., C classes)
• Interface polymorphism (E.g., C templates)
• Both support subtype polymorphism (Liskov
  substitution)
• Explicit parametric polymorphism is called
  generic
• E.g., C templates with specialization

5
Binding of Reference Environments

• Referencing environment depends on the order in
  which declarations are encountered
• When is the context in which a function is
  executed fixed?
• This matters because of nesting of scopes, hiding
  of names, and the ability to pass a function
  (pointer) as a parameter
• Shallow binding is done just before function is
  called
• Deep binding is done when the parameter is first
  passed
• Function/subroutine closures
• Bundle referencing environment with reference to
  subroutine
• E.g., local variable capture list in C11 lambda
  expression
• Object closures
• Similar idea, bundle member variables and
  operator()

6
Todays Studio Exercises

• Well code up ideas from Scott Chapter 3.4-3.8
• Again looking at the semantics of different C
  constructs
• Extending the symbol table from the last studio
• Todays exercises are again in C
• Please take advantage of the on-line reference
  manual pages that are linked on the course web
  site
• As always, please ask us for help as needed
• When done, email your answers to the course
  e-mail account with Semantics Studio II in the
  subject
