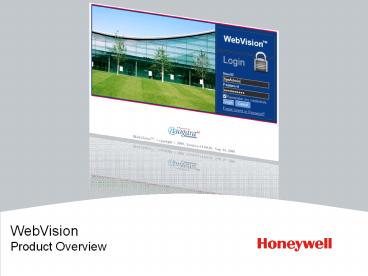

WebVisionProduct Overview
2
Outline

• Introduction
• Portfolio-fit
• Architecture
• Product Specs
• Features Benefits
• Value Proposition
• QA

3
What is WebVision?

• A Web-enabled building manager for monitoring and
  commanding HVAC controllers at a site
• Features include
• Fast simple configuration wizards
• Self discovery of LON devices
• Customizable information to users based on roles
• Combines features of XL15B, LonStation, and
  LonSpec into one system and one device
• Builds on WebStat technology

4
Controller Portfolio

• Networkable Controller for Building Management
• Program Spyders, our fully programmable unitary
  controllers
• Complete control of system configuration -
  graphics, trends, histories
• Integration with several 3rd party devices
• Supports multiple open protocols BACnet,
  ModBus, oBIX,

• Networkable Controller for HVAC
• Configure more Honeywell controllers
• XL 10s, XL15C, VFDs
• Supports LON protocol
• Enhanced graphics, perspectives and user roles
• Reduced programming complexity

• Networkable Controller for Thermostats
• Web-Based Thin Client
• Remote Configuration Override/Local Control
• Alarming
• Scheduling (Advanced)
• Basic Graphics
• Zone Grouping
• Multi-Site Connectivity

Application Requirements Complexity
5
WebVision Network View
Building System Controllers (LON)
6
Product Specs Devices

• 120 LON Field Devices
• Auto-discover and configure Thermostats, Unitary/
  Plant Controllers and Variable Frequency Drivers
• Pre-defined Alarms, Trends Graphics for every
  device type
• Bindings and Point Group supported
• Network time master synchronize with the internet

7
Product Specs Alarms

• 100 user-defined Alarms
• Default alarms for devices are already
  pre-defined and activated on device commissioning
• 10 different alarm priorities for easy filtering
• Maximum limit of 5000 alarm records
• Push alarms via e-mail
• Easy 1-click access from the home screen

8
Product Specs Schedules

• 50 User-defied schedules
• Assign up to 100 devices per schedule
• Support for US and Canadian Holidays

9
Product Specs Trends

• 100 Trends
• Default trends for certain common points on
  devices are already pre-defined NOT enabled on
  device commissioning
• Store up to 1000 samples per trend

10
Product Specs Graphics

• 50 User-defined Graphics
• Location View hide device complexity from
  end-users
• Several levels of hierarchy floors, zones,
  rooms,
• Completely customized User-defined views
• Backgrounds/ floor plans
• Define both commandable and monitoring points

11
Product Specs Advanced Functions

• 50 Demand Limit Control (DLC) Loads
• Multiple devices on every load
• Off-Continuous and Rotating load assignments
• VAV Balancing
• Balancing VAVs built right into the controller
• Min, Max and Zero Balance

12
Product Specs Users

• Four pre-defined roles in the system
• Contractor
• Facility Manager
• Tenant
• Balancer (for VAVs)
• Allows for complete control of access to
  information within WebVision
• Graphics
• Devices
• Alarms
• Schedules

13
Summarizing Features Benefits
Benefits
Product Features

• Develop a complete HVAC/ building automation
  solution for smaller buildings
• Time savings in setup and device configuration
  higher productivity

• Configuration of zone controllers (XL10s, XL15s)
• Easy set-up using existing IP network

• Demand Limit Control (DLC)
• In-built VAV balancing
• Schedule multiple devices for optimal operation

• Energy savings regulatory compliance
• Single place for system management reduces hassle
  costs

• Review system and equipment trend data

• Baseline system performance
• Help in diagnostics and maintenance

• Multiple Views to Controller Data
• Multiple Roles and User Privileges

• Ease of use
• Different levels of access to the system Eg a
  Balancer role

14
Value to Distributor Partners

• Expands customer base
• System for recruiting new Contractors for
  Building Automation
• Less of a systems sale more of a counter sale
• Less selling costs
• Reduced engineering support
• No Programming support needed
• Minimal troubleshooting requests
• Help pursue retrofit opportunities
• Add web interface to existing buildings

15
Value to Contractor Partners

• Expands customer base
• System for less-complex jobs
• Reduced engineering effort and complexity
• No Programming needed
• Minimal troubleshooting
• Pursue retrofit opportunities
• Add web interface to existing buildings
• Integrate current HVAC LON controllers to do
  better monitoring and energy savings

16
Value to End Users

• Simplicity
• System designed for their needs
• User Interface shows only required information
• Customization right information for the right
  people
• Information Accessibility
• Access information from any place with internet
  connection
• Information delivered to a web browser or sent
  via e-mail
• Monitor and save energy
• Demand Limit Control
• Schedules
• Trending, Alarming
