Engineering Judgement

1

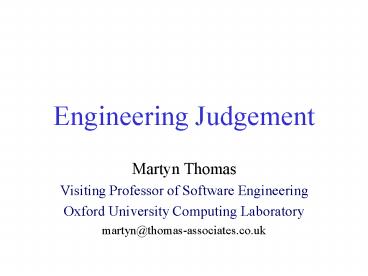

Engineering Judgement

• Martyn Thomas
• Visiting Professor of Software Engineering
• Oxford University Computing Laboratory
• martyn_at_thomas-associates.co.uk

2
Engineering Judgement
When I hear the words engineering judgement I
know they are just going to make up
numbers. Richard Feynman, 1988.
3
The argument in brief

• Almost all safety-related systems have target
  failure probabilities (pfh) below 10-5/hour
• Assuring such a pfh would require evidence that
  is rarely available at the time of certification.
• Assessors therefore rely on their engineering
  judgement. In effect, they make up numbers.
• Accepting that this is inevitable, we need to
  make radical changes in the way we develop and
  maintain systems, and certify them.

4
Safety Integrity LevelsHigh demand
IEC 61508
Even SIL 1 is beyond reasonable assurance by
testing. It would take 10 years under
operational conditions, no failures no
modifications. What sense does it make to attempt
to distinguish single factors of 10 in this way?
Do we really know so much about the effect of
different development methods on product failure
rates? Of course not!
5
What would provide adequate evidence for 10-5 pfh?

• Sufficient operational measurements
• Proof of correct implementation of a correct
  specification
• What do we actually use?
• Testing
• Process-based evidence
• Compliance with standards

6
Sufficient Operational Measurements

• For 10-n pfh, at least 10n hours without unsafe
  failure or modification.
• Such criteria are used for ETOPS certification of
  aircraft engines
• Such an approach is impractical for most
  safety-related transport systems

7
Proof of Correctness

• Proof is an important form of verification. It
  can show that a system meets its specification,
  but provides no absolute information about the
  probability of unsafe failure.
• It is very difficult to prove that all possible
  unsafe system states have been considered.
• Full formal proof is very expensive.

8
What do we actually do?

• Testing
• Process-based evidence
• Compliance with standards

9
Testing

• What can testing tell us?
• If the tests were statistically representative of
  the operation, then sufficient tests would show
  pfh.
• If a mathematical analysis had established
  equivalence classes, then testing a member of
  each class would allow an inductive proof that
  there could be no failures.
• How the system behaves on the tests.
• nothing else ?

10
Process-based evidence

• Good processes do not guarantee safe products
• but poor processes almost guarantee unsafe ones
• Good processes are essential if you need to trust
  their output (eg version control).
• The output from a good process may provide useful
  evidence.
• For example, if you can trust a proof process,
  the proof may tell you something about the
  systems properties

11
Compliance with standards

• The nice thing about standards is that there are
  so many to choose from Andrew Tanenbaum
• Standards result from negotiation in committee,
  often with strong vested interest from industry.
• It would be surprising if they represented best
  practice
• and astonishing if they led to radical
  improvements
• Much effort goes into meeting standards that
  would be better spent improving safety.

12
An aside on SIL 0

• If your safety argument allows the use of
  components with pfh gt 10-5 then IEC 61508 assumes
  that normal industrial software will be good
  enough. That is absurd.
• Little industrial/commercial software has an MTBF
  approaching one year
• nor does it come with a safety analysis, or
  failure history
• I believe that all safety-related software should
  be developed to higher standards than almost all
  industrial software has been to date.

13
An aside about maintenance

• In principle, any system change invalidates all
  the operational history of that system
• unless you can prove that the change has some
  restricted impact (which, typically, you cannot)
• So should all the original assurance activities
  be repeated?
• Obviously, yes. Although some of the outputs may
  be able to be re-used.
• Does this happen? Not in my experience.
• It seems likely that we shall see an increasing
  number of incidents caused by defects introduced
  in maintenance.

14
Safety Assurance the state of practice

• There is insufficient empirical evidence to
  justify even the pfh associated with SIL 1, to
  99 confidence.
• Development methods and tools in common use are
  too informal to support reasoning about
  correctness.
• So most attention is given to process issues and
  conformance with standards, despite the very weak
  causal link with safety.
• We usually get away with it because people are
  very careful and try very hard (and very
  expensively).
• It seems unlikely that this approach will scale
  up.

15

• We are like the barber-surgeons of earlier ages,
  who prided themselves on the sharpness of their
  knives and the speed with which they dispatched
  their duty -- either shaving a beard or
  amputating a limb.
• Imagine the dismay with which they greeted some
  ivory-towered academic who told them that the
  practice of surgery should be based on a long and
  detailed study of human anatomy, on familiarity
  with surgical procedures pioneered by great
  doctors of the past, and that it should be
  carried out only in a strictly controlled
  bug-free environment, far removed from the hair
  and dust of the normal barbers shop. (Professor
  Sir Tony Hoare 1984)

16
A possible future

• Greater rigour with minimal innovation
• Minimal defect construction
• Maintenance as the central activity
• Licensing of independent safety assessors
• New-generation Safe COTS components
• Regulation to drive radical change

17
Greater rigour with minimal innovation

• Our systems are among the most complex ever
  attempted. We must adopt the power of mathematics
  to master that complexity.
• A good scientist is a person with original ideas.
  A good engineer is a person who makes a design
  that works with as few original ideas as
  possible. There are no prima donnas in
  engineering. Freeman Dyson 2001.

18
Minimal defect construction

• Dijkstra observed in 1972 that most of the cost
  in developing software came from the effort
  required to remove the defects.
• Praxis Correct by Construction methods are
  delivering lt0.04 defects/KLoC with a productivity
  of gt25 LoC/person-day.
• That should become the benchmark for professional
  work in safety-related systems. If your methods
  do not deliver such high quality at such low
  costs, change to CbC.

19
Maintenance as the central activity

• A successful system will spend far more time
  being used and maintained than being developed.
• Our development methods and tools, and our
  assessment and certification protocols, should
  focus on safe and cost-effective maintenance.

20
Licensing of independent safety assessors

• Even with far better methods and tools, safety
  assessment and certification will continue to
  depend on judgement.
• We need to enforce standards of competence
  (education, training and experience) for the
  people whom society trusts to take such
  decisions.

21
New-generation Safe COTS components

• Most COTS components have not been developed to
  be highly dependable and do not come with the
  evidence needed to allow adequate safety
  assessment.
• We could redevelop the entire suite of core COTS
  components for a few B.
• This would be a worthwhile focus for
  international engineering collaboration.

22
Conclusion

• Current practices cannot be justified they are
  unsafe and/or too expensive. (Either way, not
  ALARP).
• Radical change must be created progress is too
  slow
• Software engineers need competence in mathematics
  (discrete and continuous) and statistics. Core
  curriculum.
• All safety-related systems should be formally
  specified and developed using fully-defined
  languages supported by powerful static analysis
  tools. Not C or C.
• Safety assessment should be based on the best
  practicable evidence, evaluated by a licensed
  assessor.
• Core COTS components must be re-implemented
  properly - or avoided.
