Exceptions

1

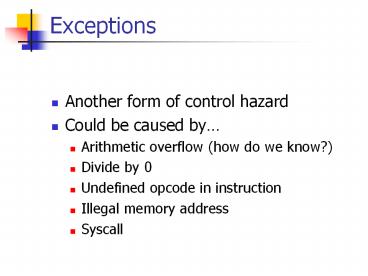

Exceptions

• Another form of control hazard
• Could be caused by
• Arithmetic overflow (how do we know?)
• Divide by 0
• Undefined opcode in instruction
• Illegal memory address
• Syscall

2
Handling an exception

• What the system must do
• Save address of offending instruction
• Transfer control to OS at some address that will
  handle the exception
• OS takes appropriate action
• OS can terminate execution, or continue using the
  address saved in 1.
• How this is done depends on processor
  implementation (datapath, etc.)

3
MIPS support for exceptions

• EPC exception program counter
• contains address of instruction that caused the
  exception
• Cause 32-bit register used to record cause of
  exception.
• mfc0 instruction to put EPC into one of
  general-purpose regs. E.g. mfc0 s1, epc
• so that we can return from exception handler
  using jr.

4
Exceptions in pipelined datapath

• Could have exceptions in different stages
• IF fetching instruction from memory causes page
  fault
• ID illegal opcode
• EX division by 0, overflow
• MEM fetching data causes page fault illegal
  address (protection violation)
• WB no exceptions possible!

5
Exceptions in pipelined datapath

• Say you execute
• lw 1, 4(3)
• add 2, 3, 4 causes overflow!!!
• or 3, 1, 2
• bne 1, 3, L

6
Exception in stage EX
ID
EX
MEM
WB
IF
EPC
Cause
bne 1, 3, L
Instruction memory
Register file
ALU
CLK
SE
PC
Data Memory
0x1240
Overflow detected add 2, 3, 4
or 3, 1, 2
lw 1, 4(3)
We need to continue executing lw, but kill the
add, or, and bne instructions and start
executing the exception handler instead
Clock
1
2
3
4
7
Exception in EX next cycle
ID
EX
MEM
WB
IF
EPC
Cause
exc. instr 1
Instruction memory
Register file
ALU
CLK
SE
PC
Data Memory
address of Interrupt handling routine
nop
nop
nop
lw 1, 4(3)
Clock
Still in pipeline!
1
2
3
4
5
8
Review and summary 1

• Performance
• CPI cycles per instruction.
• Average CPI based on instruction mixes
• Execution time IC CPI C
• Where IC instruction count C clock cycle
  time
• Performance inverse of execution time
• MIPS million instructions per second
• Higher is better
• Amdahls Law

9
Review and summary 2

• Differences between single-cycle, multi-cycle,
  and pipelined datapaths.
• CPI for single-cycle is 1. Inefficient.
• Multicycle instructions take different of
  cycles to execute. CPI is 3,4, or 5 depending on
  instruction type.
• Pipeline fixed CPI 5 , but best throughput and
  performance.
• Multicycle share resources across cycles (e.g.
  have one ALU for everything) not so in single
  cycle and pipeline (e.g. have at least 3 ALUs).

10
Functional units

• Many units used the same in all datapaths
  (single, multi, pipeline)
• - has address of current instr.
• Sign-extend for I-type instructions (e.g.
  addi), takes a 16-bit immediate field from
  instruction and sign-extends it to 32 bits.
• Shift-left-by-2 - used for adjusting
  addresses to be word-aligned.
• Branch address calculation (sign_ext(imm)) ltlt
  2) (PC4)

PC
SE
ltlt 2
11
Controls

• Basic controls for some functional units
• Register file
• Write enable only 1 when writing a register
• Memory
• MemRead want to read data
• MemWrite want to write data (must be off by
  default!)
• ALU
• Operation to be performed
• PC
• PCWrite set to 1 when want to write PC. Only
  exists in multicycle datapath. We write PC on
  every cycle in pipelined/single cycle versions!

12
Controls continued

• Decisions to be made in the datapath (i.e. mux
  controls)
• ALUSrcA, ALUSrcB choose ALU inputs from
• register (read from register file)
• Immediate (sign-extended, zero-extended, etc.)
• Forwarded data (in pipelined design)
• PCSource select between PC4, branch address,
  and jump address
• RegDst select between rd and rt for destination
  register
• MemtoReg in pipeline, select between memory
  output and ALU output to write back to register
  file.
• IorD in multicycle, select whether we use memory
  to read instruction or data.

13
Pipelining
Clock Cycle 1
Clock Cycle 2
Clock Cycle 3
Clock Cycle 4
Clock Cycle 5
Clock Cycle 6
Clock Cycle 7
Time
IM
Reg
DM
instr1
IM
Reg
DM
instr2
IM
Reg
DM
instr3
IM
Reg
DM
instr4
Instructions
14
Pipeline hazards

• Data hazards
• Instruction dependent on another instruction
  still in pipeline.
• E.g. add 1, 2 3 or 3, 1, 1
• Resolve by forwarding and/or stalling
• Structural hazards
• where two instructions at different stages want
  to use the same resource.
• Resolve by adding more hardware
• Control hazards
• Branches, interrupts, exceptions
• Wrong instruction in pipeline following branch,
  because branch address/condition not ready in
  time
• Fixes stall, redesign pipeline, specify delay
  slots, branch prediction
