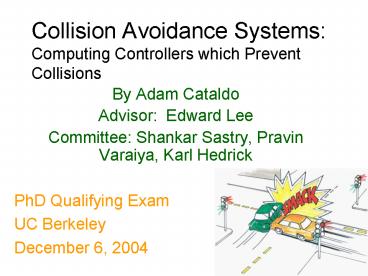

Collision Avoidance Systems: Computing Controllers which Prevent Collisions

1
Collision Avoidance SystemsComputing
Controllers which Prevent Collisions

• By Adam Cataldo
• Advisor Edward Lee
• Committee Shankar Sastry, Pravin Varaiya, Karl
  Hedrick

PhD Qualifying Exam UC Berkeley December 6, 2004
2
Talk Outline

• Motivation and Problem Statement
• Collision Avoidance Background
• Potential Field Methods
• Reachability-Based Methods
• Research Thrusts
• Continuous-Time Methods
• Discrete-Time Methods

3
MotivationSoft Walls

• Enforce no-fly zones using on-board avionics
• A collision occurs if the aircraft enters a
  no-fly zone

4
The Research Question

• For what systems can I compute a collision
  avoidance controller?
• Correct by construction
• Analytic

Control Law, Safe Initial States
System Model, Collision Set
5
Collision Avoidance Problem(Continuous Time)
6
Collision Avoidance Problem(Discrete Time)
7
Potential Field Methods(Rimon Koditschek,
Khatib)

• Provide analytic solutions, derived from a
  virtual potential field
• No disturbance is allowed
• Dynamics must be holonomic

Oussama Khatib Real-time Obstacle Avoidance
for Manipulators and Mobile Robots
8
Reachability-Based Avoidance(Mitchell, Tomlin)
compact
9
Hamilton Jacobi Equation(Mitchell, Tomlin)
10
Computing Safe Control laws(Mitchell, Tomlin)
offline
online
11
Applied to Soft Walls(Masters Report)

• Works for a many systems
• Storage requirements may be prohibitive
• 40 Mb for the Soft Walls example
• Cannot analyze qualitative system behavior under
  numerical control law
• switching surfaces, equilibrium points, etc.

12
Analytic ComputationSoft Walls Example
13
Change of Variables
14
Lyapunov Function
15
A Sufficient Condition(Leitmann)
16
A Sufficient Condition(Leitmann)

• Find a Lyapunov function over an open set
  encircling the collision set which ensures
  against collisions

17
One Possible Extension
18
One Possible Extension
19
Open Questions

• When can we find our control law analytically?
• When can we find the corresponding Lyapunov
  function analytically?
• Can we build up complex models from simple ones?

20
Bisimilarity and Collision Avoidance

• When is the system bisimilar to an finite-state
  transition system (FTS)?
• If the system is bisimilar to an FTS, can I
  compute a control law from a controller on the
  FTS?

unsafe state
disable this transition
21
Example Controllable Linear Systems (Tabuada,
Pappas)
semilinear sets on W
LTL formula
22
The Result(Tabuada, Pappas)

• There exists a bisimilar FTS for observations
  given as semilinear subsets of W
• A feedback strategy k which enforces the LTL
  constraint exists iff a controller for the FTS
  which enforces the constraint exists

23
Bounded Control Inputs

• If we want to extend this for disturbances, we
  will need to be able to bound the control inputs
• Adding states wont work we may lose
  controllability

24
Research Questions

• When we have bounds on the control input, when
  can we find a bisimilar FTS?
• For systems with disturbances, when can we find a
  bisimilar FTS?
• For nonlinear systems with disturbances, when can
  we find a bisimilar FTS?

25
Where is this Going?

• Build a toolkit of collision avoidance methods
• These methods must give correct by construct
  control strategies
• We should be able to analyze the control
  strategies

26
Conclusions

• I plan to develop new collision avoidance methods
• Many approaches to collision avoidance have been
  developed, but methods which produce analytic
  control laws have limited scope
• In the end, we would like to automate controller
  design for problems such as Soft Walls

27
Acknowledgements

• Aaron Ames
• Alex Kurzhanski
• Xiaojun Liu
• Eleftherios Matsikoudis
• Jonathan Sprinkle
• Haiyang Zheng
• Janie Zhou

28
Additional Slides
29
Global Existence and Uniqueness(Sontag)

• Given the initial value problem
• There exists a unique global solution if
• f is measurable in t for fixed x(t)
• f is Lipschitz continuous in x(t) for fixed t
• f bounded by a locally integrable function in t
  for fixed x

30
Potential Functions(Rimon Koditschek)
31
Holonomic Constraints(Murray, Li, Sastry)

• Given k particles, a holonomic constraint is an
  equation
• For m constraints, dynamics depend on n3k-m
  parameters
• Obtain dynamics through Lagrange's equation

32
Information Patterns(Mitchell, Tomlin)

• In computing the unsafe set, we assume the
  disturbance player knows all past and current
  control values (and the initial state)
• The control player knows nothing (except the
  initial state)
• This is conservative
• In computing a control law, we assume the control
  player will at least know the current state

33
Relation to Isaacs Equation

• Isaacs Equation
• W(t,p) gives the optimal cost at time t
• (terminal value only)

34
Relation to Isaacs Equation

• Isaacs Equation
• The min with 0 term gives the minimum cost over
  t,0

35
Viscosity Solutions(Crandall, Evans, Lions)
36
Convergence of V

• At each p, V can only decrease as t decreases
• If g bounded below, then V converges as
• It may be the case that all values are negative,
  that is, no safe states

37
Applying Optimal ControlSoft Walls Example
safe
unsafe
38
Lyapunov-Like Condition(Leitmann)

• Given a C1 Lyapunov function V??S??, A is
  avoidable under control law k if
• Note that this can be generalized when V is
  piecewise C1

39
Lyapunov-Like Condition(Leitmann)

• Let Yi be a countable partition of ??S, and let
  Wi be a collection of open supersets of Yi,
  that is, Wi?Yi

40
Lyapunov-Like Condition(Leitmann)

• Given a continuous Lyapunov function VS??, A is
  avoidable under control k if

41
Transition System
42
Bisimulation
43
Linear Temporal Logic (LTL)

• Given a set P of predicates, the following are
  LTL formula

44
Semilinear Sets

• The complement, finite intersection, finite
  union, or of semilinear sets is a semilinear set
• The following are semilinear sets

45
Computing Safe Control Laws(Tabuada, Pappas)
LTL Formula
Buchi Automaton
Hybrid, Discrete-Time State-Feedback Control Law
Finite-State Supervisor
Finite Transition System
Discrete-Time System
